From the supplier

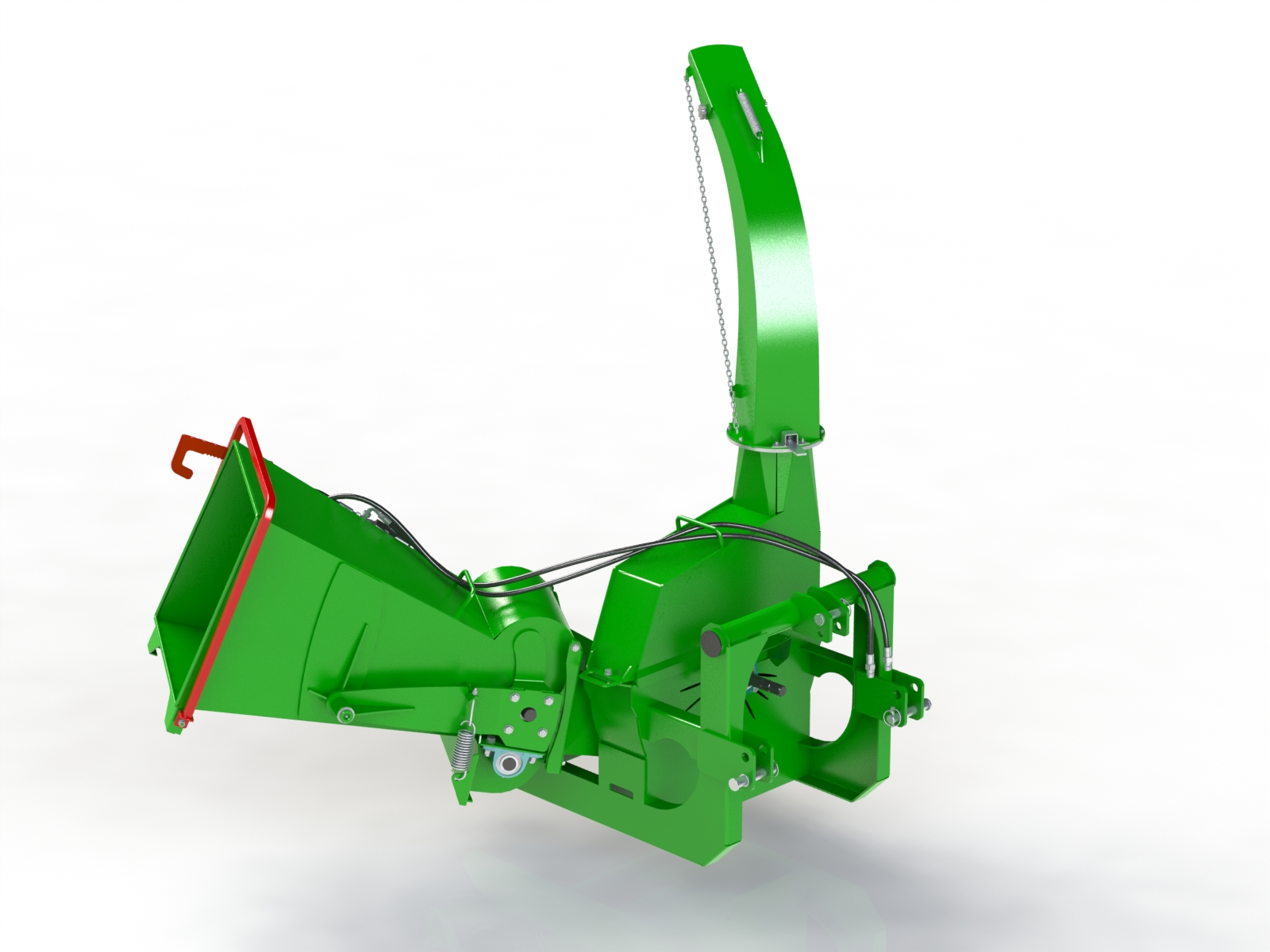

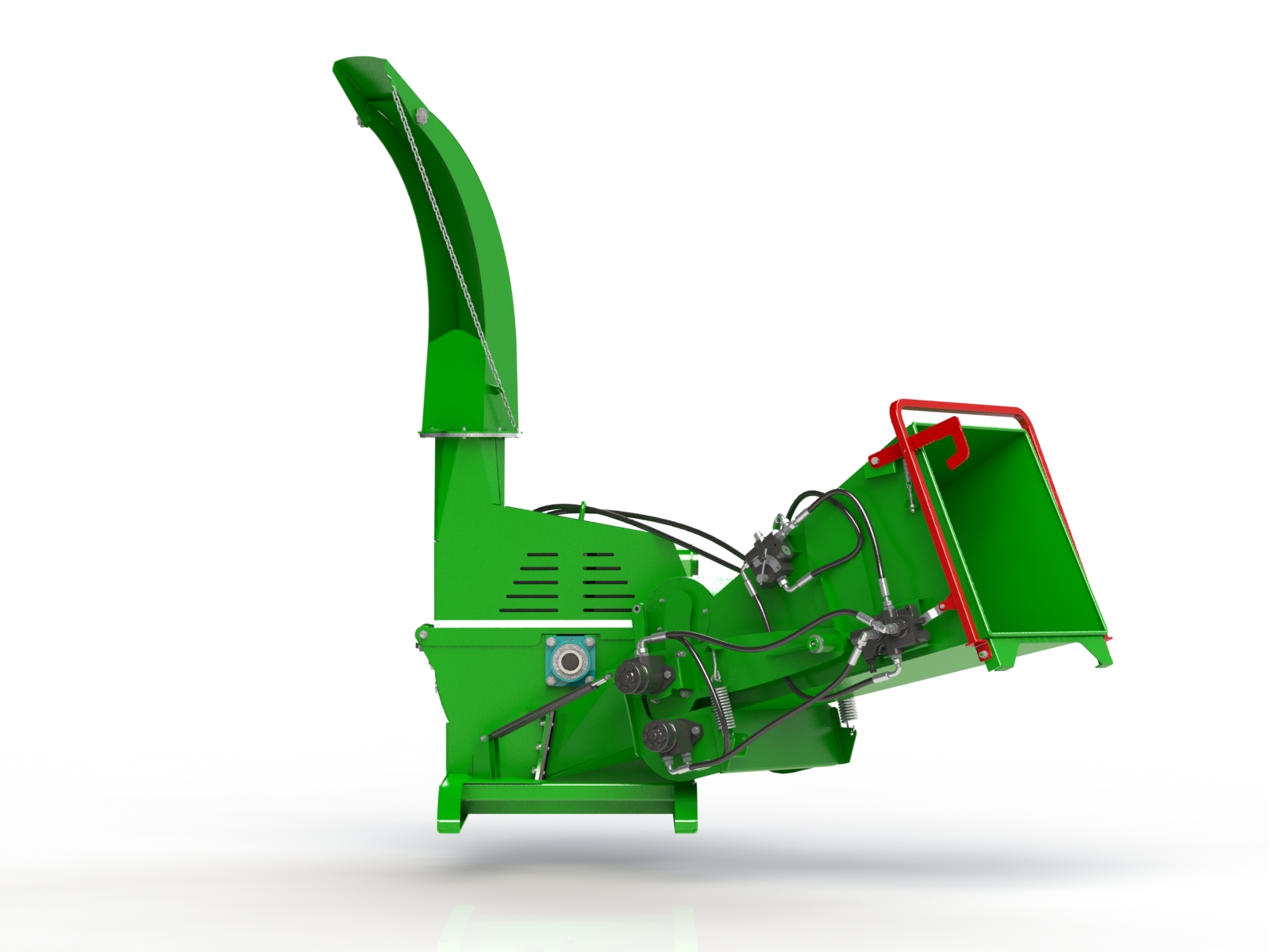

The BX-92RS and BX-62RS. Working with this unit is a true delight thanks to its hydraulic feed system. With this model, feeding and pushing etc. are a thing of the past; the 2 large feed rollers take care of this themselves. The speed of the feed rollers can be continuously adjusted. This is important so that the feed speed can be adjusted to fit the diameter of the material to be shredded. Smaller diameters can be fed faster than larger diameters. In the event that the feeder should become blocked, the feed can be set into reverse using the large handle on the hopper. Furthermore, the feed can be switched off using this handle. The unit is powered via the tractor’s hydraulics; a pressurised supply line and an unpressurised return line are required or alternatively a double-acting control unit is required.
The hopper can be folded upward with ease for transport and is secured using a cotter pin. In order to make folding upward easier, the chipper has 2 shock absorbers.
The unit has been constructed in a very maintenance-friendly way; you can open the flywheel cover completely by unscrewing just one screw, giving you access to the 4 cutting blades. These cutting blades are double-sided, so that they can be turned around if required. The flywheel has a net-weight of 125 kg and has fitted wings, which produces the incredibly powerful suction which ultimately expels the chippings out of the chute. Thanks to this powerful suction, a blockage of the shredding unit is virtually impossible.
The shredder has been conceived to be attached to 3 point linkage and can be used from Cat. I.
BX62RS Technical specifications:
- Tractor power: min. 30 HP
- Mounting: 3 point linkage from Cat. I upward
- P.T.O: Included in delivery
- Number of blades: 4 blades, 1 counter blade
- Flywheel diameter: 76 cm
- Feed: hydraulic (via tractor hydraulic system)
- Dimensions: 127x132x188 cm (hopper 220 cm)
- Measurements of packaging: 1 pallet 120x100x127 cm + 1 pallet 120x90x95 cm
- Weight w/ Packaging: 515 kg
- Weight: approx. 480 kg
BX92RS Technical specifications:
- Tractor power: min. 50 HP
- Mounting: 3 point linkage from Cat. I upward
- P.T.O: included in delivery
- Number of blades: 4 blades, 1 counter blade
- Flywheel diameter: 91,5 cm
- Feed: hydraulic (via tractor hydraulic system)
- Dimensions: 167x173x229 cm
- Measurements of packaging: 1 pallet 120x110x137 cm + 1 pallet 120x90x95 cm
- Weight with Packaging: 675 kg
Weight: 645 kg
