Features

Application

1. Low start-up flow rate.

2. Volumetric rotary piston principle of measurement.

3. LXHY-15~20 is no location limitation for

installation.Accuracy is not to be affected wherever installed at a horizontal,vertical or inclined pipeline.

4. Register is sealed with a special liquid to keep a clear reading in long terrm service.

5. Mechanism use of high-quality rmaterial to ensure a stable characteristic.

6. Accurate measurement with conformity to lSo 4064 class c.

7. on request,the series can be equipped with a

kind of remote transmission device.

Measuring the volume of cold portable water

passing through the pipeline.Also suitable for pure

water.

Warranty

- Water temperature:0.1℃~50℃C for cold water

meter.

.0.1℃~90℃ for hot water meter.

.Water pressure : s1.6Mpa (16 bar).

Operating Condition

-The Max.Admissible water pressure 1.6MPa.

-Resisting water temperature: 50℃.

Dial Picture Measure Unit Measure Unit: CBM
8 WHEELS
Four red, four white wheel.
The minimum reading: 1L Measure Unit: CBM
8 WHEELS
Three red,five white wheel.
The minimum reading: 1OL Measure Unit:UK Gallon
8 WHEELS
One red,seven white wheel
The minimum reading: 1 UK/Gallon Measure Unit:UK Gallon
8 WHEELS
All white wheel
The minimum reading: 10 UK Gallon Measure Unit:US Gallon
8 WHEELS
One red,three black,four white wheel
The minimum reading: 1 US Gallon

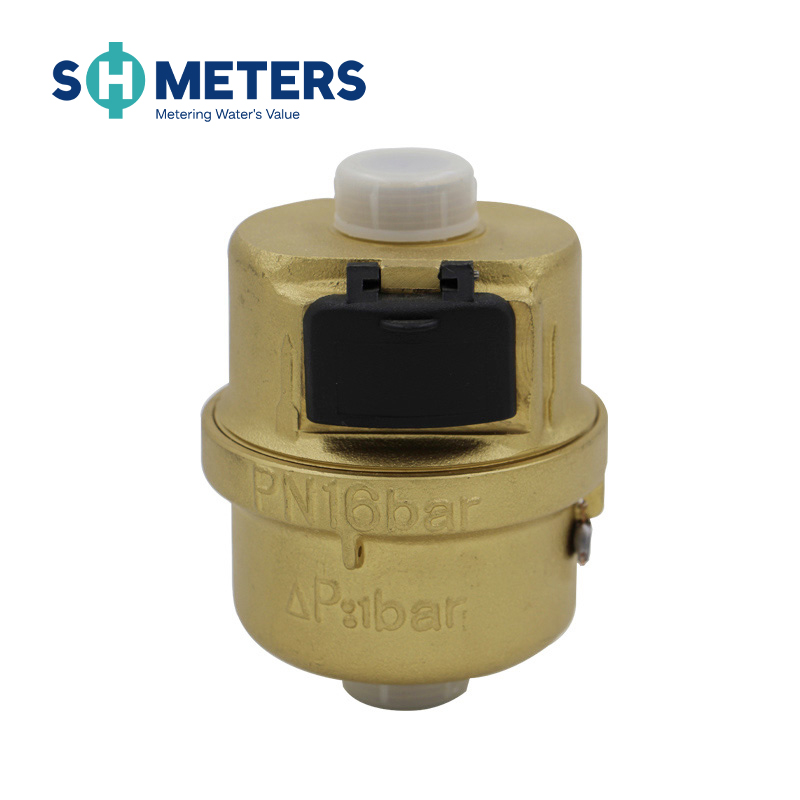

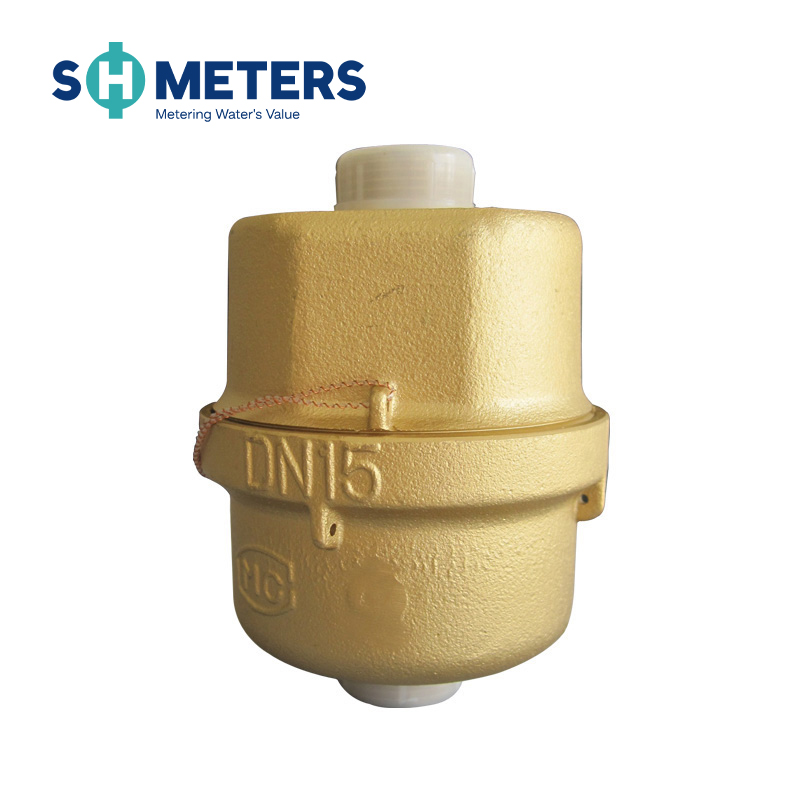

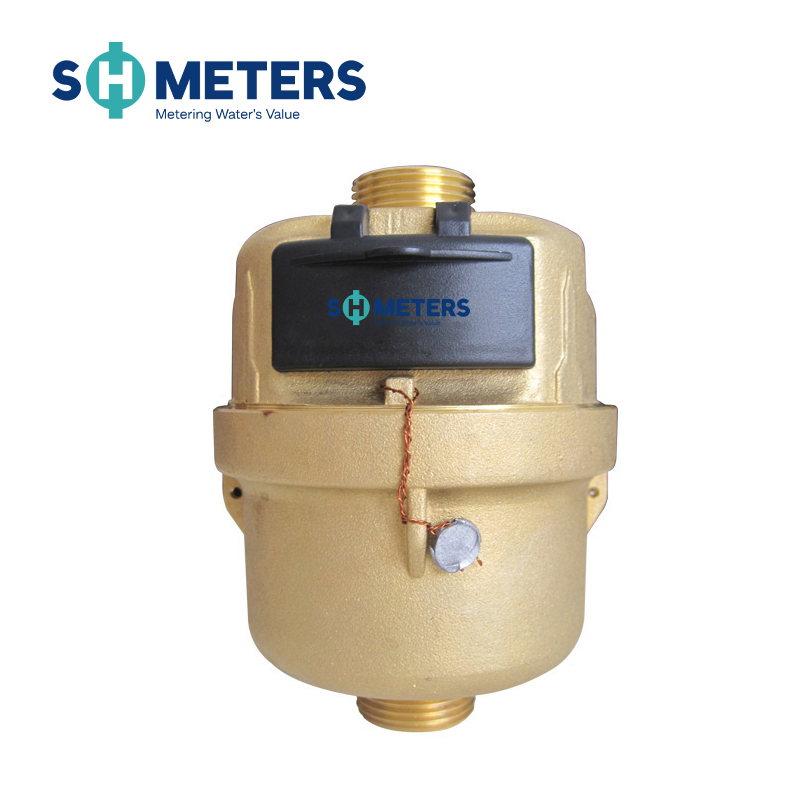

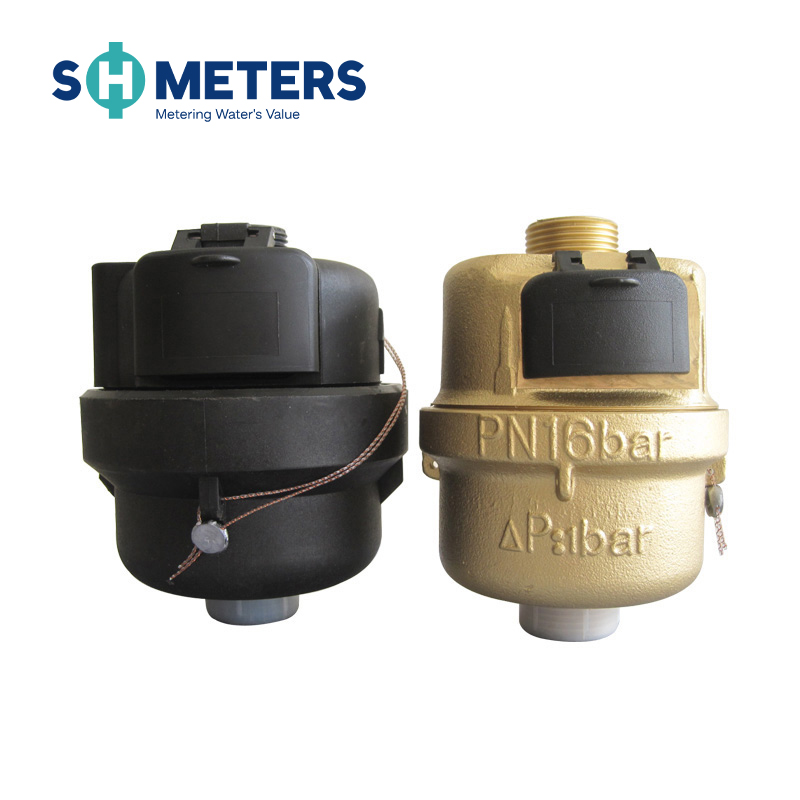

• Body material: Brass body /Plastic body.
• Size: Plastic body: DN15-20;Brass body: DN15-40.
• Different register can be choose
