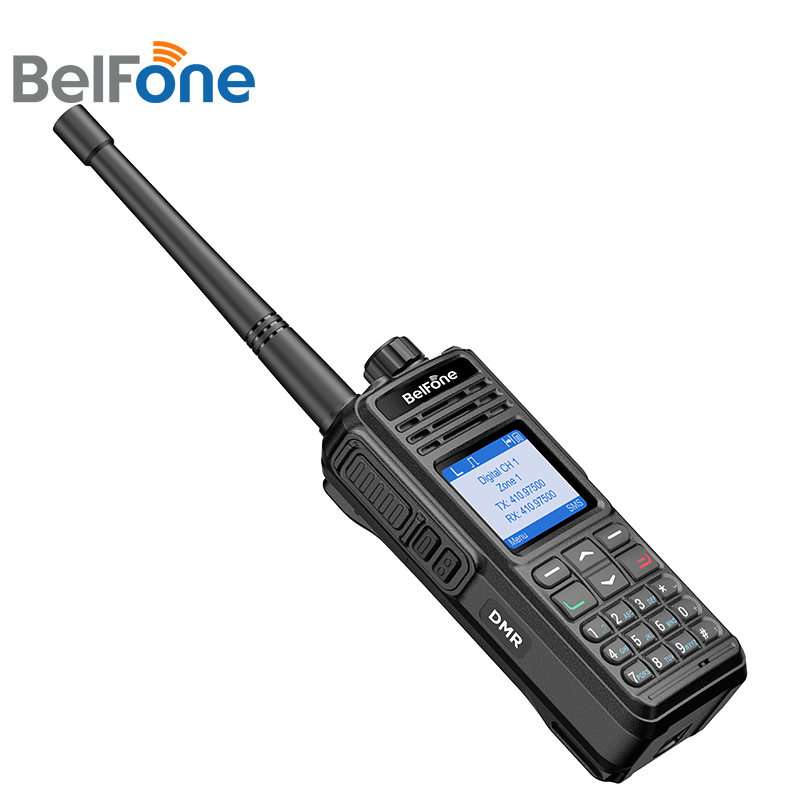

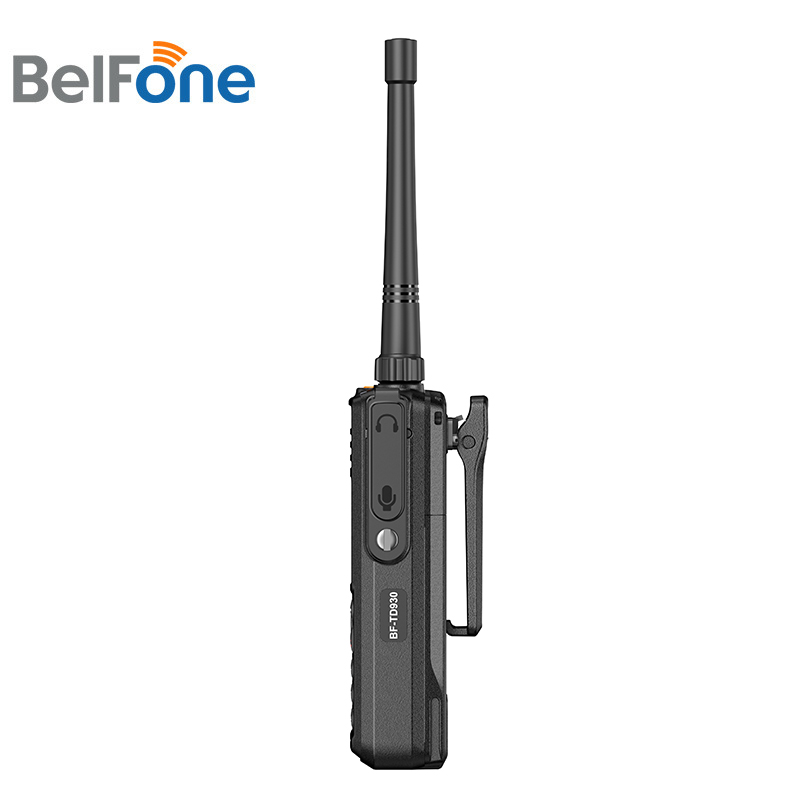

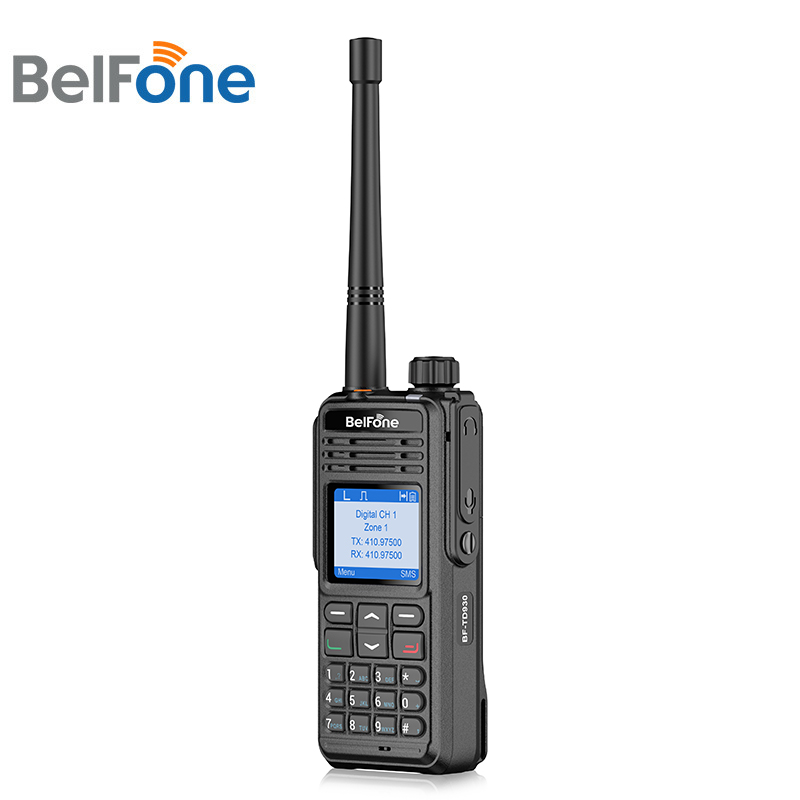

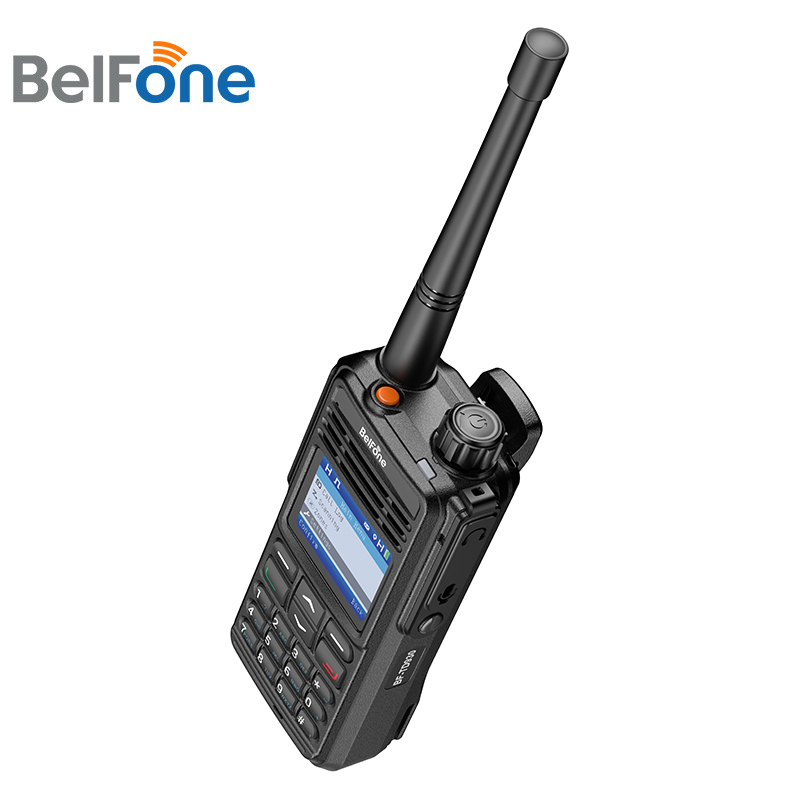

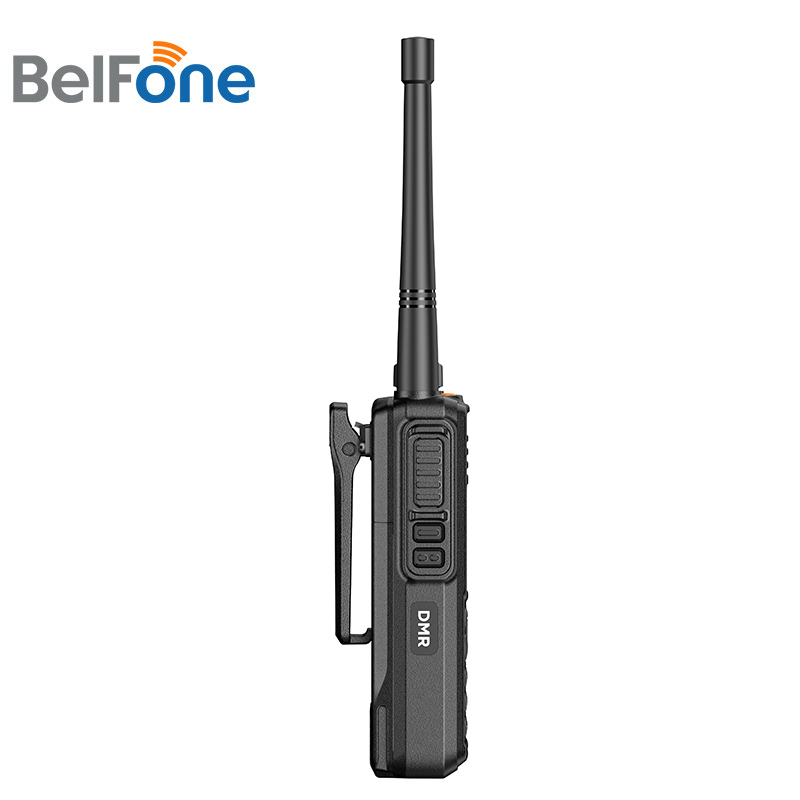

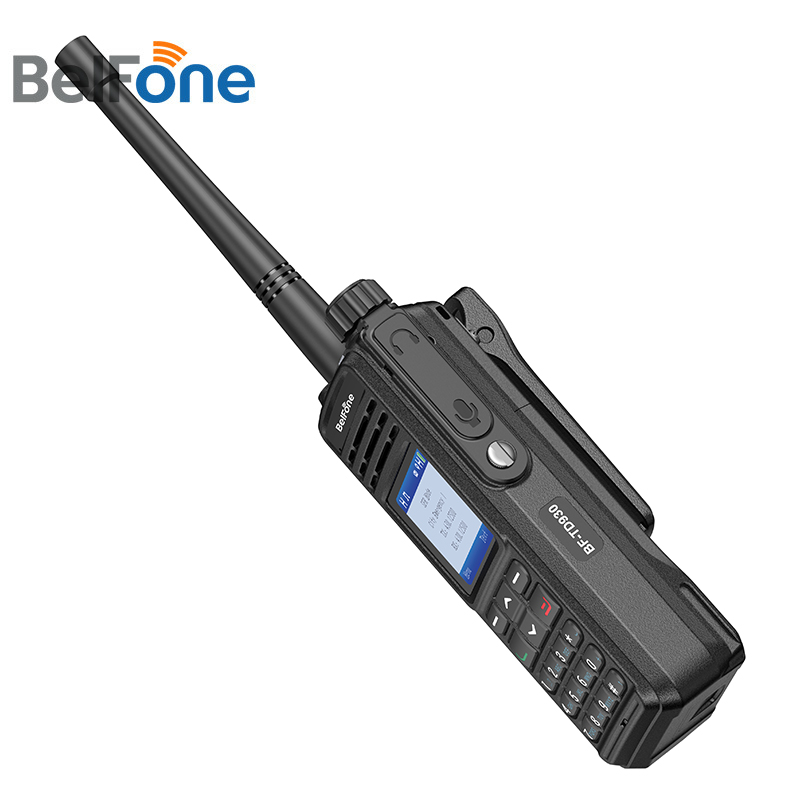

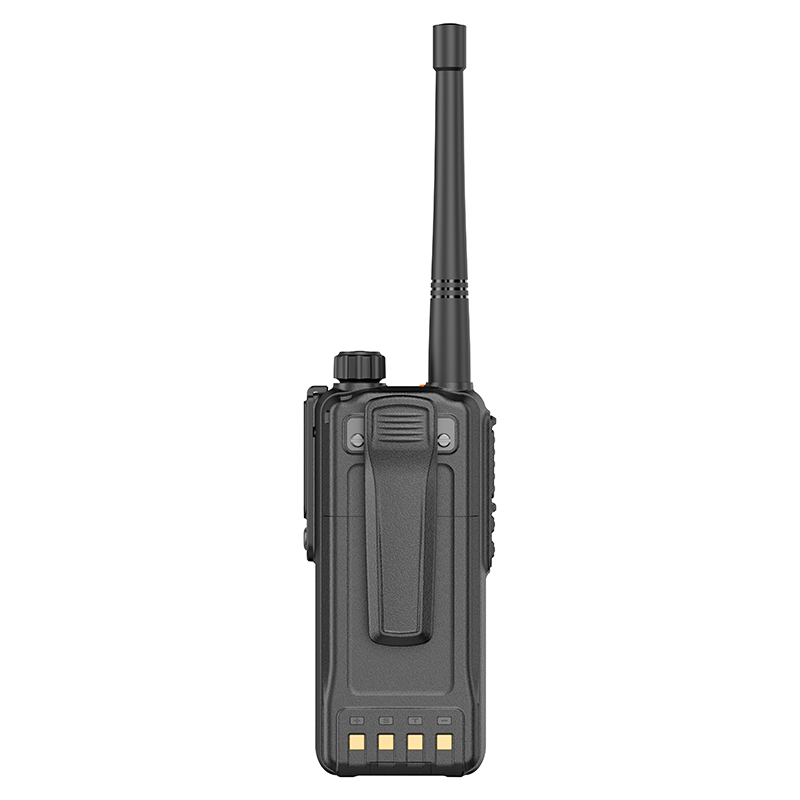

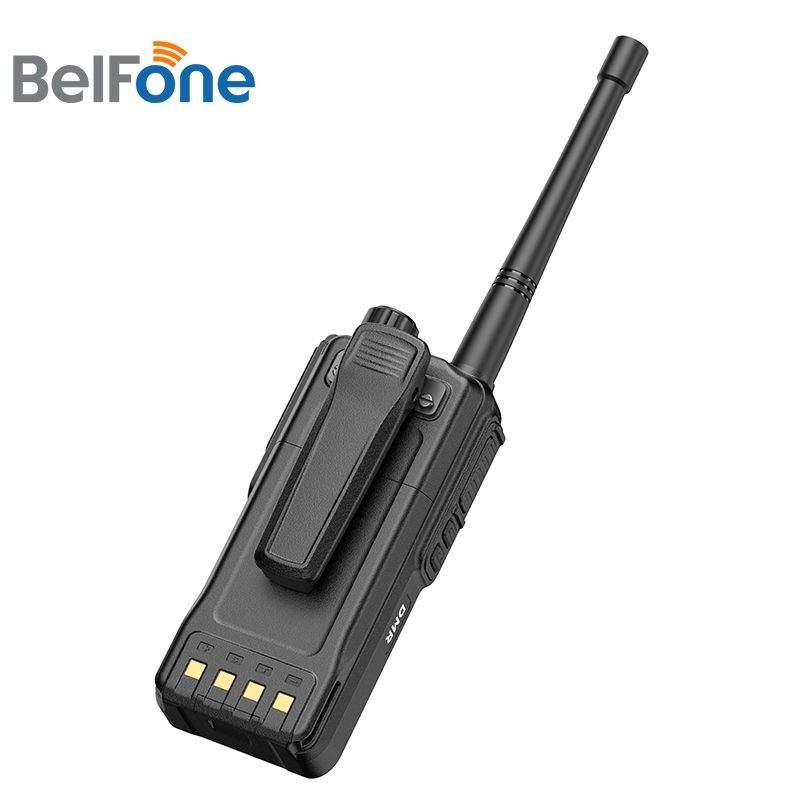

BF-TD930 is an upmarket digital two-way radio which incorporates such advanced features as Full Duplex Calls, Pseudo Trunk, IP68 Protection, ARC4& AES256 Encryptions, GPS Positioning, Mandown, Lone Worker, and Emergency Alert, delivering a most advanced and rich DMR radio communication experience. Moreover, BF-TD930 can work as a system portable terminal within both SDC and BTX systems. This safe and versatile radio is designed to benefit users from fields ranging from commercial users to public securities.

DMO Pseudo Trunk

The user can choose slot 1 or slot 2 for communications. When one slot is occupied the radio will automatically switch into the free slot. Frequency efficiency is greatly increased.

Full Duplex Calls

BF-TD930 incorporates full duplex calling technology to allow both parties to talk at the same time, which greatly facilitates the exchange of crucial information and increases communication efficiency.

GPS Positioning

With better accuracy and precision, the built-in GPS enables the commander to locate and track his team members. This contributes a lot to personnel management and also promotes command and dispatch work as it equips the commander with clear location awareness.

Personnel Safety

Mandown: If some worker slips or falls, the mandown function will automatically activate and transmit a signal to other radios for help. Built-in Lone Worker,and Emergency alarms are also available in case of any accident.

Handheld/SFR Dual Modes

BF-TD930 can also function as a single frequency repeater, allocating one timeslot to receive and the other to transmit at the same frequency and using DMO mode to further extend radio coverage. One single device serves two purposes.

IP68 Protection

IP68 certified BF-TD930 is a tough radio designed to brave the challenges of harsh environments. So, environmental factors are one less thing to worry about.

Automatic Roaming

BF-TD930 automatically roams among all sites in the network and always stays connected. This delivers more efficiency and flexibility to your radio communications.

Advanced Encryption with RAC4& AES256

The RAC4& AES256 encryption technology keeps your communications safe and private, optimizing your information safe.

Specifications

General Frequency Range VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz Channels 1024 Zones 128 Channel Spacing 12.5KHz/ 25KHz Working Voltage DC7.4V (±20％) Frequency Stability ±0.5ppm Antenna Impedance 50Ω Battery Capacity 2300mAh (3350mAh optional) Battery Average Working Time 2300mAh battery: Digital 21 hours, Analog 16 hours; 3350mAh battery: Digital 30 hours, Analog 23 hours Dimension 56(L)* 33(W)* 129(H) mm Weight 315g (including battery) Transmitter Power Output High power: 4W/U band; 5W/V band; Low power: 1W 4FSK Modulation 12.5KHz data only: 7K60FXD;12.5KHz data and voice: 7K60FXE FM Modulation 12.5KHz: 8K50F3E; 25KHz: 16KφF3E Modulation Limitation ±2.5KHz @ 12.5KHz; ±5KHz @ 25KHz FM Noise 40dB Spurious Emission -36 dBm≤1GHz; -30 dBm≥1GHz Adjacent Channel Power ≤-60dB Frequency Response +1/-3dB Vocoder AMBE++ Audio Distortion ≤5% Receiver Digital Sensitivity 5% BER: 0.25μV Analog Sensitivity 0.25uV (12 dB SINAD) Intermodulation 65dB Adjacent Channel Selectivity 60dB @ 12.5kHz; 70dB @ 25kHz Spurious Suppression 70dB FM Noise 40dB @ 12.5kHz; 45dB @ 25kHz Frequency Response +1/-3 dB Audio Power 0.5W (8Ω load) Audio Distortion ≤5% Conduction Radiation -57dBm GPS Precision Horizontal Accuracy ≤10m (with good signal) TTFF (first location) Cold Boot ＜1 minutes (with good signal) TTFF (first location) Hot Boot ＜10 seconds (with good signal) Environmental Specifications Operating Temperature -30℃~+60℃ Storage Temperature -40℃~+85℃ Water Proof IP68 Shock & Vibration MIL-STD-810C/D/E/F
