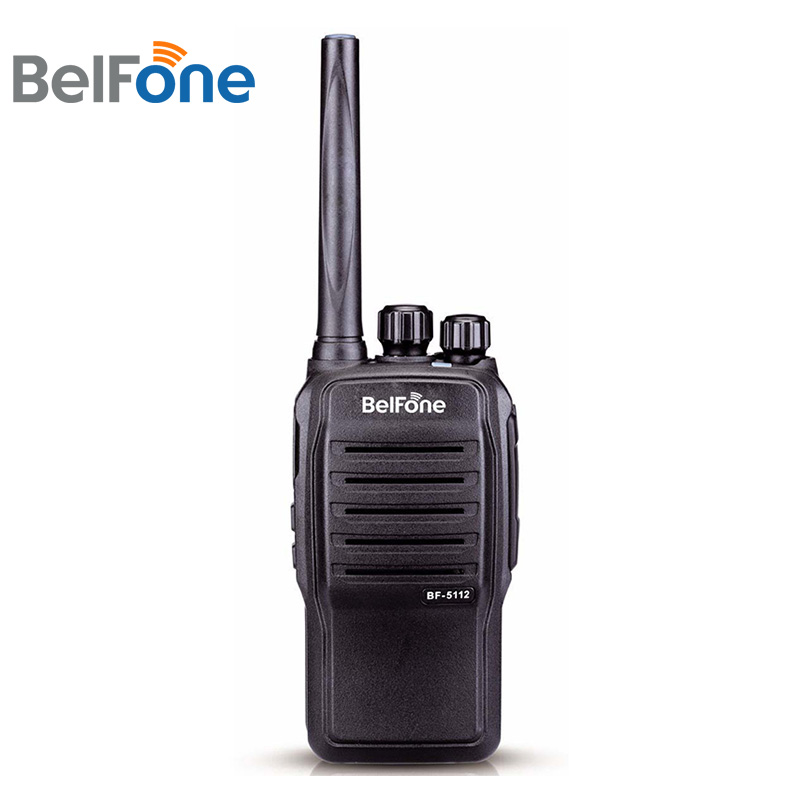

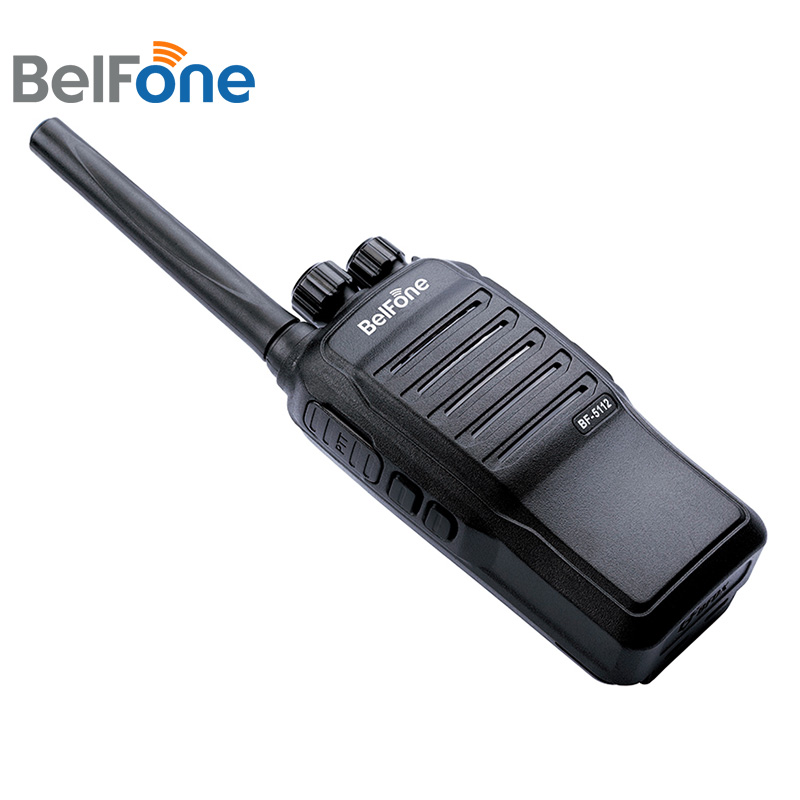

BF-5112 is a cost-effective analog two-way radio with a compact and rough design to guarantee durability of performance. With a comprehensive set of analog features and a long-lasting battery life, our BF-5112 is built to satisfy all the conventional communication needs for small businesses and amateur users.

VOX

This function helps you to enjoy hand-free operation. You can transmit via your voice while your hands are doing more important things. (It needs to be used with a paired earpiece.)

Channel Announcement

When the user is switching channels using the channel knob, the radio will announce the current channel number. The user can choose either Chinese or English announcements, or he can turn off this feature if he doesn’t need it.

Monitor

The user can use this feature to pick up weak signals on a channel. When there is no radio signals on the current channel, the user can adjust the radio volume according to the volume of the background noise.

Squelch Levels (0-9)

This feature helps to reduce background noise and deliver a clearer audio. The user can set the squelch level according to his communication needs.

Scan

This enables the user to scan all the radio communications on the preset channels. The user can stop at any channel he wants. Only preset channels can be scanned.

TOT (Timeout Timer)

This can effectively prevent a channel from being unnecessarily occupied by mis-operation. The user can set a timeout for each transmission (10-300 seconds). When time is out, the transmitting will automatically stop and a warning tone will go off.

Programmable Bandwidth

BF-5112 is both wide (25 kHz) and narrow (12.5 kHz) bands ready. The user can set the bandwidth via the PC programming software according to his communication needs.

Busy Channel Lockout (BCL)

When activated, this feature prevents the radio from receiving unauthorized signals or transmitting signals to busy channels. So channels can be kept from unnecessary interference.

CTCSS/CDCSS/STE

This also helps to keep out unwanted signals and deliver more channel clarity and efficiency.

Specifications

General Frequency range 350-390MHz 400-470MHz Channels 16 Channel spacing 25KHz(width)/12.5KHz(narrow) Working temperature -20℃to +60℃ Antenna impedance 50Ω Operating voltage 7.4V DC (±20%) Battery capacity 2200mAh(Li-ion) Frequency stability ±2.5ppm Dimension 60(L)×36(W)×123(H)mm Weight 242g(including battery pack) Transmitter Output power ≤ 5W Modulation 16K ￠F3E(width) 8K￠F3E(narrow) Noise and harmonic ≤-36dBm FM noise ≤-40 dB Rated audio distortion 0.05 Adjacent power ≥65 dB(wide)/55 dB(narrow) Modulation limitation ≤5KHz(wide) /2.5KHz(narrow) Receiver Sensitivity ≤0.165uV(width)/ 0.2uV(narrow) Adjacent selectivity ≥60dB(width)/ 50dB(narrow) Intermodulation rejection ratio ≥60dB(width)/ 50dB(narrow) Spurious suppression ≥60dB(width)/ 50dB(narrow) SNR ≥45dB(width)/ 40dB(narrow) Rated audio output power 500 mW Rated audio distortion ≤5%
