I. Introduction of Neopor EPS of structural insulated panels:

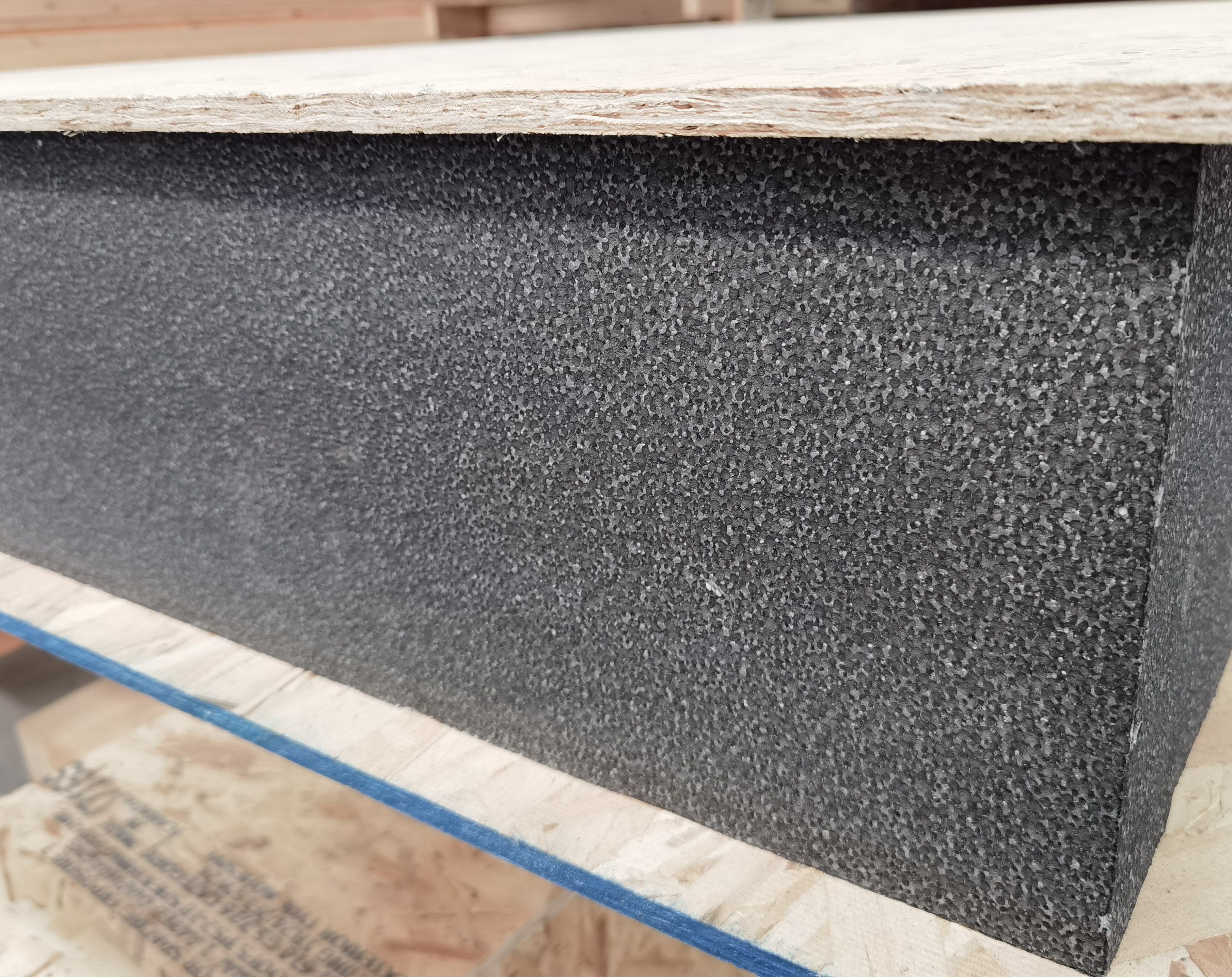

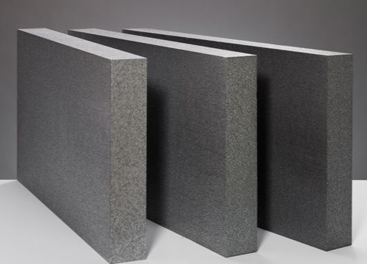

BASF Neopor EPS is a graphite polystyrene rigid foam insulation which is comprised of many small pockets of air within a polymer matrix containing graphite, this gives Neopor foam a distinct silver-grey color.

The graphite reflects radiant heat energy like a mirror, increasing the material's resistance to the flow of heat, or R-value. Unlike most other polymer-based foams that block the exchange of heat better with increasing outdoor temperature, Neopor EPS powers up its thermal resistance as the outdoor temperature falls and boosts its insulating performance up to 20% above conventional EPS.

II. Advantages of Neopor EPS -- S.M.A.R.T. insulation:

Stability and Durability
Neopor EPS is adaptable in size, thickness, shape and density, providing maximum flexibility and durability. And, Neopor EPS is stable as it consistently delivers the highest true R-value performance over time.
Moisture-management
Neopor EPS is a breathable and semi-permeable high performance insulation, it does not contain cellulose or organic matter and does not rot or support mold growth, which helps reduce the risk of mold, rot and structural damage associated with moisture condensation and long-term water retention.
Adaptable to all climate zones
Neopor EPS powers up when it gets cold outside. Insulating external walls with Neopor EPS increases the temperature

of their inside surfaces which helps create a better indoor climate.
Resource-efficient
Neopor EPS uses up to 30% less material than other rigid foam insulation to achieve the same R-value, saving on building materials and installation labor.
Third-party validated and certified
Neopor EPS earned GREENGUARD Gold Certification and has been referenced by both The Collaborative for High Performance Schools (CHPS) and the Leadership in Energy and Environmental Design (LEED) Building Rating System.

III. Technical Data of Neopor

Comparison of Insulation value of OSB facing sandwish panels with white EPS and BASF Neopor core

Osb Insulated Sandwich Panel with Neopor GPS insulating core therefore represent a modern, environmentally aware lifestyle.

More Material & Labor savings

As Neopor EPS uses up to 30% less material than other rigid foam insulation to achieve the same R-value, it means we can use thinner SIPs to reach the same goal on insulation performance compare with traditional EPS core of OSB facing sandwish panels, then building materials and installation labor can be further saved.

Short payback period

The payback periods for the additional costs amount to just a few years, depending

on the building type. The higher the energy costs, the shorter the calculation periods. With the efficient high-performance insulation material Neopor, the potential savings of structural insulated panels house increase accordingly.
