AYA White Pan Head Self-Tapping Screws
AYA Fasteners (Hebei) Co., Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
AYA White Pan Head Self-Tapping Screws
AYA Fasteners (Hebei) Co., Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Carbon Steel
- Size: Full Size Available
- Color: Sliver, Black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: Carbon Steel
- Size: Full Size Available
- Color: Sliver, Black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | Carbon Steel |
|---|---|
| Size | Full Size Available |
| Color | Sliver, Black |
Product details
| Materials | Carbon Steel |
|---|---|
| Size | Full Size Available |
| Color | Sliver, Black |
From the supplier
As a global supplier of customized fastening solutions, AYA's senvice process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION

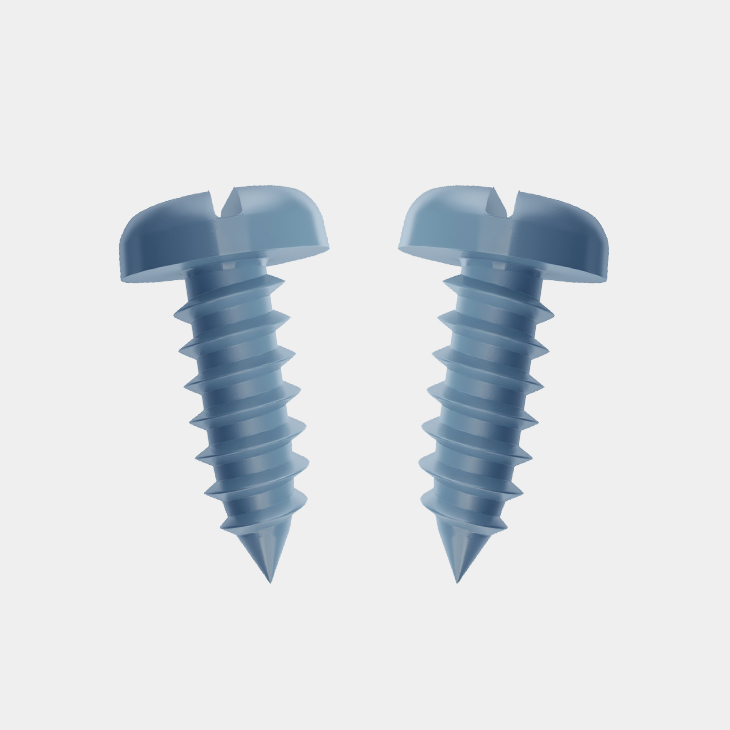

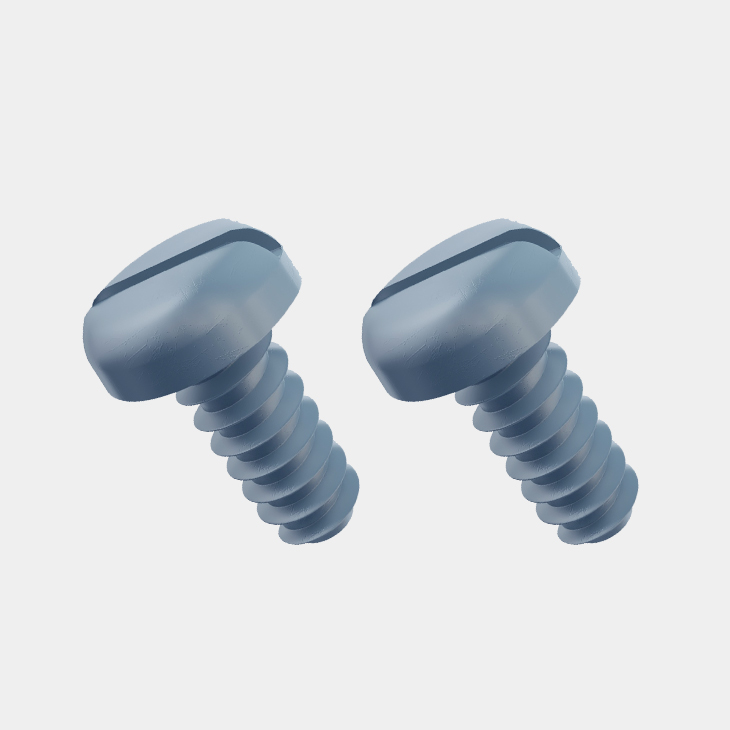

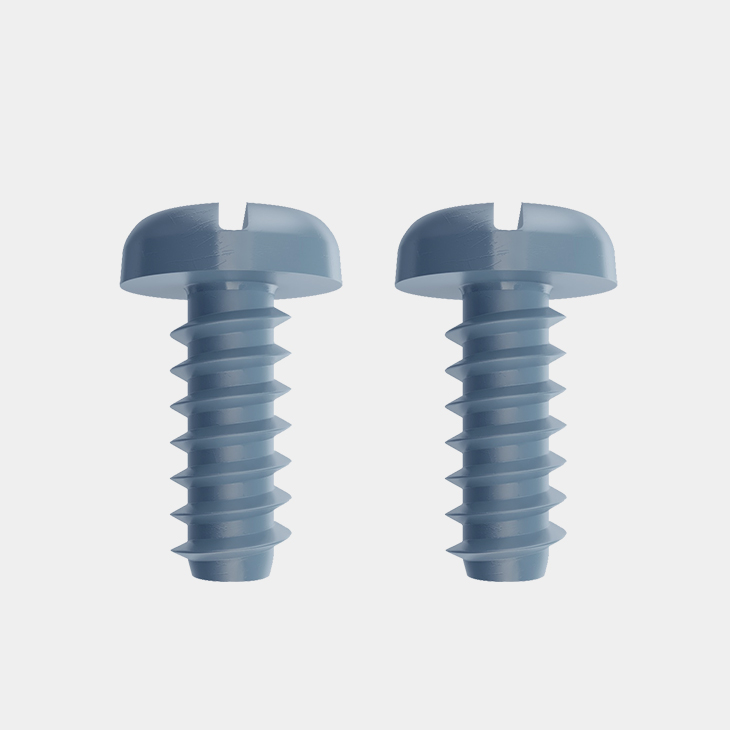

Commodity:AYA White Pan Head Self Tapping Screws
Brand: AYA®
Standard: DIN 7971
Alternative Standard: ISO 1481, ANSI/ASME B 18.6.3, ASME B 18.6.4, ASME B 18.6.5M, JIS B 1115 (P)
Thread Type: Self-Tapping Screw Thread
Material: Carbon Steel
Property Class: A
Form/Shape Of Tip: C
Diameter: Full-Size Available
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Pan Head
Drive Type: Internal Slot
MOQ: 1000kgs
Lead Time: 30 to 60 days
DIMENSION TABLES
Thread Size ST2.2 ST2.9 ST3.5 (ST3.9) ST4.2 ST4.8 ST5.5 ST6.3 P Pitch 0.8 1.1 1.3 1.3 1.4 1.6 1.8 1.8 a max 0.8 1.1 1.3 1.3 1.4 1.6 1.8 1.8 dk max=nominal size 4.2 5.6 6.9 7.5 8.2 9.5 10.8 12.5 min 3.9 5.3 6.54 7.14 7.84 9.14 10.37 12.07 k max=nominal size 1.35 1.75 2.1 2.25 2.45 2.8 3.2 3.65 min 1.15 1.5 1.85 2 2.15 2.5 2.85 3.3 n Nominal Size 0.6 0.8 1 1 1.2 1.2 1.6 1.6 min 0.66 0.86 1.06 1.06 1.26 1.26 1.66 1.66 max 0.8 1 1.2 1.2 1.51 1.51 1.91 1.91 t min 0.55 0.75 0.95 1.05 1.15 1.35 1.55 1.8 max 0.8 1 1.25 1.4 1.5 1.7 1.95 2.2 y max Type C 2 2.6 3.2 3.5 3.7 4.3 5 6 Type F 1.6 2.1 2.5 2.7 2.8 3.2 3.6 3.6
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Pan Head Self Tapping Screws
1. Slotted pan head self-tapping screws are common and versatile, making installation simple.
2. Self-tapping pan head metal screws allow high torque during assembly.
3. A flat or slightly domed head shape provides a decorative effect for decorative applications.
4. Pan head self-tapping screws can be used in places where the thickness of the material is not sufficient and is not suitable for hexagon head screws.
5. Slotted pan head self-tapping screws work well in light-duty applications.
QUALITY INSPECTION
1. The QC inspectors are well experienced in product knowledge as well as manufacturing techniques. Special instruments are applied to conduct multiple tests to ensure that the final products could meet the requirements of the market and customers.
2. Experienced QC staff can provide customers with accurate quality inspection reports.
3. Final product inspection is a key point. AYA has a complete sampling check system for this important task and each detail will be fully inspected.
PACKAGING & CONTAINER LOADING
1. Mature warehousing and logistics systems and digital tools make the goods delivery highly efficient.
2. Automated packing lines improve the quality and speed of the packaging work.
3. AYA has always attached great importance to the R&D of the packaging to improve the appearance as well as the durability in the process of shipment.
4. Packaging is important for product preservation as well as safety. AYA has constantly developed new solutions to keep products intact during the shipment process.
USAGE SCENARIOS
Contact AYA
From the supplier
As a global supplier of customized fastening solutions, AYA's senvice process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
Commodity:AYA White Pan Head Self Tapping Screws
Brand: AYA®
Standard: DIN 7971
Alternative Standard: ISO 1481, ANSI/ASME B 18.6.3, ASME B 18.6.4, ASME B 18.6.5M, JIS B 1115 (P)
Thread Type: Self-Tapping Screw Thread
Material: Carbon Steel
Property Class: A
Form/Shape Of Tip: C
Diameter: Full-Size Available
Finish: Plain, Black Oxide, Zinc Plated, Hot Dipped Galvanized, Oxidation, Dacromet, Phosphating, Cadmium Electroplate, Nickel Plated
Head Type: Pan Head
Drive Type: Internal Slot
MOQ: 1000kgs
Lead Time: 30 to 60 days
DIMENSION TABLES
Thread Size ST2.2 ST2.9 ST3.5 (ST3.9) ST4.2 ST4.8 ST5.5 ST6.3 P Pitch 0.8 1.1 1.3 1.3 1.4 1.6 1.8 1.8 a max 0.8 1.1 1.3 1.3 1.4 1.6 1.8 1.8 dk max=nominal size 4.2 5.6 6.9 7.5 8.2 9.5 10.8 12.5 min 3.9 5.3 6.54 7.14 7.84 9.14 10.37 12.07 k max=nominal size 1.35 1.75 2.1 2.25 2.45 2.8 3.2 3.65 min 1.15 1.5 1.85 2 2.15 2.5 2.85 3.3 n Nominal Size 0.6 0.8 1 1 1.2 1.2 1.6 1.6 min 0.66 0.86 1.06 1.06 1.26 1.26 1.66 1.66 max 0.8 1 1.2 1.2 1.51 1.51 1.91 1.91 t min 0.55 0.75 0.95 1.05 1.15 1.35 1.55 1.8 max 0.8 1 1.25 1.4 1.5 1.7 1.95 2.2 y max Type C 2 2.6 3.2 3.5 3.7 4.3 5 6 Type F 1.6 2.1 2.5 2.7 2.8 3.2 3.6 3.6
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF Pan Head Self Tapping Screws
1. Slotted pan head self-tapping screws are common and versatile, making installation simple.
2. Self-tapping pan head metal screws allow high torque during assembly.
3. A flat or slightly domed head shape provides a decorative effect for decorative applications.
4. Pan head self-tapping screws can be used in places where the thickness of the material is not sufficient and is not suitable for hexagon head screws.
5. Slotted pan head self-tapping screws work well in light-duty applications.
QUALITY INSPECTION
1. The QC inspectors are well experienced in product knowledge as well as manufacturing techniques. Special instruments are applied to conduct multiple tests to ensure that the final products could meet the requirements of the market and customers.
2. Experienced QC staff can provide customers with accurate quality inspection reports.
3. Final product inspection is a key point. AYA has a complete sampling check system for this important task and each detail will be fully inspected.
PACKAGING & CONTAINER LOADING
1. Mature warehousing and logistics systems and digital tools make the goods delivery highly efficient.
2. Automated packing lines improve the quality and speed of the packaging work.
3. AYA has always attached great importance to the R&D of the packaging to improve the appearance as well as the durability in the process of shipment.
4. Packaging is important for product preservation as well as safety. AYA has constantly developed new solutions to keep products intact during the shipment process.
USAGE SCENARIOS
Contact AYA
