AYA Pan Head Chipboard Screws
AYA Fasteners (Hebei) Co., Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Carbon Steel
- Size: Full Size Available
- Color: Sliver, Black
- Grade: Other
- Connection: CommonBoltOther
- Head style: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: Carbon Steel
- Size: Full Size Available
- Color: Sliver, Black
- Grade: Other
- Connection: CommonBoltOther
- Head style: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | Carbon Steel |
|---|---|
| Size | Full Size Available |
| Color | Sliver, Black |
| Grade | Other |
| Connection | CommonBoltOther |
| Head style | Other |
| Material | HighStrengthSteelOther |
| Standard | JISDINANSIOtherGB |
| Groove | SpecialShapeFlowerWordCrossOther |
Product details
| Materials | Carbon Steel |
|---|---|
| Size | Full Size Available |
| Color | Sliver, Black |
| Grade | Other |
| Connection | CommonBoltOther |
| Head style | Other |
| Material | HighStrengthSteelOther |
| Standard | JISDINANSIOtherGB |
| Groove | SpecialShapeFlowerWordCrossOther |
From the supplier
As a global supplier of customized fastening solutions, AYA's senvice process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION

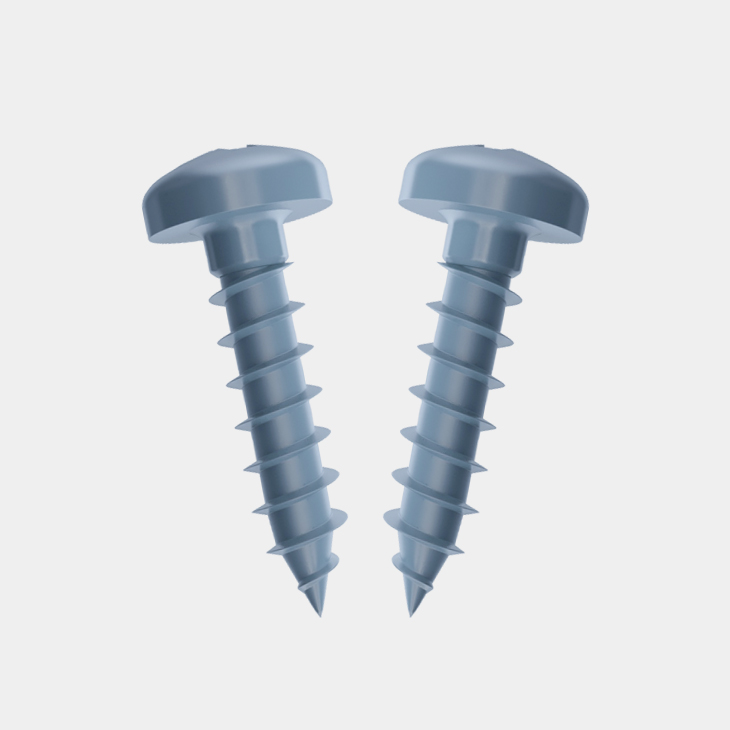

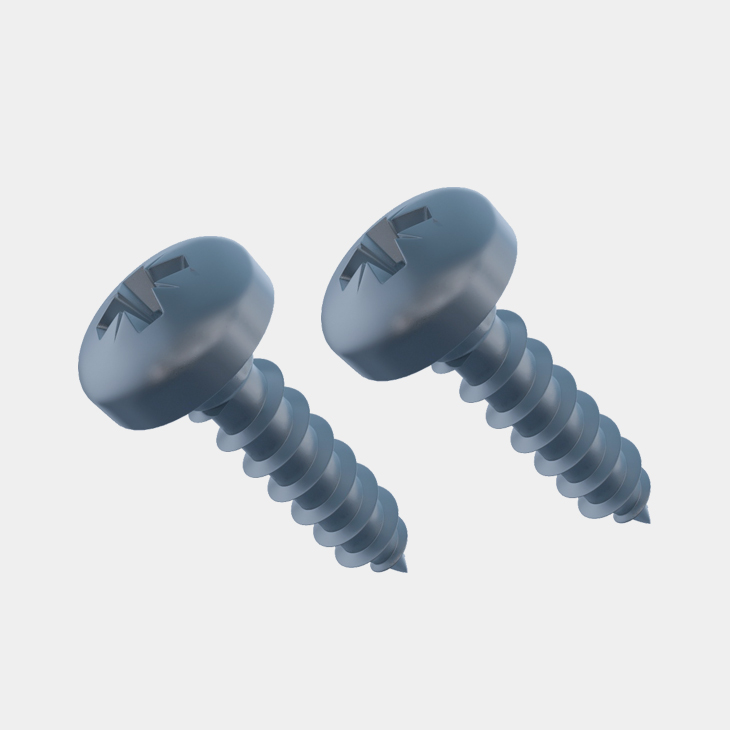

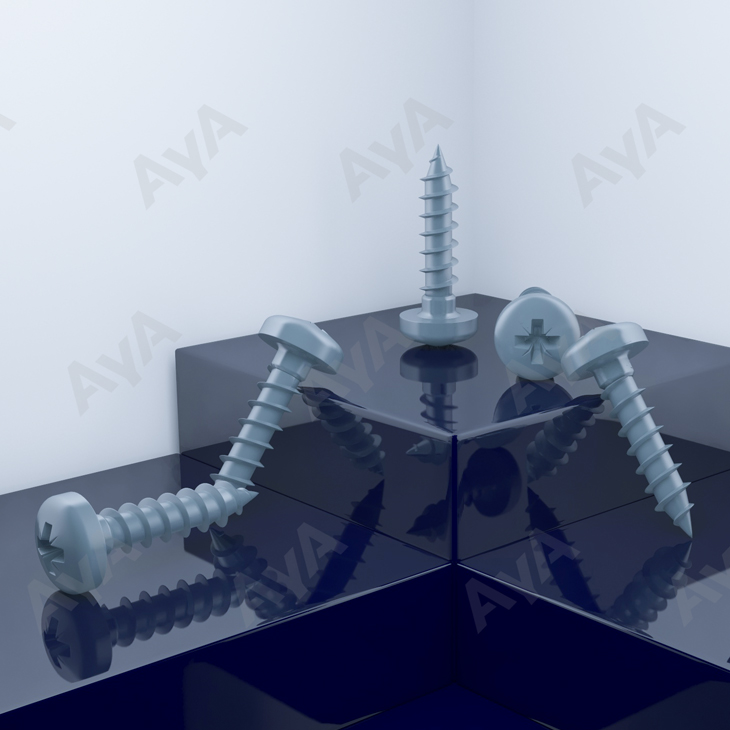

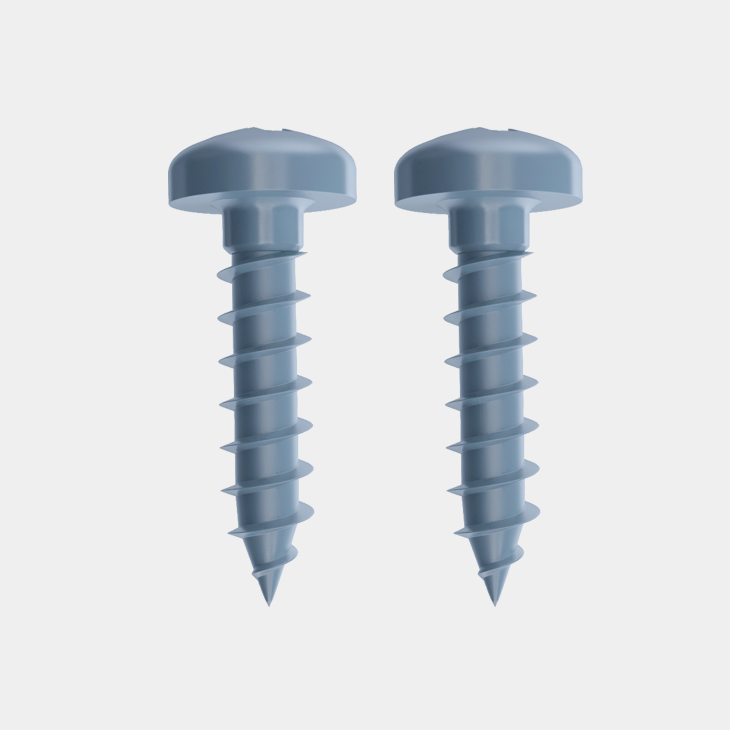

Commodity: AYA Pan Head Chipboard Screws
Brand: AYA®
Standard: DIN 7505 (B)
Alternative Standard: ISO,DIN,ASME,ANSI,JIS,GB,NON-STANDARD CUSTOMIZATION
Thread Type: Plastic Thread
Material: Carbon Steel
Diameter: Full-Size Available
Finish: Plain, Black Oxide, Bright, Zinc Plated, Passivated
Head Type: Pan Head
Drive Type: Pozi Drive
MOQ: 1000kgs
Lead Time: 30 to 60 days
DIMENSION TABLES
SPECIFICATIONS 2.5 3 3.5 4 4.5 5 6 D max=nominal size 2.5 3 3.5 4 4.5 5 6 min 2.25 2.75 3.2 3.7 4.2 4.7 5.7 P Pitch(±10%) 1.1 1.35 1.6 1.8 2 2.2 2.6 DK max=nominal size 5 6 7 8 9 10 12 min 4.52 5.52 6.42 7.42 8.42 9.42 11.3 K Nominal Size 2 2.25 2.6 2.8 3 3.5 4.1 max 2.12 2.37 2.72 2.92 3.15 3.65 4.25 min 1.88 2.13 2.48 2.58 2.85 3.35 3.95 A max 1.1 1.35 1.6 1.8 2 2.2 2.6 R ≈ 5 6 7 8 9 10 12 DP max=nominal size 1.5 1.9 2.15 2.5 2.7 3 3.7 min 1.1 1.5 1.67 2.02 2.22 2.52 3.22 SOCKET NO. 1 1 2 2 2 2 3 M ≈ 2.6 3.12 3.81 4.65 5 5.28 6.63
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF PAN HEAD CHIPBOARD SCREWS
1. The pan head chipboard screws have a wide matting for the load distribution. Together with the chipboard structure, it can protect the chipboard surface from being damaged.
2. Multiple surface treatments and materials are available for kinds of unique fastener solutions.
3. It can fix the chipboard to the chipboard or to the various other products safely and firmly.
4. It's made from high-quality raw materials that make a long service life with low-cost maintenance in the future.
5. AYA has developed an abroad R&D facility in Germany for the innovation of new technology.
6. AYA has delivered kinds of fasteners to over 500 customers from over 50 countries.
QUALITY INSPECTION
1. The QC inspectors are well experienced in product knowledge as well as manufacturing techniques. Special instruments are applied to conduct multiple tests to ensure that the final products could meet the requirements of the market and customers.
2. Experienced QC staff can provide customers with accurate quality inspection reports.
3. Final product inspection is a key point. AYA has a complete sampling check system for this important task and each detail will be fully inspected.
PACKAGING & CONTAINER LOADING
1. Mature warehousing and logistics systems and digital tools make the goods delivery highly efficient.
2. Automated packing lines improve the quality and speed of the packaging work.
3. AYA has always attached great importance to the R&D of the packaging to improve the appearance as well as the durability in the process of shipment.
4. Packaging is important for product preservation as well as safety. AYA has constantly developed new solutions to keep products intact during the shipment process.
USAGE SCENARIOS
Contact AYA
From the supplier
As a global supplier of customized fastening solutions, AYA's senvice process is also as close to customers as AYA's products. From describing needs to follow-up services, AYA will promptly and spare no effort to help customers solve any fastening problems that arise, to eliminate the concern of customers.
PRODUCT DESCRIPTION
Commodity: AYA Pan Head Chipboard Screws
Brand: AYA®
Standard: DIN 7505 (B)
Alternative Standard: ISO,DIN,ASME,ANSI,JIS,GB,NON-STANDARD CUSTOMIZATION
Thread Type: Plastic Thread
Material: Carbon Steel
Diameter: Full-Size Available
Finish: Plain, Black Oxide, Bright, Zinc Plated, Passivated
Head Type: Pan Head
Drive Type: Pozi Drive
MOQ: 1000kgs
Lead Time: 30 to 60 days
DIMENSION TABLES
SPECIFICATIONS 2.5 3 3.5 4 4.5 5 6 D max=nominal size 2.5 3 3.5 4 4.5 5 6 min 2.25 2.75 3.2 3.7 4.2 4.7 5.7 P Pitch(±10%) 1.1 1.35 1.6 1.8 2 2.2 2.6 DK max=nominal size 5 6 7 8 9 10 12 min 4.52 5.52 6.42 7.42 8.42 9.42 11.3 K Nominal Size 2 2.25 2.6 2.8 3 3.5 4.1 max 2.12 2.37 2.72 2.92 3.15 3.65 4.25 min 1.88 2.13 2.48 2.58 2.85 3.35 3.95 A max 1.1 1.35 1.6 1.8 2 2.2 2.6 R ≈ 5 6 7 8 9 10 12 DP max=nominal size 1.5 1.9 2.15 2.5 2.7 3 3.7 min 1.1 1.5 1.67 2.02 2.22 2.52 3.22 SOCKET NO. 1 1 2 2 2 2 3 M ≈ 2.6 3.12 3.81 4.65 5 5.28 6.63
PRODUCT DETAILS
PRODUCT ADVANTAGES
ADVANTAGES OF PAN HEAD CHIPBOARD SCREWS
1. The pan head chipboard screws have a wide matting for the load distribution. Together with the chipboard structure, it can protect the chipboard surface from being damaged.
2. Multiple surface treatments and materials are available for kinds of unique fastener solutions.
3. It can fix the chipboard to the chipboard or to the various other products safely and firmly.
4. It's made from high-quality raw materials that make a long service life with low-cost maintenance in the future.
5. AYA has developed an abroad R&D facility in Germany for the innovation of new technology.
6. AYA has delivered kinds of fasteners to over 500 customers from over 50 countries.
QUALITY INSPECTION
1. The QC inspectors are well experienced in product knowledge as well as manufacturing techniques. Special instruments are applied to conduct multiple tests to ensure that the final products could meet the requirements of the market and customers.
2. Experienced QC staff can provide customers with accurate quality inspection reports.
3. Final product inspection is a key point. AYA has a complete sampling check system for this important task and each detail will be fully inspected.
PACKAGING & CONTAINER LOADING
1. Mature warehousing and logistics systems and digital tools make the goods delivery highly efficient.
2. Automated packing lines improve the quality and speed of the packaging work.
3. AYA has always attached great importance to the R&D of the packaging to improve the appearance as well as the durability in the process of shipment.
4. Packaging is important for product preservation as well as safety. AYA has constantly developed new solutions to keep products intact during the shipment process.
USAGE SCENARIOS
Contact AYA
