AWWA Y Strainer
BOTOU YAXING FLUID EQUIPMENT CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
AWWA Y Strainer
BOTOU YAXING FLUID EQUIPMENT CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: DUCTILE IRON , CAST IRON
- Size: DN50-300
- Color: EPOXY POWDER COATED-DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: DUCTILE IRON , CAST IRON
- Size: DN50-300
- Color: EPOXY POWDER COATED-DARK BLUE
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | DUCTILE IRON , CAST IRON |
|---|---|
| Size | DN50-300 |
| Color | EPOXY POWDER COATED-DARK BLUE |
Product details
| Materials | DUCTILE IRON , CAST IRON |
|---|---|
| Size | DN50-300 |
| Color | EPOXY POWDER COATED-DARK BLUE |
From the supplier
Product Description

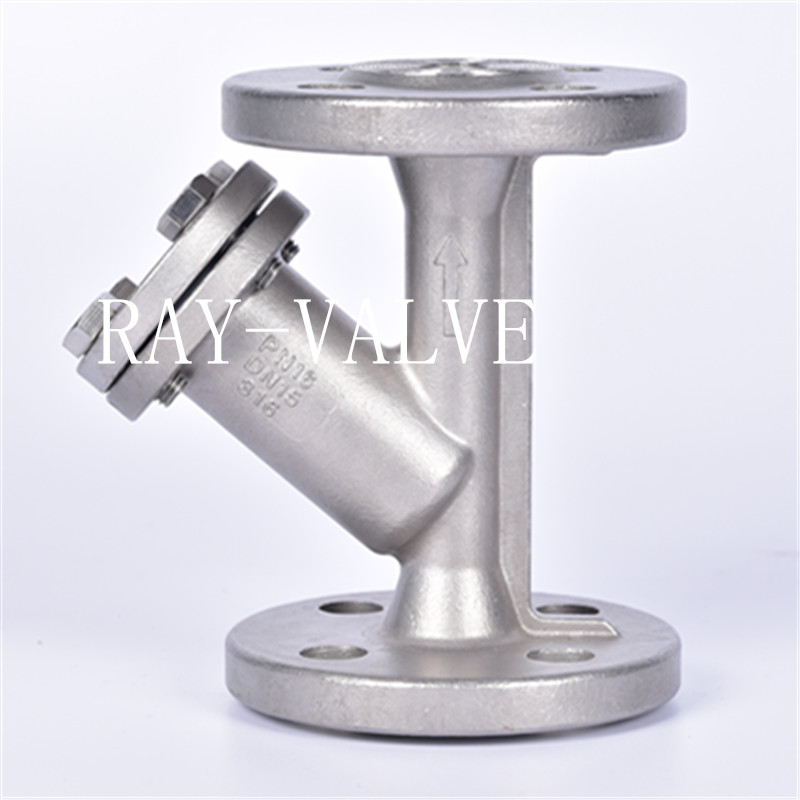

ANSI/AWWA Flanged Y type strainer
Standard
Design standard
AWWA C509
Flange drilling standard
ANSI B16.10 Class 125/150
Face to face standard
EN558-1
Hydraulic test standard
Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Technical Parameters
Nominal diameter(mm)
50～600
50～600
Nominal pressure(Mpa)
1.0
1.6
Testing pressure
Shell(Mpa)
1.5
2.4
Seal(Mpa)
1.1
1.76
Suitable temperature
-40°C～200°C
Suitable medium
Drinking water、sewage、seawater、irrigation,or other neutral liquid.
Main Raw Material
1
Body
Ductile Iron
4
Sealing
EPDM/Graphite
2
Screen
SS304
5
Bolt/Washer
SS304
3
Bonnet
Ductile Iron
6
Drain outlet
Carbon Steel
Components may be substituted with equivalent or higher class materials.
Dimension
Size
L
D
C
n-d
b
DN50
225
152
121
4-19
19
DN65
273
178
140
4-19
19
DN80
292
190
152.4
4-19
19
DN100
352
229
190.5
8-19
19
DN125
416
254
216
8-22
19
DN150
470
279
241.3
8-22
19
DN200
543
343
298.5
8-22
20
DN250
660
406
362
12-25
22
DN300
762
483
431.8
12-25
24.5
From the supplier
Product Description
ANSI/AWWA Flanged Y type strainer
Standard
Design standard
AWWA C509
Flange drilling standard
ANSI B16.10 Class 125/150
Face to face standard
EN558-1
Hydraulic test standard
Seat:1.1*PN(in bar), Body:1.5*PN(in bar)
Technical Parameters
Nominal diameter(mm)
50～600
50～600
Nominal pressure(Mpa)
1.0
1.6
Testing pressure
Shell(Mpa)
1.5
2.4
Seal(Mpa)
1.1
1.76
Suitable temperature
-40°C～200°C
Suitable medium
Drinking water、sewage、seawater、irrigation,or other neutral liquid.
Main Raw Material
1
Body
Ductile Iron
4
Sealing
EPDM/Graphite
2
Screen
SS304
5
Bolt/Washer
SS304
3
Bonnet
Ductile Iron
6
Drain outlet
Carbon Steel
Components may be substituted with equivalent or higher class materials.
Dimension
Size
L
D
C
n-d
b
DN50
225
152
121
4-19
19
DN65
273
178
140
4-19
19
DN80
292
190
152.4
4-19
19
DN100
352
229
190.5
8-19
19
DN125
416
254
216
8-22
19
DN150
470
279
241.3
8-22
19
DN200
543
343
298.5
8-22
20
DN250
660
406
362
12-25
22
DN300
762
483
431.8
12-25
24.5
