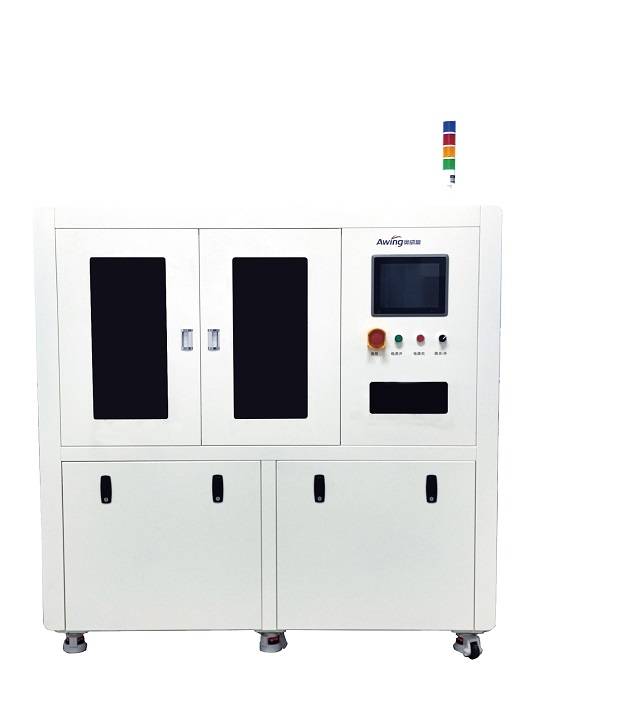

Awing,Online microwave plasma cleaning machine,Electronic equipment & Instruments
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Awing,Online microwave plasma cleaning machine,Electronic equipment & Instruments
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: ·
- Color: ·
- Style: Other
- Physical machine type: Other
- Fuel: Other
- Machine type: Other
- Exports to: Mainland China, Southeast Asia, South Asia, Central Asia, Russia, EU
About this product
- Size: ·
- Color: ·
- Style: Other
- Physical machine type: Other
- Fuel: Other
- Machine type: Other
- Exports to: Mainland China, Southeast Asia, South Asia, Central Asia, Russia, EU
Product details
| Size | · |
|---|---|
| Color | · |
| Style | Other |
| Physical machine type | Other |
| Fuel | Other |
| Machine type | Other |
| Certification | Other |
| Cleaning process | Other |
| Usage | Other |
| Principle | Other |
| High pressure cleaner type | Motor-Driven Pressure WasherOther |
Product details
| Size | · |
|---|---|
| Color | · |
| Style | Other |
| Physical machine type | Other |
| Fuel | Other |
| Machine type | Other |
| Certification | Other |
| Cleaning process | Other |
| Usage | Other |
| Principle | Other |
| High pressure cleaner type | Motor-Driven Pressure WasherOther |
From the supplier
Main technical parameters of the equipment
1.Overall size (approximately):1600(L)×1100(W)×1650(H)(mm)(excluding lighthouse)
2. Aluminum alloy vacuum chamber: 500(L)×320(W)×70(H)(mm)
3. System power supply:220×(1±10%)V(AC) 50Hz~60Hz (dry pump)
4. Plasma source: frequency 2.45GHz, power (100~1000) W
5. Control method: PLC+ industrial computer control, operation methods include automatic mode and manual mode. Using the formula management model, multiple groups of formulas can be set up, and the formula numbers can be called for different products. Hierarchical management of equipment parameters improves equipment safety.
6. Two-way MFC mass flow meter control (process gas):(0~500)ml/min (standard pressure, 0 ℃)
7. Working track: 4 tracks (width less than 85mm)
8. UPH: ≥250 tablets/hour (when cleaning time is 10 seconds)
9. Compatible sheet size: length 150-280 (mm), width 30-85 (mm)
10 . Cleaning stuck prevention and detection functions
11 . optional functions
① Connect to MES system
② Code reader function (magazine or sheet)
③ Add ion fans to the transfer track
From the supplier
Main technical parameters of the equipment
1.Overall size (approximately):1600(L)×1100(W)×1650(H)(mm)(excluding lighthouse)
2. Aluminum alloy vacuum chamber: 500(L)×320(W)×70(H)(mm)
3. System power supply:220×(1±10%)V(AC) 50Hz~60Hz (dry pump)
4. Plasma source: frequency 2.45GHz, power (100~1000) W
5. Control method: PLC+ industrial computer control, operation methods include automatic mode and manual mode. Using the formula management model, multiple groups of formulas can be set up, and the formula numbers can be called for different products. Hierarchical management of equipment parameters improves equipment safety.
6. Two-way MFC mass flow meter control (process gas):(0~500)ml/min (standard pressure, 0 ℃)
7. Working track: 4 tracks (width less than 85mm)
8. UPH: ≥250 tablets/hour (when cleaning time is 10 seconds)
9. Compatible sheet size: length 150-280 (mm), width 30-85 (mm)
10 . Cleaning stuck prevention and detection functions
11 . optional functions
① Connect to MES system
② Code reader function (magazine or sheet)
③ Add ion fans to the transfer track
