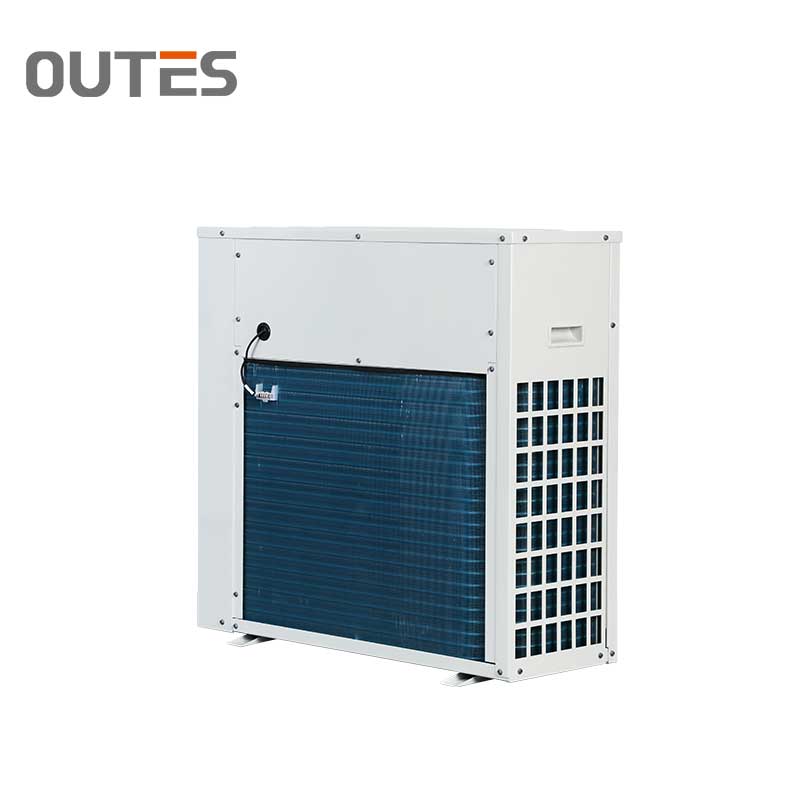

AWC10P 10kw Monobloc Air Source Water Heater Heat Pump

ZheJiang ZhongGuang Electrical Co.Ltd

10/10 fairsManufacturerModel AWC10P

Green / low-carbon

AWC10P 10kw Monobloc Air Source Water Heater Heat Pump

Price on request

The supplier hasn’t listed a price. We can get their current prices and MOQ.

Hire sourcing agent for this supplier See all sourcing services

Verify from $29 · written report in 3 business days · 100% refund if not satisfied

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

100% refund if not satisfied. The supplier pays us no commission on your order.

Visit the ZheJiang ZhongGuang Electrical Co.Ltd store

AWC10P 10kw Monobloc Air Source Water Heater Heat Pump

ZheJiang ZhongGuang Electrical Co.Ltd

10/10 fairsManufacturerModel AWC10P

Green / low-carbon

Price on request

The supplier hasn’t listed a price. We can get their current prices and MOQ.

Hire sourcing agent for this supplier See all sourcing services

Verify from $29 · written report in 3 business days · 100% refund if not satisfied

Service: From $29 per supplier (Verify)
You get: Phone and video verification, a quote sheet and a written report
Turnaround: 3 business days
Contact details: Sent to you once your request is confirmed

100% refund if not satisfied. The supplier pays us no commission on your order.

About this product

Materials: Aluminium,Galvanized Metal Plate
Size: 790x285x700
Color: Grey
Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Made in: Zhejiang, China

About this product

Materials: Aluminium,Galvanized Metal Plate
Size: 790x285x700
Color: Grey
Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Made in: Zhejiang, China

Product details

Materials	Aluminium,Galvanized Metal Plate
Size	790x285x700
Color	Grey

Product details

Materials	Aluminium,Galvanized Metal Plate
Size	790x285x700
Color	Grey

From the supplier

Modes: AUTO/ECO/FAST/MULTElectronic Expansion Valve for high efficiency Intelligent Fault TestingIntelligent defrostingTimer Auto-RestartHigh/Low pressure Protection Built-in Grundfos water pump (optional)

Model/AWC4PAWC5PAWC7PAWC10PPower SupplyV/Ph/Hz220~240V/1/50Hz220~240V/1/50Hz220~240V/1/50Hz220~240V/1/50HzHot Water YieldL/h75 108 140 209 Water Outlet Temp. （Default/Max.）℃55/6055/6055/6055/60Running Ambient Temp.℃-7-46-7-46-7-46-7-46Rating Heating CapacitykW3.5 5.0 6.5 9.7 Heating Input PowerkW0.85 1.20 1.58 2.34 Heating Input CurrentA7.7 10.1 14.0 19.8 NoisedB(A)≤54≤54≤54≤57Compressor/GMCC/RotaryGMCC/RotaryGMCC/RotaryGMCC/RotaryWater Side Heat Exchanger/Tube in tubeTube in tubeTube in tubeTube in tubeThrottling Type/EEVEEVEEVEEVRefrigerant/R410AR410AR410AR410AFan Motor/AC MotorAC MotorAC MotorAC MotorWater Pump/GrundfosGrundfosGrundfosGrundfosWater Connection Size（Inner Thread)Inch3/4“3/4“3/4“3/4"Net Weightkg54 54 63 96 Gross Weightkg57 57 67 119 Net Dimension（WxDxH)mm790×285×780790×285×780790×285×7001036x406x950Packing Dimension(WxDxH)mm925×410×835925×410×835925×410×7551073x450x1099Container Loading（20'/40'）Unit68/21368/21396/21352/108

Remark：

1、Test conditions:Base on EN16147:2017. Ambient Temp.(DB/WB):20℃/15℃，Water Temp.(In/Out):15℃/55℃；

2、The above data may be changed without prior notice for product improvement.
