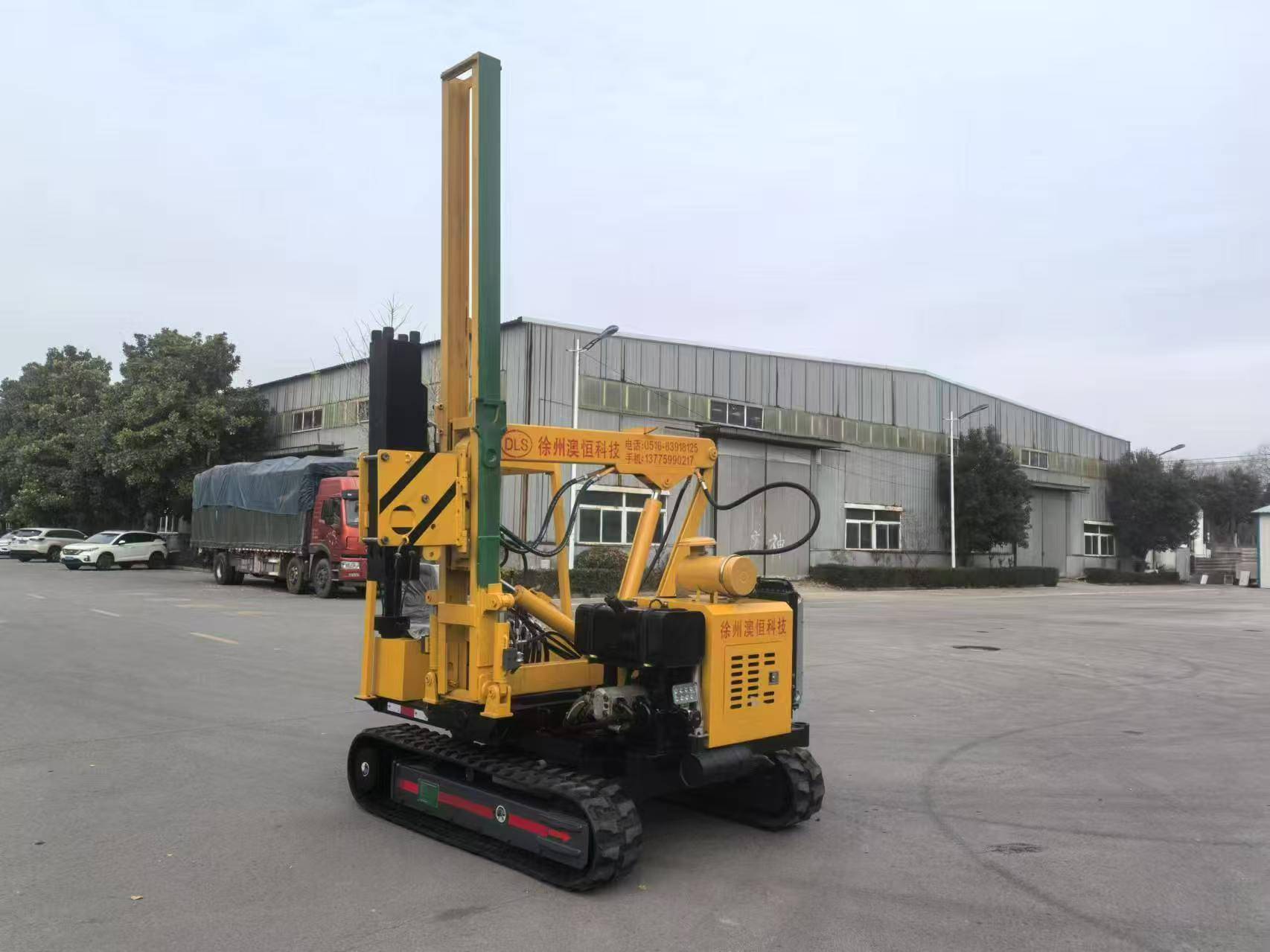

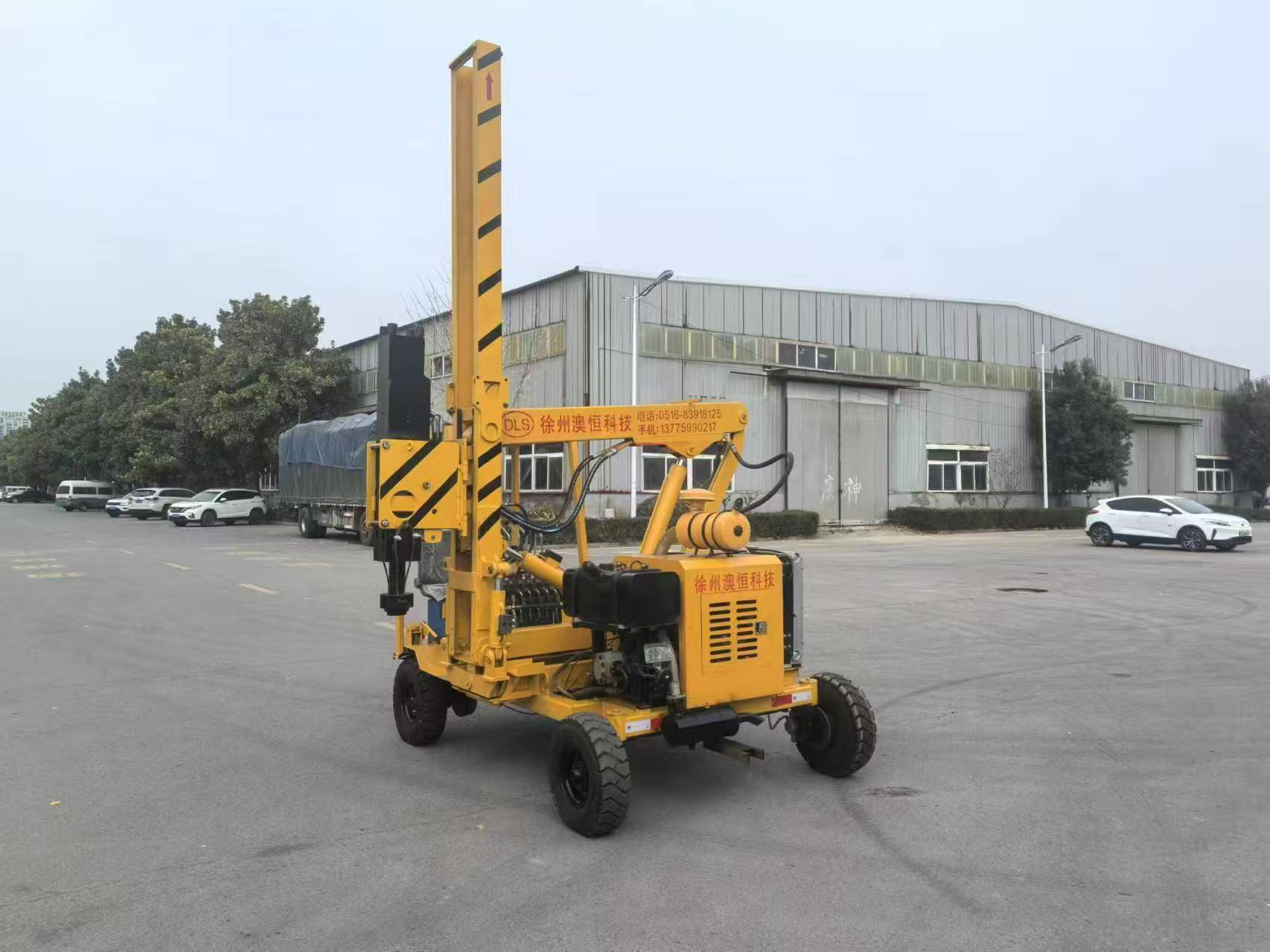

Aoheng Machinery,Highway guardrail maintenance pile driver,Engineering machinery
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Aoheng Machinery,Highway guardrail maintenance pile driver,Engineering machinery
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: ·
- Color: ·
- Engine type: Other
- Customized: Other
- Automatic grade: Other
- Power source: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: ·
- Color: ·
- Engine type: Other
- Customized: Other
- Automatic grade: Other
- Power source: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | · |
|---|---|
| Color | · |
| Engine type | Other |
| Customized | Other |
| Automatic grade | Other |
| Power source | Other |
| Walking mode | Other |
Product details
| Size | · |
|---|---|
| Color | · |
| Engine type | Other |
| Customized | Other |
| Automatic grade | Other |
| Power source | Other |
| Walking mode | Other |
From the supplier
Hantuo brand guardrail repair vehicle technical parameters and performance
Product Model: JSH5076TQX-1
Product Specifications:
1. *Maximum Allowable Total Weight ---------- 7360 Kg
2. Piling height ------------ -----------700 - 28000 mm
3. Drilling depth ------------ -----------1500mm
4. Driving speed ----------------------------- 95 kilometers per hour
5. Emission standards --------------------- Euro VI emission standards
6. Left and right rotation angle -------------- ≥ 260 degrees
7. Working pressure of the hydraulic system -------- 16 Mpa
8. Hydraulic hammer impact frequency ------------ 8 - 15 Hz
9. Load capacity ----------------------- 770 Kg
10. Gross Vehicle Weight ---------------- 6100 Kg
11. Drill hole diameter ------------ 100 - 180 mm
12. Working air pressure ------------ 10KG
13. *Minimum turning diameter ------------ 14.5m
14. Chassis model -------------- BJ1076VEADA-51
15. Engine rated power ---------- 111KW
16. Side distance of the telescopic guide rail travel ------ ≥ 550mm
17. Pile extraction force (with vibration) -------- ≥ 10T
18. Number of occupants in the driver's cabin ------------ 6 people
19. Hydraulic system flow rate -------------- ≥ 90 L/min
20. Equipment dimensions: Length x Width x Height ------ 6405 x 2000 x 2800 mm
Product functions：
1.The power transmission device adopts an electrically controlled clutch. The clutch can be disengaged and engaged quickly and reliably. The upper-mounted pile driver uses a continuously variable electrically controlled throttle. During construction, the speed of pile driving can be controlled by stepping on the electrically controlled throttle to increase or decrease. The legs can be manually controlled on the ground or electrically controlled to rise and lower on the vehicle.
2. This machine is equipped with a complete set of drilling equipment and accessories, enabling direct operations such as piling, extraction of piles, and drilling. This machine adopts advanced hydraulic impact drilling technology (with 7 patent technologies) and can perform crushing and drilling on rocks and cement pavements that are currently impossible to drill with the commonly installed rotary drilling machines on emergency guardrail repair vehicles. By adopting advanced hydraulic impact technology and discarding the traditional use of large air compressors for impact, the overall volume and weight of the machine have been significantly reduced. The equipment is operationally flexible and convenient, with low energy consumption and high efficiency, being environmentally friendly and energy-saving. The equipment is equipped with a mechanical hand for installing drill rods, and during drilling, the installation and disassembly of the drill rods are quick, effortless, safe and convenient, reducing the labor intensity of the operators and improving work efficiency.
From the supplier
Hantuo brand guardrail repair vehicle technical parameters and performance
Product Model: JSH5076TQX-1
Product Specifications:
1. *Maximum Allowable Total Weight ---------- 7360 Kg
2. Piling height ------------ -----------700 - 28000 mm
3. Drilling depth ------------ -----------1500mm
4. Driving speed ----------------------------- 95 kilometers per hour
5. Emission standards --------------------- Euro VI emission standards
6. Left and right rotation angle -------------- ≥ 260 degrees
7. Working pressure of the hydraulic system -------- 16 Mpa
8. Hydraulic hammer impact frequency ------------ 8 - 15 Hz
9. Load capacity ----------------------- 770 Kg
10. Gross Vehicle Weight ---------------- 6100 Kg
11. Drill hole diameter ------------ 100 - 180 mm
12. Working air pressure ------------ 10KG
13. *Minimum turning diameter ------------ 14.5m
14. Chassis model -------------- BJ1076VEADA-51
15. Engine rated power ---------- 111KW
16. Side distance of the telescopic guide rail travel ------ ≥ 550mm
17. Pile extraction force (with vibration) -------- ≥ 10T
18. Number of occupants in the driver's cabin ------------ 6 people
19. Hydraulic system flow rate -------------- ≥ 90 L/min
20. Equipment dimensions: Length x Width x Height ------ 6405 x 2000 x 2800 mm
Product functions：
1.The power transmission device adopts an electrically controlled clutch. The clutch can be disengaged and engaged quickly and reliably. The upper-mounted pile driver uses a continuously variable electrically controlled throttle. During construction, the speed of pile driving can be controlled by stepping on the electrically controlled throttle to increase or decrease. The legs can be manually controlled on the ground or electrically controlled to rise and lower on the vehicle.
2. This machine is equipped with a complete set of drilling equipment and accessories, enabling direct operations such as piling, extraction of piles, and drilling. This machine adopts advanced hydraulic impact drilling technology (with 7 patent technologies) and can perform crushing and drilling on rocks and cement pavements that are currently impossible to drill with the commonly installed rotary drilling machines on emergency guardrail repair vehicles. By adopting advanced hydraulic impact technology and discarding the traditional use of large air compressors for impact, the overall volume and weight of the machine have been significantly reduced. The equipment is operationally flexible and convenient, with low energy consumption and high efficiency, being environmentally friendly and energy-saving. The equipment is equipped with a mechanical hand for installing drill rods, and during drilling, the installation and disassembly of the drill rods are quick, effortless, safe and convenient, reducing the labor intensity of the operators and improving work efficiency.
