Anti-finger Flat Ceiling T Grid/T Bar

1. Features of Ceiling T Grid/T Bar:

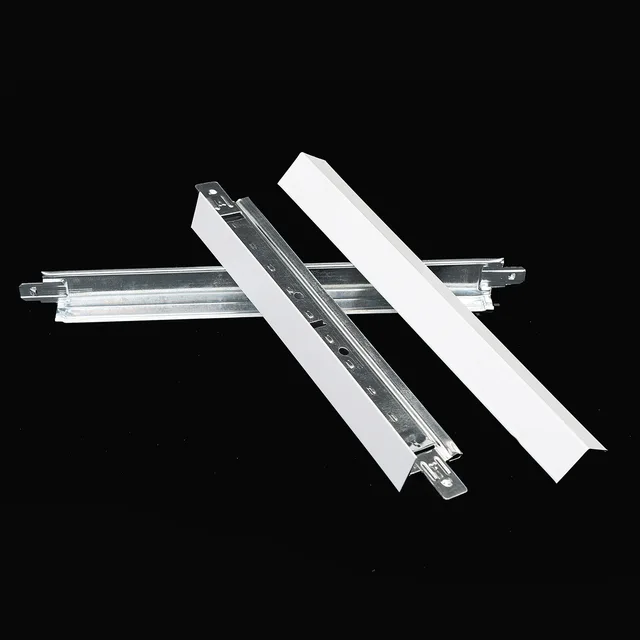

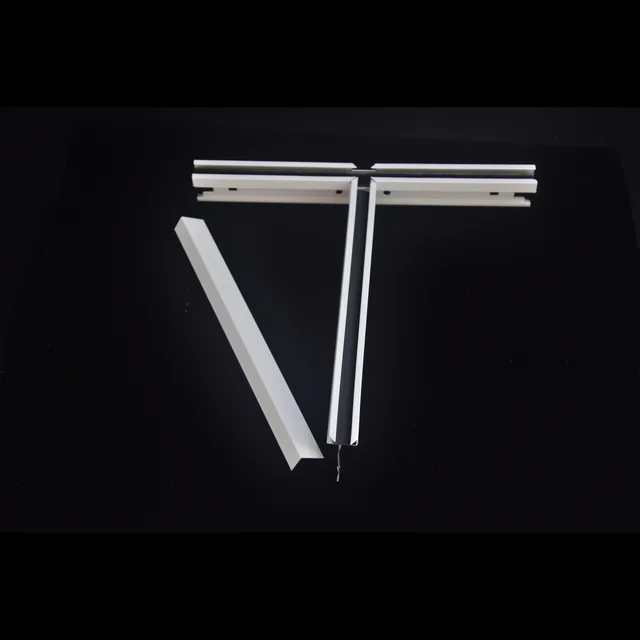

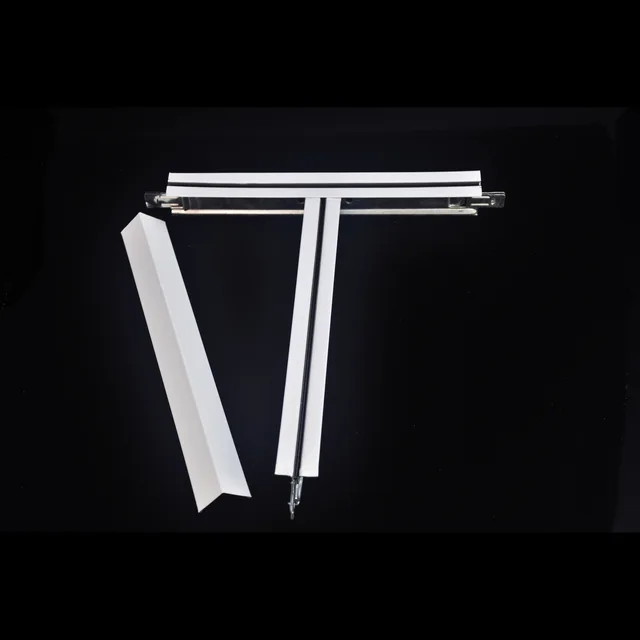

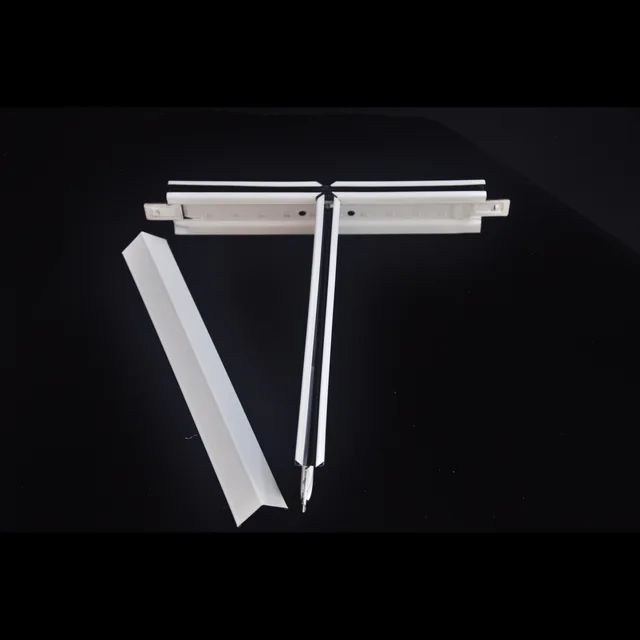

1). Commponents: main tee, long cross tee, short cross tee and wall angle.



2). Unique click design for easy connection and installation.



3). Widely usage for the suspension system of hotel, school, hospital, shopping mall, etc.



4).  Nice outlook with competitive price and good quality.





2. Specifications of Ceiling T Grid/T Bar:



1). Metric sizes:



CommoditySizesPcs/M2Main tee

38*24*3600mm



32*24*3600mm



     0.225Long cross tee

38*24*1200mm



32*24*1200mm



26*24*1200mm

      1.35Short cross tee

38*24*600mm



32*24*600mm



26*24*600mm

      1.35Wall angle

24*24*3000mm



22*22*3000mm



20*20*3000mm

     0.2





2). Imperial sizes:



CommoditySizesPcs/M2Main tee

38*24*3660mm



32*24*3660mm



     0.225Long cross tee

38*24*1220mm



32*24*1220mm



26*24*1220mm

      1.35Short cross tee

38*24*610mm



32*24*610mm



26*24*610mm

      1.35Wall angle

24*24*3050mm



22*22*3050mm



20*20*3050mm

     0.2



3) Notes:



a. The thickness can be 0.23mm to 0.4mm according to customers' requarement.

b. The sizes can be made to customers' order.



3. Installation steps of Ceiling T Grid/T Bar:



1). Determine the requirment ceiling level,mark the position and fix wall angle on the wall.

2). Hang main tee with T-bar suspension hook.

3). Insert cross tee to the main tee.

4). Cross tee adjacent to wall angle light fittings

5). Adjust the levels and alignments throughout the entire grid system accurately

6). Install PVC gypsum ceiling tile or other ceiling panel.
