About this product
- Materials: Brass
- Size: 1/2"*10MM
- Color: Chrome plated
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Brass
- Size: 1/2"*10MM
- Color: Chrome plated
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Brass |
|---|---|
| Size | 1/2"*10MM |
| Color | Chrome plated |
From the supplier

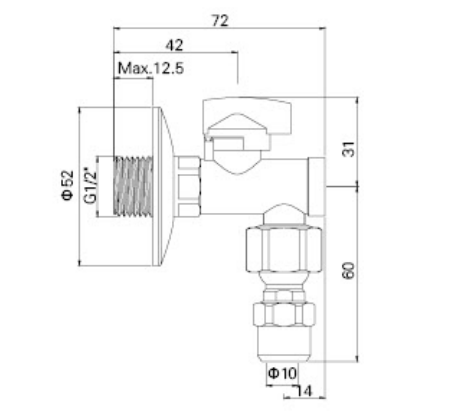

Angle ball valves with filter-1/4 Turn Water Supply
Polish,chrome plated,With Ball joint and long nut-Itlay type
No
Name
Material
QTY
1
Long Nut
Brass
1
2
Snap Ring
Brass
1
3
Washer
NBR
1
4
Sleeve
ABS
1
5
Hex Nut
Brass
1
6
Joint Connector
Brass
1
7
Sealing
NBR
1
8
Body
Brass
1
9
Rosette
S.S.
1
10
Screw
Steel
1
11
Handle
ABS
1
12
O-Ring
NBR
2
13
Stem
Brass
1
14
Ball
Brass
1
15
Sealing
PTFE
2
16
Fixing part
Brass
1
17
Filter
S.S.
1
18
O-Ring
NBR
1
19
Cap
Brass
1
Technical Reference:
- Forged brass body
- Polished,chrome plated
- Male thread according to ISO288/1
- Operating Pressure:Max.10Bar
- Test Pressure:16 Bar(1Mpa=10Bar=145PSI)
- Hot water temperature:Max.80℃
- 100% leak tested
- Packing requirement: 1 OR 2 PCS PER COLOR BOX/BLISTER PACKING/ PLASTRIC BAG WITH LABLE
