About this product
- Materials: steel
- Size: 3200mm x 1200mm x 1450mm
- Color: blue
- Made in: Hebei, China
About this product
- Materials: steel
- Size: 3200mm x 1200mm x 1450mm
- Color: blue
- Made in: Hebei, China
Product details
| Materials | steel |
|---|---|
| Size | 3200mm x 1200mm x 1450mm |
| Color | blue |
From the supplier

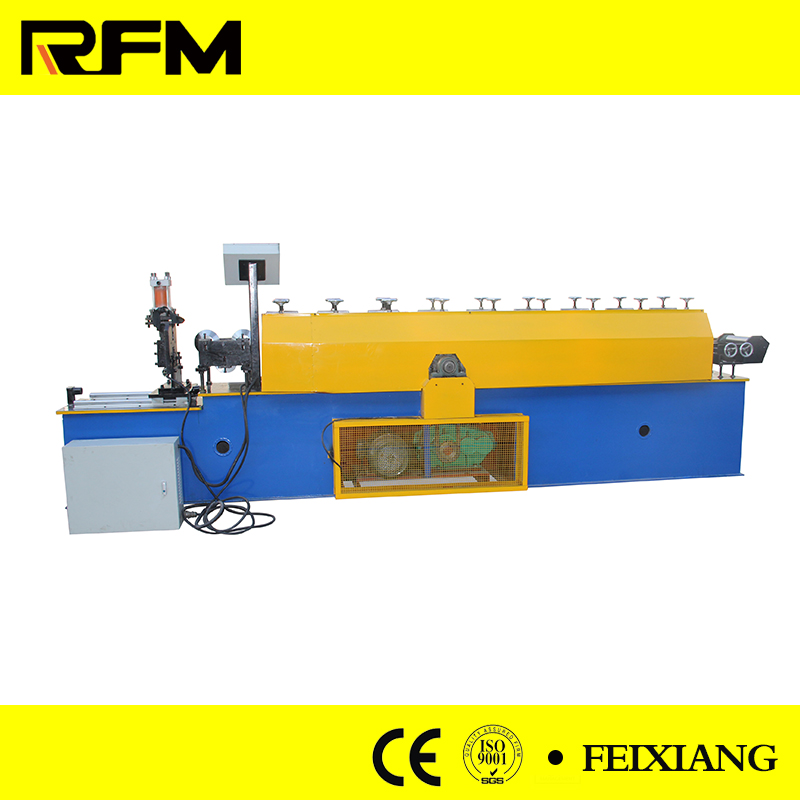

1.Title: Angle Roll Forming Machine
2. Properties of processed material：
Material： galvanized steel or Aluminum
Material thickness：0.30 -0.6mm
Yield strength:235-450mpa
3. Profile drawing
Products after roll forming
4.Machine details
Brand: RFM
Model number:Angle Roll Forming Machine
Machine size: 3.5X 1.2X 1.45
Weight: 2.0T
Voltage requirement: 380v50hz3p
Working speed：15-25m/min
Electric support wires: 6m²
Labor request:1workers
5. Whole line components
No.
Item
Qty
1.
Deciler
1set
2.
Main forming machine
1set
3.
Control panel
1pcs
4.
Hydraulic pump
1pcs
5.
cutting device
1pcs
6.
Manual holder
1pcs
6.Technical parameters
Machine base: 350H
Frame: Pillar
Forming stations: 9steps
Roller: GCR12
Shaft: 45#steel,
Transportation: Gear
Motor:3kw
Pump: 3kw
Press mold:Cr12
Cutter: Cr12
7.Machine quick view
Decoiler：

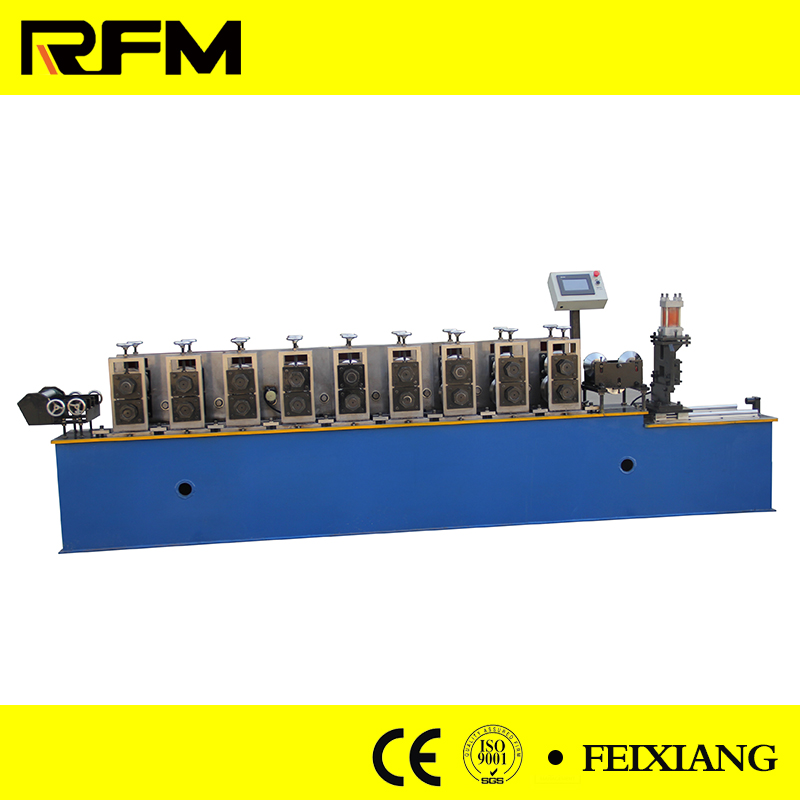

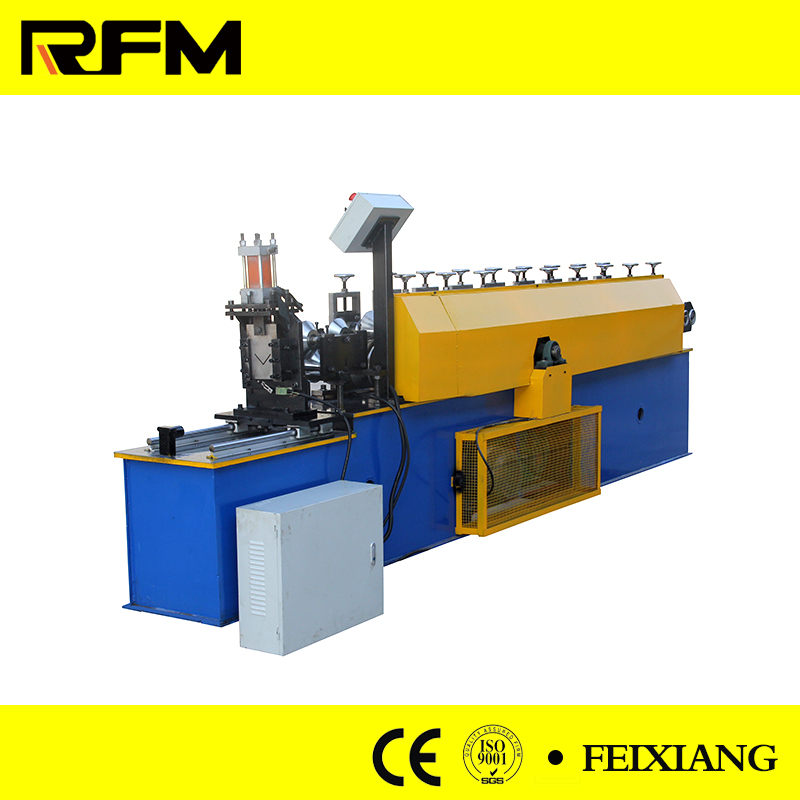

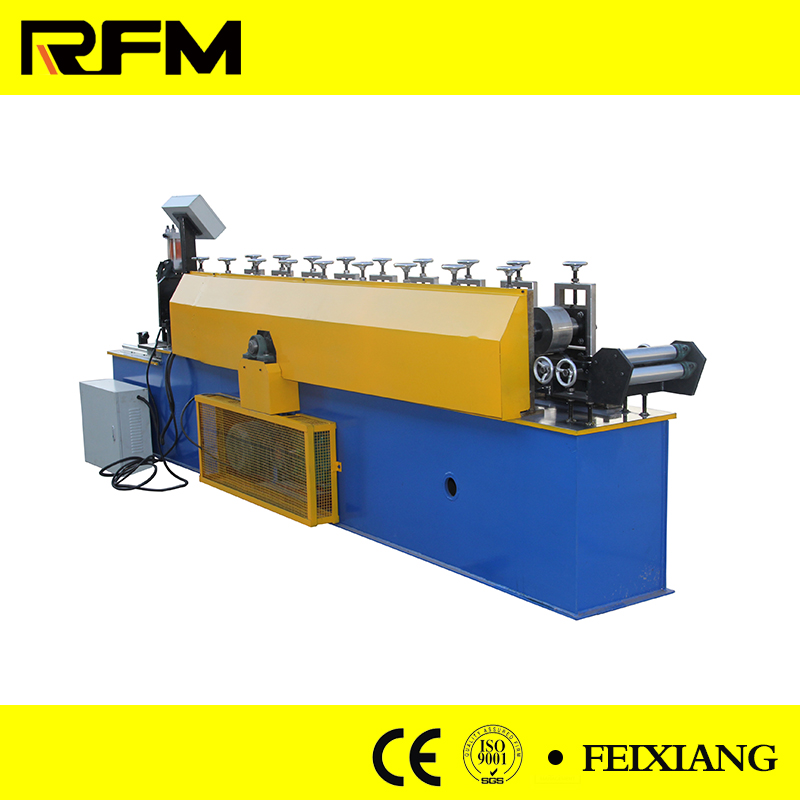

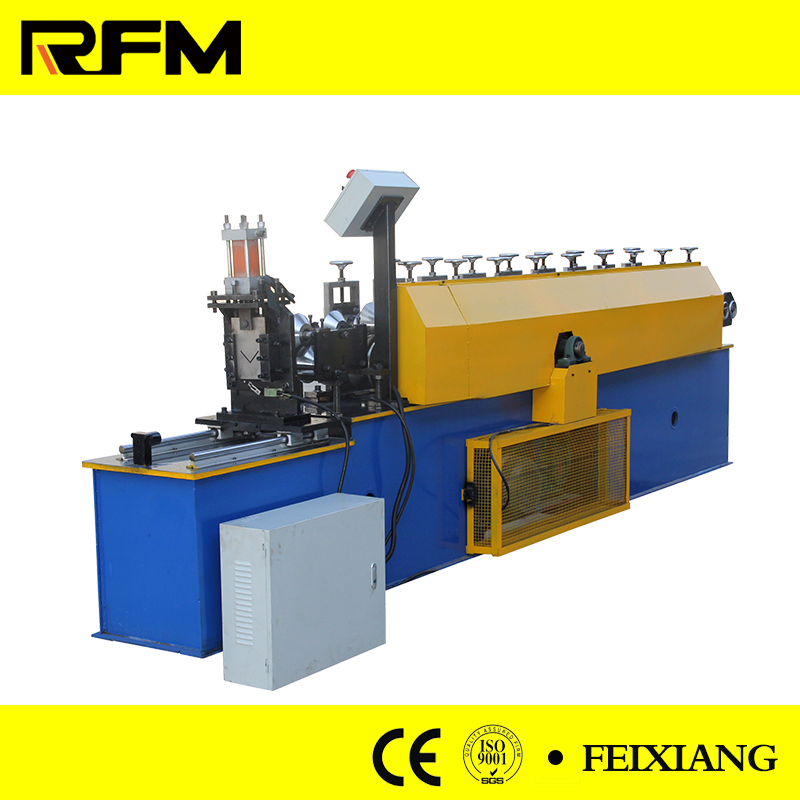

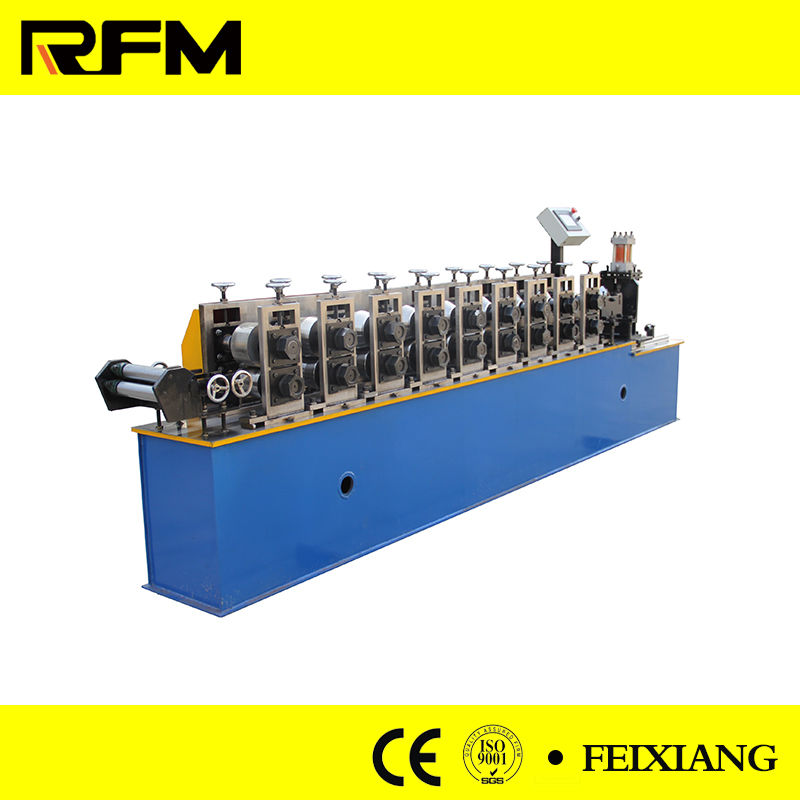

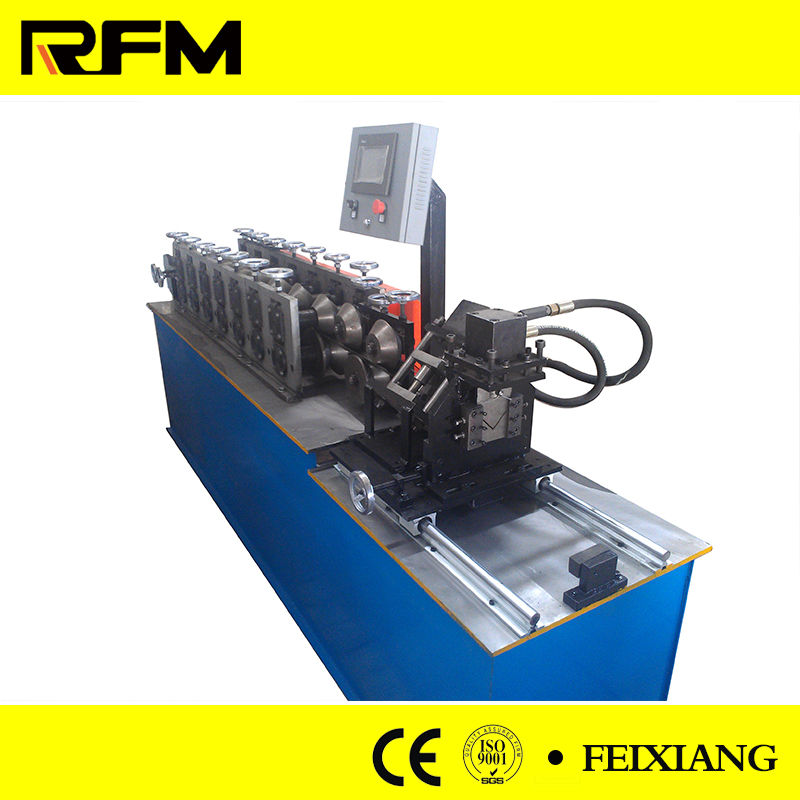

Main forming machine：
Front View，
Left side，
Right side，
Roller
Control box

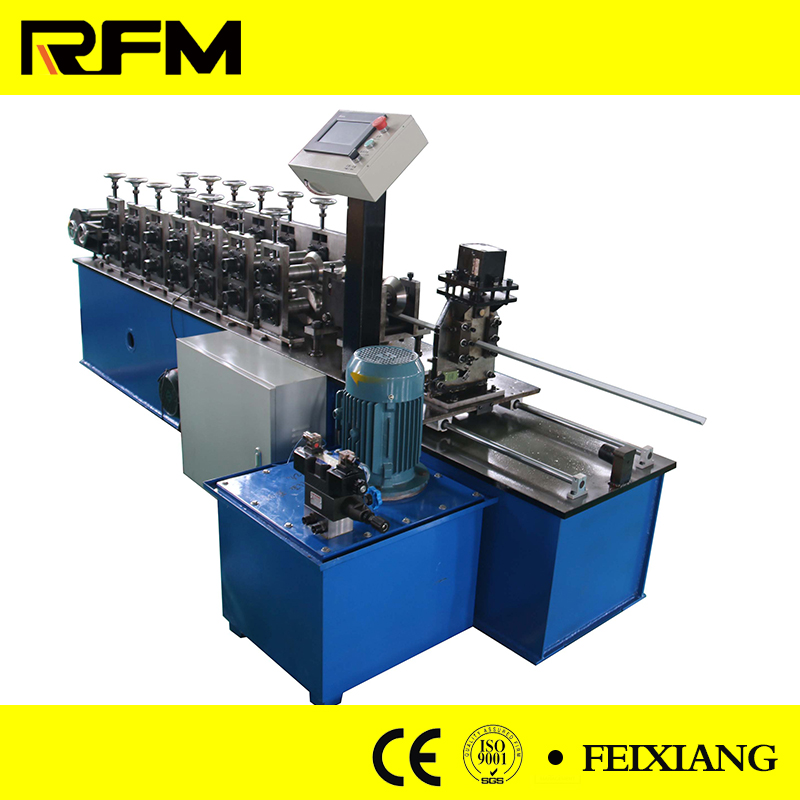

Hydraulic pump：
Manual holder：
8. CE and Letters patent
9.Duration and Service
Delivery time : 45 days after the receipt of deposit.
Warranty: 1 years
After-sales service: 24h*7days*1year’s on line and
engineer service overseas
10.Contact information
Email：rollforming3@fxywj.com
WhatsApp：+86-15231779728
