Electric equipment
Aluminum conductor XLPE insulated PVC sheathed low voltage power cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
Aluminum conductor XLPE insulated PVC sheathed low voltage power cable
Huake Zhonglan Cable Co., Ltd.1/10 fairsIndustry and Trade Company
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 4×35mm² + 1×16mm²
- Color: black
- Conductor type: Other
- Certification: ISO9001
- Conductor material: Other
- Insulation material: XLPE
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
- Made in: Shannxi, China
About this product
- Size: 4×35mm² + 1×16mm²
- Color: black
- Conductor type: Other
- Certification: ISO9001
- Conductor material: Other
- Insulation material: XLPE
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
- Made in: Shannxi, China
Product details
| Size | 4×35mm² + 1×16mm² |
|---|---|
| Color | black |
| Conductor type | Other |
| Certification | ISO9001 |
| Conductor material | Other |
| Insulation material | XLPE |
| Sheath material | PVC |
| Application | Other |
| Rangeof application | Other |
| Brand | Other |
| Material shape | Other |
Product details
| Size | 4×35mm² + 1×16mm² |
|---|---|
| Color | black |
| Conductor type | Other |
| Certification | ISO9001 |
| Conductor material | Other |
| Insulation material | XLPE |
| Sheath material | PVC |
| Application | Other |
| Rangeof application | Other |
| Brand | Other |
| Material shape | Other |
From the supplier

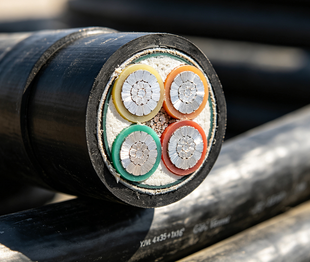

YJLV 4×35+1×16 is an aluminum conductor XLPE insulated PVC sheathed low voltage power cable with rated voltage 0.6/1kV. It adopts a 4+1 core structure (4 cores 35mm² + 1 core 16mm²), widely used in three-phase four-wire power distribution systems for power supply and earthing protection.
- Conductor: Aluminum, construction 4×35mm² + 1×16mm²
- Insulation: XLPE, long-term operating temperature up to 90℃
- Sheath: Black PVC sheath, moisture-proof, weather-resistant and stable
- Installation: Indoor, cable duct, pipe, cable tray; armored YJLV22 available for direct burial
- Standards: GB/T 12706, IEC 60502
- Applications: Building power distribution, factory equipment power supply, commercial construction, small and medium-sized engineering low-voltage lines
From the supplier
YJLV 4×35+1×16 is an aluminum conductor XLPE insulated PVC sheathed low voltage power cable with rated voltage 0.6/1kV. It adopts a 4+1 core structure (4 cores 35mm² + 1 core 16mm²), widely used in three-phase four-wire power distribution systems for power supply and earthing protection.
- Conductor: Aluminum, construction 4×35mm² + 1×16mm²
- Insulation: XLPE, long-term operating temperature up to 90℃
- Sheath: Black PVC sheath, moisture-proof, weather-resistant and stable
- Installation: Indoor, cable duct, pipe, cable tray; armored YJLV22 available for direct burial
- Standards: GB/T 12706, IEC 60502
- Applications: Building power distribution, factory equipment power supply, commercial construction, small and medium-sized engineering low-voltage lines
