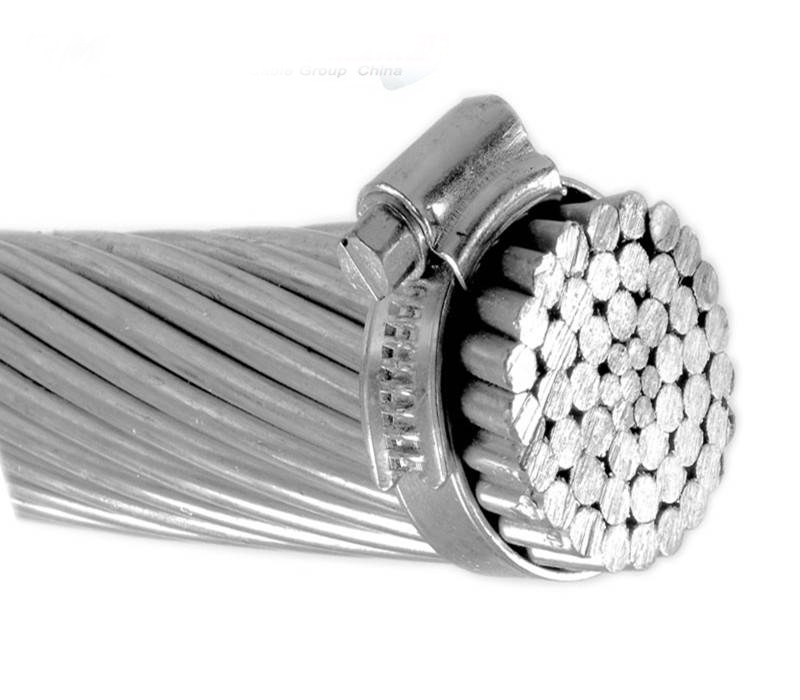

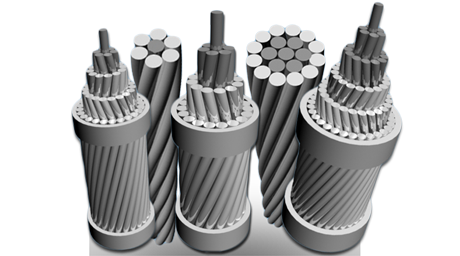

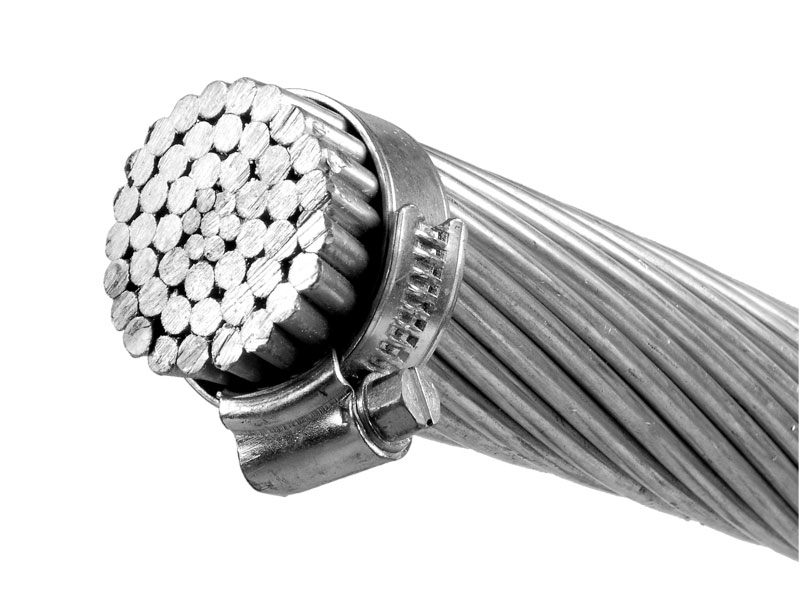

Aluminum Conductor Steel Reinfored Spec: ACSR conductor-IEC 61089 Code Nominal Area Stranding Overall Diameter Weight Breakign Load Electrical Resistance @20o Current Rating* AL Steel Total AL Steel mm^2 mm^2 mm^2 No.xmm No.xmm mm Kg/Km KN Ω/Km A 16 16 2.67 18.7 6/1.84 1/1.84 5.52 64.6 6.08 1.7934 85 25 25 4.17 29.2 6/2.30 1/2.30 6.9 100.9 9.13 1.1478 112 40 40 6.67 46.7 6/2.91 1/2.91 8.73 161.5 14.4 0.7174 150 63 63 10.5 73.5 6/3.66 1/3.66 10.98 254.4 21.63 0.4555 198 100 100 16.7 117 6/4.61 1/4.61 13.83 403.8 34.33 0.2869 263 125 125 6.94 132 18/2.97 1/2.97 14.85 397.9 29.17 0.2304 299 125 125 20.4 145 26/2.47 7/1.92 15.64 503.9 45.69 0.231 302 160 160 8.89 169 18/3.36 1/3.36 16.8 509.3 36.18 0.18 347 160 160 26.1 186 26/2.80 7/2.18 17.74 644.9 57.69 0.1805 351 200 200 11.1 211 18/3.76 1/3.76 18.8 636.7 44.22 0.144 398 200 200 32.6 233 26/3.13 7/2.43 19.81 806.2 70.13 0.1444 402 250 250 24.6 275 22/3.80 7/2.11 21.53 880.6 68.72 0.1154 458 250 250 40.7 291 26/3.50 7/2.72 22.16 1007.7 87.67 0.1155 461 315 315 21.8 337 45/2.99 7/1.99 23.91 1039.6 79.03 0.0917 526 315 315 51.3 366 26/3.93 7/3.05 24.87 1269.7 106.83 0.0917 530 400 400 27.7 428 45/3.36 7/2.24 26.88 1320.1 98.36 0.0722 607 400 400 51.9 452 54/3.07 7/3.07 27.63 1510.3 123.04 0.0723 610 450 450 31.1 481 45/3.57 7/2.38 28.56 1485.2 107.47 0.0642 651 450 450 58.3 508 54/3.26 7/3.26 29.34 1699.1 138.42 0.0643 655 500 500 34.6 535 45/3.76 7/2.51 30.09 1650.2 119.41 0.0578 693 500 500 64.8 565 54/3.43 7/3.43 30.87 1887.9 153.8 0.0578 697 560 560 38.7 599 45/3.98 7/2.65 31.83 1848.2 133.74 0.0516 741 560* 560 70.9 631 54/3.63 19/2.18 32.68 2103.4 172.59 0.0516 745 630 630 43.6 674 45/4.22 7/2.81 33.75 2079.2 150.45 0.0459 794 630* 630 79.8 710 54/3.85 19/2.31 34.65 2366.3 191.77 0.0459 798 710 710 49.1 759 45/4.48 7/2.99 35.85 2343.2 169.56 0.0407 851 710* 710 89.9 800 54/4.09 19/2.45 36.79 2666.8 216.12 0.0407 856 800* 800 34.6 835 72/3.76 7/2.51 37.61 2480.2 167.41 0.0361 910 800* 800 66.7 867 84/3.48 7/3.48 38.28 2732.7 205.33 0.0362 912 800* 800 101 901 54/4.34 19/2.61 39.09 3004.9 243.52 0.0362 916 900* 900 38.9 939 72/3.99 7/2.66 39.9 2790.2 188.33 0.0321 972 900* 900 75 975 84/3.69 7/3.69 40.59 3074.2 226.5 0.0322 974 1000* 1000 43.2 1043 72/4.21 7/2.80 42.08 3100.3 209.26 0.0289 1031

HuaDong Cable Quality Inspection:

HuaDong Cable Project Case:

About HuaDong Cable:

Zhengzhou Huadong Cable Co.,Ltd is an import and export trade company located in Zhengzhou City, Henan Province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 50,000 square meters.We specialize in 0.6-35KV power cables,overhead ABC cables, ACSR, AAAC,control cables, welding cables, rubber cables, mining cables ect. We can provide high quality cables meet GB, IEC, BS,ICEA, ASTM, DIN, VED and JIS strandards. What's more, We can design cables according to your requirement.
