About this product
- Materials: ALUMINUM
- Size: 25mm ~ 100mm
- Color: white, wood
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
About this product
- Materials: ALUMINUM
- Size: 25mm ~ 100mm
- Color: white, wood
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Guangdong, China
Product details
| Materials | ALUMINUM |
|---|---|
| Size | 25mm ~ 100mm |
| Color | white, wood |
From the supplier
Basic Info.

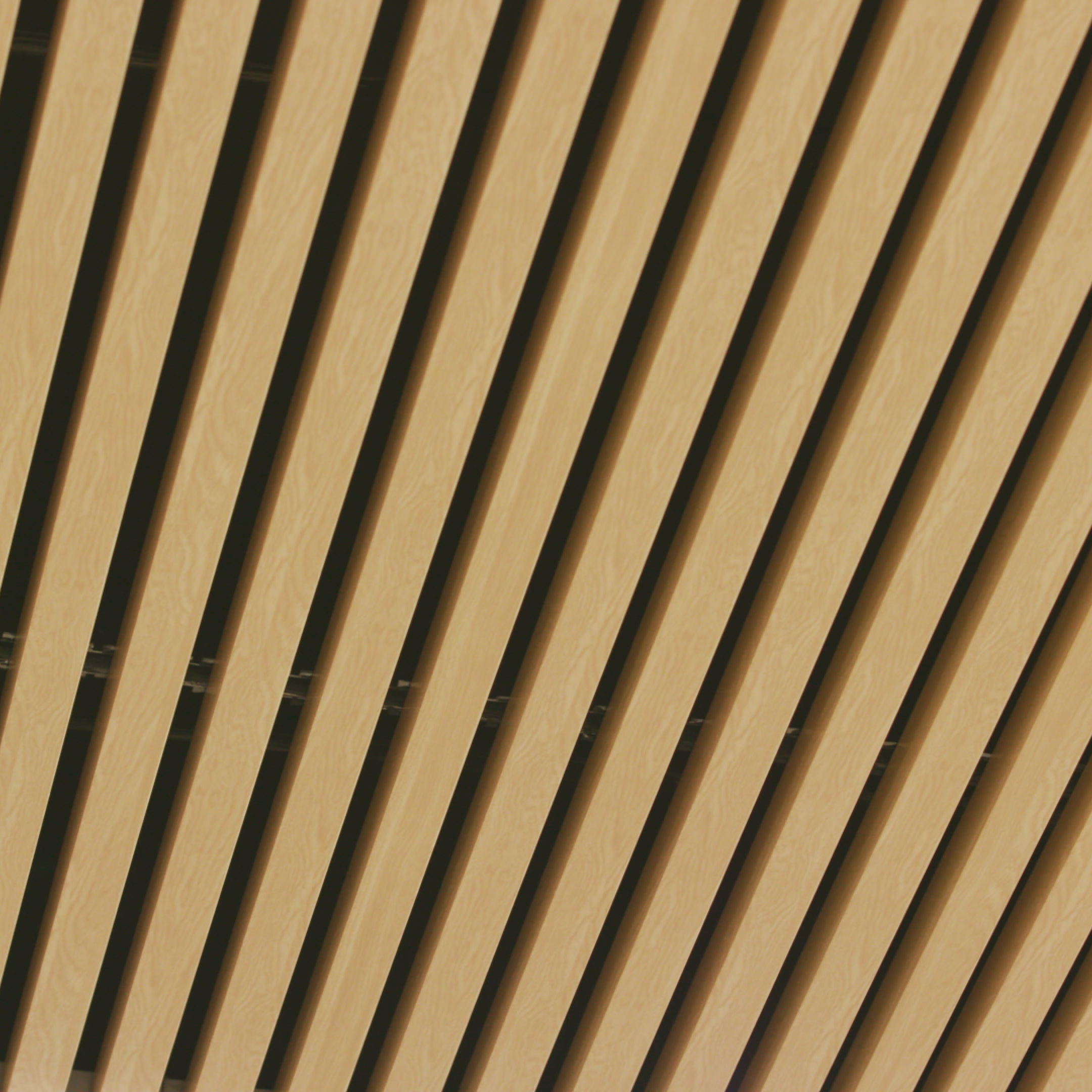

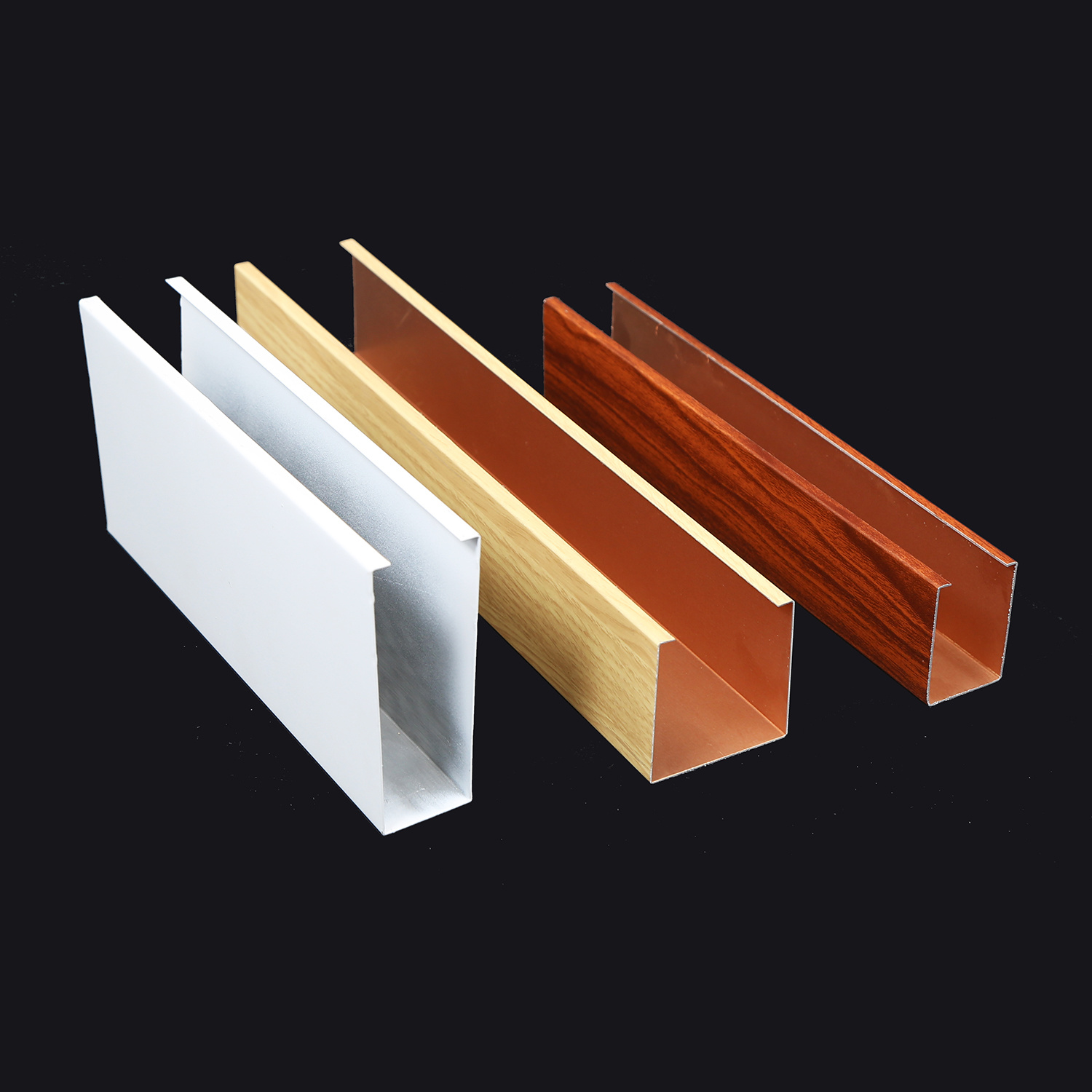

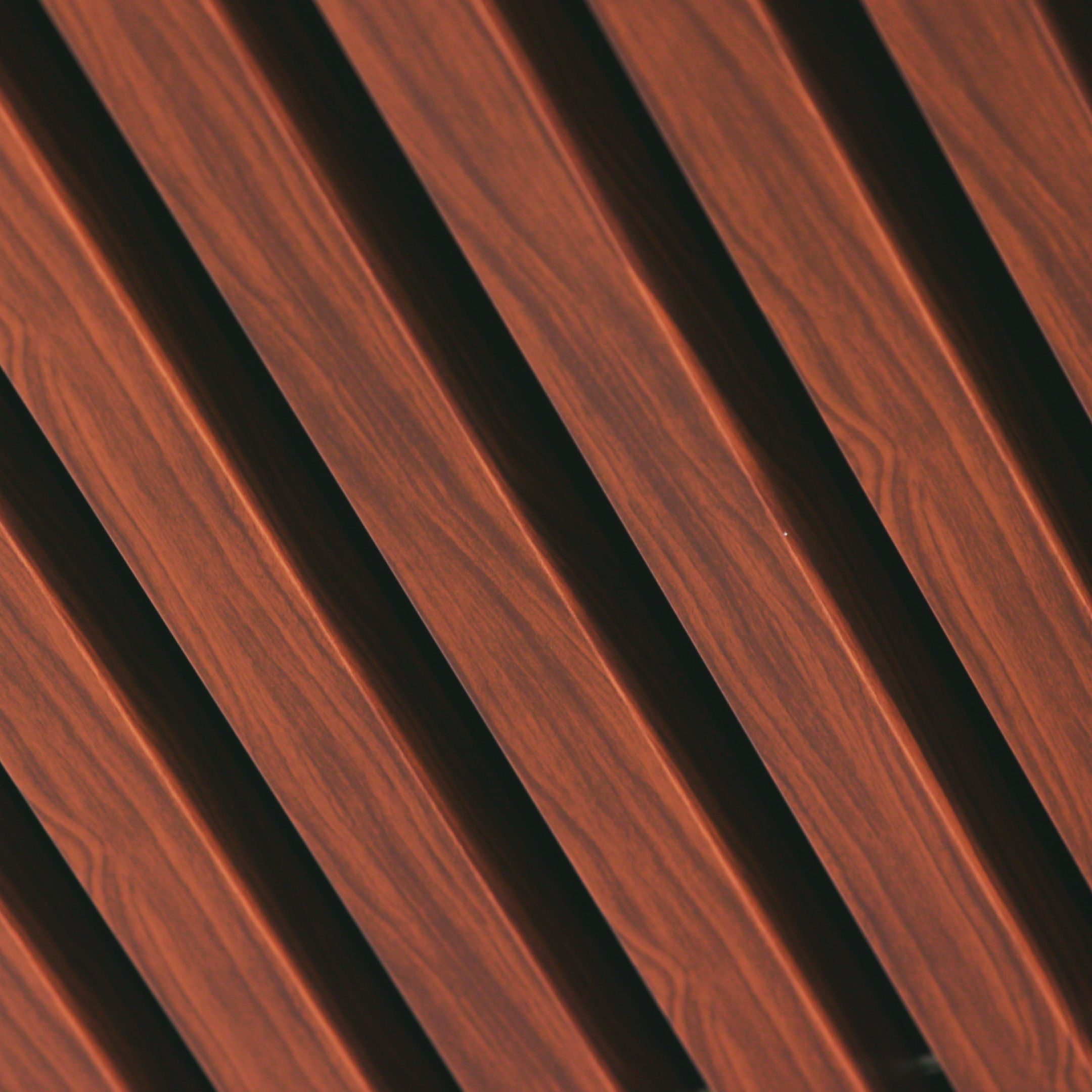

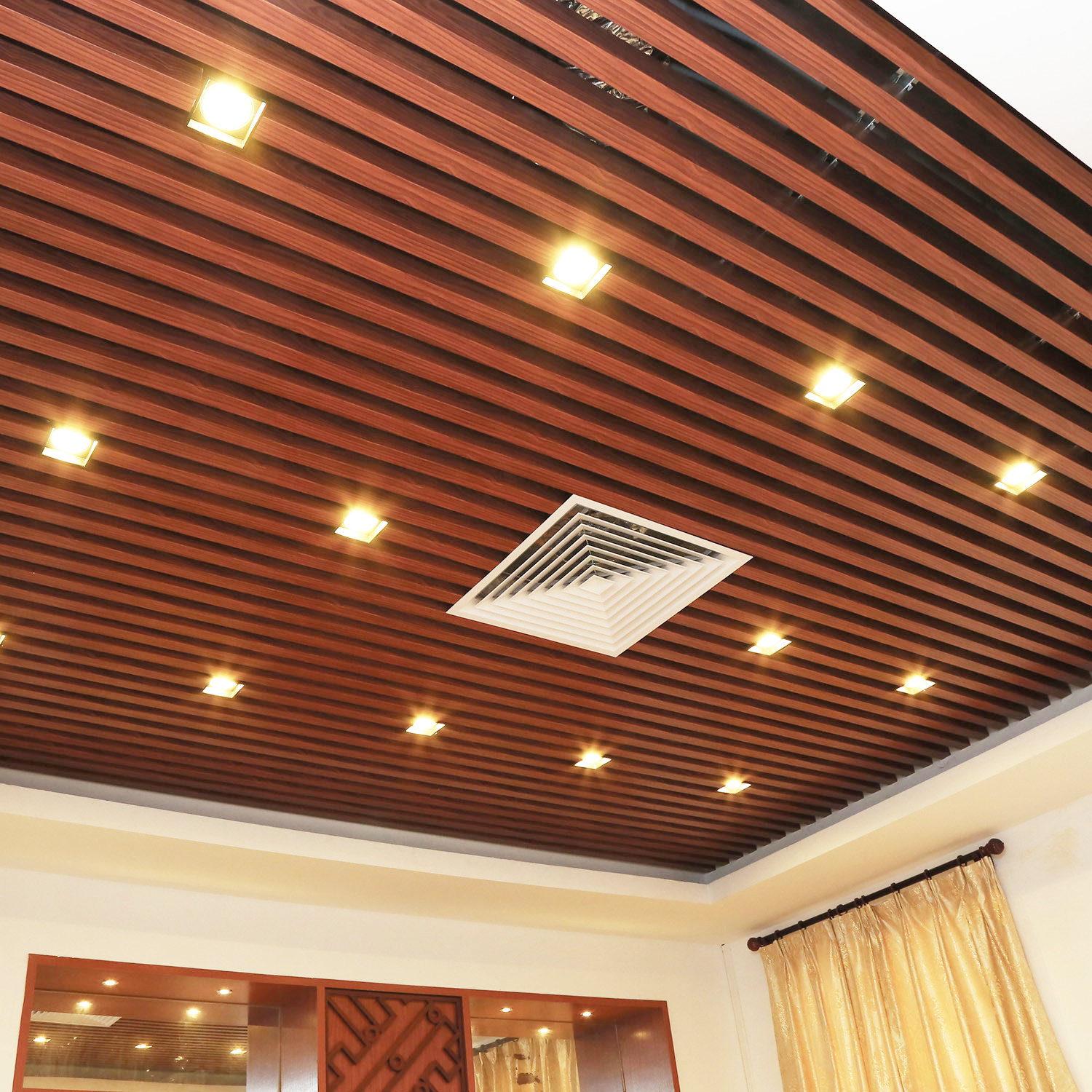

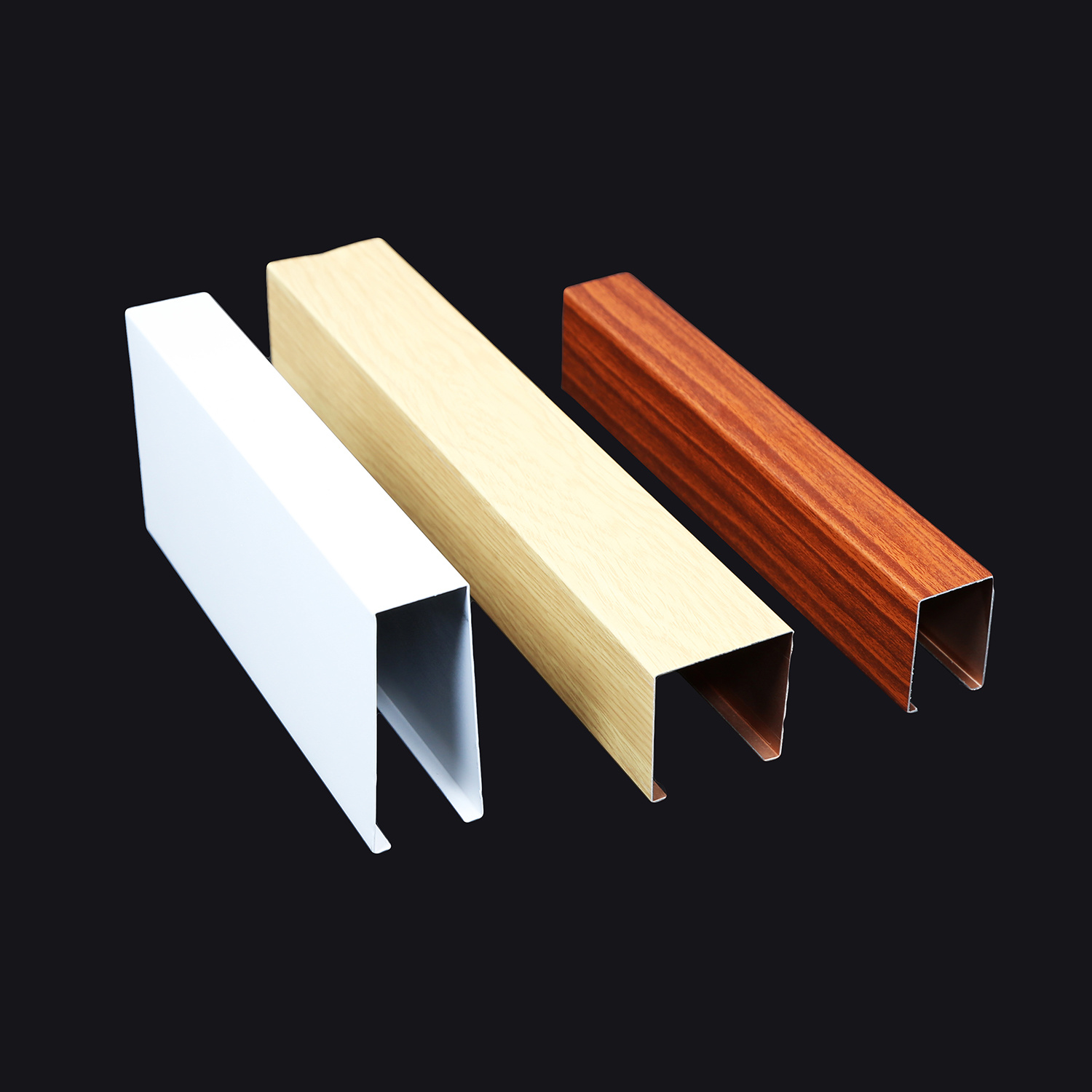

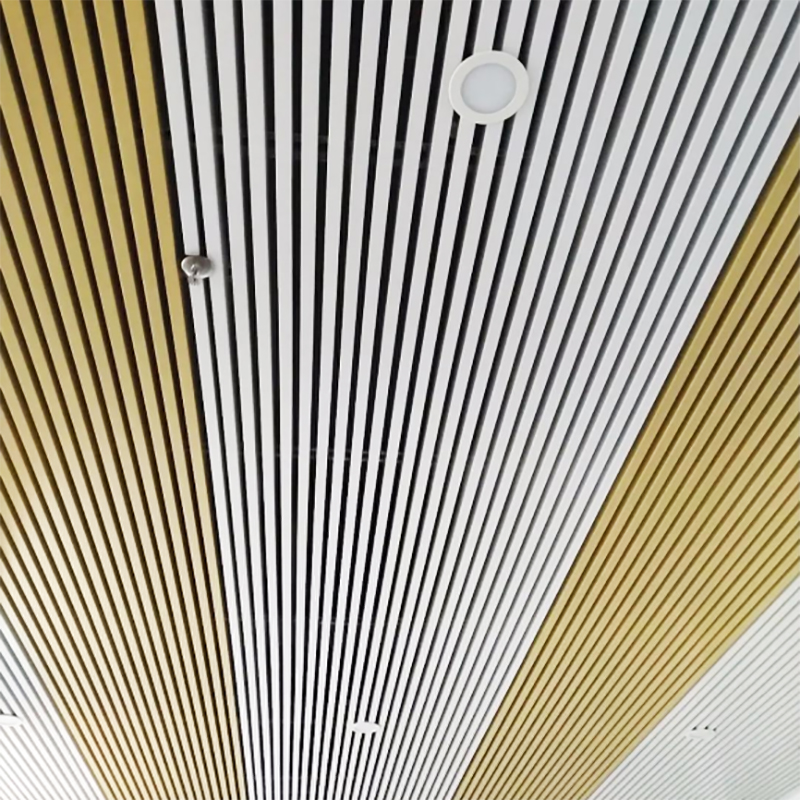

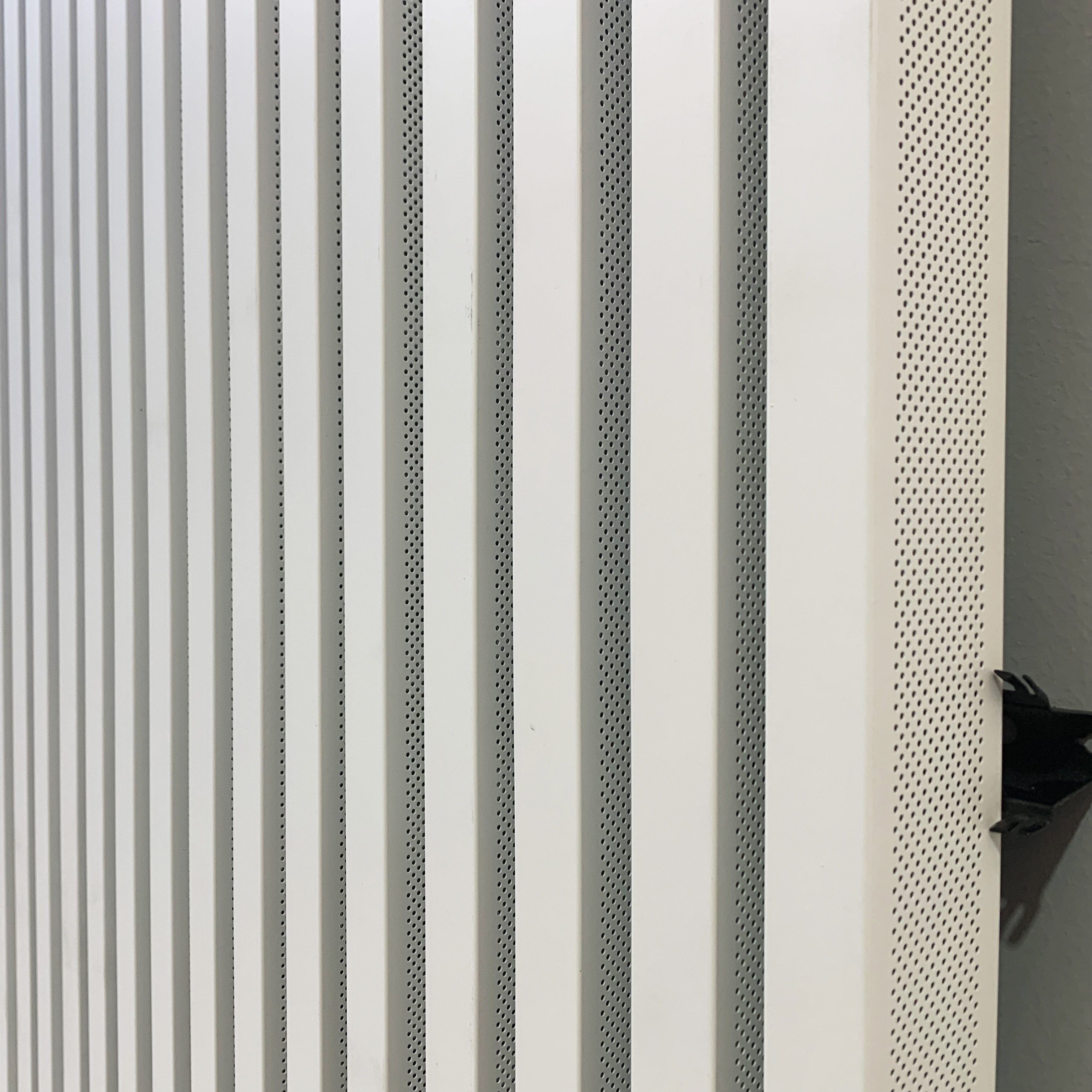

Baffle CeilingProductAluminum Baffle CeilingWidth25mm ~ 100mm Height25mm ~ 150mmthicknesses0.6mm ~ 1.0mmMaterial Aluminum Surface Treatment Powder-coated, pre-paintedGap between panelsCustomizedBaffle ceiling is popular for projects in restaurant, airport and transport station. This type of ceiling offers impressive absorption characteristics and can be continuous.
Fixing method
First, level a plain line on walls with designed height for ceiling, then fix the wall angle.
Second, choose a suspension point, make holes in the solid ceiling with a drill, fix the expansion screw, the suspension bolt and suspension bracket for 38# main carrier.
Then fix the 38# main carrier, fasten it with screw and nut.
We regard it as upper hanging system, which enhances flatness of ceiling.
After setting upper hanging system, fix baffle ceiling carrier under the 38# main carrier, connecting with suspension bracket.
And then adjust nuts on the bolt to level the main carrier.
Last step, put baffle ceiling onto the panel carrier and bend down the clip.
