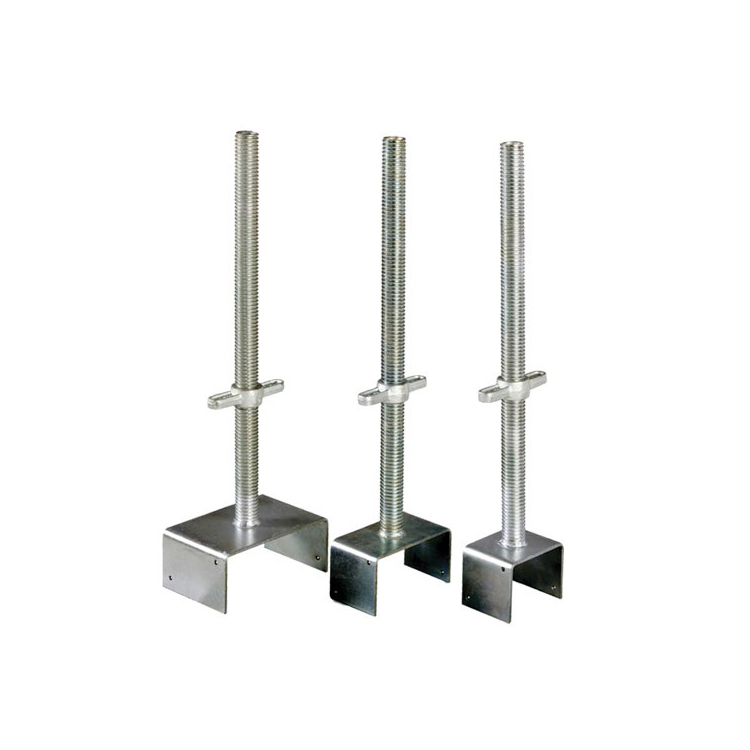

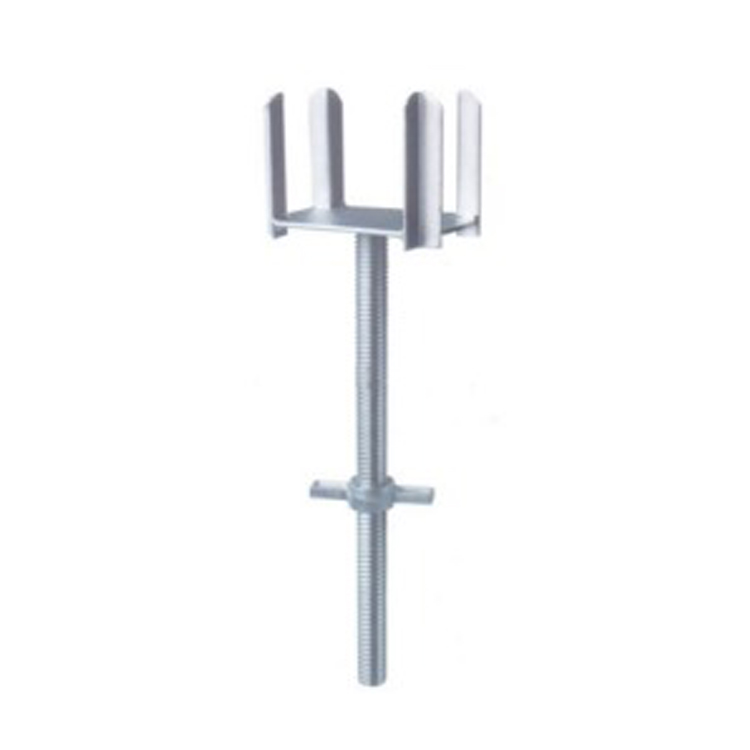

Adjustable steel screw U head jack is used on the construction scaffold to play the role of top support. The structure is composed of screw rod, U head plate and adjusting nut. The bottom can be equipped with reinforcing ribs, which are often used in underground pipe corridors, water plants and power plants, subway tunnels and other projects.

Specification

Material: steel tube, steel round bar

Grade: Q235, Q345

Surface treatment: oiled, painted, galvanized

Type: solid, hollow

Length: 400 ~ 700mm

Diameter: 28 ~ 48mm

U head: 120X100X45X4mm, 150X120X50X4.5mm, 150X150X50X6mm or customized

Weight: 1~5kgs

Packing: by wooden pallet or iron pallet

Application

Adjustable steel screw U head jack is used with steel pipe and scaffold to adjust the height of scaffold and pipe support in the construction process, balance the weight and load-bearing. With the rapid development of real estate and three-dimensional transportation in recent years, the amount of adjustable steel jack has also made rapid progress.
