ABB's MNS-E series low-voltage power distribution and control cabinets/panels comply with international standards such as IEC61439, GB7251, BSEN60439, and AS3439. The installation and connection of the system are carried out according to IEC60364 and DIN VDE0105 standards.

The MNS-E series low-voltage power distribution and control cabinets/panels feature a standardized modular design, with a compact structure and strong versatility. The width, height, and depth of the cabinets/panels can be expanded in any direction according to the standard module (E=25mm).

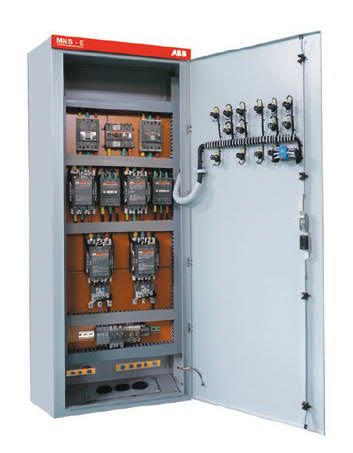

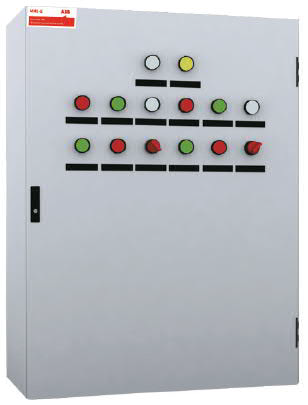

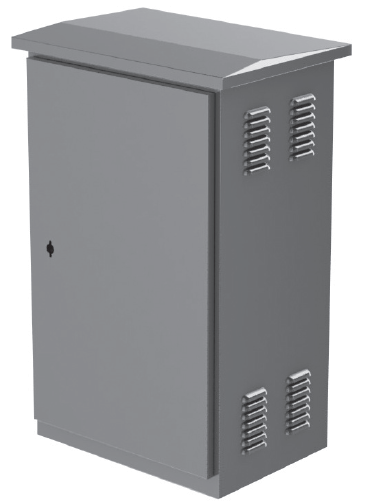

The MNS-E series low-voltage power distribution and control cabinets/panels are equipped with an all-metal enclosure, which can have either glass or metal doors that open up to 180°. The installation methods include wall-mounted boxes and floor-standing cabinets. Wall-mounted boxes are made of 1.5mm high-quality cold-rolled steel plates, while floor-standing cabinets are made of 2mm high-quality cold-rolled steel plates. The cabinets/panels can be either assembled or welded. The entire cabinet/panel body is treated with epoxy resin powder electrostatic spraying and matte finishing. The shell color is RAL7036 light gray, and the internal electrical mounting plate is RAL2000 yellowish-brown, complemented by black door locks and hinges, as well as unique label designs, making the overall color scheme elegant and aesthetically pleasing.

The protection level of the MNS-E series low-voltage power distribution and control cabinets/panels ranges from IP30 to IP54.

Pursuing innovation and perfection is ABB's commitment and mission to customers. The MNS-E series low-voltage power distribution and control cabinets/panels are an enhancement and supplement to ABB's low-voltage distribution box products (terminal distribution boxes, three-box distribution boxes, power distribution boxes, distribution switch boxes), enabling ABB to have a complete product chain in low-voltage distribution cabinets/panels, comprehensively covering the needs of various industries for distribution cabinets/panels.

Structural Highlights:
- Standardized design, compact structure, strong versatility
- Three-dimensional dimensions can be varied as needed
- Cabinet doors can open up to 180°
- Cabinets/panels can be either assembled or welded
- Electrical mounting plates can be detached individually
- Unique label design
- Elegant and aesthetically pleasing color scheme

Applications:
- Motor starting control
- Common water pump control
- Common fan control
- Other motor controls
- Power distribution
- Dual power supply switching distribution

Application Scenarios:
- Municipal utilities, commercial buildings
- Telecommunications/information, electronics industry, consumer goods
- Rail transit, airports, ports/ships
- Petroleum, chemical, power construction
- Manufacturing, tobacco industry
- Metals, mining, cement, paper industry

Environmental Temperature:
- Short-term maximum temperature: +40℃
- 24-hour maximum average temperature: +35℃
- Minimum temperature: -5℃
- Equipment used above the mentioned environmental temperatures should be derated. For the working conditions of measuring, metering instruments, and protective relays, the manufacturer's regulations should be followed.

Environmental Conditions:
The climatic environment during normal operation follows the regulations of IEC61439, ENG0439, and VDE0660 Part 500. When the ambient temperature is 40℃, the relative humidity is 50%.
If the cabinets/panels are installed above 2000 meters above sea level, the equipment should be derated accordingly.
