Equipped with SHANGCHAI (240HP/174KW)  engine, ZF power shift gear box with forward 4 reverse 3 speeds,bucket capacity 2.6-5.0 m³，rated load 6000kg。

(1) Innovative design of the main articulation of the frame "matching" tapered roller bearing structure, which increases the contact area and ensures the reliability of the articulation even under harsh working conditions;

(2) Adopt ZF4WG200 dual-variable system, the gearbox is electro-hydraulic operated power shift fixed shaft type, and can achieve forced speed reduction, simple and safe operation, high operating efficiency;

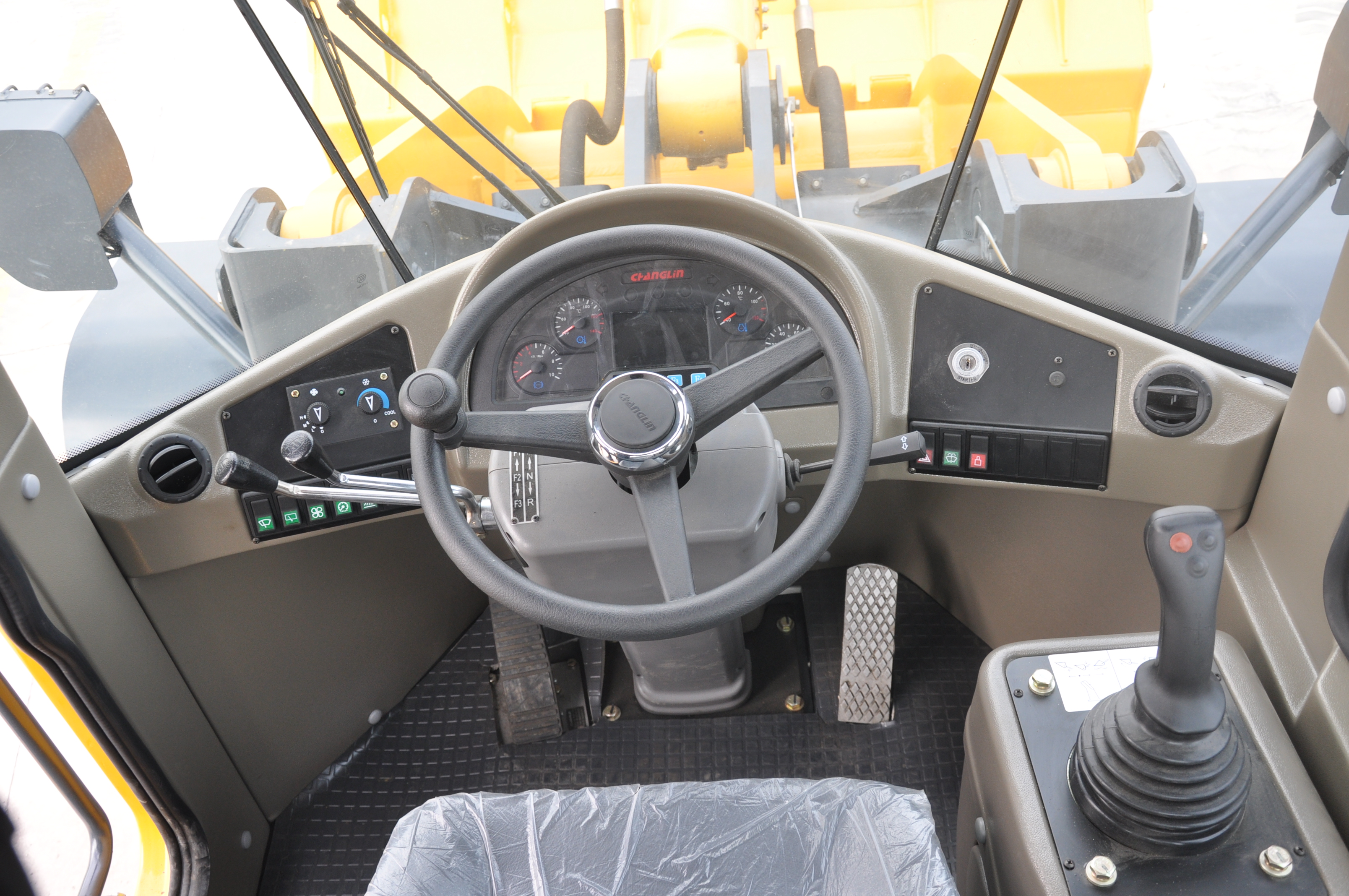

(3) The use of a small-displacement steering gear and a low-pressure-controlled load-sensing fully hydraulic flow-amplified valve-type steering system makes the steering wheel operation very easy and flexible, greatly reducing labor intensity; the steering wheel uses an adjustable device to make the operation more comfortable Convenience

(4) Based on simulation and test verification, the innovative design of the shunt cooling hydraulic system can make the whole hydraulic system get reasonable and sufficient heat dissipation under any working condition, improve the efficiency of the radiator and the reliability of the hydraulic system;

(5) The design of the T series appearance cover has a large opening door, and the front air inlet and the rear air outlet of the radiator can be opened. The brand-new cab upgrade, super strong sealing, the noise of the whole machine is far lower than the national standard;

(6) The relays and fuse boxes of the whole vehicle are arranged centrally. The grease nipple of the working device is led to the side of the frame. The pressure measurement port is arranged at the front of the auxiliary box.
