About this product
- Materials: ABS+Aluminum
- Size: 15ft
- Color: Green
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: ABS+Aluminum
- Size: 15ft
- Color: Green
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | ABS+Aluminum |
|---|---|
| Size | 15ft |
| Color | Green |
Product details
| Materials | ABS+Aluminum |
|---|---|
| Size | 15ft |
| Color | Green |
From the supplier

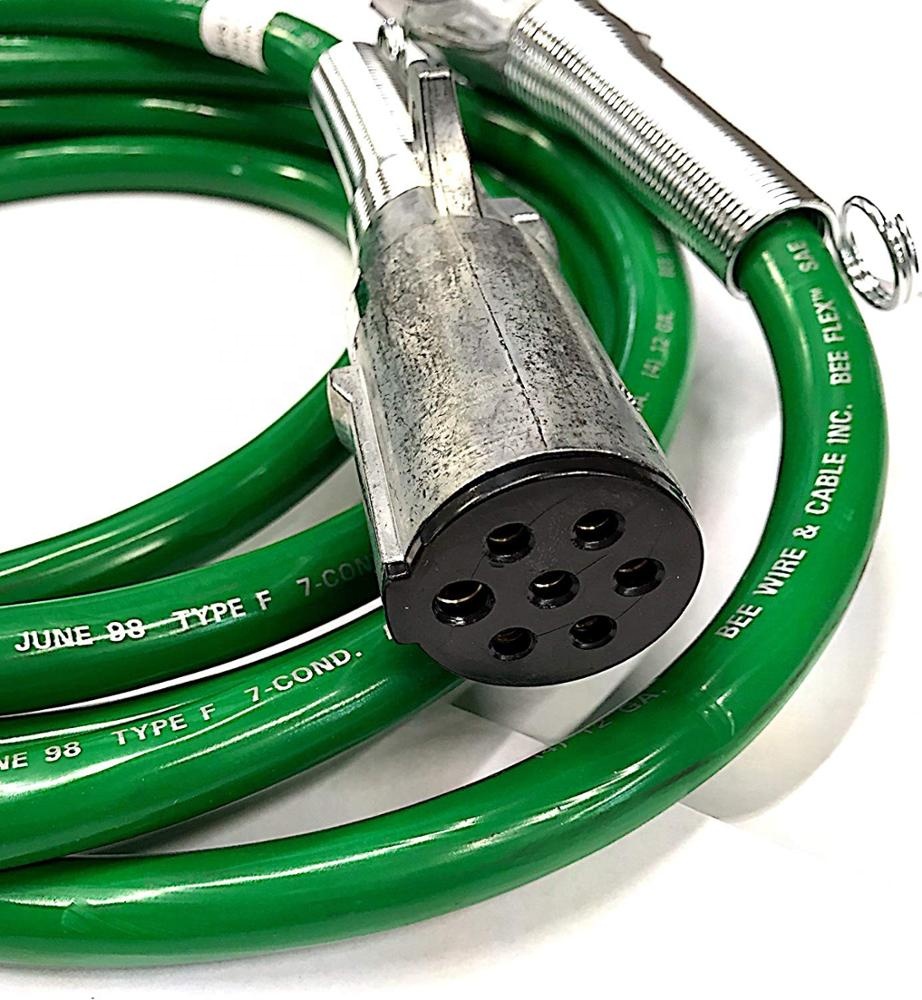

15 Ft 7 Way ABS Straight trailer Cable
Function: Connect trucks and power supply for trailer lights display
Working Length: 15' Leads: 1 x 12", 1 x 40"
Exceptional flexibility from -55F to + 160F (-50C to 70C)
Two standard 7 way zinc die-cast plugs with springs
This ultra heavy duty construction is approved for ABS systemsApplications: commercial vehicle / trailer / Trailer
Category: Plug
Shape: Round
Production process: Injection
Features: Waterproof
Contacts material: copper
Insulator Material: Engineering Plastics
Model: 12N (applies to European car)
Wiring Information Reference:
7 Pin Lighting Connections
PIN 1 - Yellow Wire (Left / Hand Direction Indicator left turn signal display)
PIN 2 - Blue Wire (Rear Fog Lamps Fog Lights display)
PIN 3 - White Wire (Earth Return spot turning lights show)
PIN 4 - Green Wire (Right / H Direction Indicator right turn signal lamp display)
PIN 5 - Brown Wire (Right / H Tail & No. Plate Lamp Right taillight and license light box display)
PIN 6 - Red Wire (Stop Lamp brake light display)
PIN 7 - Black Wire (Left / H Tail & No. Plate Lamp left taillight and license light box display)
From the supplier
15 Ft 7 Way ABS Straight trailer Cable
Function: Connect trucks and power supply for trailer lights display
Working Length: 15' Leads: 1 x 12", 1 x 40"
Exceptional flexibility from -55F to + 160F (-50C to 70C)
Two standard 7 way zinc die-cast plugs with springs
This ultra heavy duty construction is approved for ABS systemsApplications: commercial vehicle / trailer / Trailer
Category: Plug
Shape: Round
Production process: Injection
Features: Waterproof
Contacts material: copper
Insulator Material: Engineering Plastics
Model: 12N (applies to European car)
Wiring Information Reference:
7 Pin Lighting Connections
PIN 1 - Yellow Wire (Left / Hand Direction Indicator left turn signal display)
PIN 2 - Blue Wire (Rear Fog Lamps Fog Lights display)
PIN 3 - White Wire (Earth Return spot turning lights show)
PIN 4 - Green Wire (Right / H Direction Indicator right turn signal lamp display)
PIN 5 - Brown Wire (Right / H Tail & No. Plate Lamp Right taillight and license light box display)
PIN 6 - Red Wire (Stop Lamp brake light display)
PIN 7 - Black Wire (Left / H Tail & No. Plate Lamp left taillight and license light box display)
