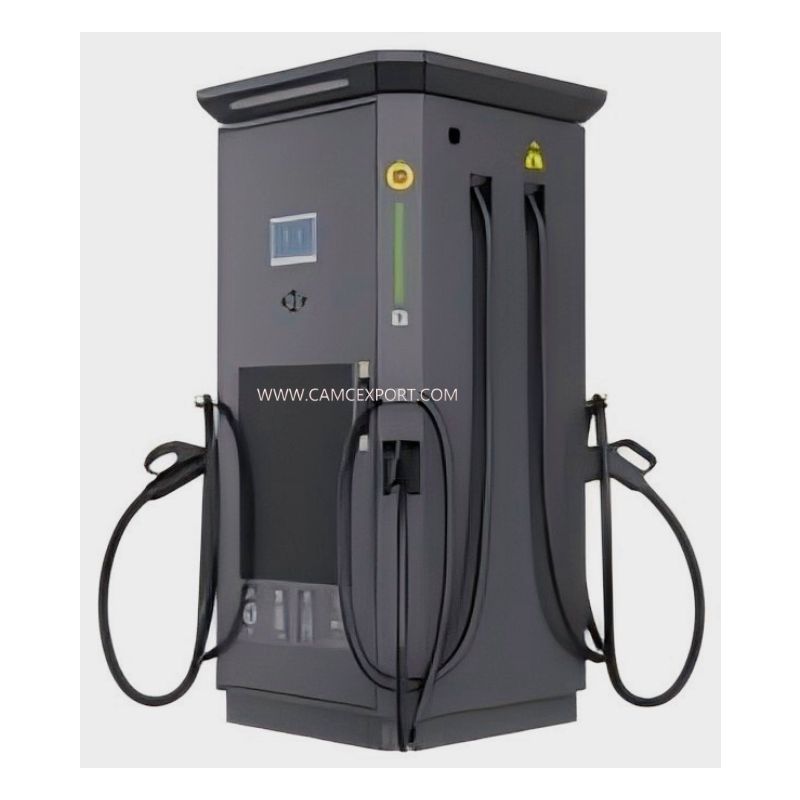

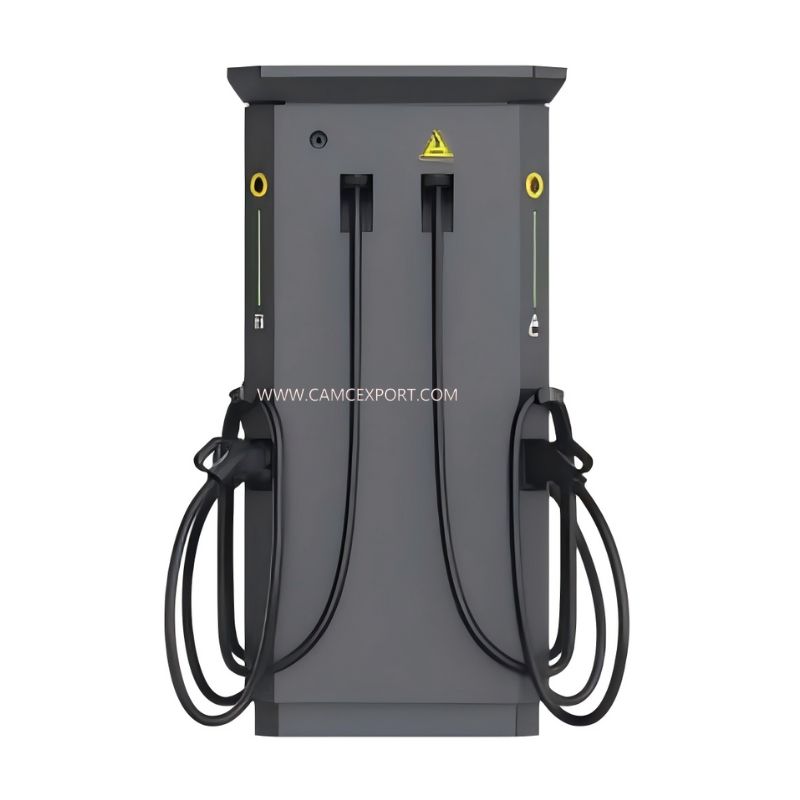

60-240kW Series DC EV Charger

Our 60-240kW Series DC EV Charger is a high-power, multi-gun charging solution specifically designed for high-demand public and commercial charging scenarios. Adopting a modular design, it supports 3-gun or 4-gun configurations, enabling flexible power distribution and ultra-fast charging speeds that perfectly meet the needs of fleet depots, highway rest stops, parking garages, urban charging hubs and other scenarios. Equipped with bidirectional energy transfer capabilities, it supports V2G (Vehicle-to-Grid), V2L (Vehicle-to-Load) and V2H (Vehicle-to-Home) functions, realizing efficient interaction between electric vehicles and the power grid. At the same time, the product fully complies with global safety and interoperability standards, ensuring stable and reliable operation in various complex environments.

Multi-Gun Configuration: Available in 3-gun or 4-gun setups, it supports CCS1, CCS2, CHAdeMO and GB/T connectors, which can be flexibly configured according to regional market needs to adapt to a wide range of electric vehicle models, improving the applicability and accessibility of the charger.

Flexible Power Output: The power output is configurable in the range of 60kW to 240kW, and it supports parallel charging technology, which can dynamically distribute power between multiple connected vehicles according to the actual charging needs, maximizing charging efficiency and reducing user waiting time.

Bidirectional Charging Capability: Built-in V2G, V2L and V2H functions, it can realize bidirectional energy transfer between electric vehicles and the grid, between electric vehicles and electrical loads, and between electric vehicles and homes. It not only meets the charging needs of electric vehicles, but also can feed back the surplus power of the vehicle battery to the grid or supply power to household and industrial loads, realizing energy recycling and reducing energy costs.

Secure User Authentication: Integrated with an RFID reader that complies with ISO/IEC 14443A/B standards, it supports secure access control for users; an optional credit card reader is also available to provide convenient and secure payment processing services, adapting to different user usage habits.

OCPP 1.6J Compliance: Fully compatible with the OCPP 1.6J communication protocol, it can seamlessly integrate with most mainstream charging network management systems, enabling remote monitoring, fault diagnosis, firmware upgrade and billing management of the charger, greatly reducing the difficulty and cost of operation and maintenance.

FRU Onboard Diagnostics: Adopting a field-replaceable unit (FRU) architecture, it simplifies maintenance procedures and minimizes equipment downtime; the built-in self-diagnostic function can proactively detect potential faults of the equipment, remind operation and maintenance personnel to handle them in a timely manner, and ensure the continuous and stable operation of the charger.

CE Certification: Passed strict European safety and EMC (Electromagnetic Compatibility) certification, complying with EN 61000-6-1:2007 and EN 61000-6-3:2007/A1:2011/AC:2012 standards, ensuring that the product has excellent safety and anti-interference performance in various operating environments.

Efficient Air-Cooled Design: Adopting an air-cooled thermal management system, it can maintain stable operation in a wide temperature range of -30°C to 55°C, adapting to various harsh climate conditions; the cooling system is simple in structure, low in maintenance costs, and has high cooling efficiency, ensuring the stable output of the charger's power.

Input: The input voltage supports 400VAC / 480VAC (3P+N+PE), and the input frequency is 50/60Hz, which is compatible with the power grids of most regions in the world. Output Voltage: The output voltage range is 200 – 1000VDC, which can meet the charging needs of most modern electric vehicles. Output Current: The maximum output current is 0 to 800A, providing strong support for ultra-fast charging.

Connectors & Single-Gun Charging Mode: It supports CCS1, CCS2, CHAdeMO and GB/T connectors; in single-gun charging mode, the output current of CCS1 is 200A, CCS2 is 200A, CHAdeMO is 150A, and GB/T is 250A, which can adapt to different types of electric vehicle charging requirements.

Efficiency & Power Factor: The efficiency of the charger is ≥94% under nominal output power, and the power factor is >0.98, which has excellent energy-saving performance, reducing energy loss during the charging process and lowering the operation cost of the charging station.

Operating Environment: The operating temperature range is -30°C to 55°C, the storage temperature range is consistent with the operating temperature range; the operating humidity is ≤ 95% RH, and the storage humidity is ≤ 99% RH (non-condensing); the applicable altitude is less than 2000m, which can adapt to most regional environments.

Display & Communication: Equipped with a 7-inch LCD touch screen, the interface is intuitive and easy to operate, allowing users to quickly view charging parameters and operation status; the communication method supports standard Ethernet, and an optional 3G/4G modem is available to realize remote connection and management of the charger; the communication protocol adopts OCPP 1.6.1, ensuring stable and reliable data transmission.

Physical Parameters: The overall dimensions of the charger are 900*900*1975mm (length × depth × height), the net weight is 480kg, the ingress protection level is IP54, and the impact resistance level is IK10, which can effectively prevent dust, water splashing and external impact, ensuring the safe operation of the equipment in outdoor and semi-outdoor environments.

Electrical Safety: Equipped with comprehensive electrical safety protection functions, including GFCI (RCD 30 mA Type A) protection, 20 kA surge protection, over-voltage protection, under-voltage protection, over-current protection, missing ground protection and output short-circuit protection; temperature sensors are installed at the charger coupler and power electronics to realize real-time temperature monitoring and protection; an emergency stop button is also equipped, which can quickly cut off the output power in case of emergency to ensure the safety of users and equipment.

Other Specifications: The length of the charging cable is 5m, which is convenient for users to connect the vehicle; the insulation performance between input and output is >2.5kV, ensuring electrical safety; the charging protocol standards comply with Mode 4 - IEC-61851, ISO-15118, DIN 70121, CHAdeMO 2.0 Mode 4, as well as GB/T 18487.2023, GB/T 20234.2023 and GB/T 27930 2023, ensuring good interoperability with electric vehicles and charging network systems.

"This 240kW charger has been a game-changer for our fleet operations. The 4-gun setup lets us charge multiple vehicles simultaneously, which greatly improves our fleet charging efficiency and shortens the overall charging cycle. The V2G capability helps us reduce our energy costs during peak hours by feeding back surplus power to the grid, bringing obvious economic benefits. The touchscreen interface is intuitive for drivers, and the CE certification gives us full confidence in its safety and reliability. It has been running stably for several months without any faults, which is very satisfying."

— Fleet Operations Manager, Logistics Company

"We installed these chargers in our downtown parking garage, and the response from customers has been excellent. The fast charging speeds and support for multiple connector types make it accessible to all EV owners, solving the problem of incompatible charging interfaces for different models. The OCPP integration has simplified our billing and network management work. We can remotely monitor the operating status of each charger and manage user charging records in a unified manner, which greatly improves the efficiency of operation and maintenance. It is a very cost-effective high-power DC EV charger."

— Commercial Property Manager

Q: Can this charger be configured to support different connector types according to regional market needs?

A: Yes, the 60-240kW Series DC EV Charger supports CCS1, CCS2, CHAdeMO and GB/T connectors. We can provide flexible configuration according to the regional market demand and the mainstream electric vehicle models in the region, ensuring that the charger can be perfectly adapted to the local market.

Q: What is the maximum charging speed supported by this unit?

A: With a maximum output of 240kW and 800A, the charger can deliver up to 1000VDC output voltage, enabling ultra-fast charging for most modern EVs. Generally speaking, it can charge an electric vehicle with a battery capacity of 100kWh from 20% to 80% in about 20-30 minutes, which greatly shortens the user's charging waiting time.

Q: Is this charger compatible with existing charging network management systems?

A: Yes, it is fully compliant with OCPP 1.6J, which is the mainstream communication protocol in the global charging industry. It can ensure seamless integration with most leading network management platforms, realizing remote monitoring, fault diagnosis, firmware upgrade, billing management and other functions, without the need to replace the existing management system, reducing the cost of system transformation.

Q: What maintenance is required for this charger?

A: The air-cooled design and FRU (field-replaceable unit) architecture minimize maintenance needs. Routine maintenance mainly includes verifying the integrity of the charging cable, checking whether the cooling system is free of debris and ensuring smooth ventilation, updating the device firmware regularly, and checking the operation status of the emergency stop button and safety protection devices. Under normal use, the maintenance cycle is long, and the maintenance cost is low.

Q: What is the service life of this charger?

A: Under normal operating conditions and regular maintenance, the service life of the charger can reach 10-15 years. We provide a complete after-sales service system, including technical support, spare parts supply and on-site maintenance services, to ensure that the charger can operate stably for a long time and protect the user's investment.
