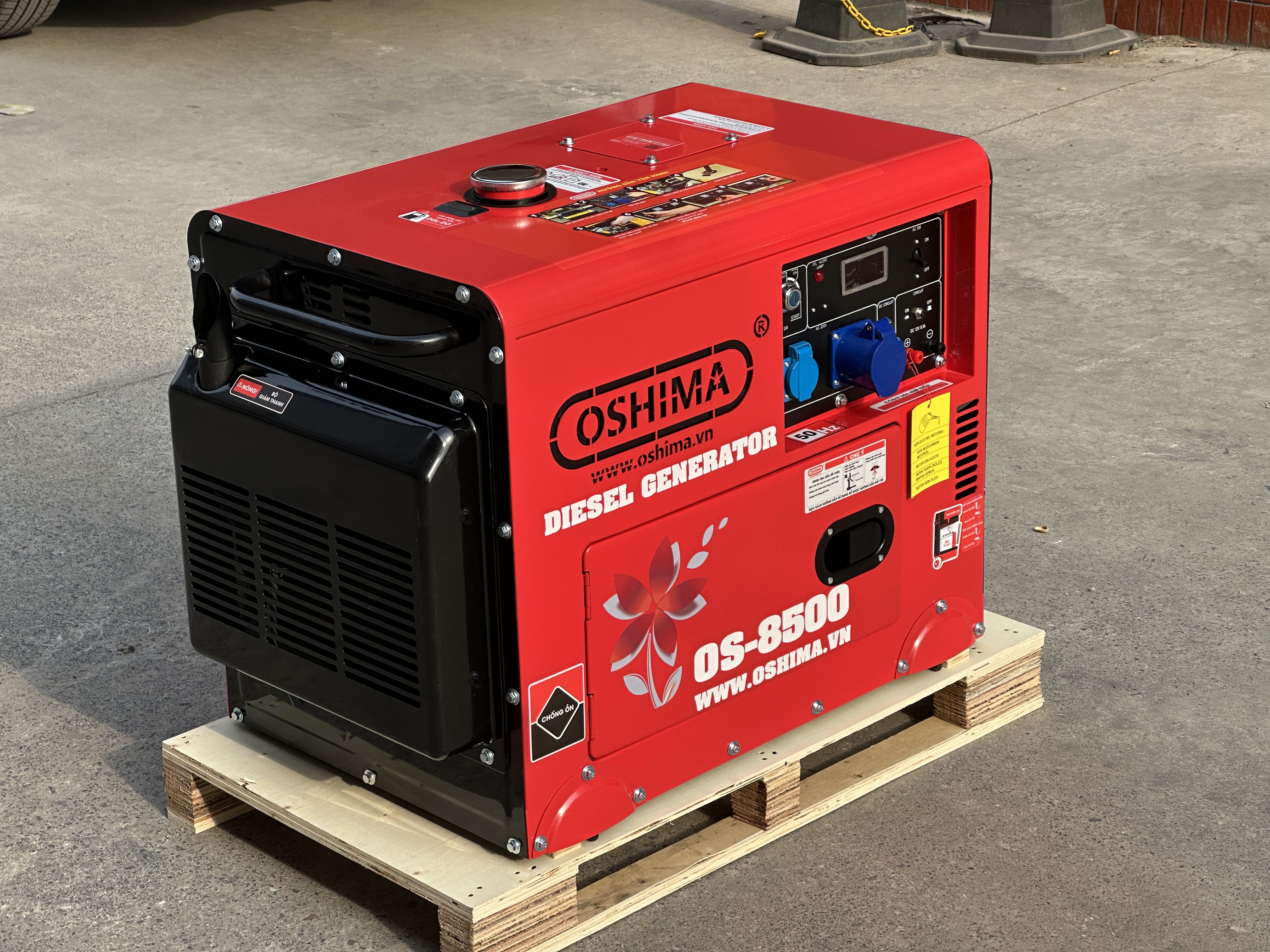

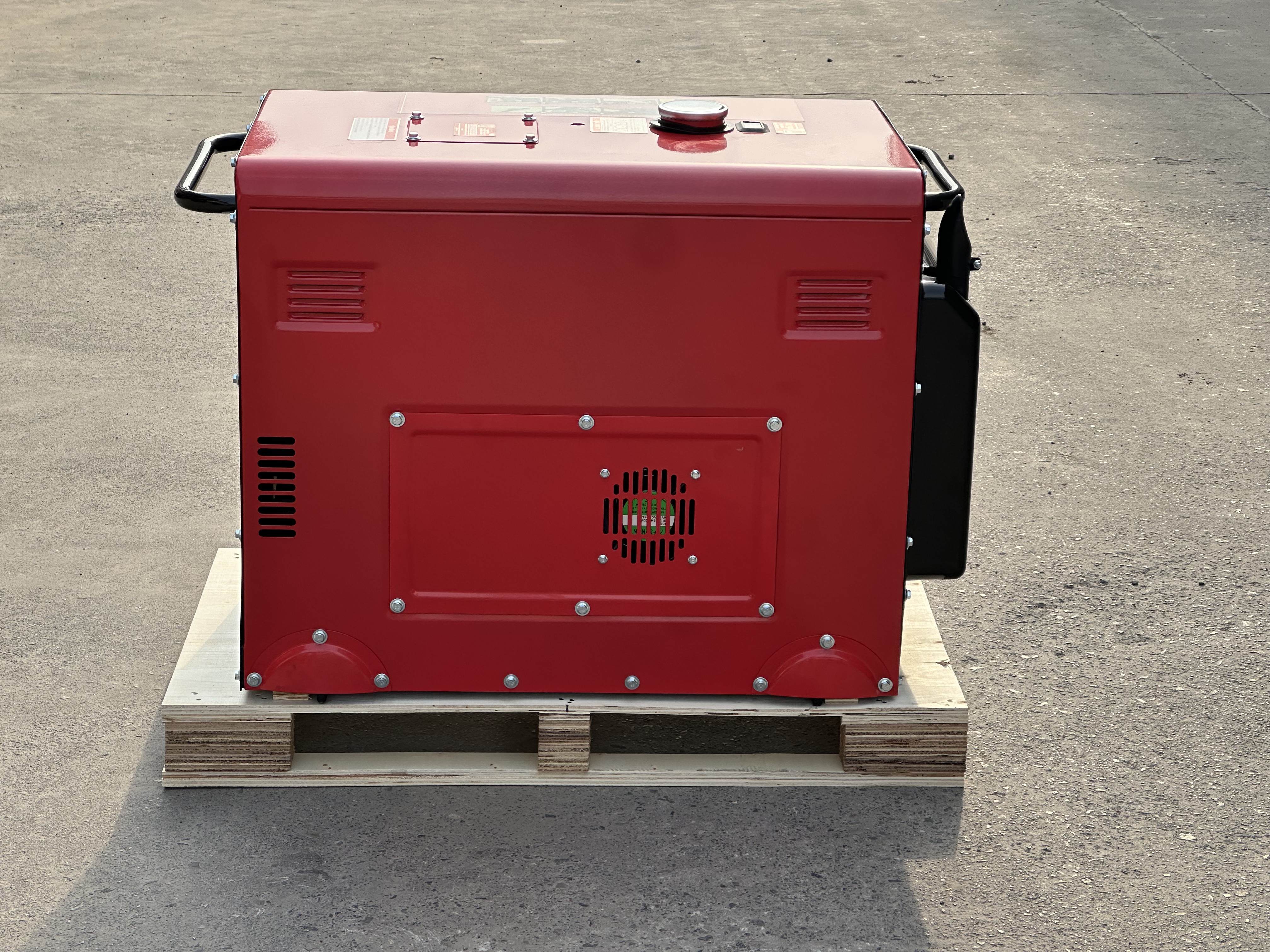

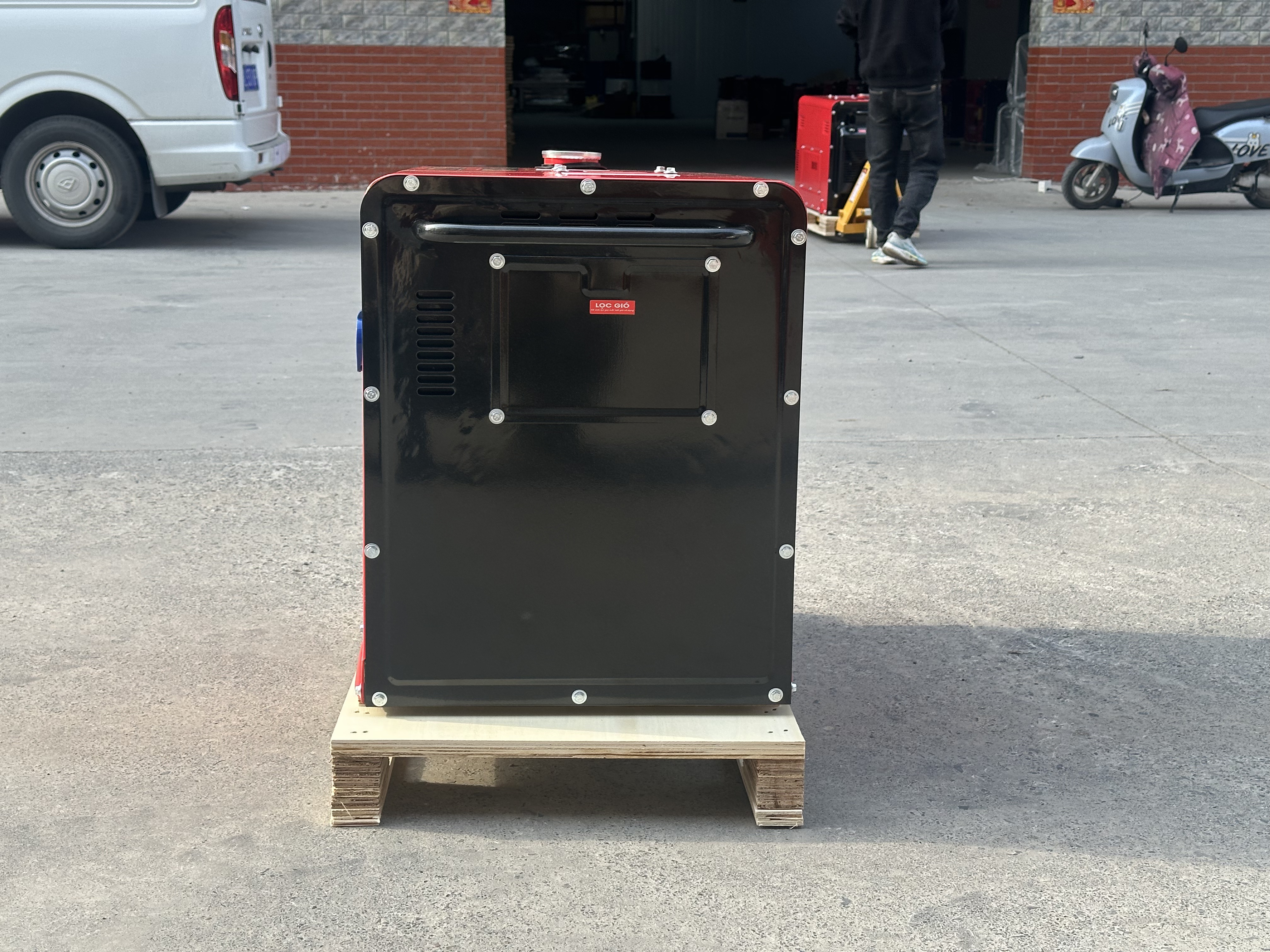

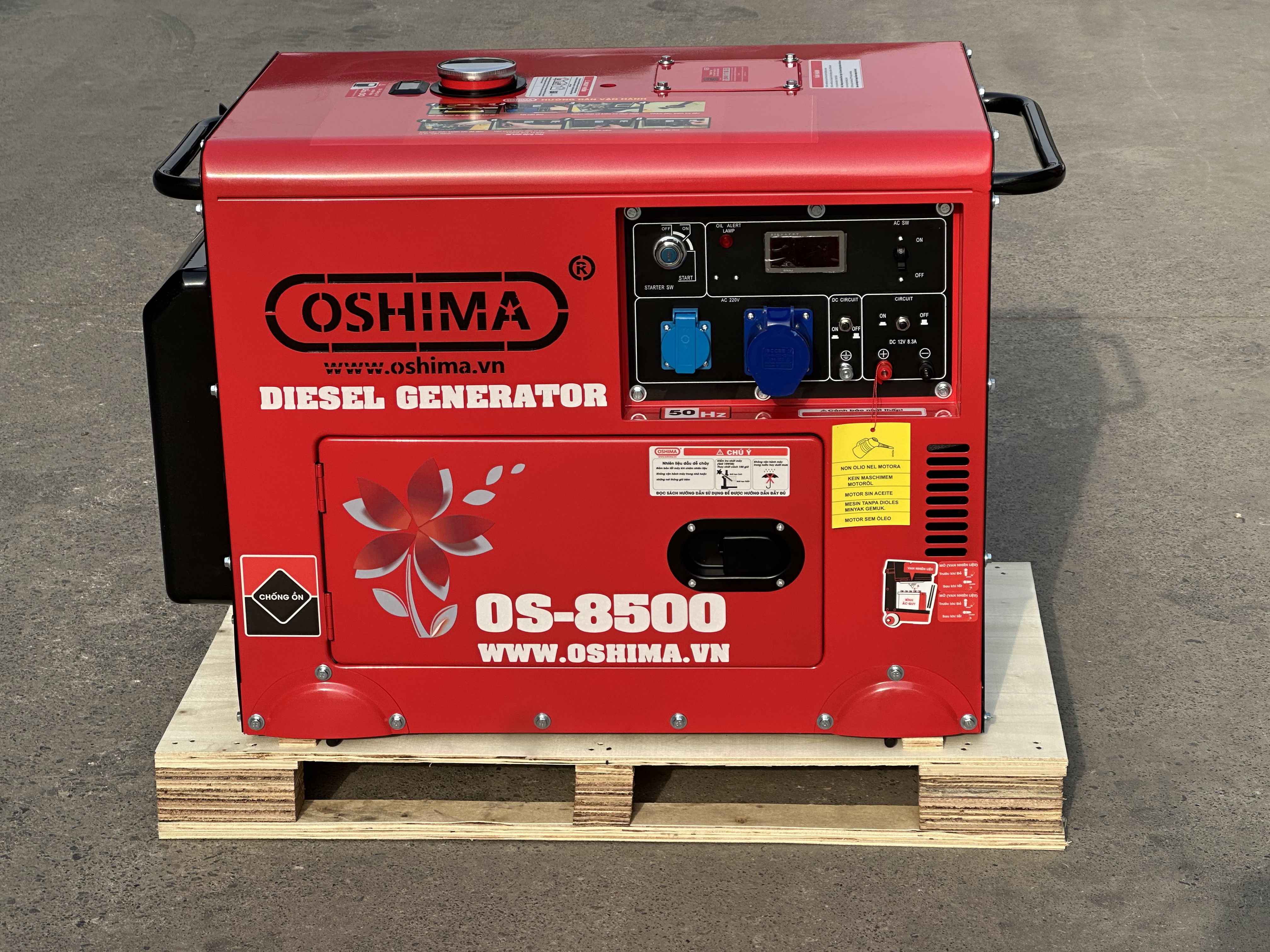

5kw Silent Diesel Generator Set Portable Air Cooled Customizable 220V 380V

Overview

Silent diesel generators are specifically designed to minimize noise output, making them ideal for environments that require quiet operation. Below are the key features and applications of silent diesel generators.

Features

1. Low Noise Design

   • Uses soundproof materials and specially designed silencers to significantly reduce operational noise.

2. High Efficiency

   • Generally exhibits high fuel efficiency, providing stable power output over extended periods.

3. Durability

   • Built with a robust diesel engine structure, suitable for long-running and heavy-load conditions.

4. Portability

   • Many models are designed to be mobile, allowing for easy relocation and use in various settings.

5. Environmental Protection

   • Complies with modern environmental standards, reducing emissions and ensuring eco-friendliness.

Applications

1. Backup Power Supply

   • Acts as an emergency power source during outages, ensuring continuity for critical operations such as hospitals and data centers.

2. Outdoor Activities

   • Supplies reliable power for events such as weddings, concerts, and other outdoor gatherings.

3. Construction Sites

   • Provides electricity to construction sites lacking access to the electrical grid, powering tools and site facilities.

4. Remote Areas

   • Delivers power for research stations, mining operations, and other activities in isolated locations.

Specification

MODEL YMT6500 YMT7500 Rated Frequency(HZ) 50 50 50 50 Rated voltage(v) 230 230 230 230 Rated power(KW) 5KW 6KW 7KW 8KW Number of phases Single Phase Single Phase Single Phase Single Phase Size(mm) 970*560*780 970*560*780 970*560*780 970*560*780 Net weight(kg) 148 149 151 153 Fuel tank capacity (L) 12.5 12.5 12.5 12.5 Noise(decibels @7m) 70 70 70 70 Engine model 186FAGE 188FGE 192FGE 195FGE Type In-line,single cylinder,air-cooled,four-stroke Cylinder diameter(mm) 86 88 92 95 Piston stroke(mm) 72 75 75 75 Displacement(ml) 418 456 477 498 Fuel consumption rate g/kw*h ≤275 ≤270 ≤270 ≤270 Rated speed(r/min) 3000 3000 3000 3000 Starting system 12V starter motor 12Vstarter motor 12V starter motor 12Vstarter motor Insulation Class H H H H Continuous working time(h) 8 8 8 8 Fuel grade Diesel:0#(summer),-10#(winter) Oil grade SAE 10W30(or CD grade or above) Optional configuration ATS/remote control/various body designs

FAQ

1.Q: What is your MOQ of this item?
A:1 Set.

2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.
