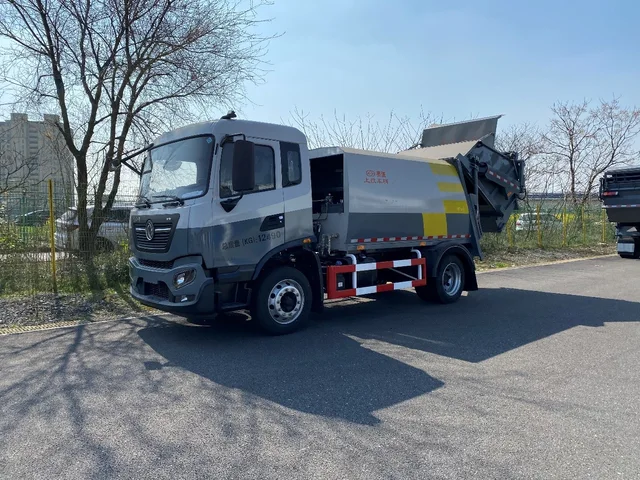

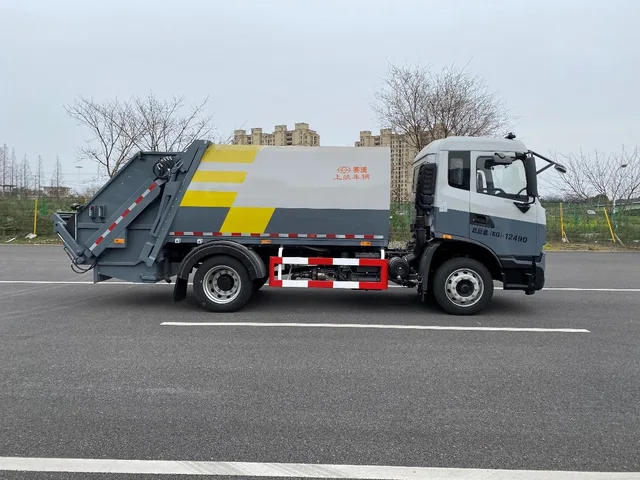

5Ton Compression Garbage Truck

5 ton compressed garbage truck

Application and Description

Application and introduction

Compression Garbage Truck - Efficient waste collection and transfer vehicle for municipal sanitation. Integrated mechanical-electrical-hydraulic technology with joint control system. Realizes waste dumping, crushing, and powerful loading. Wastewater enters separate tank, eliminating secondary pollution. Primarily for municipal sanitation and industrial waste transport. Also transports ash, sand, stone, soil, bulk building materials, ore, and coal from mines.

Compressed garbage truck is a kind of special vehicle for urban environmental sanitation, which can collect and transfer garbage efficiently. It is a special vehicle for the collection, transportation and unloading of urban bagged and bulk domestic garbage. With the help of mechatronics, electro-hydraulic joint control system and special devices such as carriage loader, garbage can be poured, crushed or flattened, and strong loading can be realized. The garbage is squeezed into the carriage, compacted and pushed, and the sewage enters the sewage tank, which solves the secondary pollution problem in the process of garbage transportation. It is mainly used in various environmental sanitation municipal and large-scale factories and mines to carry all kinds of garbage. It can also transport bulk building materials such as ash, sand, stone and soil, and can also transport ore or coal in mines or coal mine

Main Technical Indicators And Operating Performance

Detailed description of main technical indexes and operation performance of goods

Serial Number

SN

Technical Specifications And Performance

Serial number technical index and performance description

1

Vehicle Model: SAV5120ZYSE6 Compressor Garbage Truck

Vehicle model: SAV SAV5120ZYSE6 compression garbage truck

2

Chassis Model: Dongfeng DFH1120E1 (Emission Standard: China VI)

Chassis model: Dongfeng DFH1120E1 (emission standard: National VI)

3

Engine Model: Cummins D4.5NS6B190, Max Power (Kw): 135

Engine model: CUMMINS D4.5NS6B190 Maximum net power of engine 135KW

4

Wheelbase (mm): 3800

Wheelbase (mm): 3800

5

Overall Dimensions (Length x Width x Height) (mm): 8030x2500x2885

6

Total Mass (kg): 12490

7

Rated Load Mass (kg): 3705

8

Curb Weight (kg): 8590 Curb Weight (kg): 8590

9

Tank volume (M3): 10

10

Filler Capacity (m³): 1.2

11

 Effective volume of waste water tank of packer (M3): 1.2

12

Total Sewage Tank Capacity (L): 1070

13

Total volume of sewage tank (L): 1070

14

Compression: Bidirectional, Operation: Manual + Electric

15

Compression mode: bidirectional compression Operation and control mode: manual + electronic control

16

Modified parts feature American Lianbang technology; well-structured overall, excellent performance, low failure rate

17

The modified part introduces the United States Union technology, the vehicle structure is reasonable, good performance, low failure rate.

18

Garbage Truck with Baosteel Construction: Structural materials primarily use Baosteel high-quality high-strength plate; garbage bin bottom uses QSTE420, Q345, Q295 wear-resistant steel plate with excellent strength and wear-resistance, leading in similar rear-mounted vehicles. Different locations use steel plates with different properties; rear compartment wastewater tank uses corrosion-resistant stainless steel, ensuring strength while appropriately reinforced for different needs, making the compartment more durable. All welding points throughout the box and components use full welding, extremely sturdy, with streamlined structure that is both aesthetically pleasing and easy to clean.

19

The structural materials are mainly high-quality high-strength plates of Baosteel, and the dustbin floor is made of wear-resisting steel plates of QSTE420, Q345 and Q295, with good strength and wear-resisting performance, which is in a leading position in the same type of rear loading.Steel plates with different characteristics are used in different positions, and the rear sewage tank is made of anticorrosive stainless steel, which ensures the strength and strengthens accordingly for different needs, making the rear tank more durable.The welding place of the box body and all parts adopts full welding, which is very firm, streamlined structure, beautiful and easy to clean

20

Modular hydraulic system, imported components, compact, stable, easy maintenance, bi-directional compression, safety valve

21

The hydraulic system adopts modular system, the main parts of the hydraulic components are imported products, small size, stable performance, easy maintenance, two-way compression, and equipped with explosion-proof valve, play a protective role

22

Mechatronic CAN Bus Electrical Control Technology, Simple Structure, Long Service Life, Convenient Operation, Low Failure Rate. Omron Operating System, Safe and Stable

23

Electromechanical integration CAN bus electrical control technology, so that it has the advantages of simple structure, long service life, easy to operate, stable work, low failure rate.The electric system adopts Omron operating system, which is safe and stable
