Pump
INTRODUCTION
'-Centrifugal, mono-block and single-impeller electrical pumps with pump body, with connection to the motor by means of a support unit. With flange inlet and delivery openings (to UNI 2238 PN 10 standards) and threaded counter-flanges.
-These machines are idea for pumping clean water and other chemically and mechanically non-aggressive liquids.
-To be used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray of flowing irrigation, high pressure system, firefighting sets, heating, conditioning and any other general service requiring transfer of clean liquids.
OPERATION LIMITS
-Temperature of Liquid from -10℃ to +120℃
-Ambient temperature from -10℃ to +40℃MOTOR
-2-poles induction motor
-Insulation class:B
-Continuous duty: S1
DESIGN FEATURES
Pump body/motor bracket: cast iron
Impeller: cast iron
Bearing: C&U
Mechanical seal: Carbon/SiC/NBR/SUS304
Motor shaft: AISI 304 welded shaft
Protection:IP44
100% copper windingSPECIAL FEATURES ON REQUEST
AISI 304 pump body
AISI 304 or Brass impeller
AISI 1045 motor shaft
Other voltage and frequency
Protection: IP54
Insulation class:F
INTRODUCTION
'-Centrifugal, mono-block and single-impeller electrical pumps with pump body, with connection to the motor by means of a support unit. With flange inlet and delivery openings (to UNI 2238 PN 10 standards) and threaded counter-flanges.
-These machines are idea for pumping clean water and other chemically and mechanically non-aggressive liquids.
-To be used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray of flowing irrigation, high pressure system, firefighting sets, heating, conditioning and any other general service requiring transfer of clean liquids.
OPERATION LIMITS
-Temperature of Liquid from -10℃ to +120℃
-Ambient temperature from -10℃ to +40℃MOTOR
-2-poles induction motor
-Insulation class:B
-Continuous duty: S1
DESIGN FEATURES
Pump body/motor bracket: cast iron
Impeller: cast iron
Bearing: C&U
Mechanical seal: Carbon/SiC/NBR/SUS304
Motor shaft: AISI 304 welded shaft
Protection:IP44
100% copper windingSPECIAL FEATURES ON REQUEST
AISI 304 pump body
AISI 304 or Brass impeller
AISI 1045 motor shaft
Other voltage and frequency
Protection: IP54
Insulation class:F

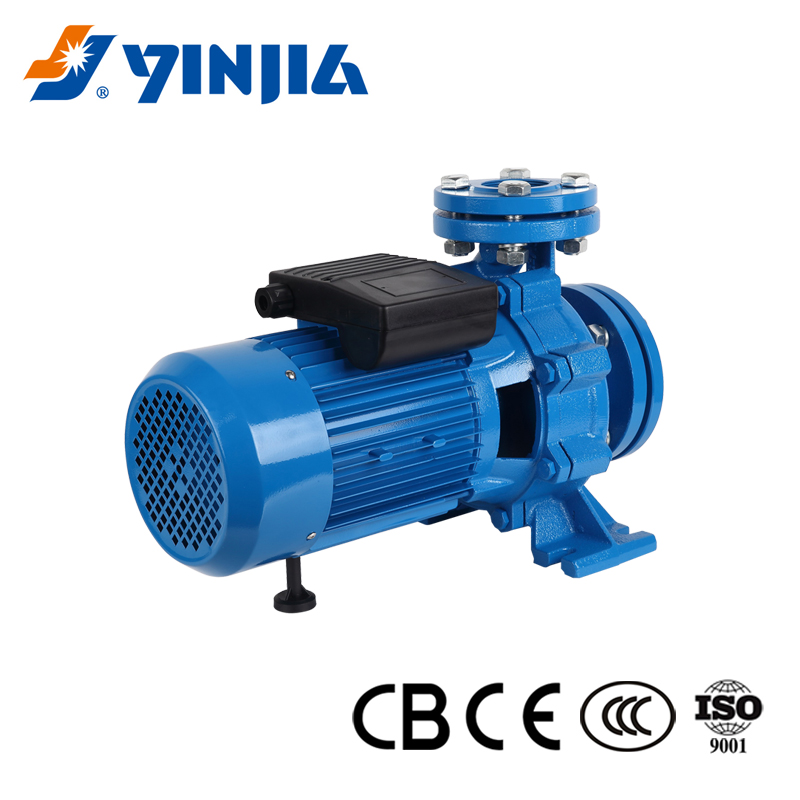

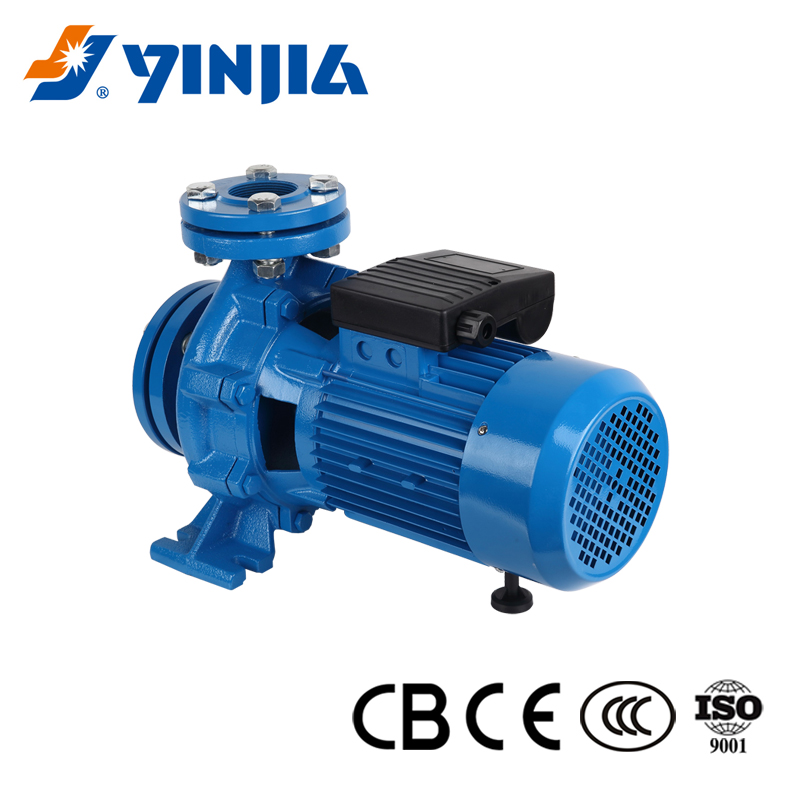

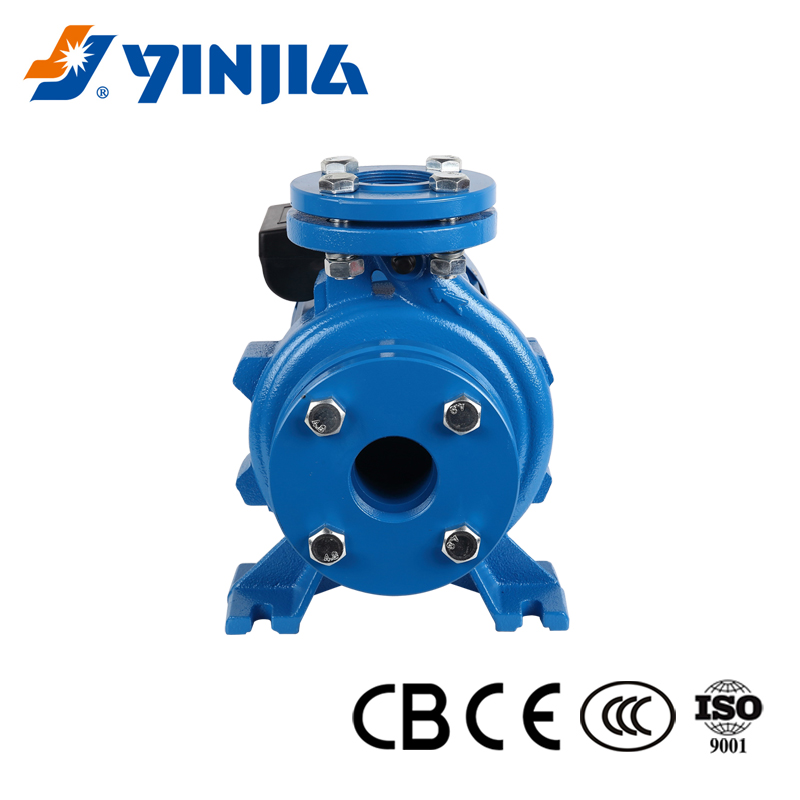

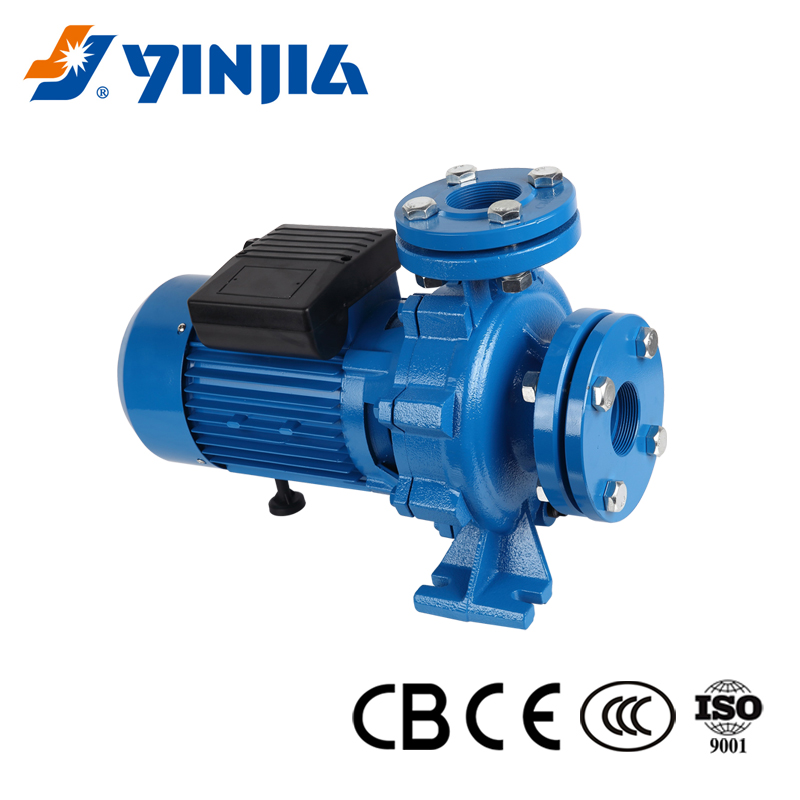

4KW high efficient Low noise Industrial Centrifugal Pump
FUJIAN NEW YINJIA PUMP CO,.LTD.10/10 fairsManufacturerModel CM40-160A
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
4KW high efficient Low noise Industrial Centrifugal Pump
FUJIAN NEW YINJIA PUMP CO,.LTD.10/10 fairsManufacturerModel CM40-160A
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Casting Iron, copper
- Size: 500*245*292
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
About this product
- Materials: Casting Iron, copper
- Size: 500*245*292
- Color: Blue
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Fujian, China
Product details
| Materials | Casting Iron, copper |
|---|---|
| Size | 500*245*292 |
| Color | Blue |
Product details
| Materials | Casting Iron, copper |
|---|---|
| Size | 500*245*292 |
| Color | Blue |
From the supplier
INTRODUCTION
'-Centrifugal, mono-block and single-impeller electrical pumps with pump body, with connection to the motor by means of a support unit. With flange inlet and delivery openings (to UNI 2238 PN 10 standards) and threaded counter-flanges.
-These machines are idea for pumping clean water and other chemically and mechanically non-aggressive liquids.
-To be used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray of flowing irrigation, high pressure system, firefighting sets, heating, conditioning and any other general service requiring transfer of clean liquids.
OPERATION LIMITS
-Temperature of Liquid from -10℃ to +120℃
-Ambient temperature from -10℃ to +40℃MOTOR
-2-poles induction motor
-Insulation class:B
-Continuous duty: S1
DESIGN FEATURES
Pump body/motor bracket: cast iron
Impeller: cast iron
Bearing: C&U
Mechanical seal: Carbon/SiC/NBR/SUS304
Motor shaft: AISI 304 welded shaft
Protection:IP44
100% copper windingSPECIAL FEATURES ON REQUEST
AISI 304 pump body
AISI 304 or Brass impeller
AISI 1045 motor shaft
Other voltage and frequency
Protection: IP54
Insulation class:F
From the supplier
INTRODUCTION
'-Centrifugal, mono-block and single-impeller electrical pumps with pump body, with connection to the motor by means of a support unit. With flange inlet and delivery openings (to UNI 2238 PN 10 standards) and threaded counter-flanges.
-These machines are idea for pumping clean water and other chemically and mechanically non-aggressive liquids.
-To be used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray of flowing irrigation, high pressure system, firefighting sets, heating, conditioning and any other general service requiring transfer of clean liquids.
OPERATION LIMITS
-Temperature of Liquid from -10℃ to +120℃
-Ambient temperature from -10℃ to +40℃MOTOR
-2-poles induction motor
-Insulation class:B
-Continuous duty: S1
DESIGN FEATURES
Pump body/motor bracket: cast iron
Impeller: cast iron
Bearing: C&U
Mechanical seal: Carbon/SiC/NBR/SUS304
Motor shaft: AISI 304 welded shaft
Protection:IP44
100% copper windingSPECIAL FEATURES ON REQUEST
AISI 304 pump body
AISI 304 or Brass impeller
AISI 1045 motor shaft
Other voltage and frequency
Protection: IP54
Insulation class:F
About the supplier
FUJIAN NEW YINJIA PUMP CO,.LTD.
Main products: Electric pump
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2015
75
trust
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2015
Canton Fair booth: 6.1G3-4 · General Machinery, Small Processing Machinery and Industrial Accessories (140th session)
