Standard

  ISO4706, ISO9001:2008, CE,NIS 69, DOT 4BA, PNS 03-1, AS 2469.....

Material

  HP295 hot rolled steel

Test Pressure

  30Bar

Work Pressure

  18Bar,

Blasting Pressure

  60Bar

Wall Thickness

  ≥2.5mm

Tare weight

  13.5kgs

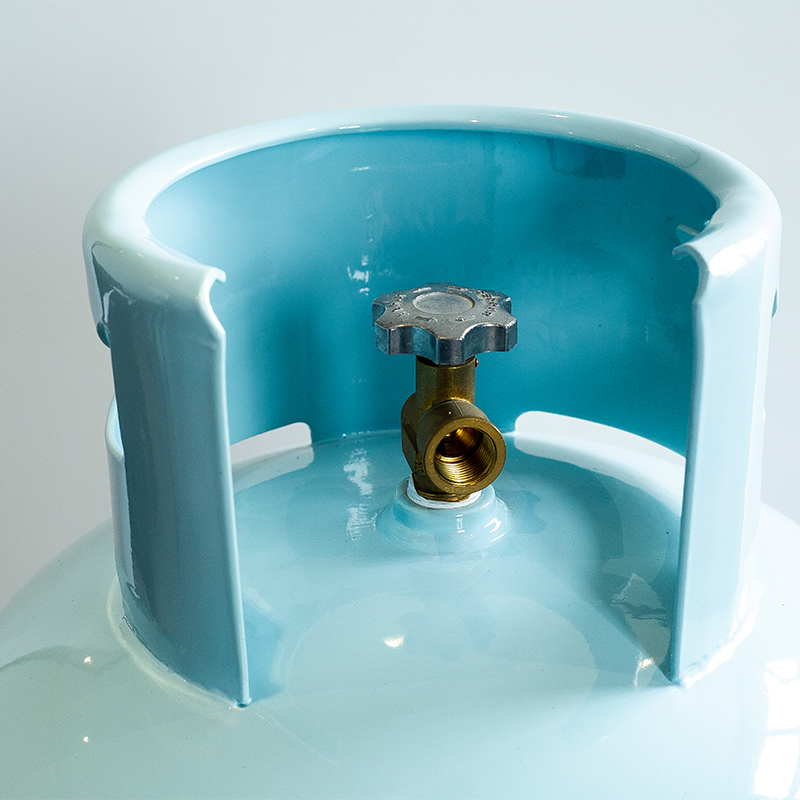

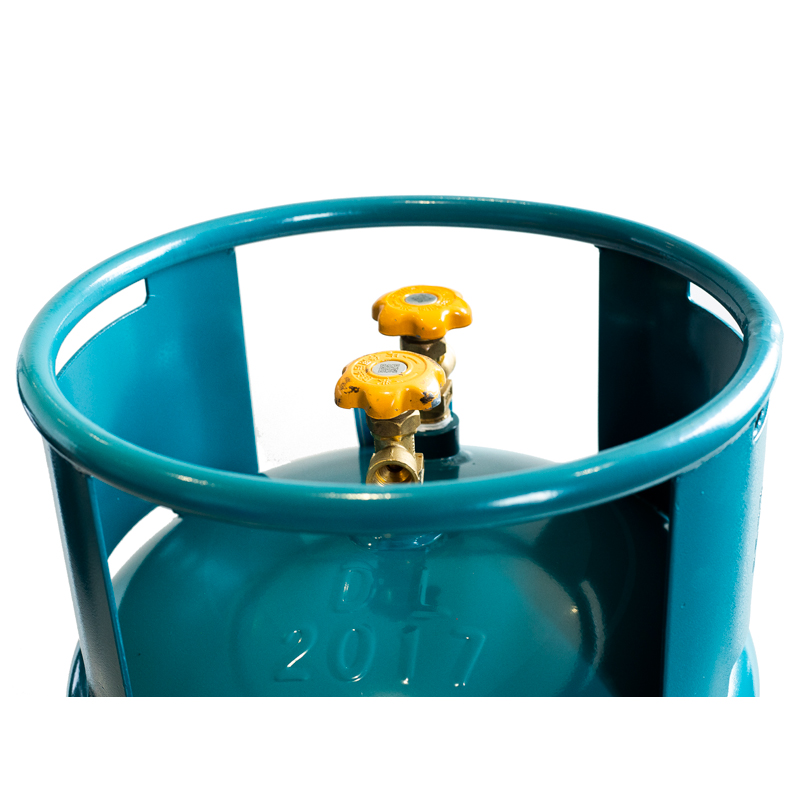

Valve

  Optional

Relevant Products

  Low pressure regulator, PVC hose, gas stove, Cast iron stove

Welding Process As Following:

Circumferential: Automatic Gas Metal Arc Welding, Shielding CO2+Ar

Spud/Bung: Automatic Gas Metal Arc Welding, Shielding CO2+Ar

Heat Treatment: Stress Relieved At 650±20°-11 Minutes

Surface Treatment: Abrasive Blasting With Cleaning Sa2.5 Class Painting

Painting: 1 Coat Power Paint 50-120 Microns or 2 Coats Stoving Alkyd Paint 50-120 Microns

Cylinder Color: Blue

Printing: According to Client's Content With White Color

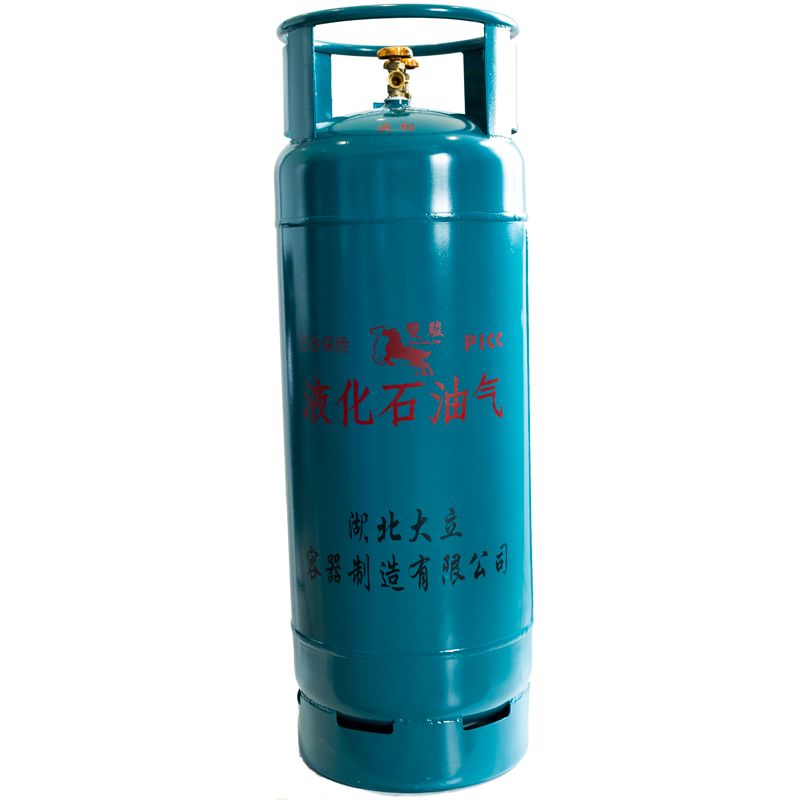

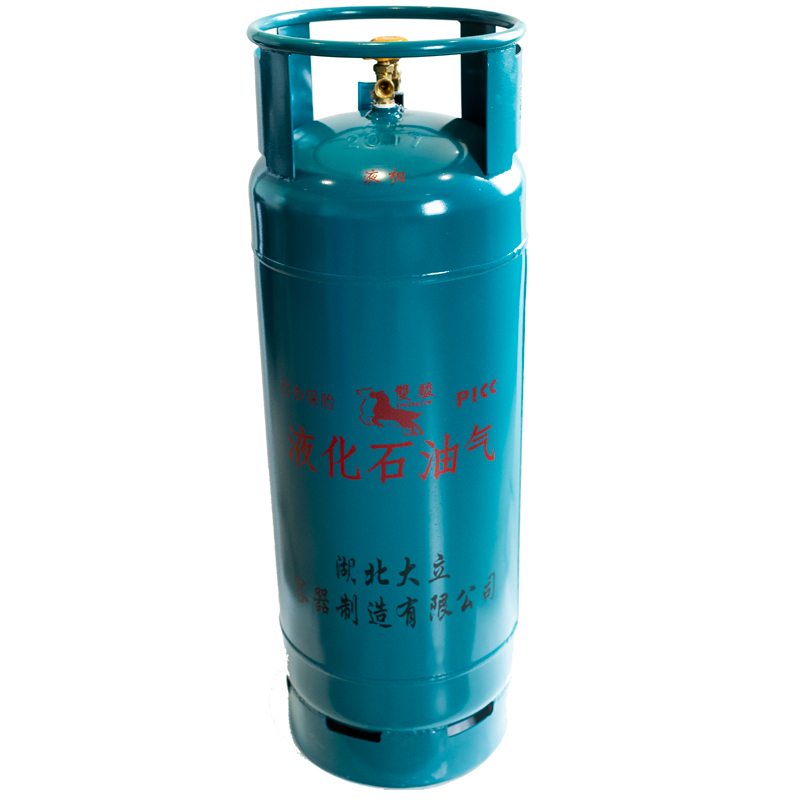

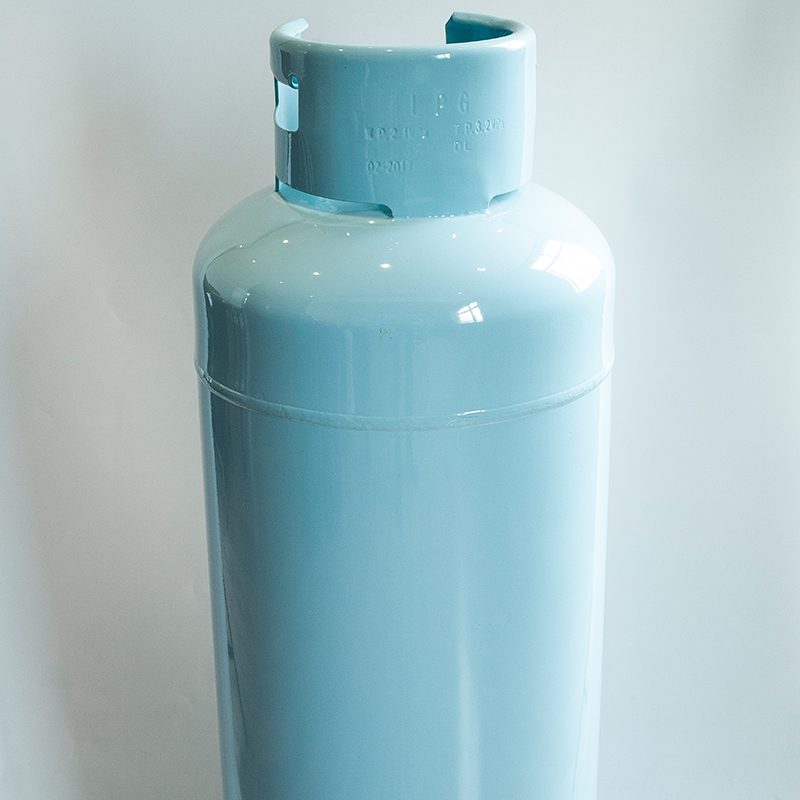

LPG-45KG

Water

Capacity

High total(mm)

BOTTLE

GUARDED

BASE

In diameter (mm)

High

Outside diameter(mm)

High

Outside diameter(mm)

High

108L

1114

φ400

640

240

150

φ400

120

Daly, one of the largest LPG Cylinders in China, was founded in 1981. Daly is the Deputy Director Unit of The China Gas Association involved in the formulation and modification of Chinese National Standard in LPG industry. Today Daly is able to produce over 5  million cylinders yearly and has with excellent reputation for LPG cylinders and export the products to Europe, Africa, Southeast Asia, South America and etc. Our products cover the whole range of LPG cylinders, range from 3kg, 5kg, 6kg, 10kg, 12.5kg to 60kg and comply with different standards, like ISO4706/EN1442/GB5842/DOT4BA and etc.

Exhibition

Hubei Daly LPG Cylinder manufacturer, we are NO 3 LPG Cylinder manufacturer in China.

Our product is in millions Chinese family which is safe and strong. In China,

only few manufacturers have the permit to make the LPG Cylinder, we are one of them.

OUR FAQ

Question 1. How to ensure your cylinders quality?

A: Our factory was founded in 1981, we have ISO9001, BV, CE, and approved by the Administration of quality of supervision, Inspection and Quarantine (AQSIQ) of China. Dali is an appointed manufacturer of LPG cylinders and pressure vessels. Moreover, Dali is a deputy director's unit of the China Association-Professional Committee of Chinese LPG cylinders.

We have 9 pressure vessel production lines, which are of the most advanced technology in the industry and furnished with early 400 machinery and equipment (including advanced x-ray real-time Image Inspection System, Spectrum Analyzer, and other inspection equipment).

Question 2 What's your production capacity?

A: We have 9 production lines, in full production capacity, we can supply 5 million cylinders annually / 400,000 cylinders per month.

Question 3. What's Daly Main Sales Products?

A: We mainly supply LPG cylinder, valve and other parts of cylinder.

Question 4. How about the sample?

A: In our acceptable range, we can offer a sample by charging freight, and we will return the fee to your after you make an order.

Question 5. How about the payment and delivery time?

A: The payment term: 30% for deposit, balance copy of BL; L/C at sight.

Question 6. How do you make our long-term business and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers' benefit.

   2. We will have professional engineers and advanced production equipment, will offer you as much support as we can to help you occupy more market.
