Household audio video equipment

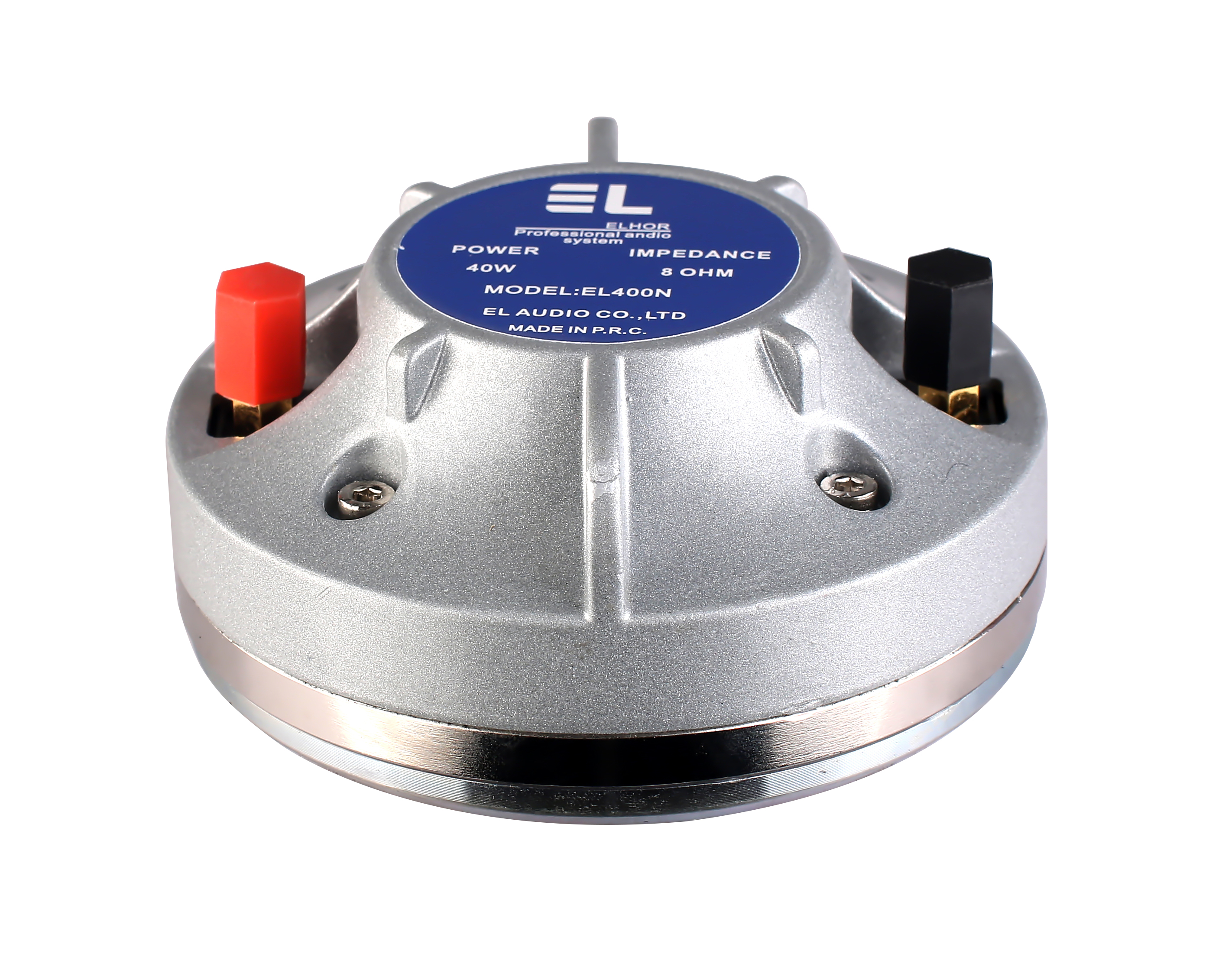

44mm voice coil tweeter high quality compression driver
Meirui (Guangdong) Audio Equipment Co.,Ltd8/10 fairsManufacturerModel EL400N
New for the 140th Fair
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
44mm voice coil tweeter high quality compression driver
Meirui (Guangdong) Audio Equipment Co.,Ltd8/10 fairsManufacturerModel EL400N
New for the 140th Fair
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: aluminium
- Color: silver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
About this product
- Materials: aluminium
- Color: silver
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
Product details
| Materials | aluminium |
|---|---|
| Color | silver |
Product details
| Materials | aluminium |
|---|---|
| Color | silver |
From the supplier
Model: EL400N High frequency 170 Magnetic 44-core
General Specifications
Standard Specs
Throat Diameter
Throat Diameter
25mm/1 inch
Nominal Impedance
Rated Impedance
8Ω
RMS Power Input
Rated Power
80W
MAX Power Input
Maximum Power
100W
Sensitivity 1W/1M
Sensitivity
97dB
Frequency Range
Frequency Response Range
1200-19K Hz
Voice Coil Diameter
Voice Coil Diameter
44mm/1.7inch
Voice Winding Material
Wire
CCAW
Diaphragm Material
Film Material
titanium
Magnet
Magnet
Ferrite Ring
Mounting & Shipping Information
Overall Diameter
Outer Diameter
102mm
Bolt Circle Diameter
Installation Hole Diameter
76mm
Depth
Height
50mm
Net Weight
Net Weight
1.3kg
Shipping Weight
Gross Weight
1.8kg
Shipping Box（8Unit）
Package Size (4 Units)
39*21*16cm
From the supplier
Model: EL400N High frequency 170 Magnetic 44-core
General Specifications
Standard Specs
Throat Diameter
Throat Diameter
25mm/1 inch
Nominal Impedance
Rated Impedance
8Ω
RMS Power Input
Rated Power
80W
MAX Power Input
Maximum Power
100W
Sensitivity 1W/1M
Sensitivity
97dB
Frequency Range
Frequency Response Range
1200-19K Hz
Voice Coil Diameter
Voice Coil Diameter
44mm/1.7inch
Voice Winding Material
Wire
CCAW
Diaphragm Material
Film Material
titanium
Magnet
Magnet
Ferrite Ring
Mounting & Shipping Information
Overall Diameter
Outer Diameter
102mm
Bolt Circle Diameter
Installation Hole Diameter
76mm
Depth
Height
50mm
Net Weight
Net Weight
1.3kg
Shipping Weight
Gross Weight
1.8kg
Shipping Box（8Unit）
Package Size (4 Units)
39*21*16cm
About the supplier
Meirui (Guangdong) Audio Equipment Co.,Ltd
Main products: Loudspeakers, Portable speaker, Other consumer electronics
- ✓Exhibited at 8 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2019
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
