Product Overview

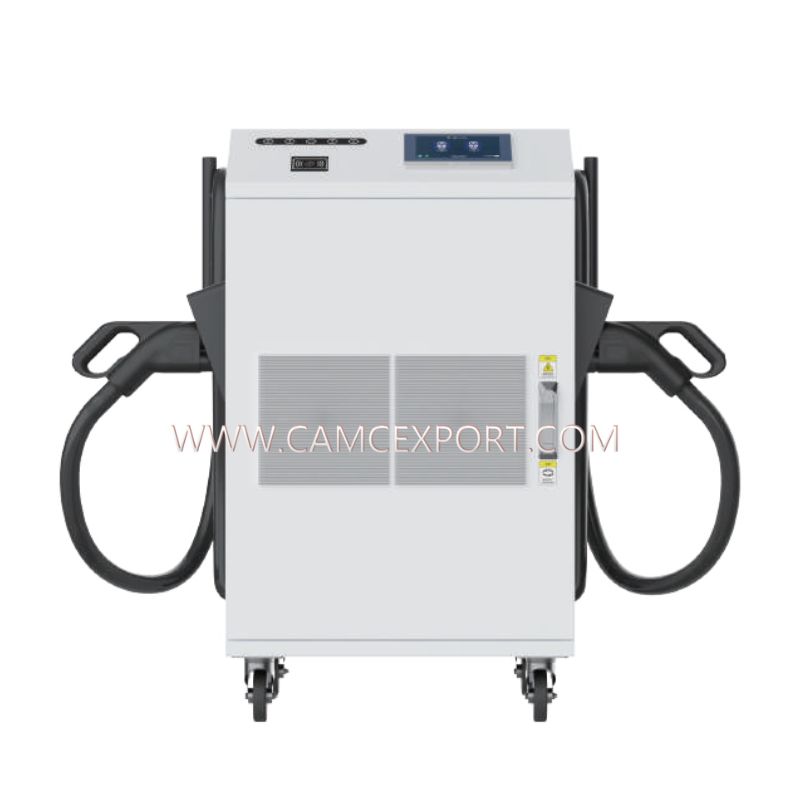

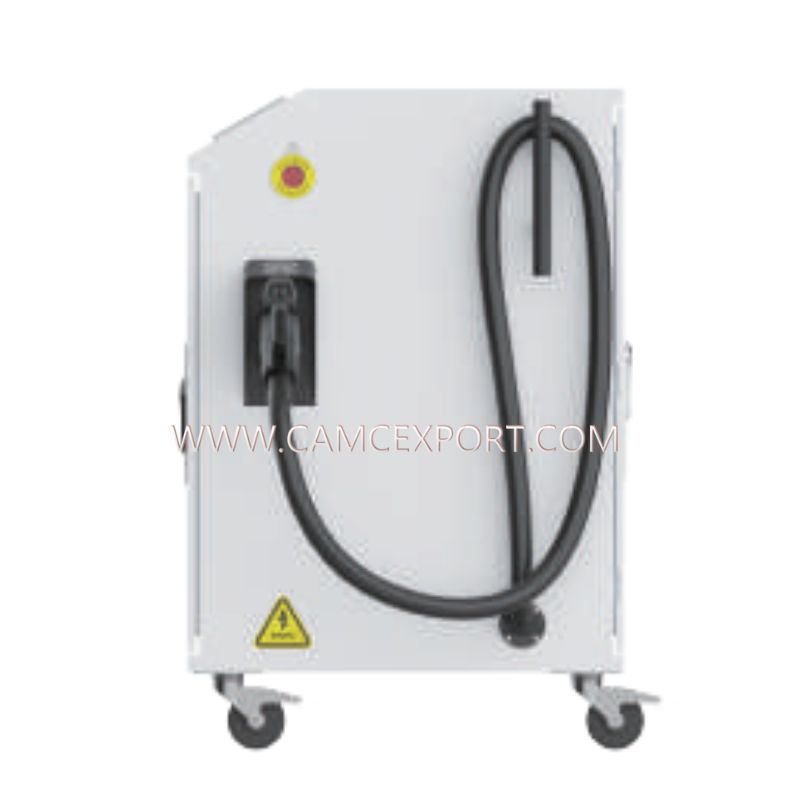

The 40 kW Series DC EV Charger is a mobile fast-charging device designed for flexible energy replenishment scenarios. Equipped with four universal wheels, it can be quickly deployed in shopping malls, parking lots, logistics parks, and other locations. It is especially suitable for temporarily adding charging points during peak hours and providing emergency charging during the maintenance of conventional charging piles, effectively solving the problem of insufficient coverage of fixed charging facilities.

Core Highlights

Flexible Mobile Design: Four universal wheels enable easy movement between scenarios without fixed installation, improving deployment efficiency by over 50%.

Optional Dual Connectors: Supports single or dual gun output; the dual-gun mode can charge two vehicles simultaneously, meeting the needs of multi-vehicle energy replenishment.

Global Compatibility: Compatible with mainstream charging interfaces including CCS1, CCS2, CHAdeMO, and GB/T, covering most electric vehicle models worldwide.

Intelligent Interaction: 7-inch touch LCD screen displays real-time charging data, supports RFID card swiping and optional credit card payment for convenient operation.

Standardized Protocol Support: Compliant with OCPP 1.6J communication protocol, enabling seamless integration with mainstream charging operation management platforms to meet commercial operation needs.

Technical Specifications

Input Voltage: 400VAC/480VAC (3P+N+PE), 50/60Hz

Output Voltage: 200-1000VDC

Output Current: CCS1-120A, CCS2-120A, CHAdeMO-120A, GB/T-120A

Efficiency: ≥94% at nominal output power

Ingress Protection: IP54 (dust & water resistant), IK10 (impact resistant)

Operating Temperature: -30°C to 55°C

Charging Cable Length: 5m

Application Scenarios

Emergency Charging: Serves as a temporary replacement when traditional charging piles are faulty or under maintenance, ensuring uninterrupted charging services.

Peak Hour Expansion: Quickly adds charging points in business districts, scenic spots, and other areas during holiday peaks to reduce queuing pressure.

Outdoor Operation Charging: Provides on-the-go charging support for logistics fleets, engineering vehicles, and other outdoor operation scenarios.

Event Supporting Services: Offers temporary charging for participating vehicles during exhibitions, sports events, and other large-scale activities.

Customer Reviews

Logistics Fleet Manager, Mr. Wang

Our fleet used to struggle with charging at remote factories, and this mobile charger solved the problem perfectly. The dual-gun design lets us charge two trucks at once, the wheels roll smoothly, and it works even in rainy weather—IP54 protection is truly reliable.

Parking Lot Operator, Ms. Li

Charging demand surges at our mall during holidays. We use this unit to add temporary charging spots, which takes only 10 minutes to deploy. It also integrates with our management platform via OCPP, so we can monitor data in real time—very hassle-free.

Event Organizer, Mr. Liu

During large exhibitions, exhibitors have scattered and urgent charging needs. This device is easy to move and charges efficiently. The optional credit card payment means attendees don’t need extra cards, which greatly improves their experience.

FAQ

Q: Does this charger require fixed installation?

A: No, it features a universal wheel design, so no pre-buried wiring or fixed base is needed. Simply move it to the target location and connect to a power supply.

Q: Will the power be split in dual-gun mode?

A: It supports dynamic power distribution, automatically adjusting the output power of each gun based on vehicle requirements, with total power maintained at 40kW.

Q: Can it be used in low-temperature environments?

A: Yes, it operates from -30°C to 55°C, with built-in low-temperature start protection for reliable performance in northern winter outdoors.

Q: How to connect to an operation management platform?

A: The device is OCPP 1.6J compliant. Just configure the platform address in the backend to enable data synchronization, remote monitoring, and order management.

Q: Can the charging cable length be customized?

A: The standard length is 5m. Longer cables (up to 10m) are available upon request—contact customer service for customization.
