4 Wheel Electric Forklift
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
4 Wheel Electric Forklift
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Steel
- Size: 2150*1090*1995mm
- Color: Yellow
- Tire certification: Other
- Drive wheel: Other
- Horsepower: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 2150*1090*1995mm
- Color: Yellow
- Tire certification: Other
- Drive wheel: Other
- Horsepower: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 2150*1090*1995mm |
| Color | Yellow |
| Tire certification | Other |
| Drive wheel | Other |
| Horsepower | Other |
| Engine capacity | Other |
| Load capacity | Other |
| Power source | Other |
From the supplier

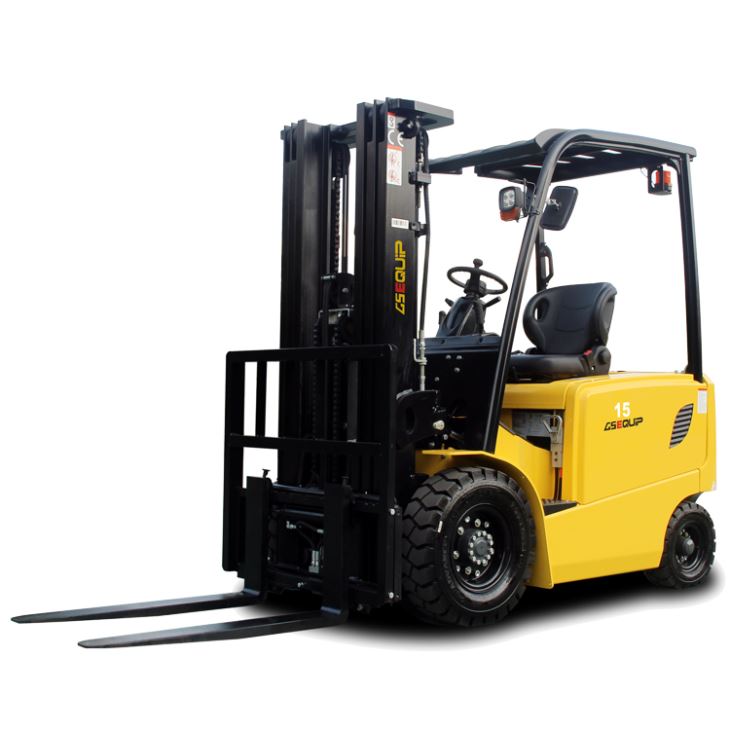

This is the description of 1.5T Electric Forklift
Battery Advantage
-Choose to use Chinese battery, and it can be taken out easily(two way,From top and from side)
-LED lamp
-Famous brand battery and charger
-Inmotion / Curtis / Zapi AC controller
-Reasonable structure,better heat dissipation for controller
-Battery water automatic replenish for optional
-Forklift With Powerful Ac driving motor applied to reduce maintenance cost and increase the overall performance.
Wide View Mast Design
Wide view mast design, ensure the driver has an excellent view Improved which makes loading and unloading operations more secure and efficient.
Standard configuration of wide view mast, compact structure of mast and tube pulley block;
Overhead guard with large arc and grid tray with optimized angle enlarge driver's upper view.
Battery Side-take Function
Full open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.
Efficient Drive System
Advanced H-type remote drive unit, compact structure, lower
gravity center, more reasonable layout, more stable driving.
1
Model
FB15
2
Power Type
Electric
3
Rated Capacity
kg
1500
4
Load Centre
mm
500
Characteristic & Dimension
5
Lift Height
mm
3000
6
Fork Size
L*W*T
mm
920*120*35
7
Mast Tilt Angle
F/R
Deg
6°/12°
8
Front Overhang (Wheel centre to fork face)
mm
420
9
Tread
F/R
mm
890/920
10
Ground Clearance (Bottom of mast)
mm
115
11
Fork Spread
Min./Max.
mm
240/970
12
Overall Dimension
Length to face of fork(without fork)
mm
2150
13
Overall Width
mm
1090
14
Mast Lowered Height
mm
1995
15
Mast Extended Height(With backrest)
mm
3945
16
Overhead Guard Height
mm
2170
17
Turning Radius (outside)
mm
1950
18
Min.insecting aisle
mm
2050
Performance
19
Speed
Travel (Empty load)
km/h
15
20
Lifting (Full load)
mm/s
280
21
Max.Gradeability
%
15
Chassis
22
Tire
Front
6.50-10-10PR
23
Rear
5.00-8-10PR
24
Wheelbase
mm
1380
25
Service weight
kg
3070
Power & Transmission
26
Motor
Drive Motor
kw
8
27
Lift Motor
kw
8.6
28
Battery
Voltage/Capacity
V/Ah
48/440
29
Controller
Manufacture
CURTIS
30
Type
AC
31
Operating Pressure for Attachment
Mpa
14.5
