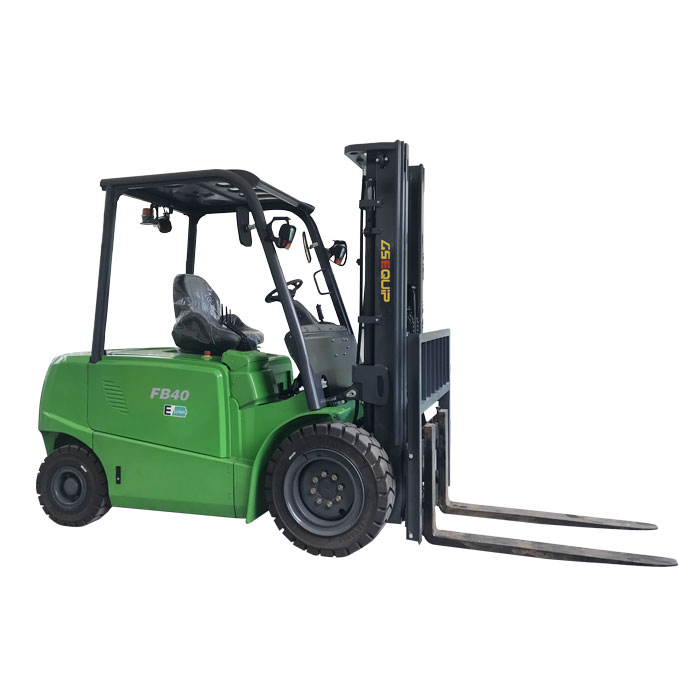

4.0T Lithium Electric Forklift

10/10 fairsIndustry and Trade CompanyModel FB40
4.0T Lithium Electric Forklift
Price on request

The supplier hasn’t listed a price. We can get their current prices and MOQ.

Service
From $29 per supplier (Verify)
You get
Phone and video verification, a quote sheet and a written report
Turnaround
3 business days
Contact details
Sent to you once your request is confirmed

If we can't reach the supplier within 3 business days, we refund the fee.

About this product

  • Materials: Steel
  • Size: 2360*1160*2240mm
  • Color: Green
  • Horsepower: Other
  • Drive wheel: Other
  • Load capacity: Other
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
  • Made in: Anhui, China

Product details

MaterialsSteel
Size2360*1160*2240mm
ColorGreen
HorsepowerOther
Drive wheelOther
Load capacityOther
Engine capacityOther
Tire certificationOther
Power sourceOther

From the supplier

Advantages:


Comfortable Operating Space


Efficient Drive System


High Quality Electrical Componets


Flexible Steering System


Convenient Battery Side-shift Scheme


Fast Charging Port


Easy Maintenance


 Characteristic1Model  FB40-C22Power Type  Lithium battery3Operation Type  Seated4Rated Capacity kg40005Load Center mm5006Weight kg5750 Tyre & Chassis   7Tyre Type  Pneumatic8Wheel number X=drive wheel(Front/Rear)  2/29Tyre size(Front)  250-15-18PR10Tyre size(Rear)  21×8-9-14PR11Front  TreadW3mm100912Rear TreadW4mm100013WheelbaseL1mm1750 Size   14Lift Heighth3mm300015Fork Size(LxWxT)L×W×Tmm1070×125×5016Mast Tile Angleα/β。6/1217Mast Lowered HeightH1mm220518Free Lift HeightH3mm9019Mast Extended HeightH2mm418020Backrest HeightH6mm114021Fork Adjust DistanceW5mm250-110022Length to Face to ForkL/Lmm2716/380623Overall WidthW1mm126024Overhead Guard HeightH4mm225525Distance From Roof to SeatH7mm105026Front OverhangL2mm50627Rear OverhangL3mm48028Turning Radius(outside)rmm242029Ground Clearance(Bottom of mast)H5mm14530Min.intersection aisleRamm255031Min.right angle stacking aisle widthRASAmm4200 Performance   32Max.Travel Speed(Full load/No load) km/h15/1733Lifting Speed(Full load/No load) mm/s320/36034Lowering Speed(Full load/No load) mm/s≥300/≤60035Max.Gradeability (Full load/No load) %1536Max Drawbar Pull kN24Electric37Lithium battery(Voltage/Capacity) V/Ah76.8/52538Drive Motor Kw1839Lift Motor Kw13.540Controller Manufacturers  CURTIS41Type  AC42Operating Pressure Mpa18
