About this product
- Materials: STAINLESS STEEL
- Size: 06MM-100MM
- Color: STAINLESS STEEL
- Exports to: USA and Canada, Latin America, EU, Other European Countries, Japan and South Korea, Others
- Made in: Shandong, China
About this product
- Materials: STAINLESS STEEL
- Size: 06MM-100MM
- Color: STAINLESS STEEL
- Exports to: USA and Canada, Latin America, EU, Other European Countries, Japan and South Korea, Others
- Made in: Shandong, China
Product details
| Materials | STAINLESS STEEL |
|---|---|
| Size | 06MM-100MM |
| Color | STAINLESS STEEL |
From the supplier

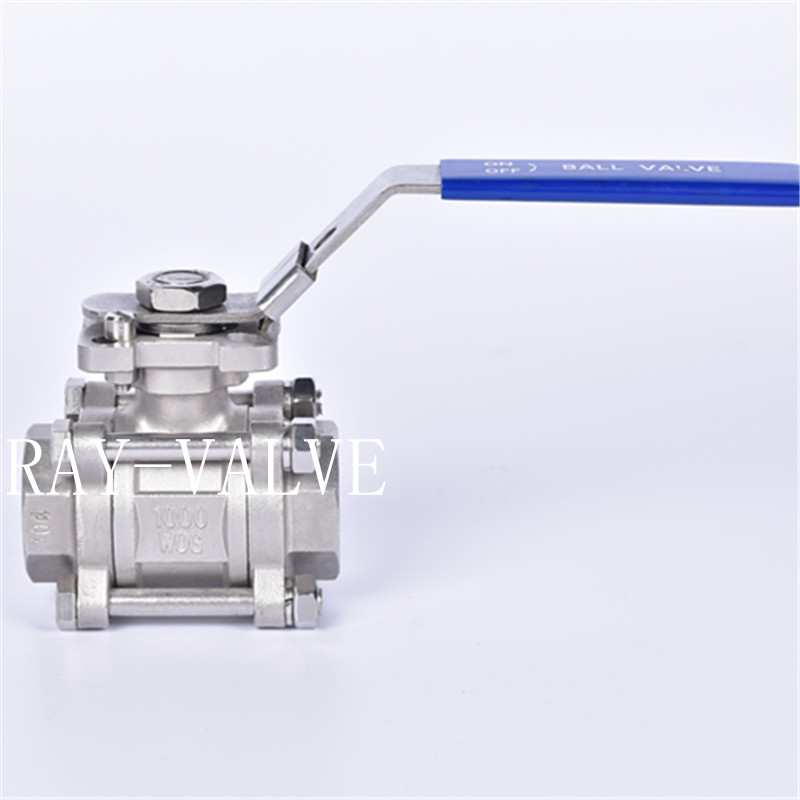

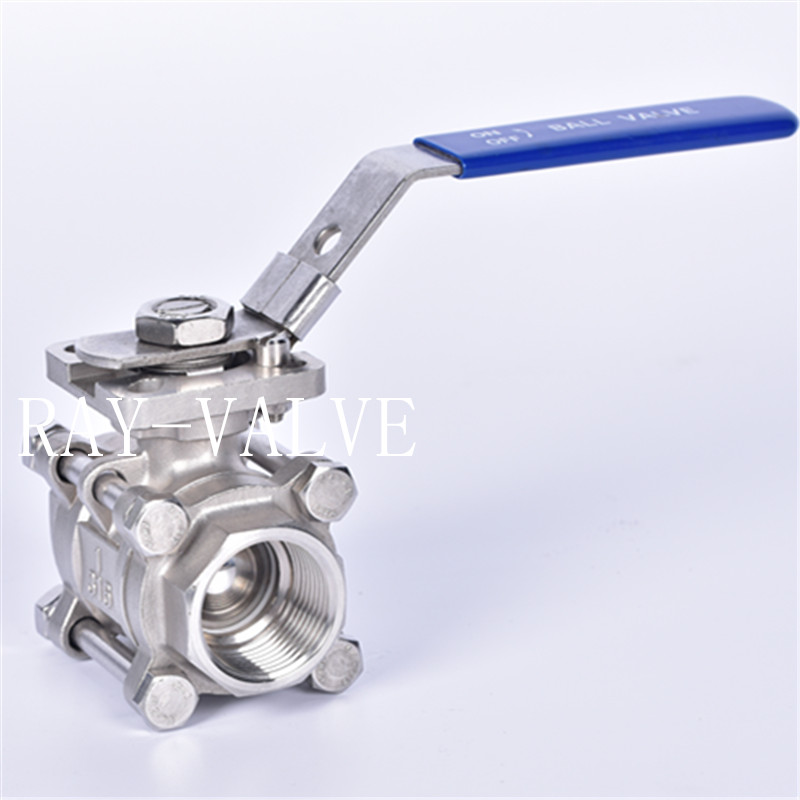

♦ 3PC SS THREADED BALL VALVE WITH MOUNTING PAD
Investment castings for body and cap
Internal entry blow-out proof stem
Pressure rating:1000 psi （PN63）
Mounting Pad： ISO5211 Working Temperature： -25℃+180 ℃
Material: CF8M CF8 CF3M WCB
Material List
ITEM
PART
MATERIAL
QTY
1
BODY
A216-WCB
A351-CF8
A351-CF8M
1
2
BALL
304
304
316
3
SEAT
PTFE/RPTFE
2
4
CAP
A216-WCB
A351-CF8
A351-CF8M
1
5
STEM
304
304
316
2
6
THRUST WASHER
PTFE
1
7
O RING
VITON
1
8
PACKING
PTFE
1
9
GLAND NUT
304
1
10
STOPPER NUT
304
1
11
PLATE
304
1
12
HANDLE
304
1
13
LOCK
304
1
14
HANDLE COVER
PLASTIC
2
15
NUT
304
304
304
4（6）
16
SPRING WASHER
304
4（6）
17
BOLT
304
304
304
4（6）
18
STOP PIN
304
304
304
1
Dimension List
Size Chart
Φd
L
H
W
H1
h
ΦD
ISO5211
N.M
KGS
DN6
1/4"
12.5
52
60
140
30
9
18
F03
4
0.40
DN10
3/8"
12.5
52
60
140
30
9
18
F03
4
0.42
DN15
1/2"
15
62
68
140
36.5
9
18
F03/F04
5
0.53
DN20
3/4"
20
72
72
140
40.5
9
27.2
F03/F04
8
0.68
DN25
1"
25
79
86
160
48.5
11
31
F04/F05
10
0.97
DN32
1-1/4"
32
94
94
160
53
11
42.8
F04/F05
14
1.55
DN40
1-1/2"
38
103
101
185
61.5
14
48.6
F05/F07
18
2.18
DN50
2"
50
126
110
185
70.5
14
60.5
F05/F07
25
3.19
DN65
2-1/2"
65
158
143
230
95.5
17
76.3
F07/F10
48
6.22
DN80
3"
76
179
157
230
109
17
90
F07/F10
75
8.30
DN100
4"
94
213
182
320
131
22
116
F07/F10
110
14.37
