315mm HDPE Butt Fusion Welding Machine HDPE butt fusion welding machine PE welder HDPE welding machine
Zhejiang Huajin Welding Machine Equipment Co., Ltd
See what’s includedHide breakdown
- FOB goods (100)
- $140,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $4,900
- Section 301 tariff (25.0%)
- $35,000
- Customs fees (MPF/HMF)
- $660
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $140,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $4,900
- Section 301 tariff (25.0%)
- $35,000
- Customs fees (MPF/HMF)
- $660
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
315mm HDPE Butt Fusion Welding Machine HDPE butt fusion welding machine PE welder HDPE welding machine
Zhejiang Huajin Welding Machine Equipment Co., LtdSee what’s includedHide breakdown
- FOB goods (100)
- $140,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $4,900
- Section 301 tariff (25.0%)
- $35,000
- Customs fees (MPF/HMF)
- $660
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $140,000
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $4,900
- Section 301 tariff (25.0%)
- $35,000
- Customs fees (MPF/HMF)
- $660
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Aluminium
- Size: 63mm-315mm
- Color: blue+white
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Latin America, Russia, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Aluminium
- Size: 63mm-315mm
- Color: blue+white
- Exports to: Mainland China, Middle East, Southeast Asia, South Asia, Latin America, Russia, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Aluminium |
|---|---|
| Size | 63mm-315mm |
| Color | blue+white |
Product details
| Materials | Aluminium |
|---|---|
| Size | 63mm-315mm |
| Color | blue+white |
From the supplier

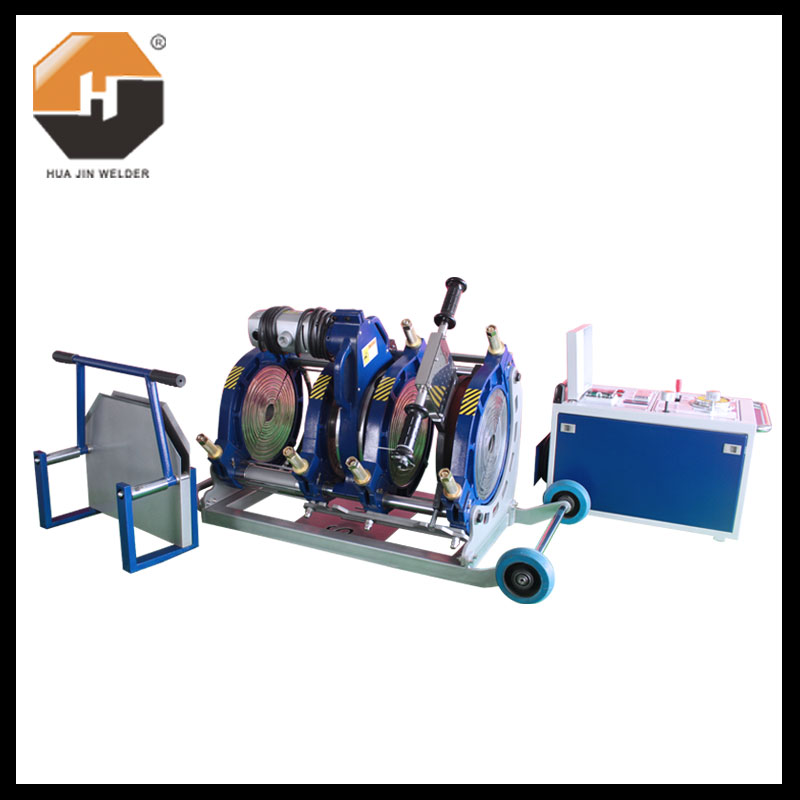

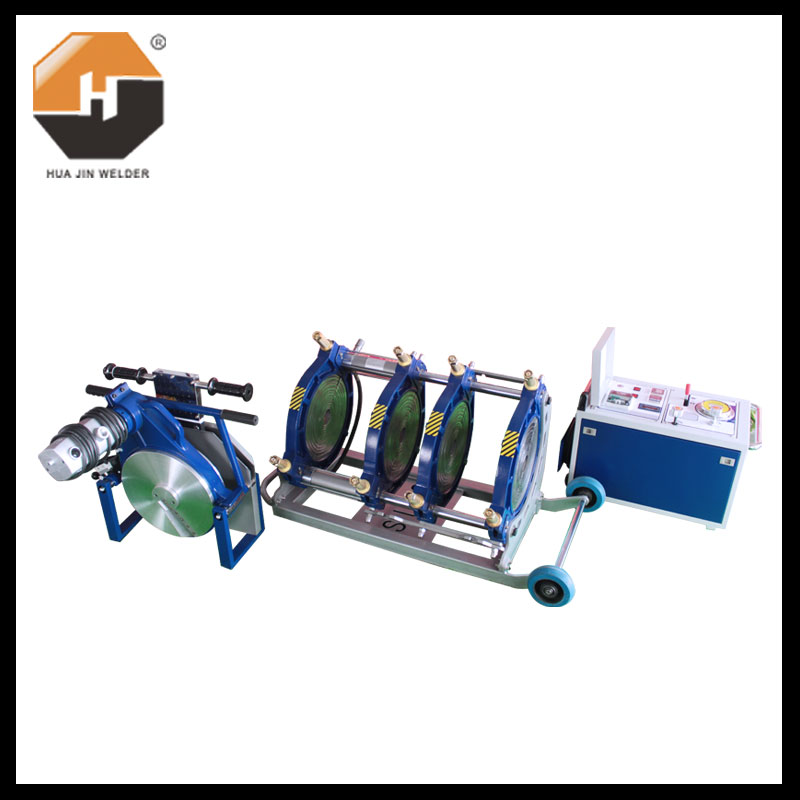

HDC315 BUTT FUSION WELDING MACHINE
Application & Features:
1: Consists of basic frame, milling cutter, heating plate, hydraulic unit, support.
2: Working environment must be between -40C°~ +40C°
3: Pressure adjustable range: 0-6Mpa
4: Heating plate Max. Temperature: 270°C
5: Suitable for material of PE, PP, PVDF.
Optional Parts:
*Stub end device
*Dada logger
*Electric crane and hoist
HDC315 Technology Information
Welding Range: 90mm,110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm, 280mm, 315mm,
Package Size: 99*65*61cm 74*71*66cm 2 Plywood Cases
Total Volume: 0.74 m³
Net Weight: 154.8kgs
Gross Weight: 187.3kgs
Basic Frame
Heating plate
Milling Cutter
Support
Hydraulic unit
Size
94*62*60cm
44*5*53cm
59*38*58cm
48*28.5*56.5 cm
58*47*47 cm
Weight
80kgs
7.8kgs
22kgs
3.5kgs
41.5kgs
Power
4.85kw/220v
From the supplier
HDC315 BUTT FUSION WELDING MACHINE
Application & Features:
1: Consists of basic frame, milling cutter, heating plate, hydraulic unit, support.
2: Working environment must be between -40C°~ +40C°
3: Pressure adjustable range: 0-6Mpa
4: Heating plate Max. Temperature: 270°C
5: Suitable for material of PE, PP, PVDF.
Optional Parts:
*Stub end device
*Dada logger
*Electric crane and hoist
HDC315 Technology Information
Welding Range: 90mm,110mm, 125mm, 140mm, 160mm, 180mm, 200mm, 225mm, 250mm, 280mm, 315mm,
Package Size: 99*65*61cm 74*71*66cm 2 Plywood Cases
Total Volume: 0.74 m³
Net Weight: 154.8kgs
Gross Weight: 187.3kgs
Basic Frame
Heating plate
Milling Cutter
Support
Hydraulic unit
Size
94*62*60cm
44*5*53cm
59*38*58cm
48*28.5*56.5 cm
58*47*47 cm
Weight
80kgs
7.8kgs
22kgs
3.5kgs
41.5kgs
Power
4.85kw/220v
About the supplier
Main products: Other pipe fittings
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2013
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
Building & Furniture exhibitors show in Phase 2 of the Canton Fair, 23 to 27 October 2026.
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2013
- Canton Fair Premium Supplier
