More People Choose Reliable Gas Generator

One of the secrets of keeping the biogas generator running smoothly is that you have a set of customized biogas purification equipment.

It can ensure constant pressure and constant temperature of desulfurization and dehydration, and provide clean biogas for the generator set.

The utility model has the advantages of small volume, high efficiency.

We want to share with you about gas generators situation in China.

At present, biogas generators are converted using a diesel engine in China.

However, in the internal combustion of an engine, the heat load of diesel is lower than that of biogas, which means that the diesel engine is not suitable for long-time combustion of biogas.

Therefore, as a professional gas solution provider, it is our responsibility to support every customers get what they need.

The power range of our gas generator is 10-4000KW/unit. meantime, we are professional at the power station solution, up to 10MW.

All the key components such as pistons, crankshafts, cylinder heads, and crankshafts have been improved in performance before retrofitting, That's why our gas generator/engine more reliable.

Hope everyone can understand the production of gas generators in China. Moreover, we hope this information can be an advice when you purchase a gas generator sets from China.

Choosing Cummins is to choose a world famous brand engine, which is to choose high efficiency, high quality and high reliability.

 The following is the details of our 300kW Cummins biogas generator, if you have any questions; please contact us any time, thank you!

Model

YDNC-300

Rated power (kW/KVA)

300/375

Rated current (A)

540

Rated Voltage（V）

230/400

Rated Frequency（Hz）

50

Size (mm)

3800*1600*2200

Weight (kg)

3500

Engine

Model

GTA19-G2

Type

Water-cooled, 4-stroke,6 cylinder inline

Rated Power(kW/KVA)

360

Rated Speed(rpm)

1500

Cylinder No.

6

Bore*Stroke(mm)

159×159

Cooling Method

Water-cooled

Oil Consumption(g/KWH)

Gas Consumption(m3/h)

180

Starting method

24V DC

Alternator

Brand

Farrand

Model

FLD300

Rated Power(kW/KVA)

300/375

Voltage Regulation

≦±1

Excitation mode

Brushless, Self Excitation

Insulation Class

H

Control

System

Model

SMARTGEN HGM6110N

Working Voltage

DC8.0V to DC35.0V

Overall Dimensions

197 mm x 152 mm x 47mm

Panel Cutout

186mm x 141mm

Working Condition

Temperature: (-25~70)ºC; Humidity: (20~90)%

Weight

0.56kg

 Biogas generator unit delivery status

SN

Name

Qty

Brand

Remark

1

Biogas engine

1 set

Cummins

Displacement 18.9L，1500rpm

2

Alternator

1 set

Farrand

50Hz, 400/230V

3

Common Base

1 set

YDN POWER

Steel

4

GAS train

1 set

YDN POWER

Gas pressure regulator，pressure gauge，back-fire arrester，ball valve

5

Battery

1 set

Camel

6

Cooling system

1 set

Datong

Water Cooling

7

Exhaust system

1 set

YDN POWER

Exhaust and muffler

8

Parts and tools

1 set

YDN POWER

Spark plug and wrench，air filter

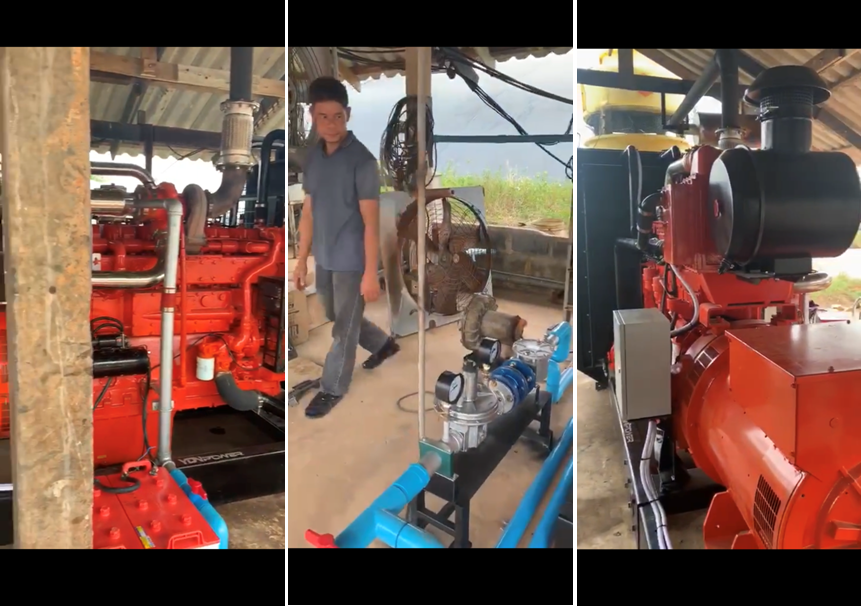

1. Pictures for references

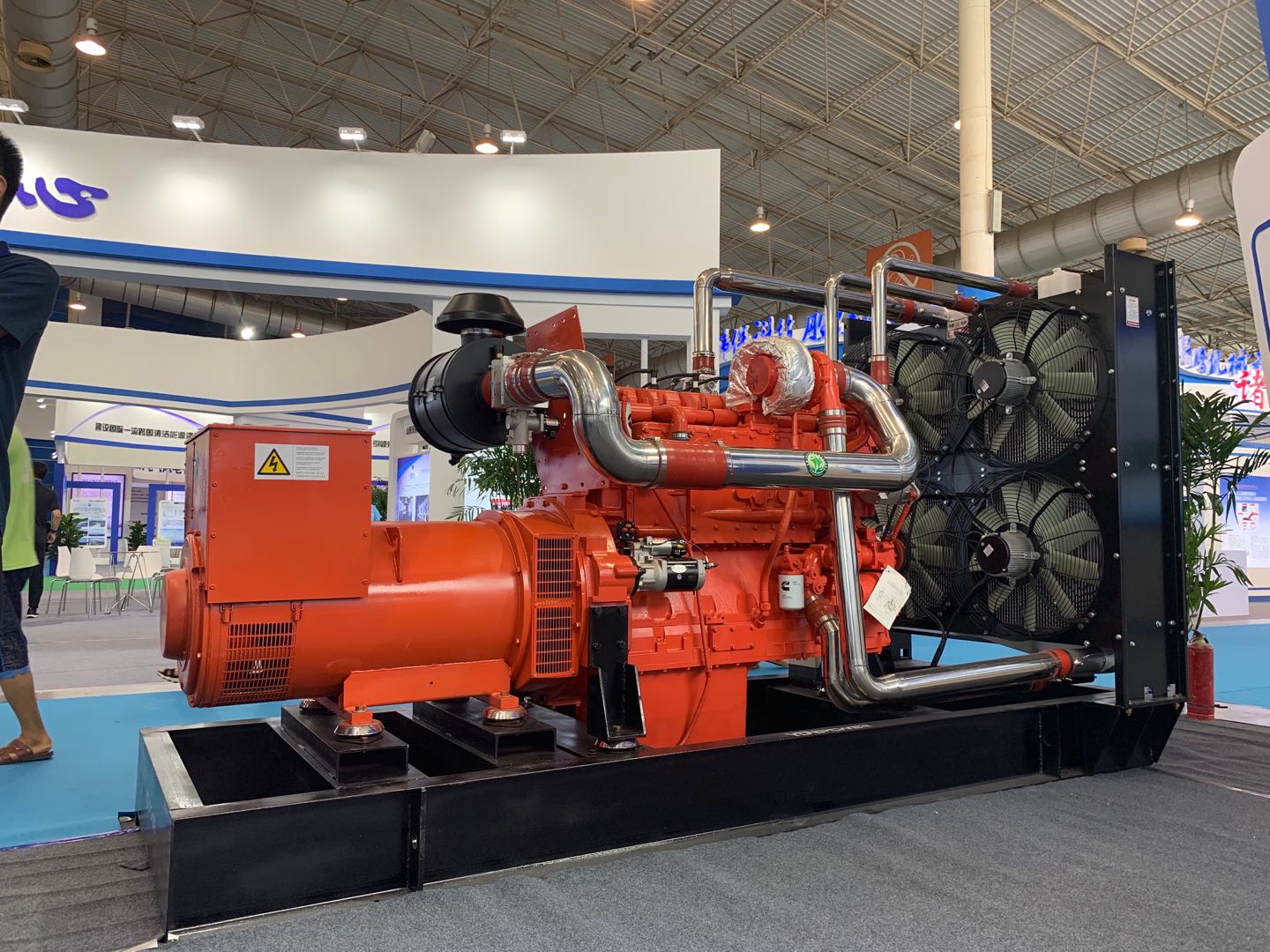

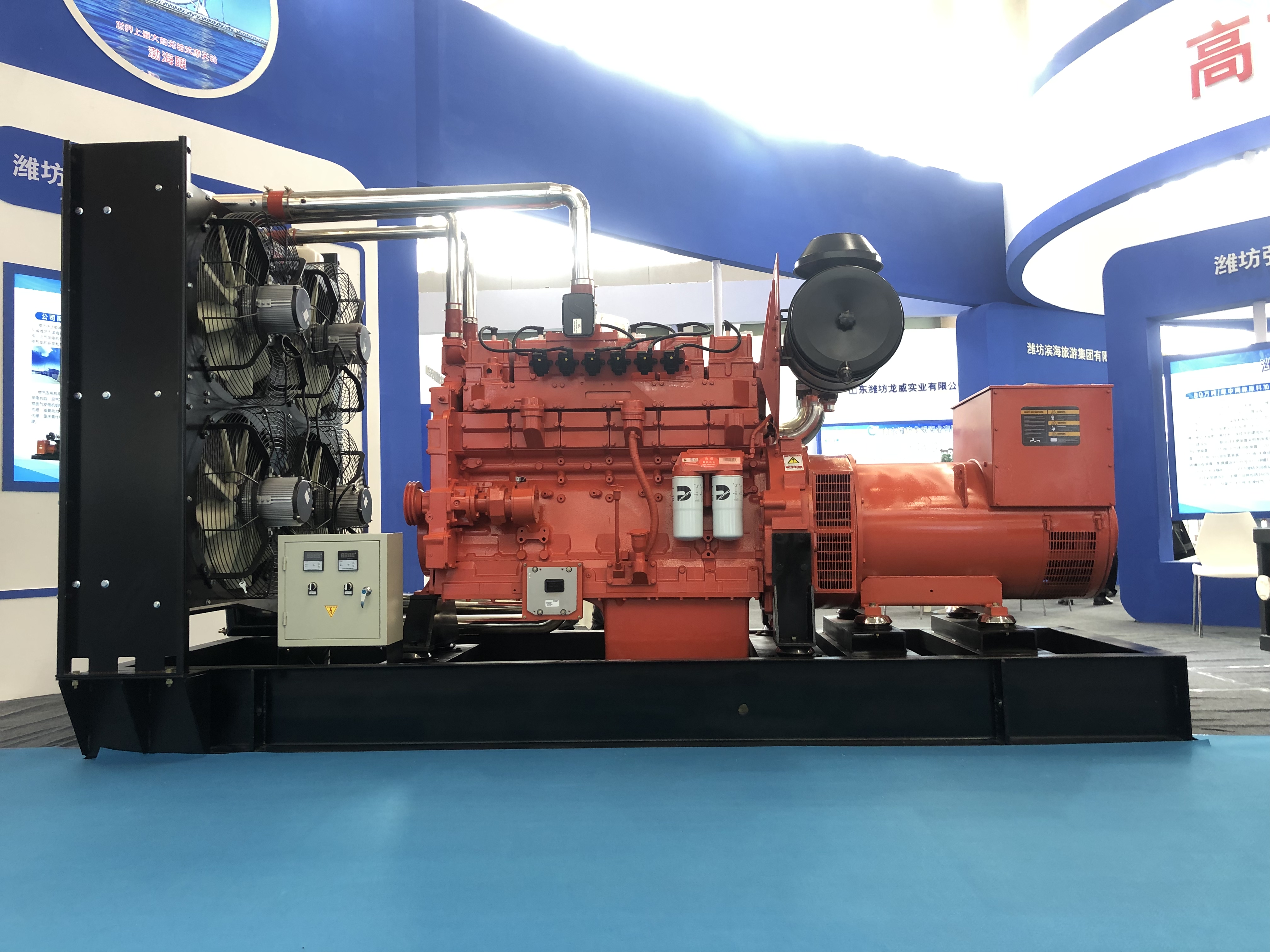

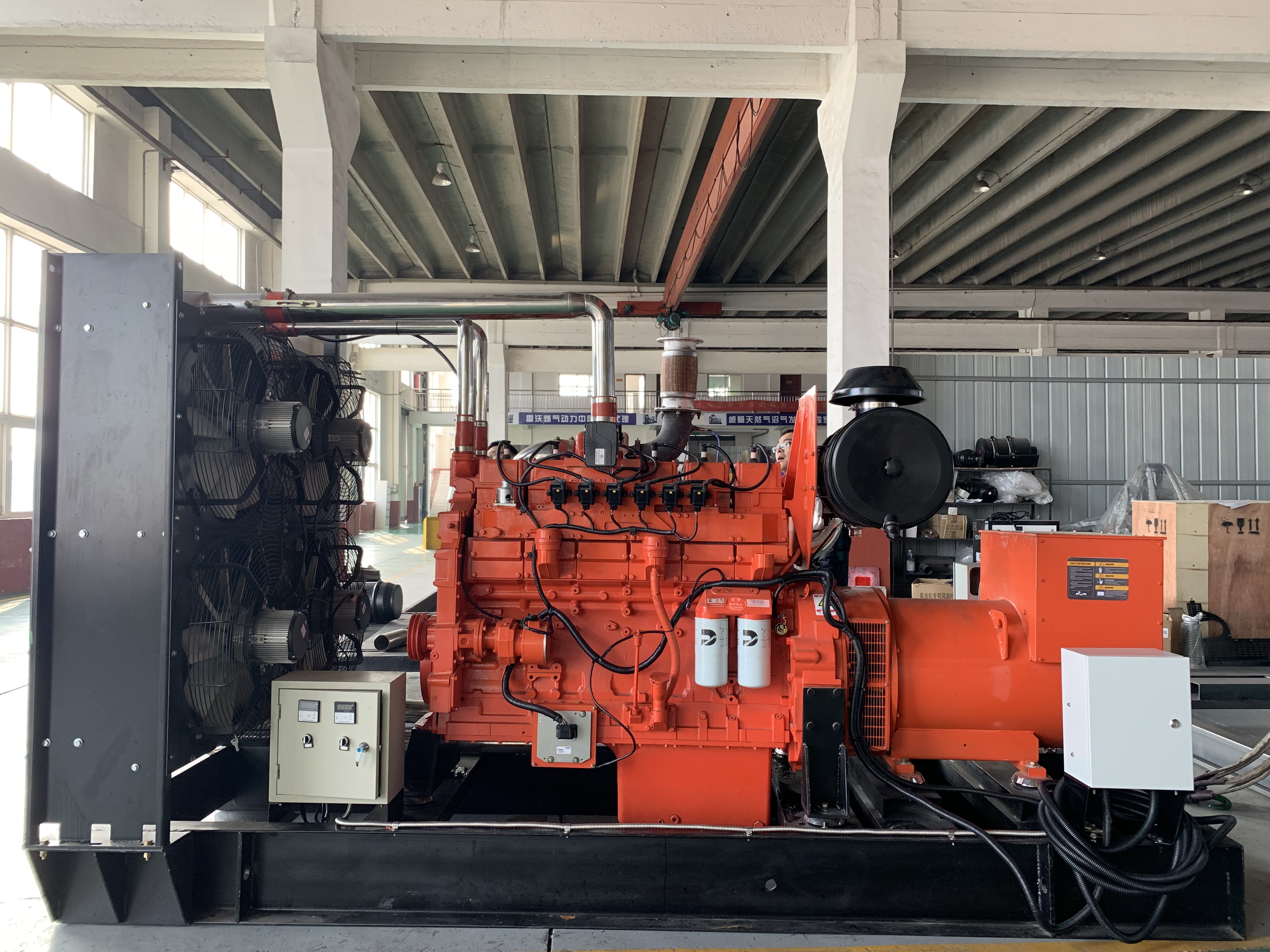

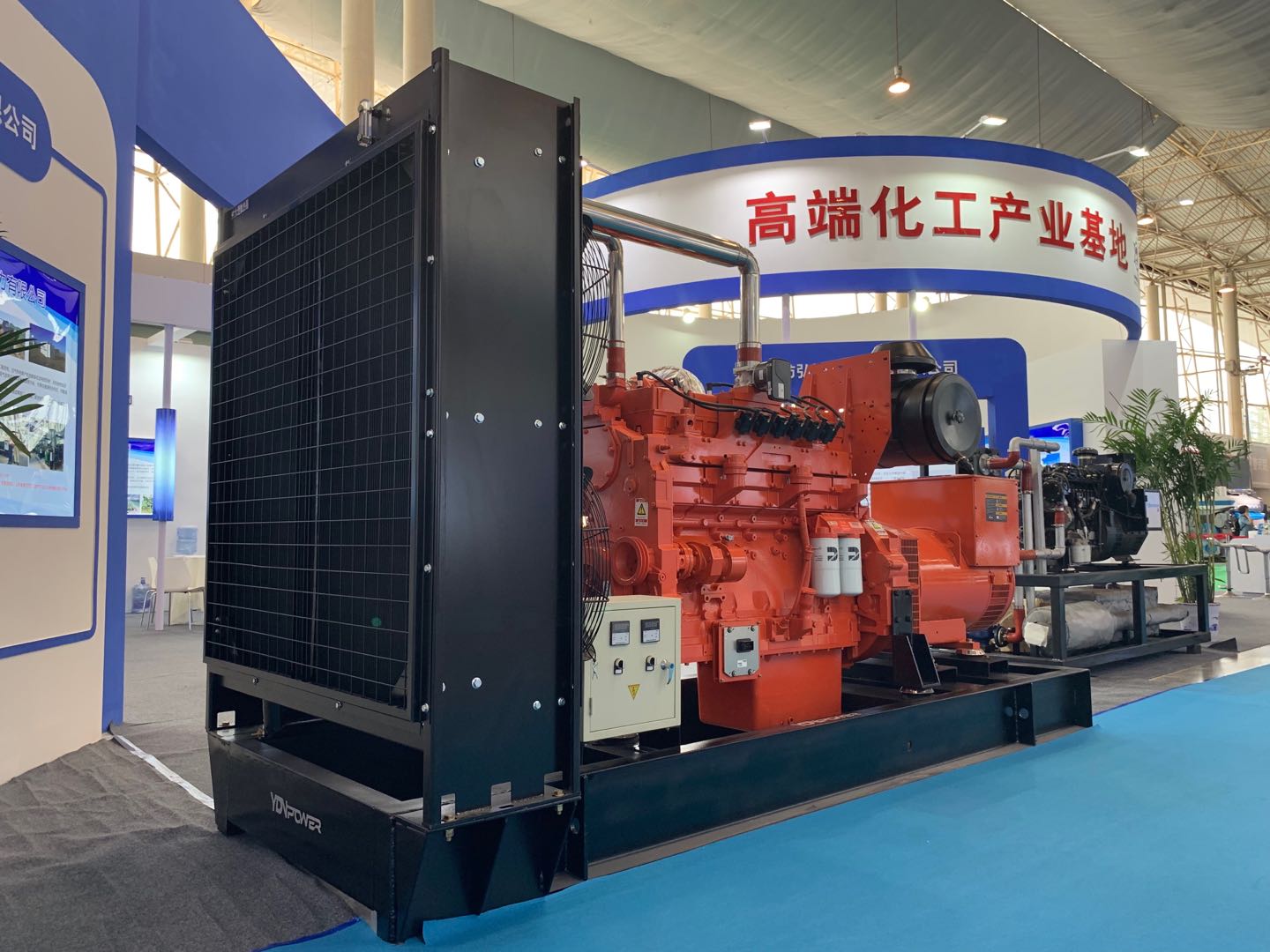

300KW Cummins biogas generator

In addition to generators, we also provide a large number of optional services.

Parallel device.

The parallel function between the generator and the generator or the parallel function between the generator and the power grid can be realized.

CHP.

It can comprehensively utilize the waste heat of the engine (exhaust gas waste heat and cylinder liner water waste heat) to turn cold water into hot water to improve the overall efficiency of the generator.

Mobile trailer.

Can make the generator go to any place where the customer needs.

After strict factory testing, the generator will be packed and shipped.
