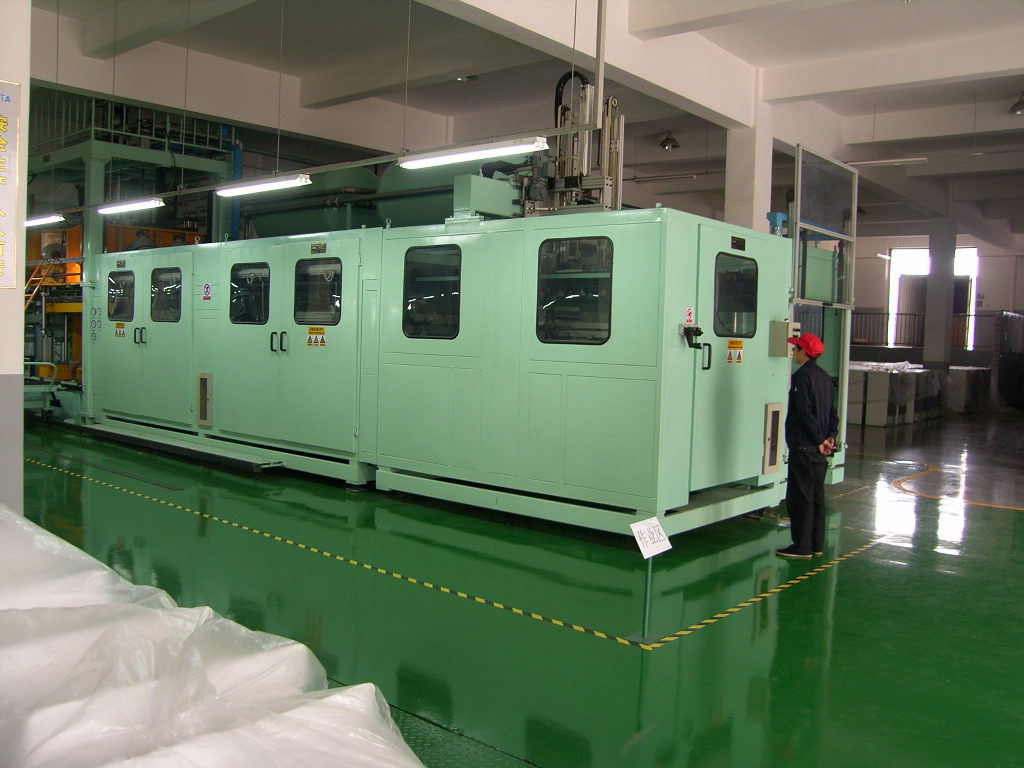

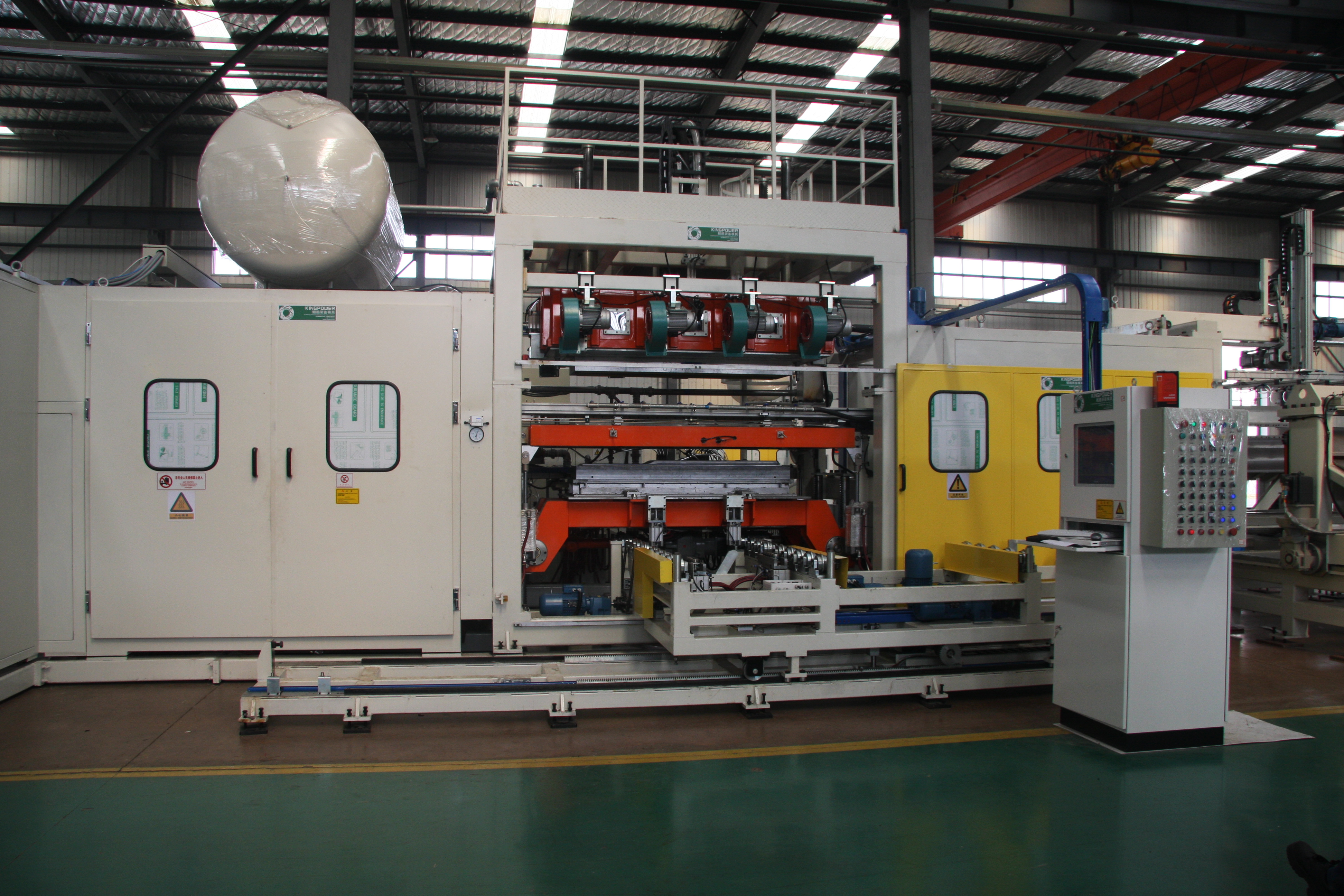

3-stations door liner thermoforming machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
3-stations door liner thermoforming machine
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: as requirements from Clients
- Color: as requirements from Clients
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Size: as requirements from Clients
- Color: as requirements from Clients
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Size | as requirements from Clients |
|---|---|
| Color | as requirements from Clients |
From the supplier

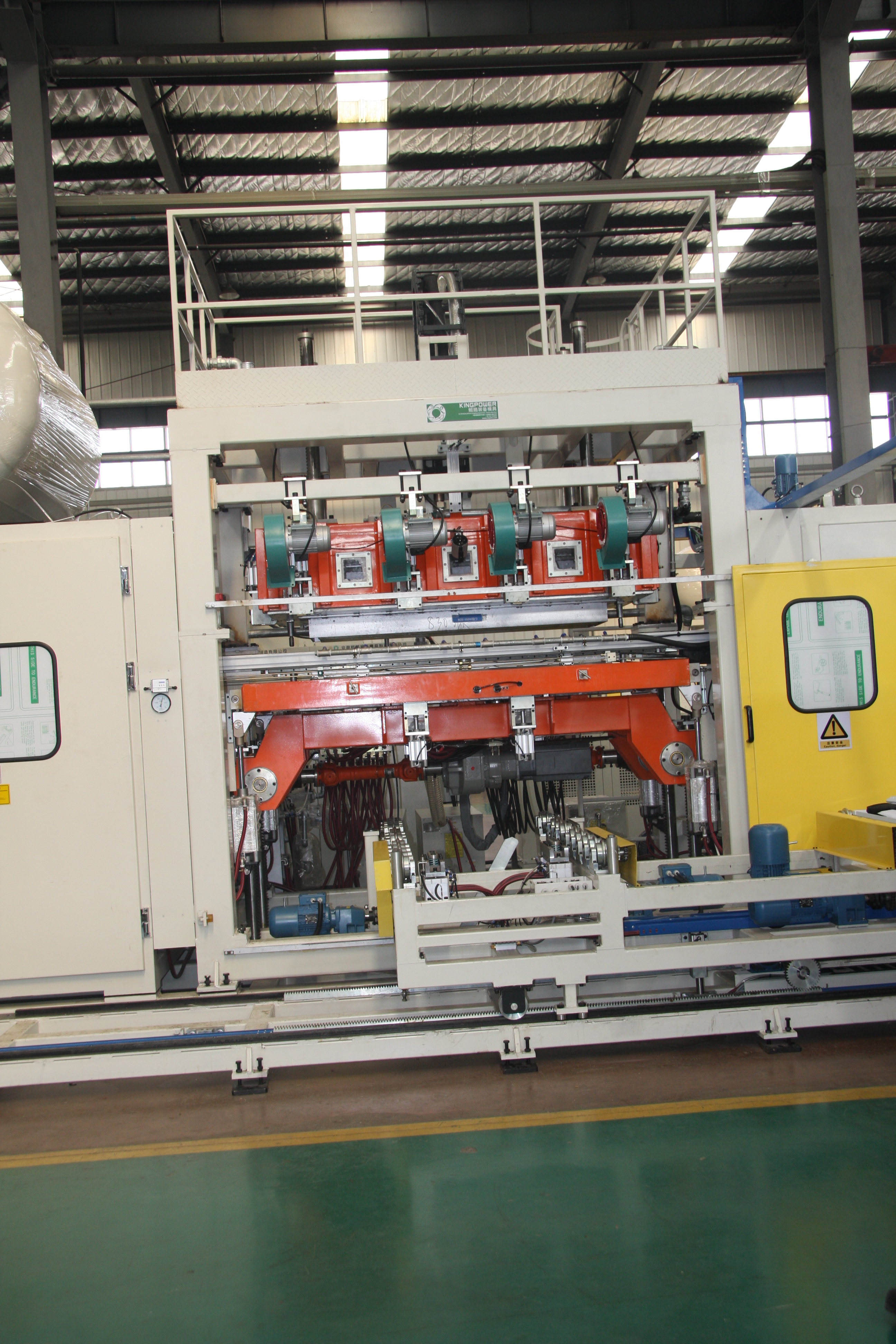

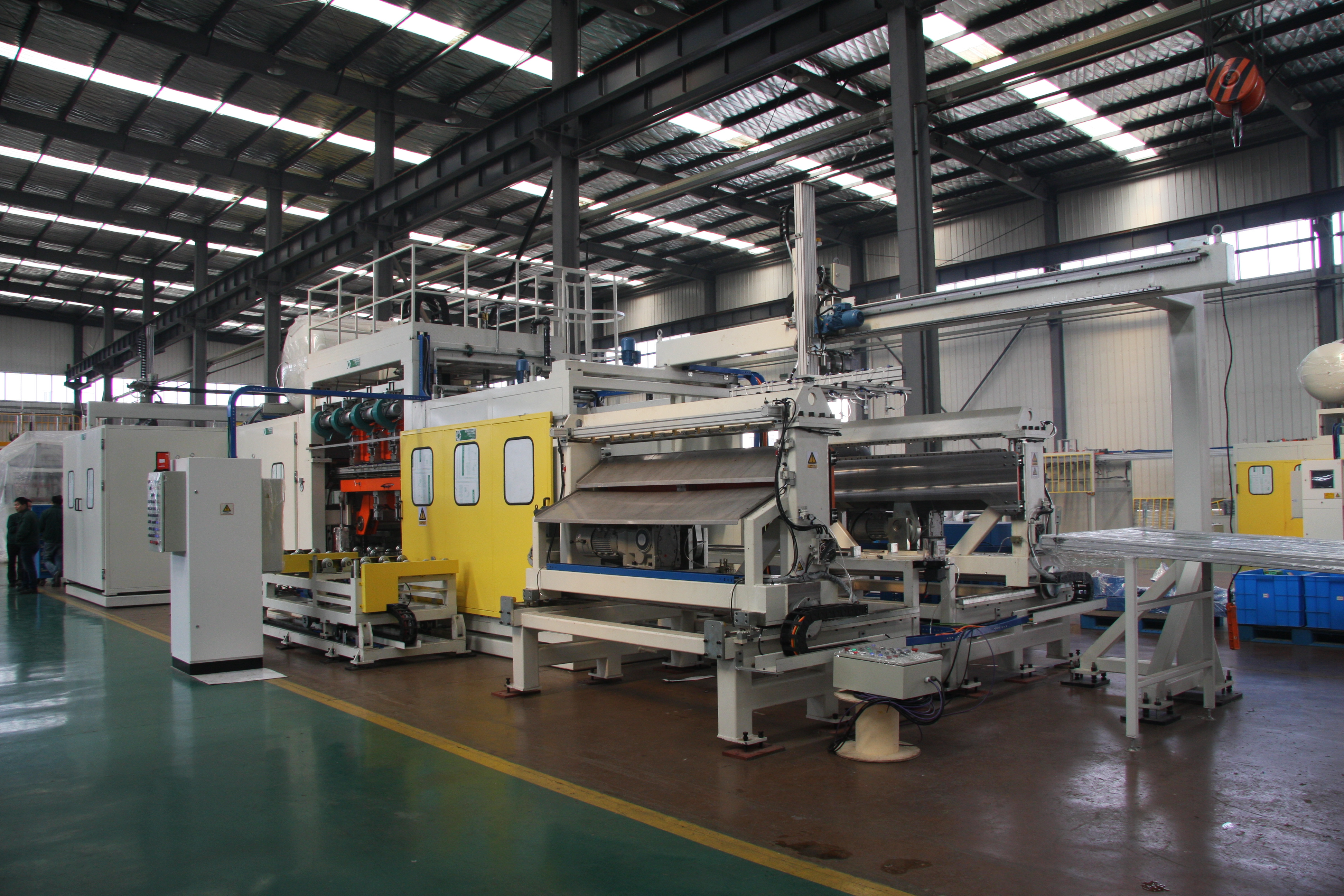

The main parts of the machine: automatic loading part, heating part, forming part, clamping shuttle part, unloading part and pneumatic system, vacuum system, water circulation system, lubricating system, electric control system and others. the forming method is vacuum male molding with air pressing , and the maximum forming size is 2200*1100*250 (length * width * depth)
Machine auxiliary machines: 4 mold temperature controller with a single heating power 8KW. One chiller, 20HP；safety protection device, sensor and fence;

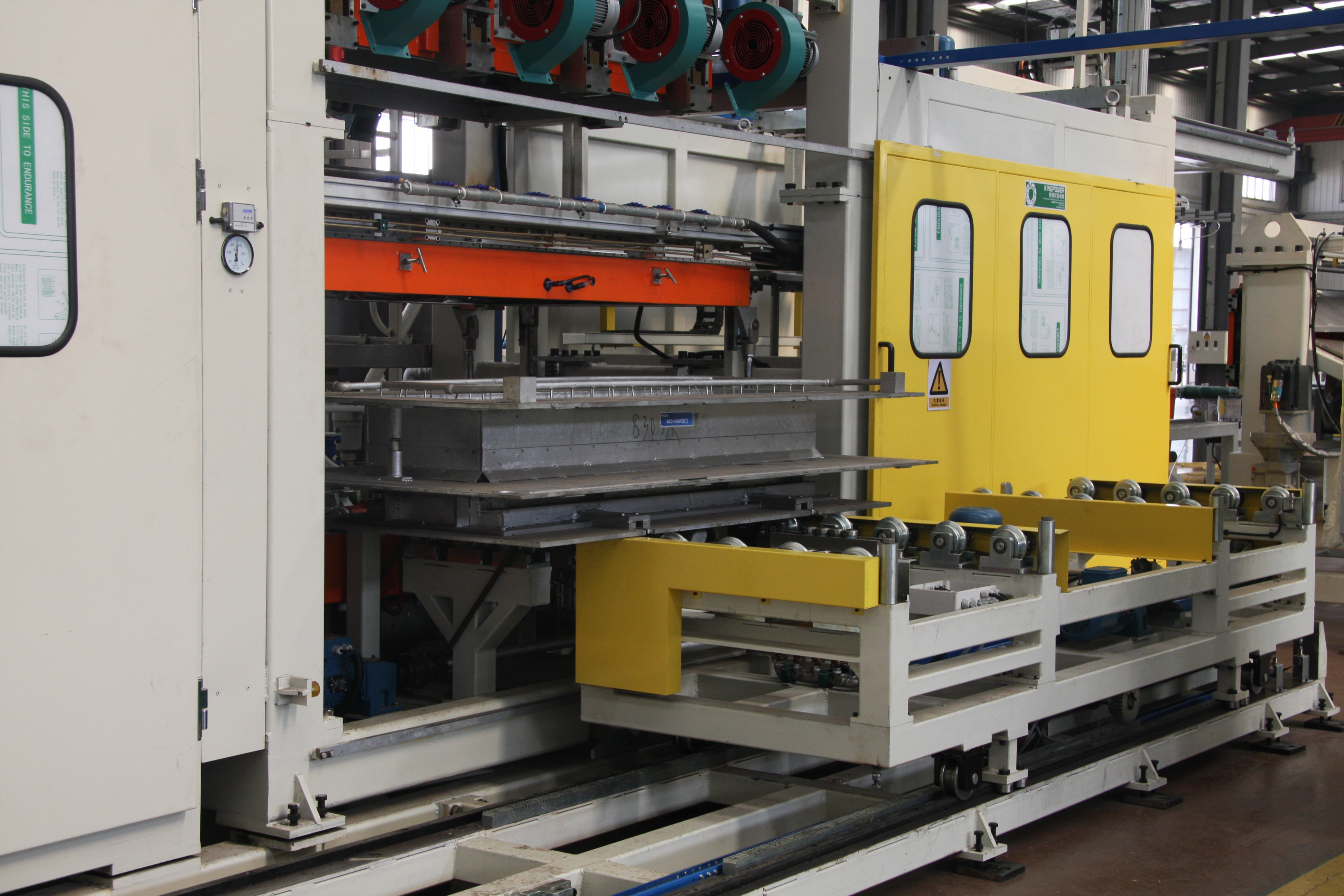

Process flow: the sheet is loaded by manipulator sucker to the centering table, the sheet is transported by clamping shuttle system to the heating part, after heating, clamping shuttle system transporting sheet to the forming station and after vacuum forming, the door liner is transported to the unloading position, and the operator will take the formed parts away. The machine can make refrigerator door liner automatically.
About the supplier
Main products: Refrigerator Parts,Washing Machine Parts
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2002
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2002
- Canton Fair Premium Supplier
