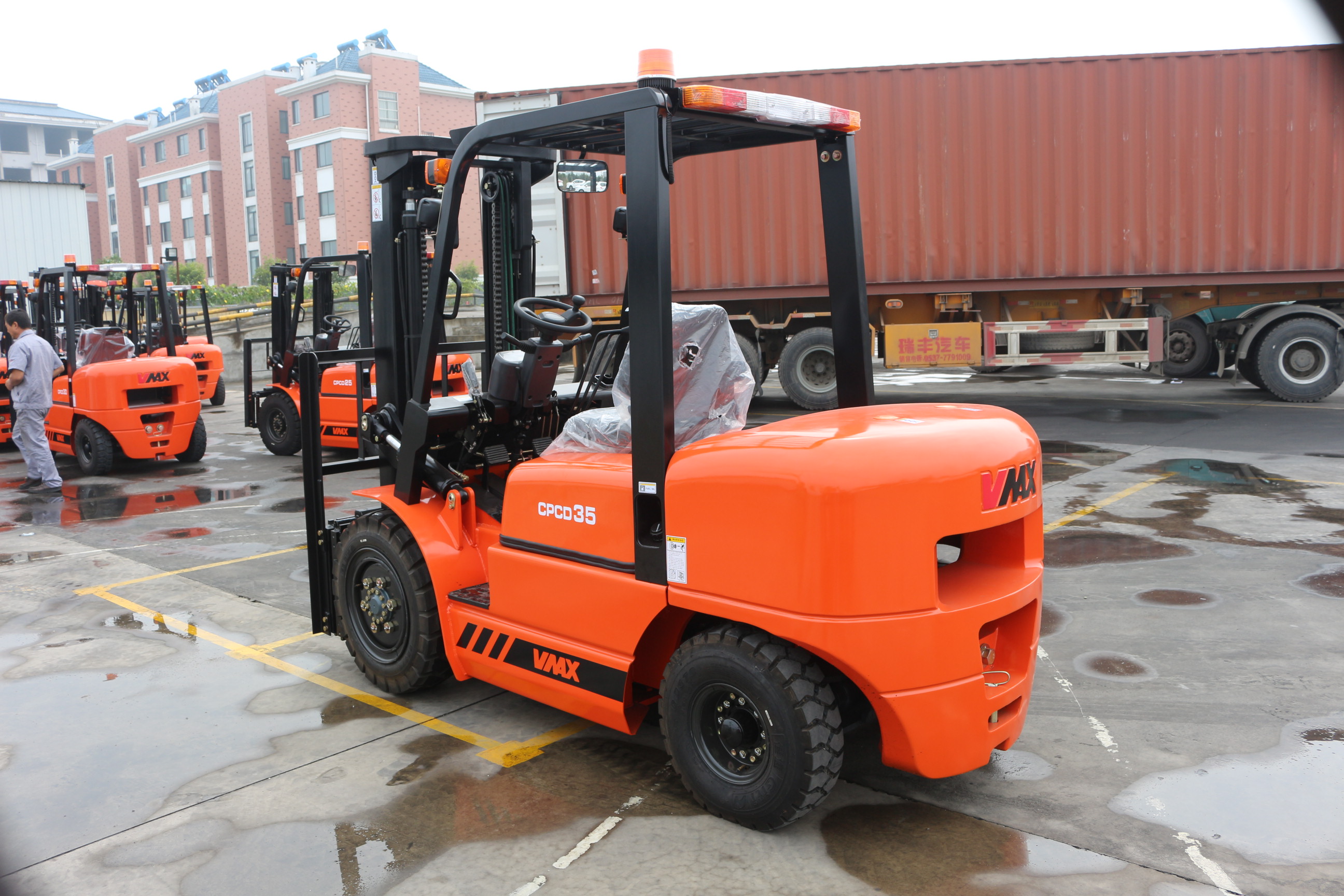

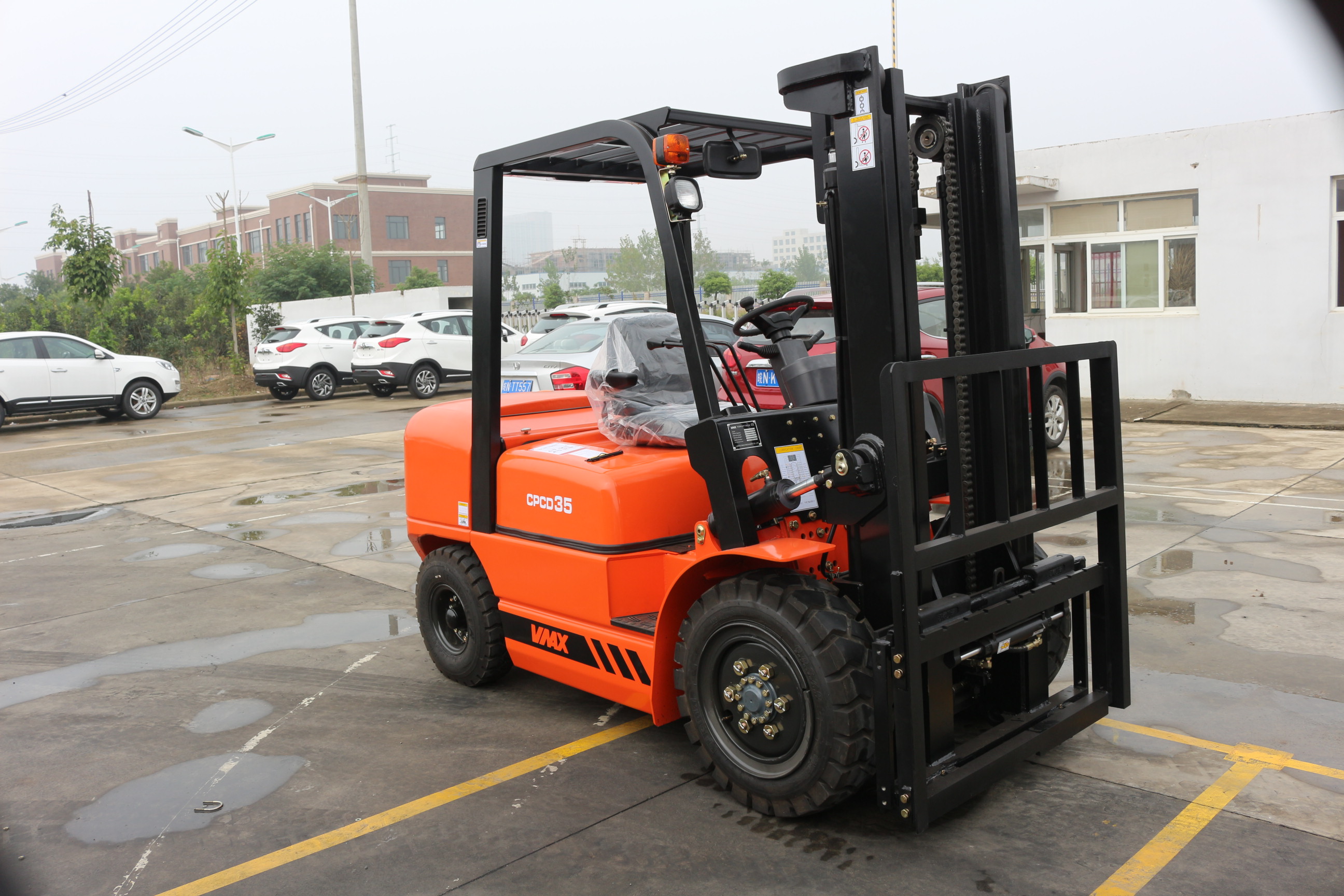

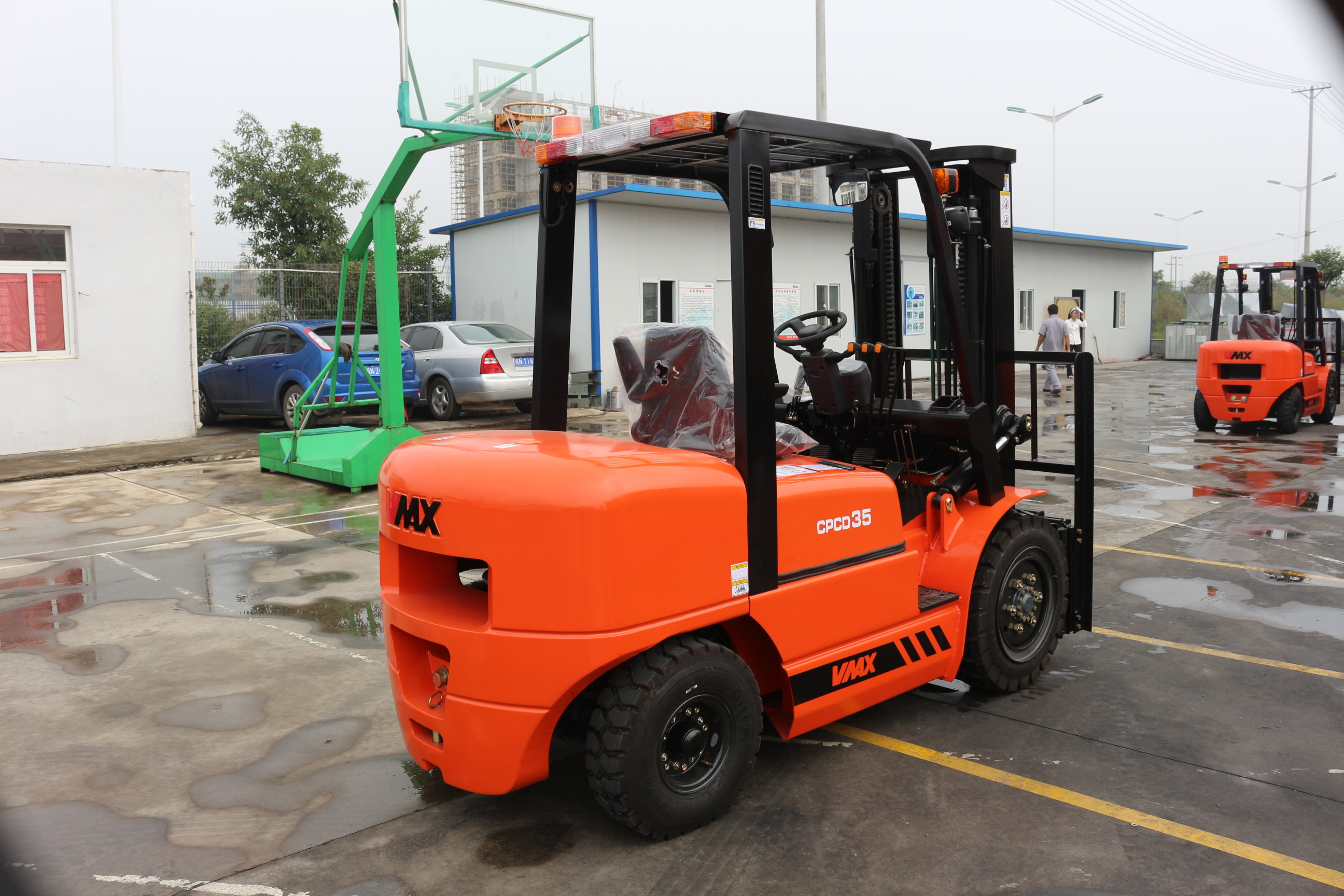

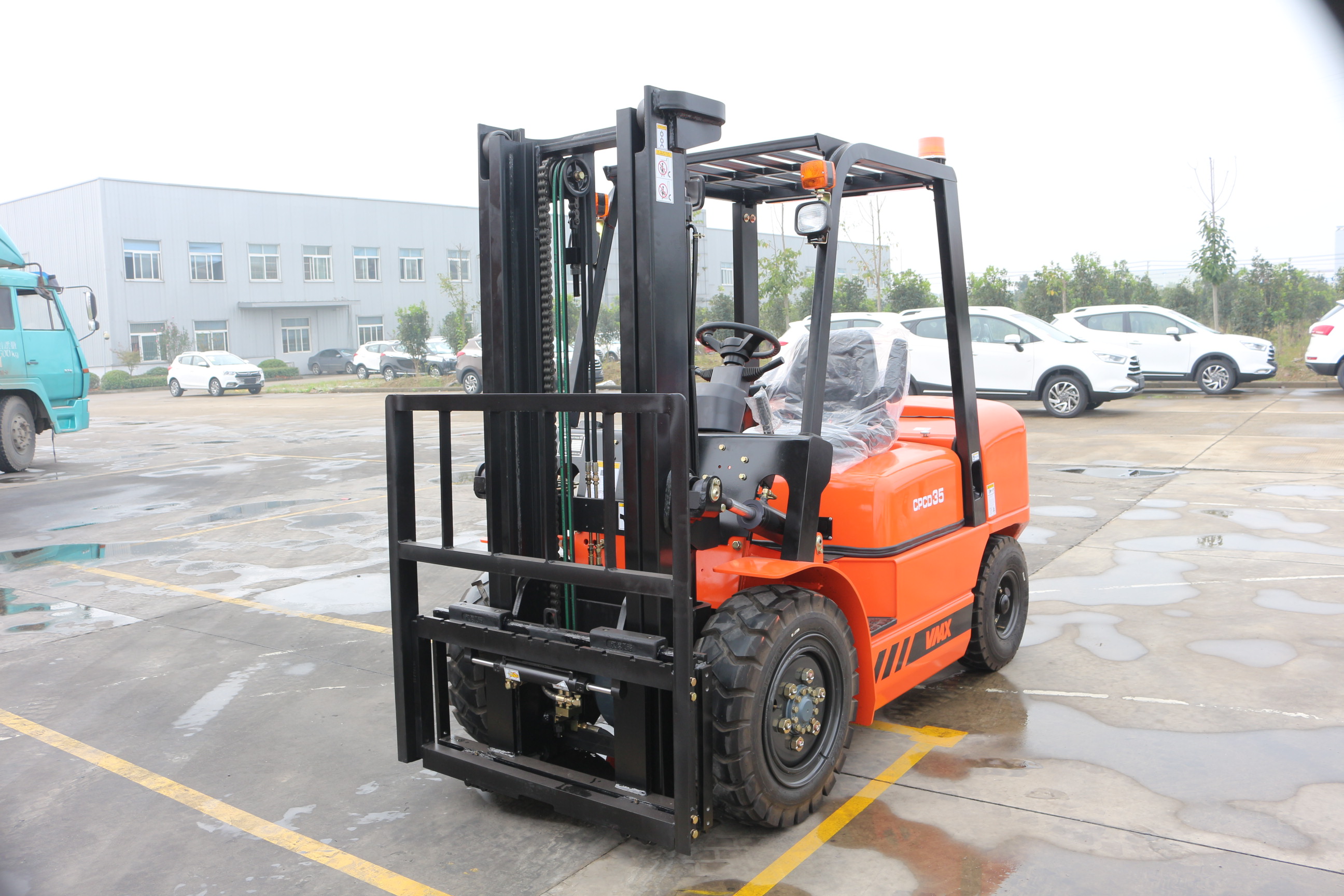

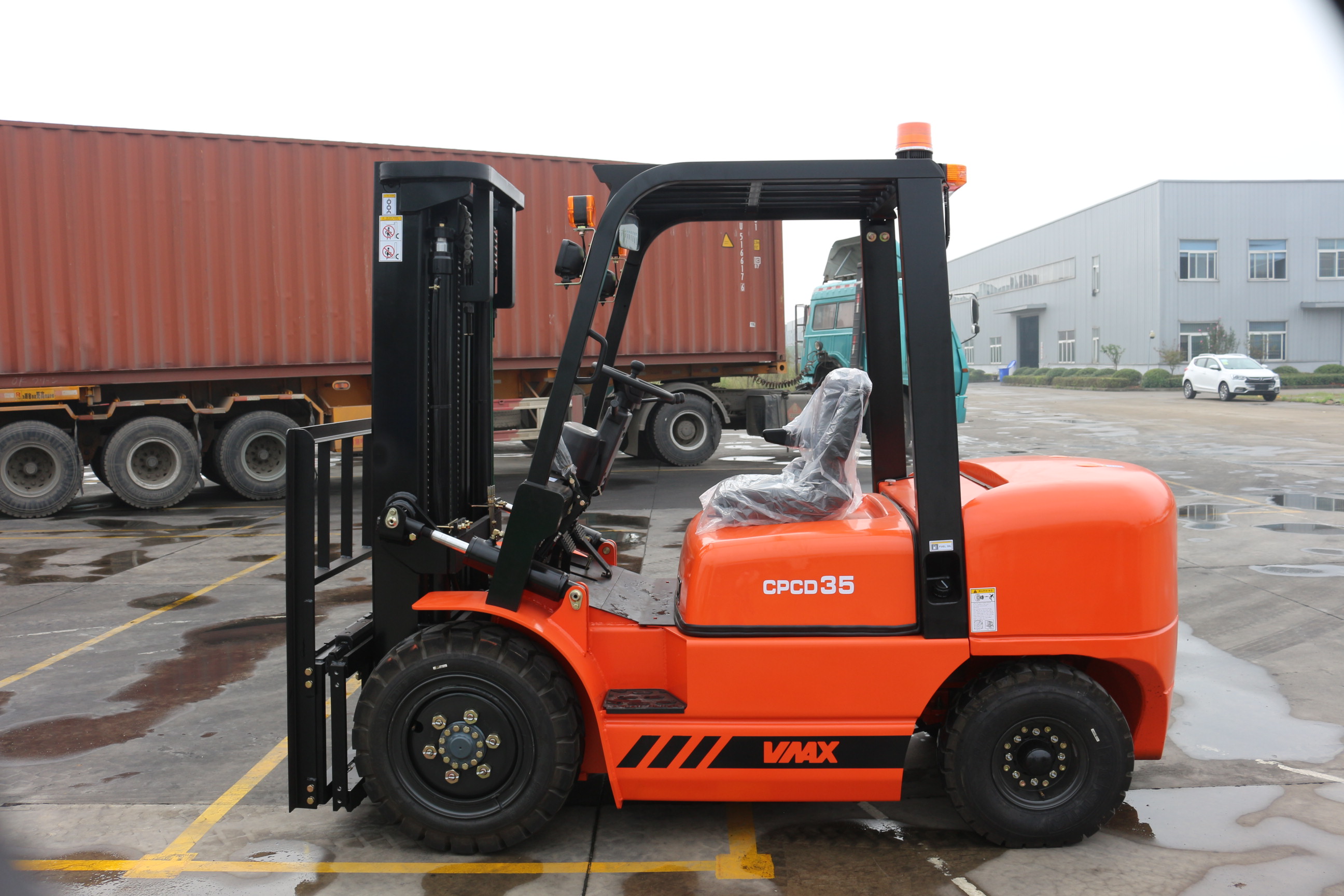

3.5ton diesel forklift

3.5ton diesel forkift ,Standard configuration:

1.Standard 2-stages 3m mast,China Xinchai NC495 engine

2.Forks,water-thermometer,Traction Pin,Load - backrest,overhead guard,electric hom,reversing light,Chronoscope,fuel gauge,Charging indication,tool box,free spare parts,Oil pressure alam,tum light indicator,High visibility mast,seat with arm and safety Belt,Headlamp,combination rear lamp,Formedpedal pad,Multiple unit valve,transmission oil filter,Back-up Buzze,Transmission oil scale,hydraulic circuit oil filter,Neutral safety switch,overhead guard appentice,air intake installation,Durable tyre,Cable type parking brake,Hydraulic oil scale,Preheat indicator,Hydraulic power transmission,Lifting jack govemor valve,Lifting and tilting joy stick,

whirlwind joy air filter,Automatic engine preheating system,etc.

Alternative equipment:

Mast type:Standard 2-stages,full free 2-stages/duplex mast,full free 3-stages/triplex mast.

Mast height:3m,3.5m,4m,4.5m,4.8m,5m,5.5m,6m,6.5m,7m,etc.

Engine:Isuzu, Yangma, Mitsubishi, Kohler, Cummins, etc.

Tire: solid tire, Non-marking solid tire

Seats: Toyota seats, suspension seats, OPS seats

Alternative equipment：

Cabin,speed indicator,fire extinguisher,solid tyre,rear work light,Auxiliary Piping,floated seat,Specify Colors,transmission oil ,temperature gauge,fan heater,High exhaust device,etc.

Alternative attachment:

Side shifter,Fork Positioner,Paper Roll Clamp,Push / Pull,Carton Clamp,Rotator,Carpet Boom,Tipping Mult-purpose Clamp,Drum Clamp,Tumaload,Tumafork,Single Double Pallet Handlers,Double Wide Sideshifters,forks,Glass Handler,etc.

Product Description3500kg diesel forklift with standard 2-stage 3m mast and China engine

3.5ton Diesel forklift Standard 2-stages 3m mast

1.Automatic transmission

2.1070mm  fork length

3.On/off on key switch

4.Toyota Seat with belt,with reversing buzzer

5.Pneumatic tire

6.Tool box,warning light and full sets of LED lights.     7.Including all other standard configuresDetails Images

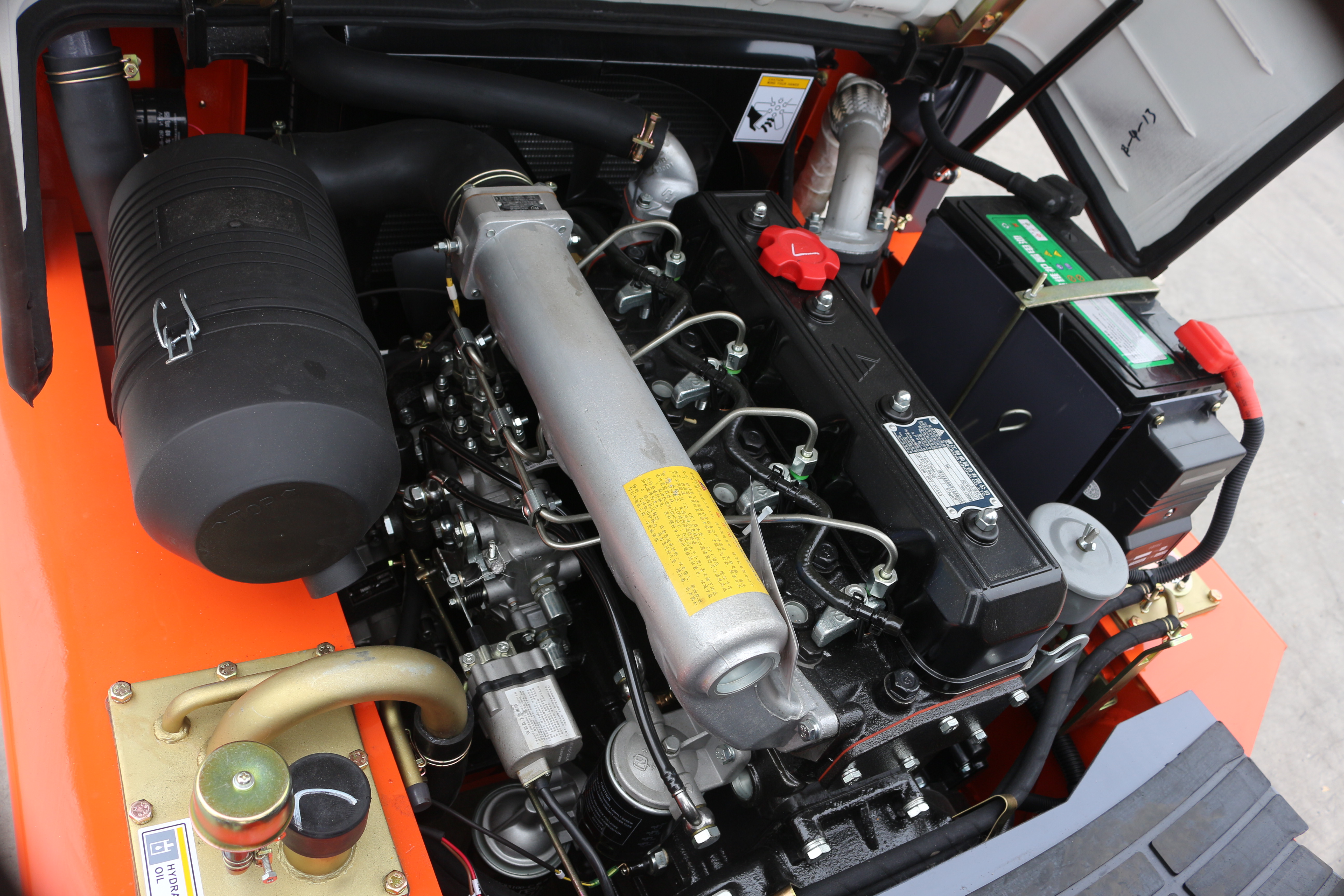

Power system

Equipped with Chinese powerful and reliable engines with excellent enviromental performance,original imported ISUZU,Mitsubishi and
Yanmar,Kohler,Cummins engine are optional.

Security system

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.

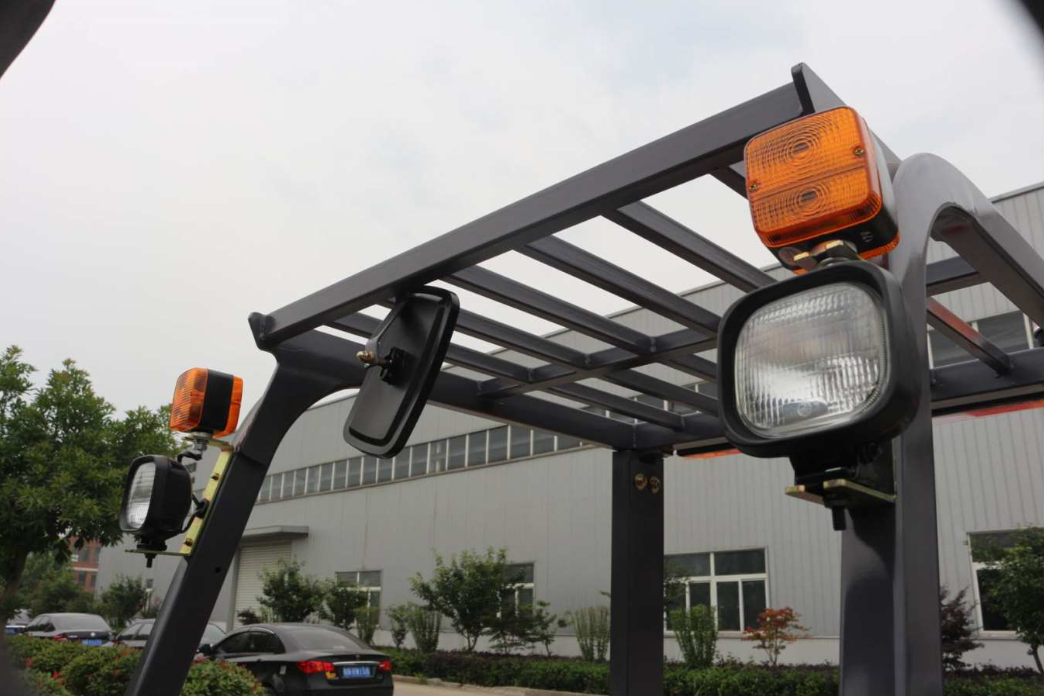

Lighting system

Equipped with full set of LED lamps,which are brighter and energy saving.

Reliable lifting system

Wide-view mast design,providing superior vision,making the operation more security.

High performance hydraulic system

Equipped with load sensing priority hydraulic system,flxible steering,mast lifting speed increased by 20%.

Comfortable driving space

Lengthened wheelbase design,reasonable functional layout,super comfortable and larger driving space.Product Paramenters

1

Manufacturer



VMAX

2

Model

Unit

CPCD35

3

Power type



         Diesel

4

Rated capacity

kg

3500

5

Load center

mm

500

6

Operator type

mm

Drive in the seat

7

Max. lift height of mast with Load-backrest

mm

4262

8

Max.lift  height of fork

mm

3000

9

Height of mast (standard)

mm

2180

10

Free lift height(standard)

mm

170

11

Height of Load-backrest

mm

1235

12

Distance from seat to overhead guard

mm

1000

13

overhead guard height

mm

2090

14

Length with fork

mm

2693

15

Front overhang

mm

498

16

Rear overhang

mm

495

17

Wheel base

mm

1700

18

The height of traction pin

mm

310

19

Min. ground clearance

mm

135

20

Overall width

mm

1125

21

The distance between forks

mm

1060/250

22

Tread(front /rear)

mm

1000/970

23

Min. Turning radius(outside)

mm

2420

24

Min. Turning radius(inside)

mm

200

25

Min. Intersecting aisle

mm

2400

26

Mast tilt angle

deg

6° / 12°

27

Fork size

mm

1070*125*45

28

Max.Drive speeds(with/without load)

km/h

19/19

29

Lifting speeds (with load)

mm/s

330/370

30

Lowering speeds(with /without full load)

mm/s

350/400

31

Max.Drive speeds(with/without load)

KN

20/16.3

32

 Max. tractive force

%

15/20

33

Total weight

kg

4700

34

Weight Distribution full load (front/ rear)

kg

7380/820

35

Weight Distribution zero load(front / rear)

kg

1880/2820

36

Quantity of wheels



2 X / 2

37

Type of tyres



Penumatic tires

38

Front



7.00-12-12PR

39

Rear



6.00-9-10PR

40

Driving Brake



hydraumatic pedal

41

Parking Brake



Mechanical manual

1

Manufacturer



VMAX

2

Model

Unit

CPCD25

3

Power type



          Diesel

4

Rated capacity

kg

2500

5

Load center

mm

500

6

Operator type

mm

         Drive in seat

7

Max. lift height of mast with Load-backrest

mm

4030

8

Max.lift  height of fork

mm

3000

9

Height of mast (standard)

mm

2000

10

Free lift height(standard)

mm

170

11

Height of Load-backrest

mm

1210

12

Distance from seat to overhead guard

mm

1000

13

overhead guard height

mm

2070

14

Length with fork

mm

2576

15

Front overhang

mm

477

16

Rear overhang

mm

494

17

Wheel base

mm

1600

18

The height of traction pin

mm

290

19

Min. ground clearance

mm

110

20

Overall width

mm

1170

21

The distance between forks

mm

1024/200

22

Tread(front /rear)

mm

970/970

23

Min. Turning radius(outside)

mm

2240

24

Min. Turning radius(inside)

mm

160

25

Min. Intersecting aisle

mm

2280

26

Mast tilt angle

deg

6° / 12°

27

Fork size

mm

1070*125*45

28

Max.Drive speeds(with/without load)

km/h

17/19

29

Lifting speeds (with load)

mm/s

530/550

30

Lowering speeds(with /without full load)

mm/s

450/55

31

Max.Drive speeds(with/without load)

KN

20/15.2

32

 Max. tractive force

%

18/20

33

Total weight

kg

3680

34

Weight Distribution full load (front/ rear)

kg

5562/618

35

Weight Distribution zero load(front / rear)

kg

1420/2208

36

Quantity of wheels



2 X / 2

37

Type of tyres



Penumatic tires

38

Front



7.00-12-12PR

39

Rear



6.00-9-10PR

40

Driving Brake



hydraumatic pedal

41

Parking Brake



Mechanical manual

Product packagingStandard export packing, triangular wood, strapping, foam bags.

20'' container:3sets 3.5ton diesel forklift

40'' container:5sets 3.5ton diesel forkliftOur factoryGate

Reception area

Office

Workshop

Certificate

BV

CE

SGS

ISO

Our team

Exhibision

In india Exhibition

Poland Exhibition

South Africa Exhibition

China Canton Fair

Our forklifts advantages

Safety

Intelligent starting system , forklift hanging gear start prevent function , it improves the operation safety and longer gearbox service life.

Hydraulic power brake system , large capacity accumulator , reliabledriving and emergency brakinge.

Overhead guard with high-strength steel plate one stamping , pro -vide driver more sophisticated security.

Standard equipped button parking brake , effectively prevent the hand brake from accidentally release.



Comfort

Ergonomic design, rational operating device layout, equipped with adiustable seat (adjustment up to 150 mm )and steering wheel.

All forklift models standard with hydraulic steering system, easy and comfort to operate.



Advancement

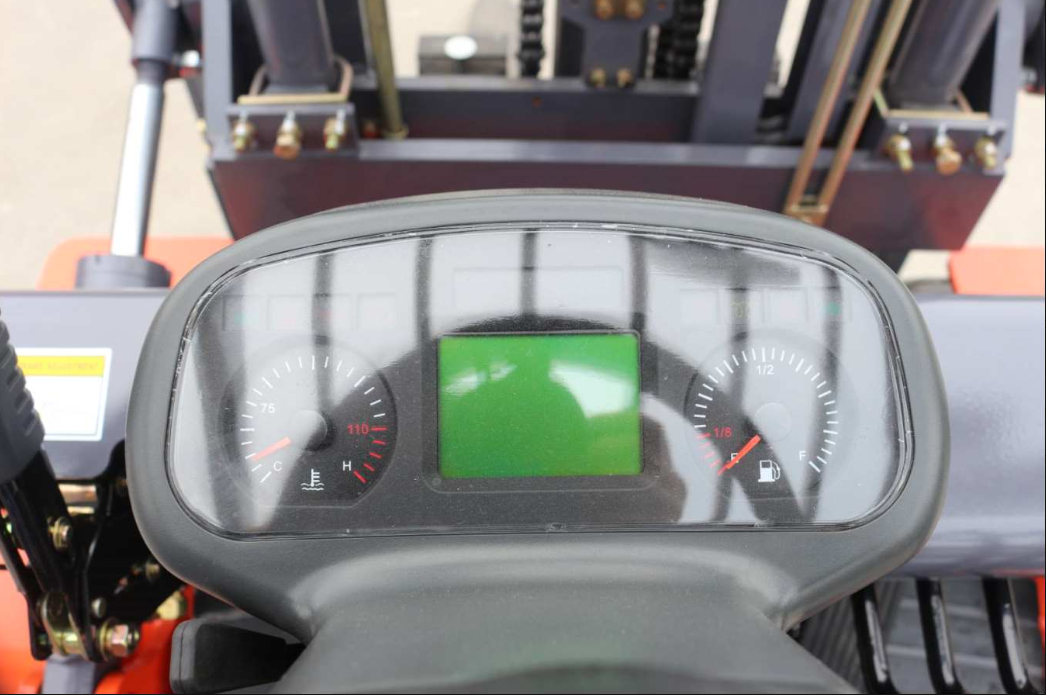

Word famous imported diesel and gasoline engine, Japan TCM gearbox for options,intelligent LCD instrument, CAN, Controller Area Network, real-timedisplay of engine and forklift’s Working information



Reliability

Cooling system meet the requirements of the China standard. Theinter-cooling, scattered water, oil scattered are independent lay-out, which gratly increase the engine, gearbox and other core components quality.Hydraulic system gives large-capacity oil absorption and oil returnfilter to ensure efficient work.Engine standard with two-stage filter design(cyclone type filter+air dry filter).

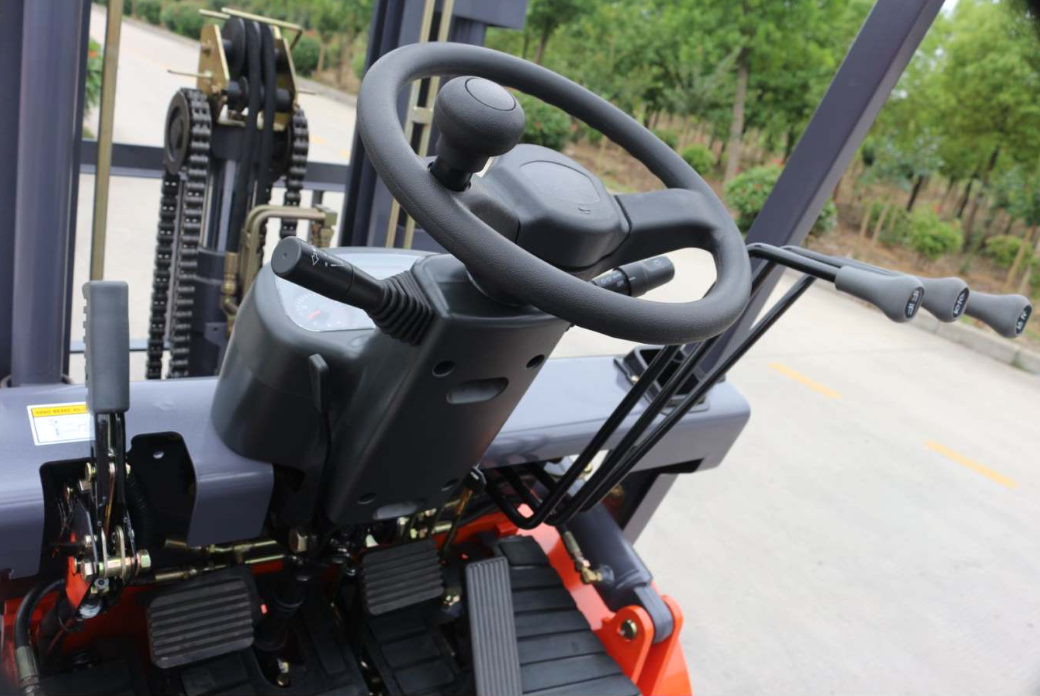

Reliable steering system

The steering system adopying new technology not only ensure steady steering, quick positioningand steering, but also ensure the driver' s safety.



A reliable mast

Emphasis on the inherent quality of the mast has provided operator a reliable security . Wide view mast makes vision more clearly.We adopted the mast channel which has the world-class quality .The corss-section of mast channel has been in -creased and the structure become more strong.



New drive and control system

Adop the international electric actuators and makes the truck steering more stable , and output power stronger .New electronic blanker improves the comfort and safety of the operation



High performance hydraulic system

Load sensing priority steering hydraulic system design , flexible steering , mast lift speed increased by 20%.

Tilt cylinder, lifting cylinder and steering cylinder are equipped with oil seal as standard; lifting cylinder is equipped with lowering buffer function as standard.



Comfortable driving space

All accessories like engine , gear boxare support by domestic and worldfamous brand , high quality , reliable after-sales.
