3-5 layer air bubble film making machine
CHINA MACHINERY ENGINEERING WUXI CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
3-5 layer air bubble film making machine
CHINA MACHINERY ENGINEERING WUXI CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: iron
- Size: 17000*5500*4100
- Color: black & white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: iron
- Size: 17000*5500*4100
- Color: black & white
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | iron |
|---|---|
| Size | 17000*5500*4100 |
| Color | black & white |
Product details
| Materials | iron |
|---|---|
| Size | 17000*5500*4100 |
| Color | black & white |
From the supplier

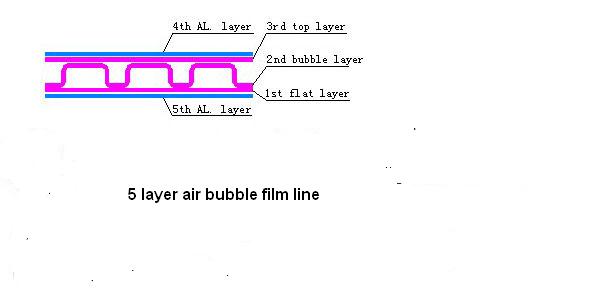

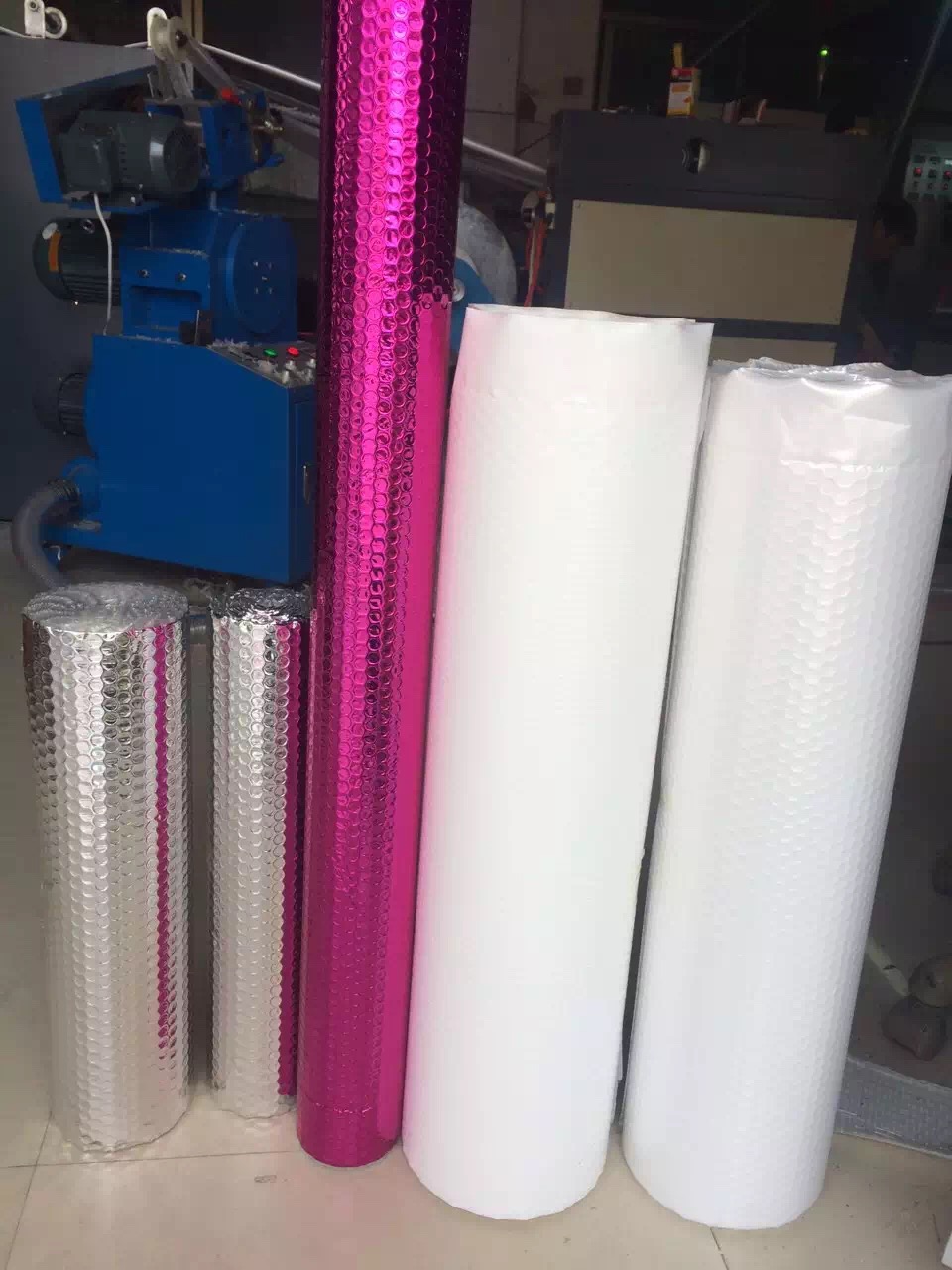

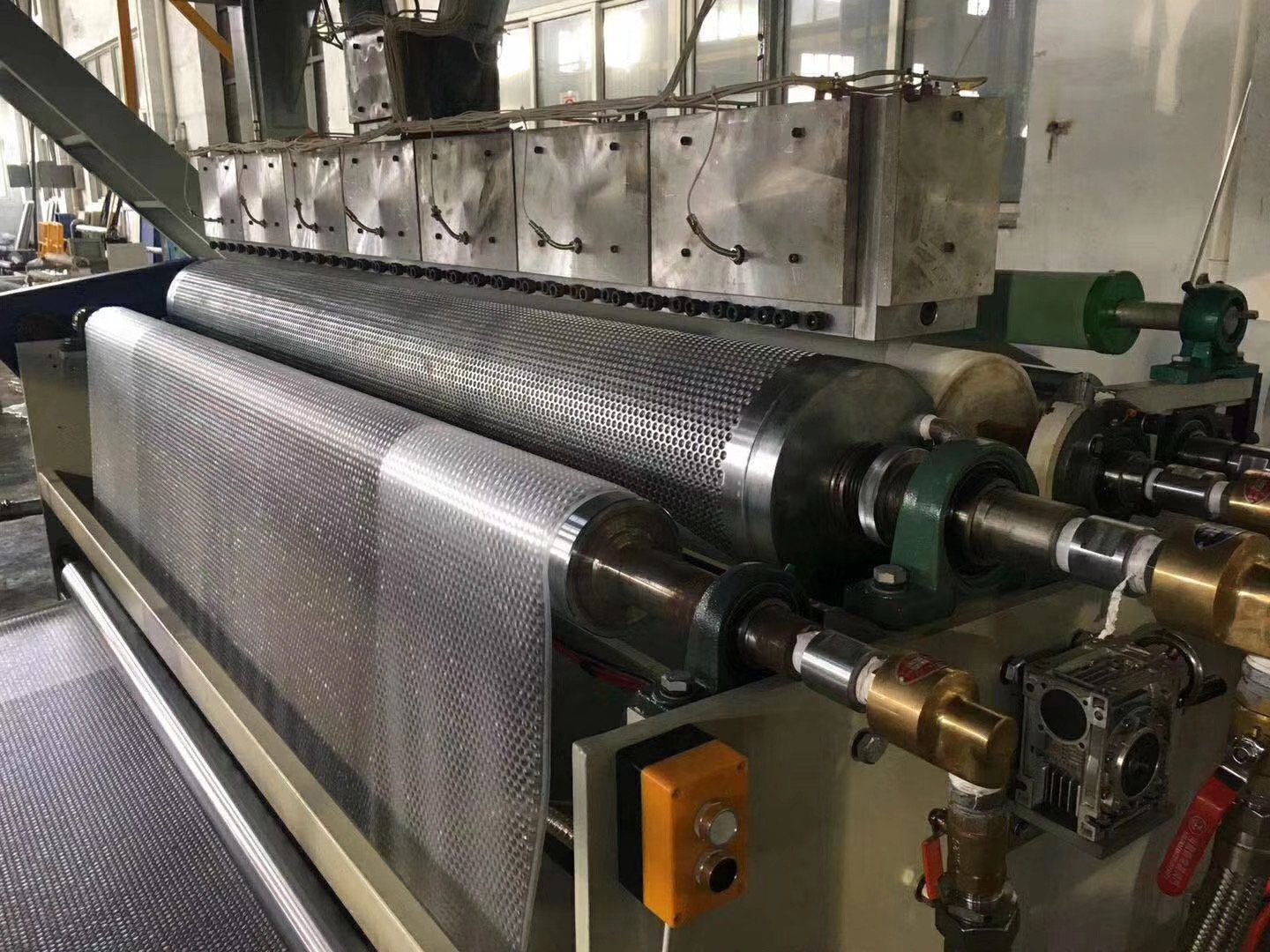

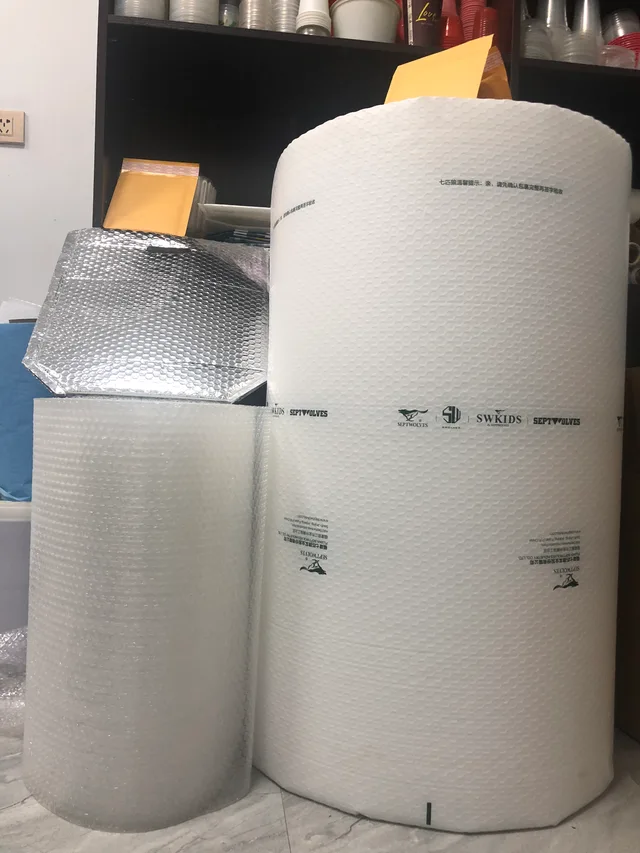

This machine is designed to produce polyethylene air bubble film(sheet), which can do 2 layer air bubble film, 3 layer air bubble film, and with the function of online lamination system, you can get 4 layer even 5 layer air bubble film. The finished product is widely used for household wares packing, post parcel packing, precise instruments packing, bicycle packing, furniture packing as well as heat insulation purpose.

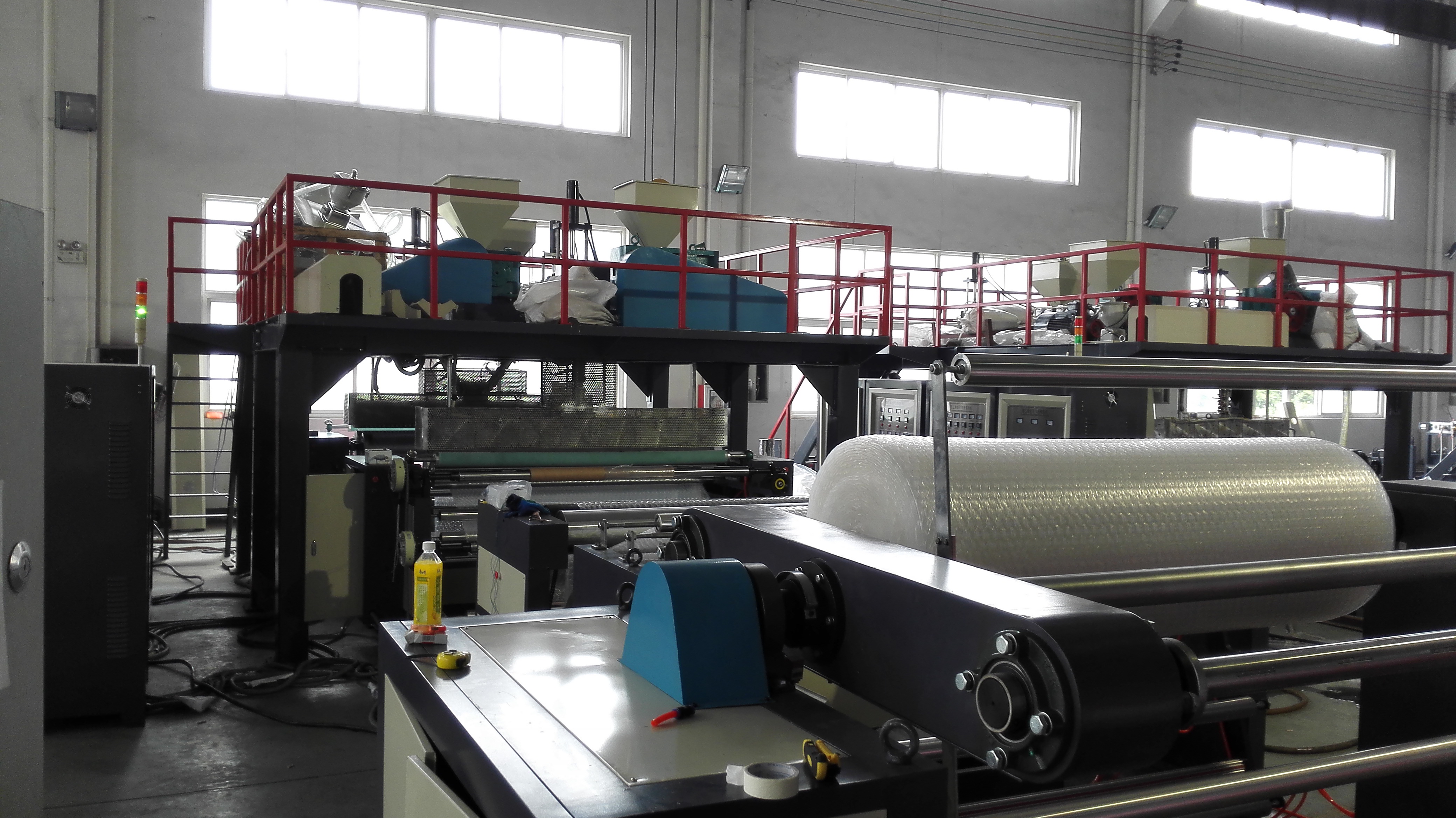

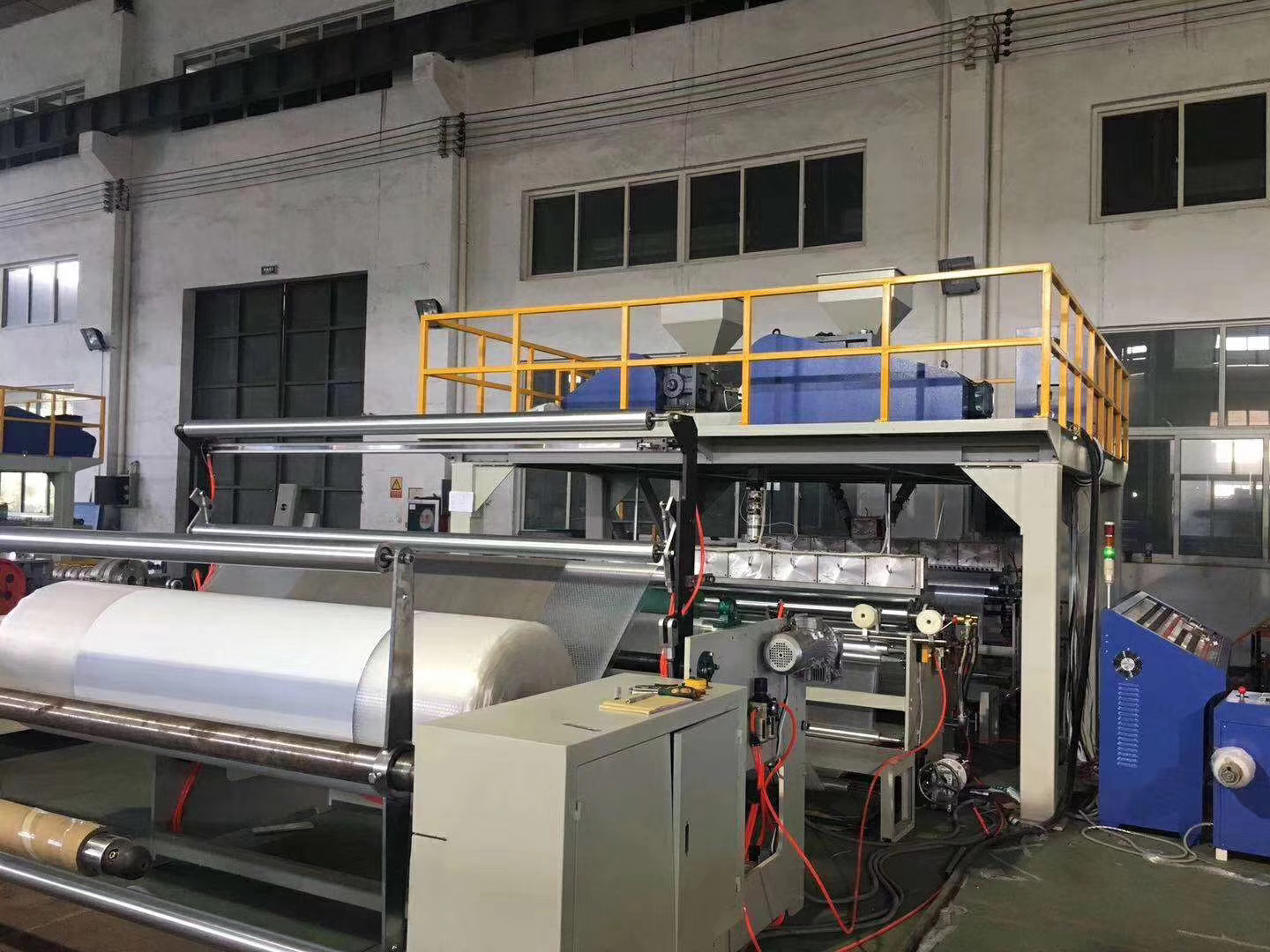

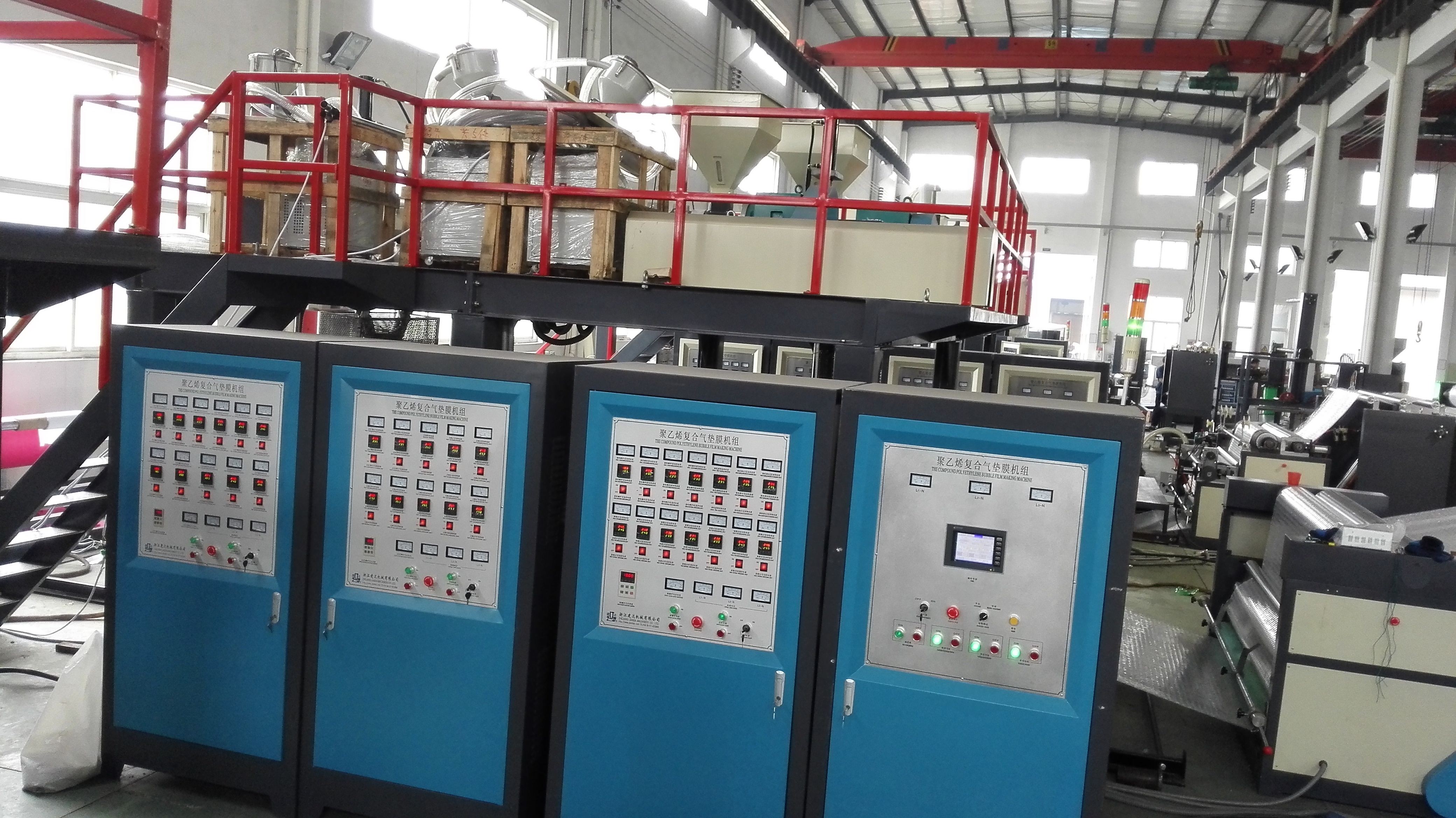

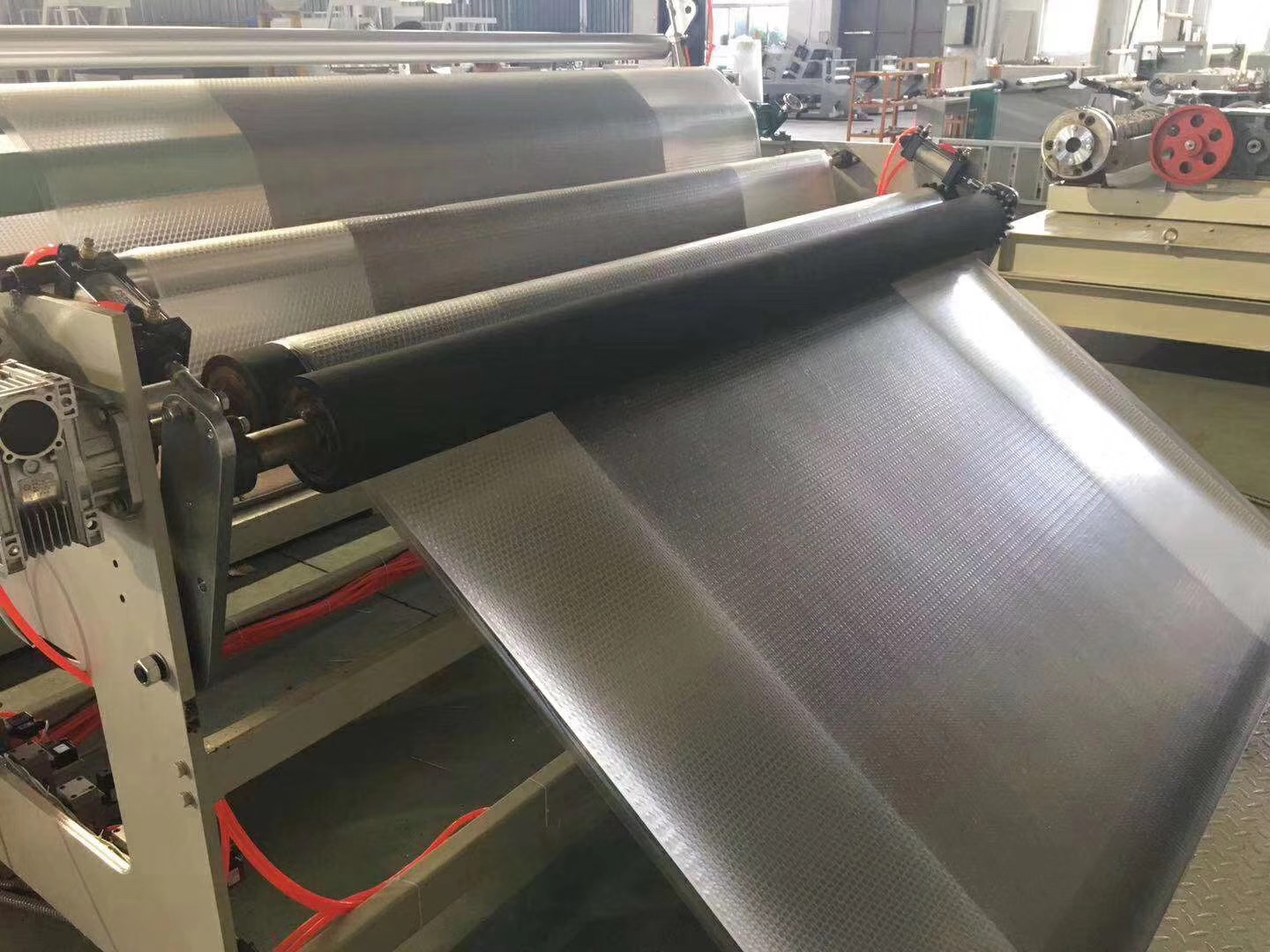

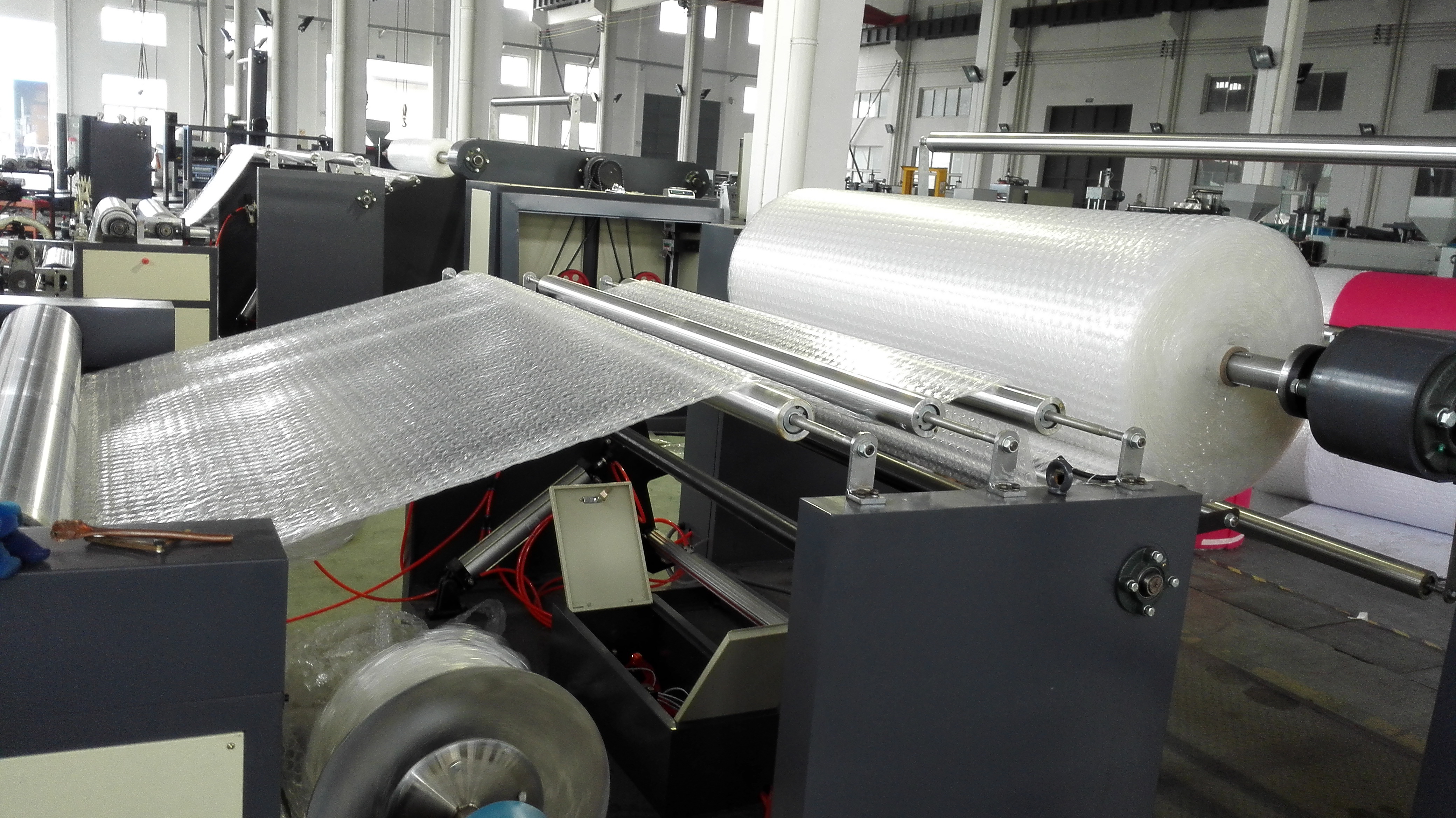

The machine is composed of seven parts – main extruder part, minor extruder part, filter part, T-die part, air bubble film forming roller part, traction part and winding part..
Main technical parameters:
model
JDFPE-1600
JDFPE-2000
JDFPE-2500
Screw diameter
Φ70mm/Φ60mm/Φ60mm
Φ80mm/Φ70mm/Φ70mm
Φ80mm/Φ70mm/Φ70mm
Finished film width
1600mm
2000mm
2500mm
output
150kg/h
180kg/h
180kg/h
Main motor power
18.5kw/15kw/15kw
22kw/18.5kw/18.5kw
22kw/18.5kw/18.5kw
Total power
150kw
220kw
250kw
Machine weight
15000kg
17000kg
19000kg
Machine size
17m×5.5m×4.1m
17m×6.0m×4.1m
17m×6.5m×4.1m
Power supply
380/3/4/50（Volt/Ph/Line/Hz）
Contact Details:
Miss Sunny +86 13736929666
Email: jd@jiandajx.com
From the supplier
This machine is designed to produce polyethylene air bubble film(sheet), which can do 2 layer air bubble film, 3 layer air bubble film, and with the function of online lamination system, you can get 4 layer even 5 layer air bubble film. The finished product is widely used for household wares packing, post parcel packing, precise instruments packing, bicycle packing, furniture packing as well as heat insulation purpose.
The machine is composed of seven parts – main extruder part, minor extruder part, filter part, T-die part, air bubble film forming roller part, traction part and winding part..
Main technical parameters:
model
JDFPE-1600
JDFPE-2000
JDFPE-2500
Screw diameter
Φ70mm/Φ60mm/Φ60mm
Φ80mm/Φ70mm/Φ70mm
Φ80mm/Φ70mm/Φ70mm
Finished film width
1600mm
2000mm
2500mm
output
150kg/h
180kg/h
180kg/h
Main motor power
18.5kw/15kw/15kw
22kw/18.5kw/18.5kw
22kw/18.5kw/18.5kw
Total power
150kw
220kw
250kw
Machine weight
15000kg
17000kg
19000kg
Machine size
17m×5.5m×4.1m
17m×6.0m×4.1m
17m×6.5m×4.1m
Power supply
380/3/4/50（Volt/Ph/Line/Hz）
Contact Details:
Miss Sunny +86 13736929666
Email: jd@jiandajx.com
