2ton LPG/ CNG forklift

2ton LPG/CNG forkift ,Standard configuration:

1.Standard 2-stages 3m mast, IMPCO  conversion device , air tire

2.Forks,water-thermometer,Traction Pin,Load - backrest,overhead guard,electric hom,reversing light,Chronoscope,fuel gauge,Charging indication,tool box,free spare parts,Oil pressure alam,tum light indicator,High visibility mast,seat with arm and safety Belt,Headlamp,combination rear lamp,Formedpedal pad,Multiple unit valve,transmission oil filter,Back-up Buzze,Transmission oil scale,hydraulic circuit oil filter,Neutral safety switch,overhead guard appentice,air intake installation,Durable tyre,Cable type parking brake,Hydraulic oil scale,Preheat indicator,Hydraulic power transmission,Lifting jack govemor valve,Lifting and tilting joy stick,

whirlwind joy air filter,Automatic engine preheating system,etc.

Alternative equipment:

Mast type:Standard 2-stages,full free 2-stages/duplex mast,full free 3-stages/triplex mast.

Mast height:3m,3.5m,4m,4.5m,4.8m,5m,5.5m,6m,6.5m,7m,etc.

Tire: solid tire, Non-marking solid tire

Seats: Toyota seats, suspension seats, OPS seats

Alternative equipment：

Cabin,speed indicator,fire extinguisher,solid tyre,rear work light,Auxiliary Piping,floated seat,Specify Colors,transmission oil ,temperature gauge,fan heater,High exhaust device,etc.

Alternative attachment:

Side shifter,Fork Positioner,Paper Roll Clamp,Push / Pull,Carton Clamp,Rotator,Carpet Boom,Tipping Mult-purpose Clamp,Drum Clamp,Tumaload,Tumafork,Single Double Pallet Handlers,Double Wide Sideshifters,forks,Glass Handler,etc.

Product Description2000kg LPG /CNG  forklift with standard 2-stage  IMPCO conversion device, air tire

2ton LPG/CNG forklift Standard 2-stages 3m mast

1.Automatic transmission

2.1070mm  fork length

3.On/off on key switch

4.Toyota Seat with belt,with reversing buzzer

5.Pneumatic tire

6.Tool box,warning light and full sets of LED lights.     7.Including all other standard configuresDetails Images

Power system

Equipped with Japanese  powerful and reliable  NISSAN K21  ENGINE with excellent performance

Security system

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.

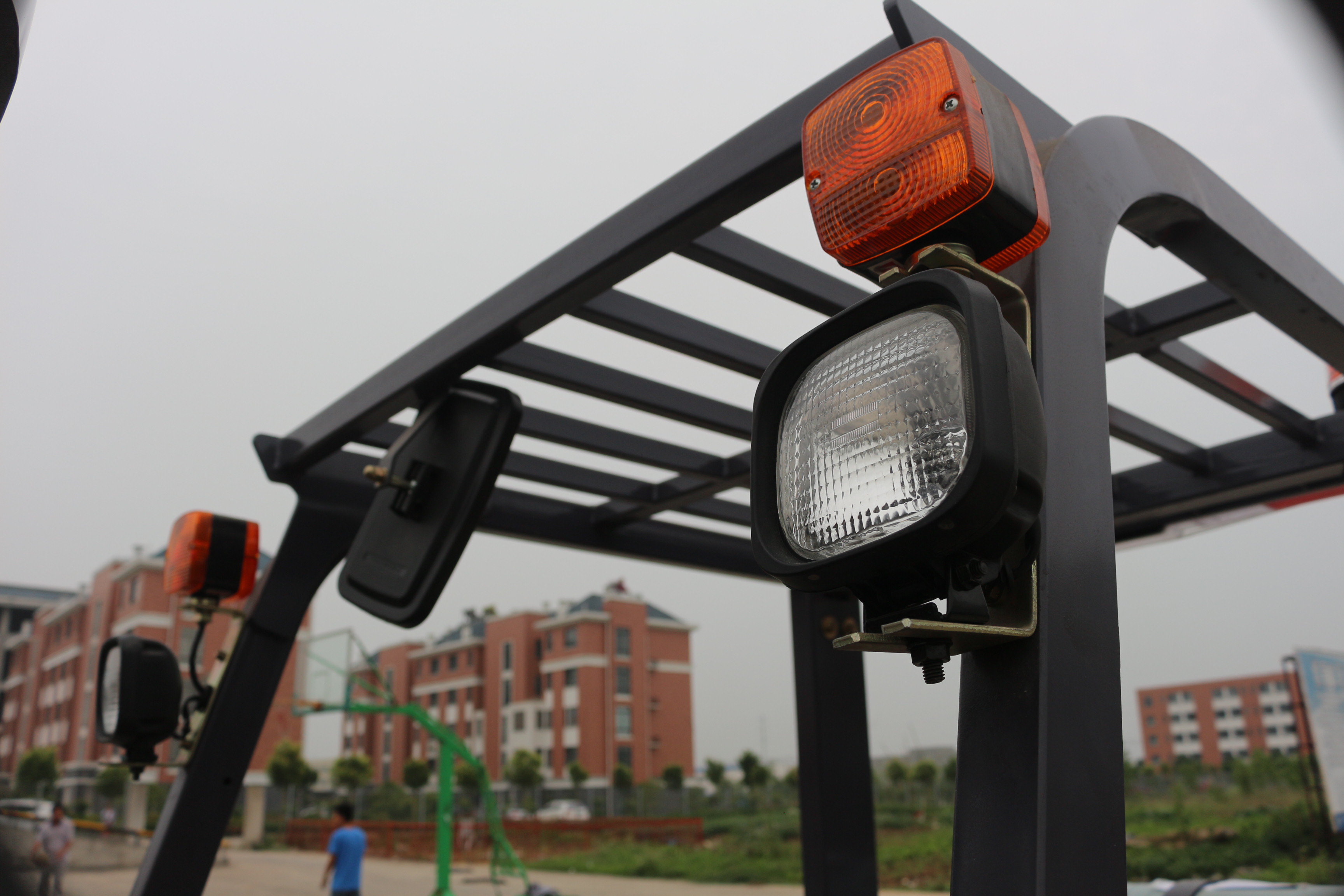

Lighting system

Equipped with full set of LED lamps,which are brighter and energy saving.

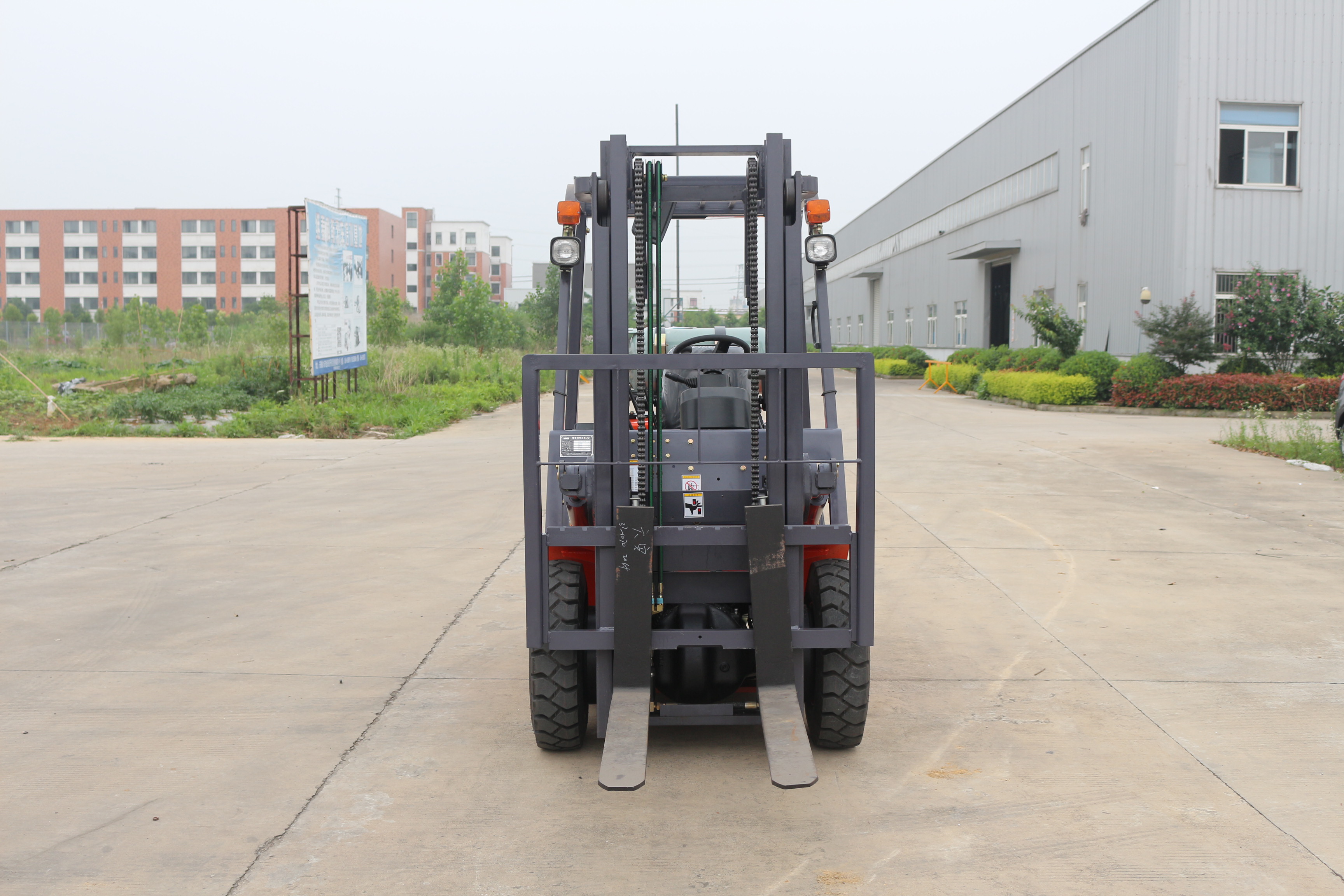

Reliable lifting system

Wide-view mast design,providing superior vision,making the operation more security.

High performance hydraulic system

Equipped with load sensing priority hydraulic system,flxible steering,mast lifting speed increased by 20%.

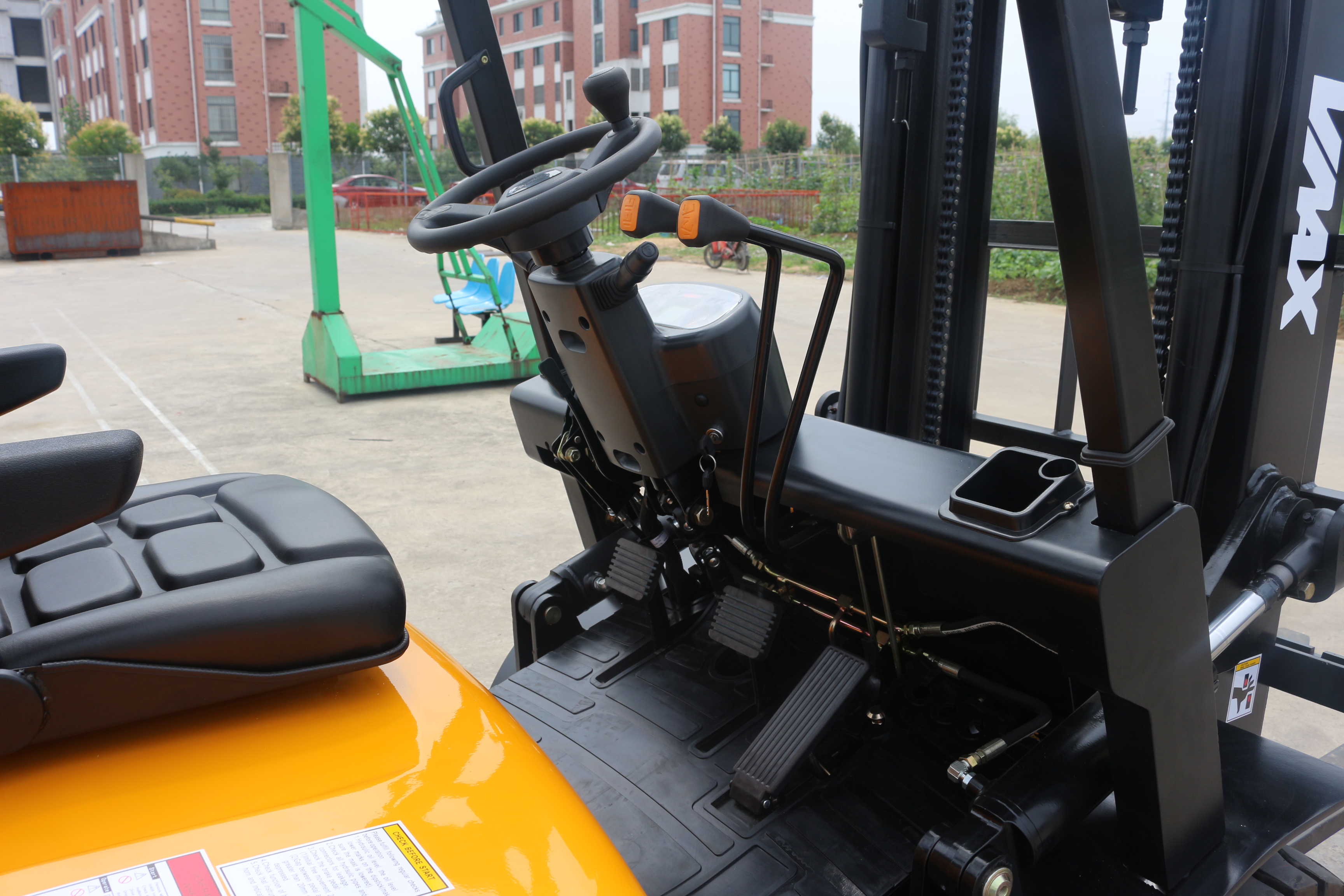

Comfortable driving space

Lengthened wheelbase design,reasonable functional layout,super comfortable and larger driving space.Product Paramenters







        Specification of  2 Ton LPG & Gasoline Forklift
Main Information1ManufacturerVMAX2ModelUnit CPQD20CPQYD203Power type
LPG&Gasoline4Rated capacity kg20005Load centermm5006Operator type
Drive in seat尺寸Size7Max. lift height of mast with Load-backrest mm40308Max.lift  height of fork(standard)mm30009Height of mast (standard)mm200010Free lift height(standard)mm17011Height of Load-backrestmm101012Distance from seat to overhead guard
mm100013overhead guard height
mm207014Length with fork/with out forkmm3572/250215Front overhangmm47716Rear overhangmm42017Wheel basemm160018The height of traction pinmm29019Min. ground clearancemm11020Overall widthmm117021The distance between forks
mm1024/20022Tread(front /rear)
mm970/97023Min. Turning radius(outside)mm217024Min. Turning radius(inside)mm16025Min. Intersecting aisle
mm220026Mast tilt angledeg6° / 12°27Fork sizemm1070x100x40Performance28
Speeds
Max.Drive speeds(with/without load)km/h17/1929Lifting speeds (with load)mm/s530/55030Lowering speeds(with /without full load)mm/s450/55031Max. tractive force
KN20/1521/1532Max.grade ability (with/without full load)%21/2027/20Weight33Total weightkg332034Weight Distribution full load (front/ rear)
kg4788/53235Weight Distribution zero load(front / rear)
kg1328/1922Wheels and Tyres36Quantity of wheels

2 X / 237Type of tyres

Penumatic tires38TiresFront
7.00-12-12PR39Rear
6.00-9-10PR40Driving Brake

Hydraumatic pedal41Parking Brake

Mechanical manual Control device for driving and transmitting42BatteryV/AH12/8043Engine (standard)
Model
NISSAN K2144Rated outputkw/rpm31.2/225045Rated torqueN.m/rpm143.7/160046No.of cylinder
4-89X8347DisplacementL2.06548Fuel tank capacityL6049Number of speeds for transmission2-2 Hand shift transmission /
1-1 Power shift transmissio



Product packagingStandard export packing, triangular wood, strapping, foam bags.

Our factoryGate

Reception area

Office

Workshop

Certificate

BV

CE

SGS

ISO

Our team

Exhibision

In india Exhibition

Poland Exhibition

South Africa Exhibition

China Canton Fair

Our forklifts advantages

Safety

Intelligent starting system , forklift hanging gear start prevent function , it improves the operation safety and longer gearbox service life.

Hydraulic power brake system , large capacity accumulator , reliabledriving and emergency brakinge.

Overhead guard with high-strength steel plate one stamping , pro -vide driver more sophisticated security.

Standard equipped button parking brake , effectively prevent the hand brake from accidentally release.



Comfort

Ergonomic design, rational operating device layout, equipped with adiustable seat (adjustment up to 150 mm )and steering wheel.

All forklift models standard with hydraulic steering system, easy and comfort to operate.



Advancement

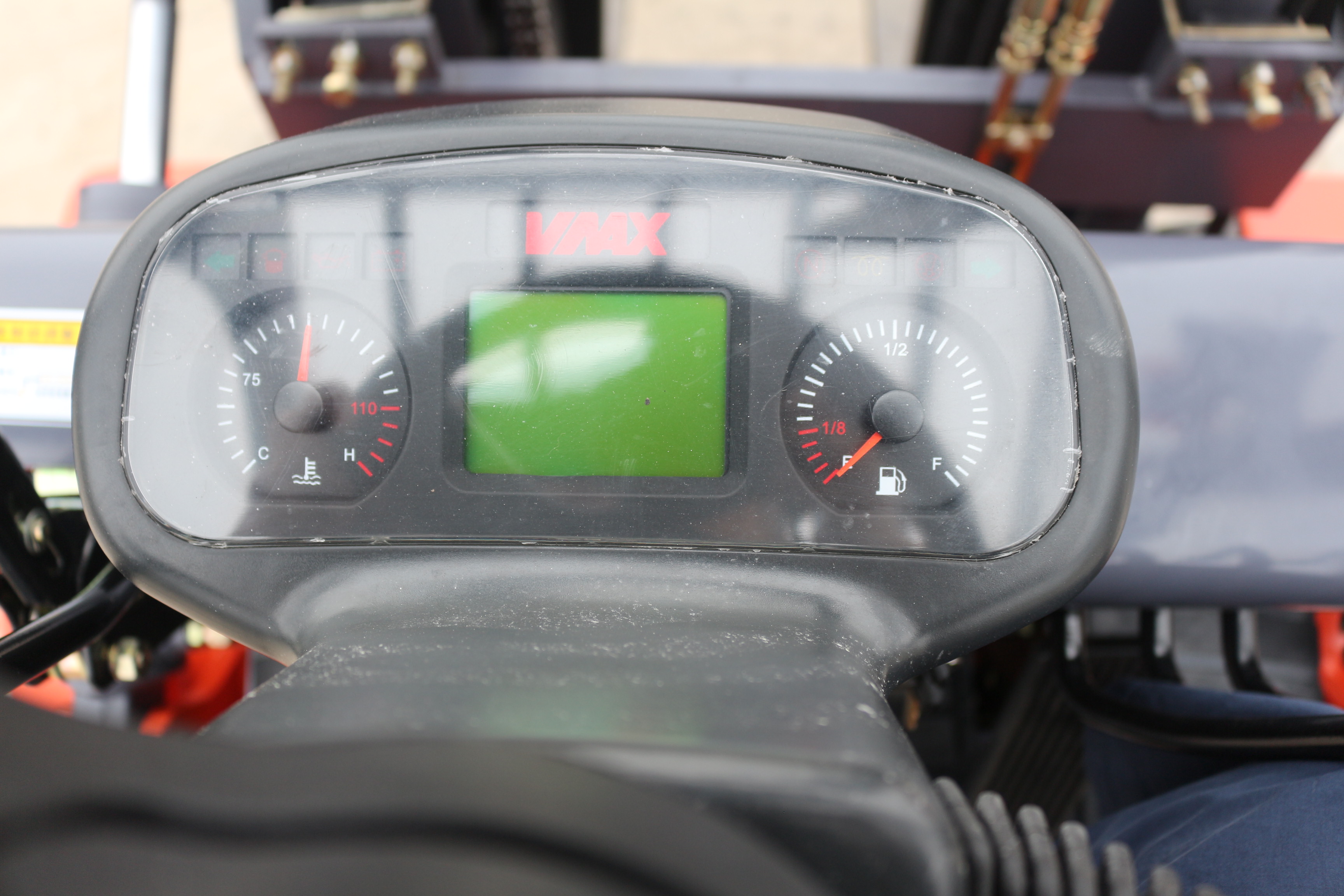

Word famous imported diesel and gasoline engine, Japan TCM gearbox for options,intelligent LCD instrument, CAN, Controller Area Network, real-timedisplay of engine and forklift’s Working information



Reliability

Cooling system meet the requirements of the China standard. Theinter-cooling, scattered water, oil scattered are independent lay-out, which gratly increase the engine, gearbox and other core components quality.Hydraulic system gives large-capacity oil absorption and oil returnfilter to ensure efficient work.Engine standard with two-stage filter design(cyclone type filter+air dry filter).



Reliable steering system

The steering system adopying new technology not only ensure steady steering, quick positioningand steering, but also ensure the driver' s safety.



A reliable mast

Emphasis on the inherent quality of the mast has provided operator a reliable security . Wide view mast makes vision more clearly.We adopted the mast channel which has the world-class quality .The corss-section of mast channel has been in -creased and the structure become more strong.



New drive and control system

Adop the international electric actuators and makes the truck steering more stable , and output power stronger .New electronic blanker improves the comfort and safety of the operation

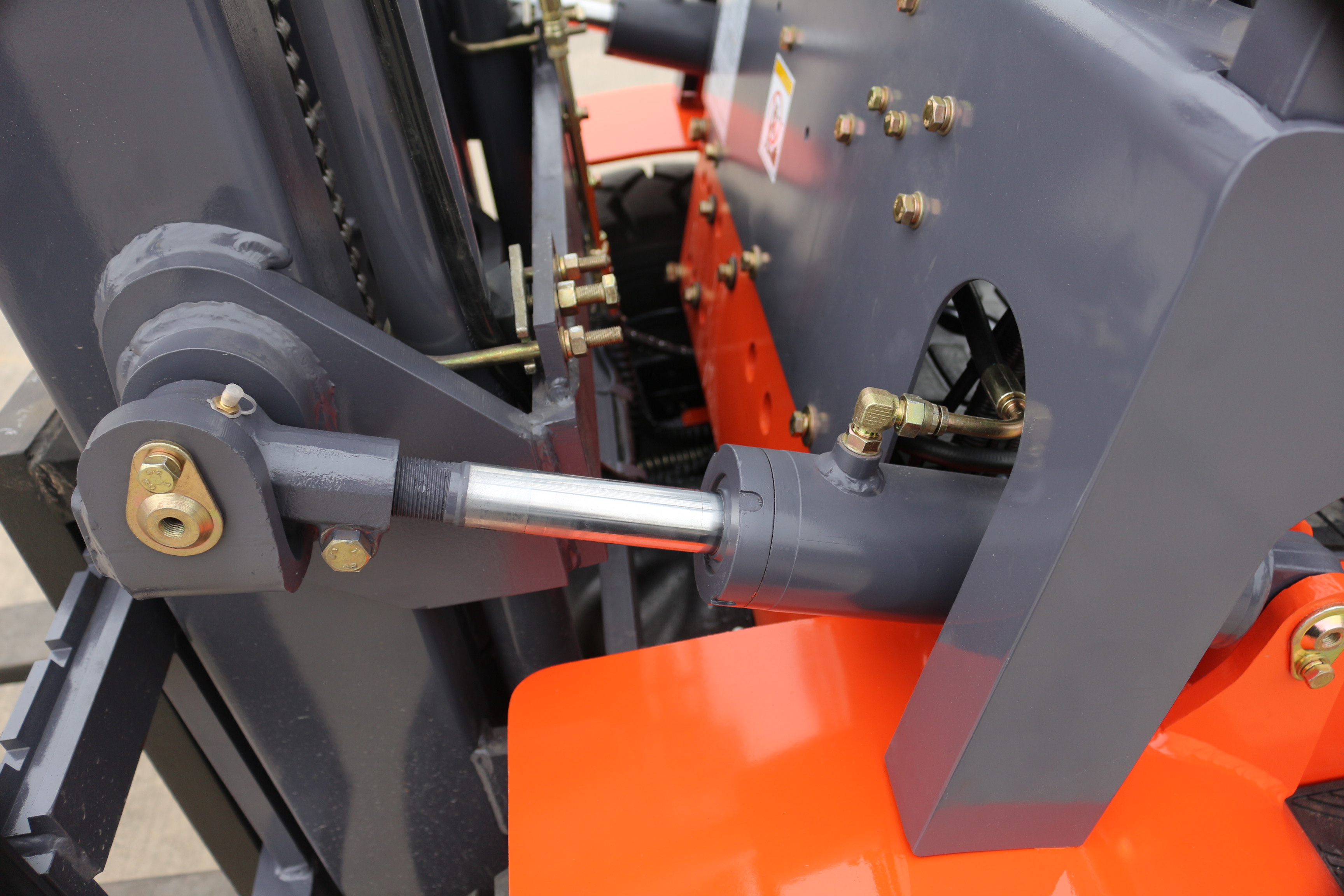

High performance hydraulic system

Load sensing priority steering hydraulic system design , flexible steering , mast lift speed increased by 20%.

Tilt cylinder, lifting cylinder and steering cylinder are equipped with oil seal as standard; lifting cylinder is equipped with lowering buffer function as standard.



Comfortable driving space

All accessories like engine , gear boxare support by domestic and worldfamous brand , high quality , reliable after-sales.
