280meters depth crawler DTH water well drilling rig with air compressor and mud pump
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTD10/10 fairsForeign Trade CompanyModel SR280
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
280meters depth crawler DTH water well drilling rig with air compressor and mud pump
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTD10/10 fairsForeign Trade CompanyModel SR280
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Iron, Steel
- Size: 5200x1850x2350mm
- Color: Customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Zhejiang, China
About this product
- Materials: Iron, Steel
- Size: 5200x1850x2350mm
- Color: Customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Zhejiang, China
Product details
| Materials | Iron, Steel |
|---|---|
| Size | 5200x1850x2350mm |
| Color | Customized |
Product details
| Materials | Iron, Steel |
|---|---|
| Size | 5200x1850x2350mm |
| Color | Customized |
From the supplier
Main parameters
Parameters SR180 SR220 SR260 SR280 SR300 SR400 Drilling depth 180m 220m 260m 280m 300m 400m The hole diameter 130-254mm 130-254mm 130-305mm 130-305mm 130-325mm 130-325mm Drill pipe diameter Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ102 Φ76 Φ89 Φ102 Mast length 3.6m 3.6m 3.6m 6.6m 3.6m 6.6m Diesel engine Yunnei 60kw Yunnei 76kw Yuchai 73kw Yuchai 77kw Yuchai 85kw Yuchai 85kw Swing torque 4000-4600N.m 4500-4700N.m 4500-5000N.m 5500-6000N.m 6000-7500N.m 8500-9000N.m Swing speed 45-65rpm 45-65rpm 45-65rpm 45-65rpm 40-70rpm 55-115rpm Rig lifting force 15T 17T 17T 17T 18T 24T Using air pressure 1.7-2.5mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.3mpa Air consumption 17-31m³/min 17-30m³/min 17-30m³/min 17-30m³/min 17-35m³/min 17-35m³/min Walking speed 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h Climbing angles Max.30 Max.30 Max.30 Max.30 Max.30 Max.30 Dimension 3800x1700x2250 3900x1850x2350 3900x1850x2350 5200x1850x2350 4100x2100x2500 5300x2200x2800 Weight 4500kg 4800kg 6000kg 7000kg 7000kg 9000kgDescription
- Equipped with a 77KW Yuchai brand turbocharged engine with strong power.
2. The patented design of the composite tower, the stroke is 6.6 meters, the double oil cylinder lifts, and the tonnage is large.
3. The main arm of each drilling rig is equipped with a block to protect the oil cylinder.
4. Drilling rig chassis: professional excavator chassis, durable, strong bearing capacity, wide chain plate, less damage to hard roads.
5. Quick distribution valve: the speed of the third gear can reach 150-160 rpm, which basically realizes the dual-purpose function of water and gas.
6. The power of the drilling rig is driven by a diesel engine. The rig walks, rotates, pushes, lifts, outriggers and unloads.
7. Special wellhead setting provides a certain drilling center to ensure vertical drilling positioning accuracy.
8. Dual systems can be installed: 1. Pneumatic power system with air compressor 2. Mud pump system with mud pump.

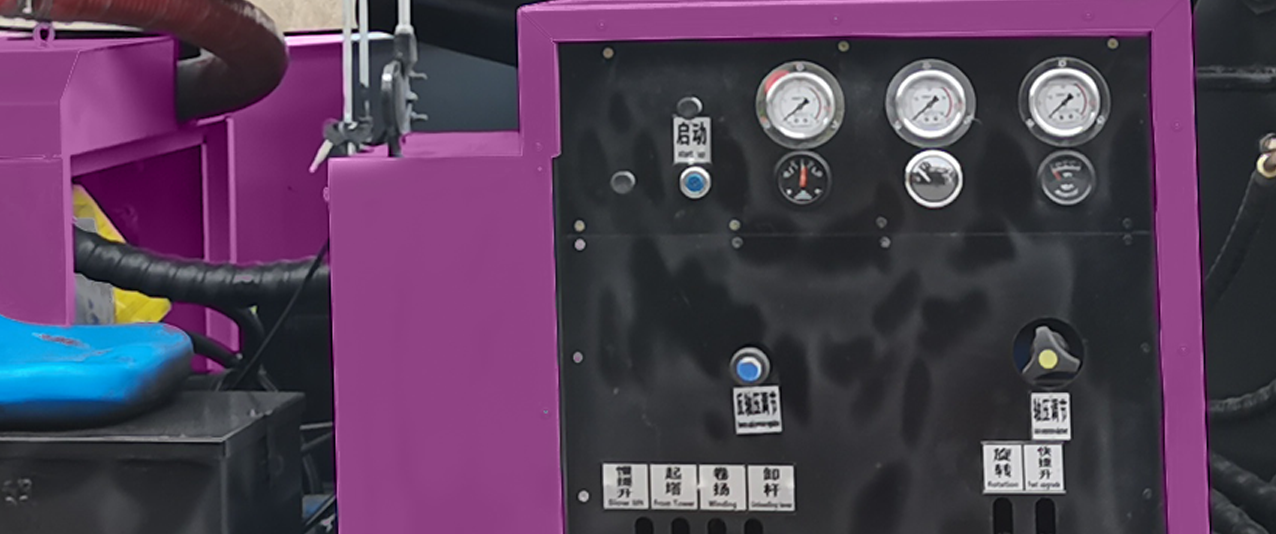

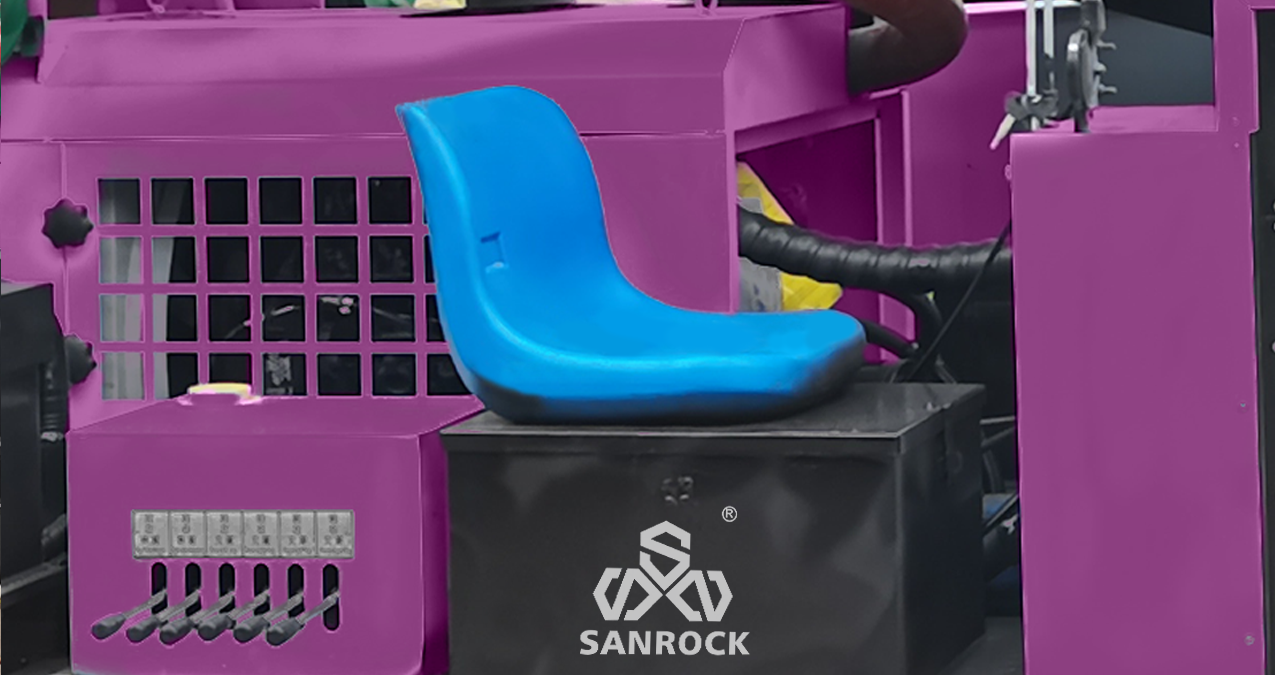

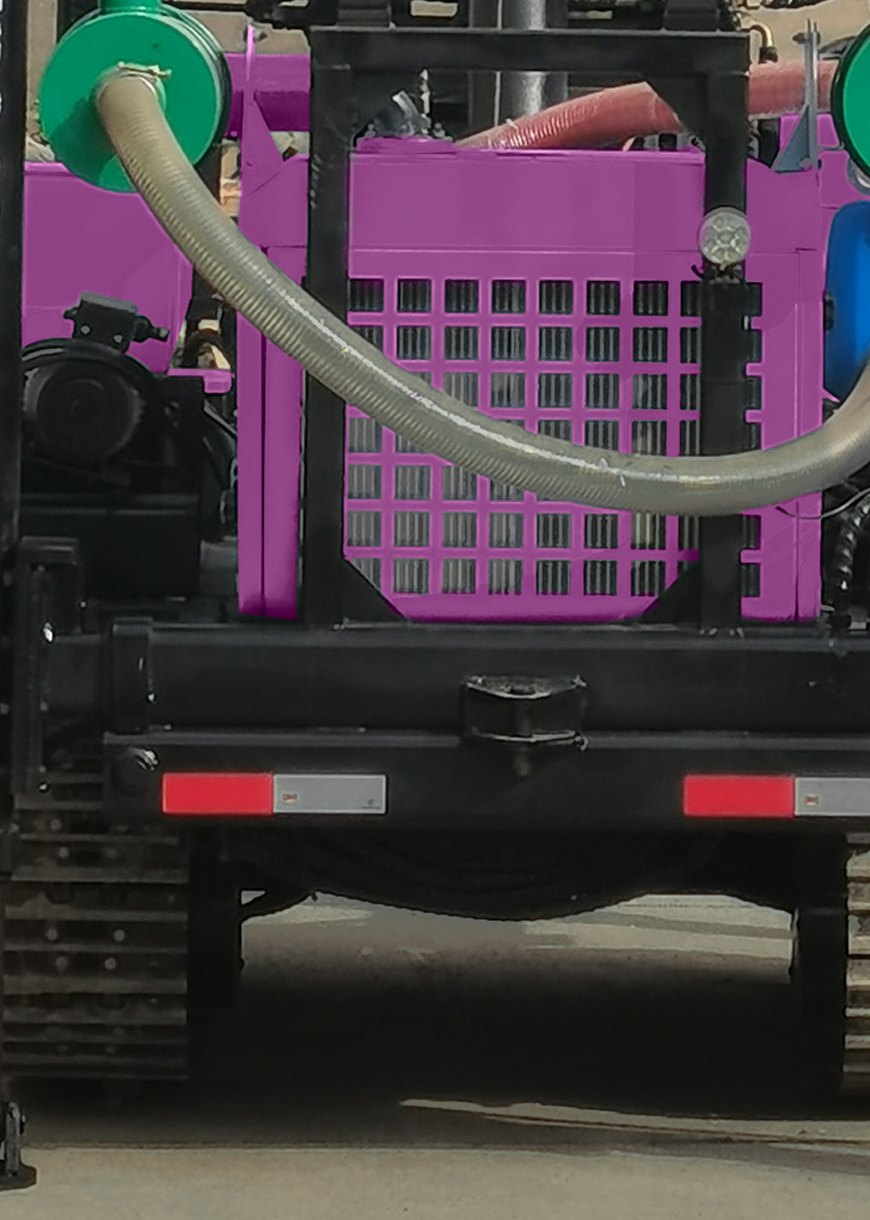

Photoes
From the supplier
Main parameters
Parameters SR180 SR220 SR260 SR280 SR300 SR400 Drilling depth 180m 220m 260m 280m 300m 400m The hole diameter 130-254mm 130-254mm 130-305mm 130-305mm 130-325mm 130-325mm Drill pipe diameter Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ76 Φ89 Φ102 Φ76 Φ89 Φ102 Mast length 3.6m 3.6m 3.6m 6.6m 3.6m 6.6m Diesel engine Yunnei 60kw Yunnei 76kw Yuchai 73kw Yuchai 77kw Yuchai 85kw Yuchai 85kw Swing torque 4000-4600N.m 4500-4700N.m 4500-5000N.m 5500-6000N.m 6000-7500N.m 8500-9000N.m Swing speed 45-65rpm 45-65rpm 45-65rpm 45-65rpm 40-70rpm 55-115rpm Rig lifting force 15T 17T 17T 17T 18T 24T Using air pressure 1.7-2.5mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.0mpa 1.7-3.3mpa Air consumption 17-31m³/min 17-30m³/min 17-30m³/min 17-30m³/min 17-35m³/min 17-35m³/min Walking speed 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h 2.5km/h Climbing angles Max.30 Max.30 Max.30 Max.30 Max.30 Max.30 Dimension 3800x1700x2250 3900x1850x2350 3900x1850x2350 5200x1850x2350 4100x2100x2500 5300x2200x2800 Weight 4500kg 4800kg 6000kg 7000kg 7000kg 9000kgDescription
- Equipped with a 77KW Yuchai brand turbocharged engine with strong power.
2. The patented design of the composite tower, the stroke is 6.6 meters, the double oil cylinder lifts, and the tonnage is large.
3. The main arm of each drilling rig is equipped with a block to protect the oil cylinder.
4. Drilling rig chassis: professional excavator chassis, durable, strong bearing capacity, wide chain plate, less damage to hard roads.
5. Quick distribution valve: the speed of the third gear can reach 150-160 rpm, which basically realizes the dual-purpose function of water and gas.
6. The power of the drilling rig is driven by a diesel engine. The rig walks, rotates, pushes, lifts, outriggers and unloads.
7. Special wellhead setting provides a certain drilling center to ensure vertical drilling positioning accuracy.
8. Dual systems can be installed: 1. Pneumatic power system with air compressor 2. Mud pump system with mud pump.
Photoes
