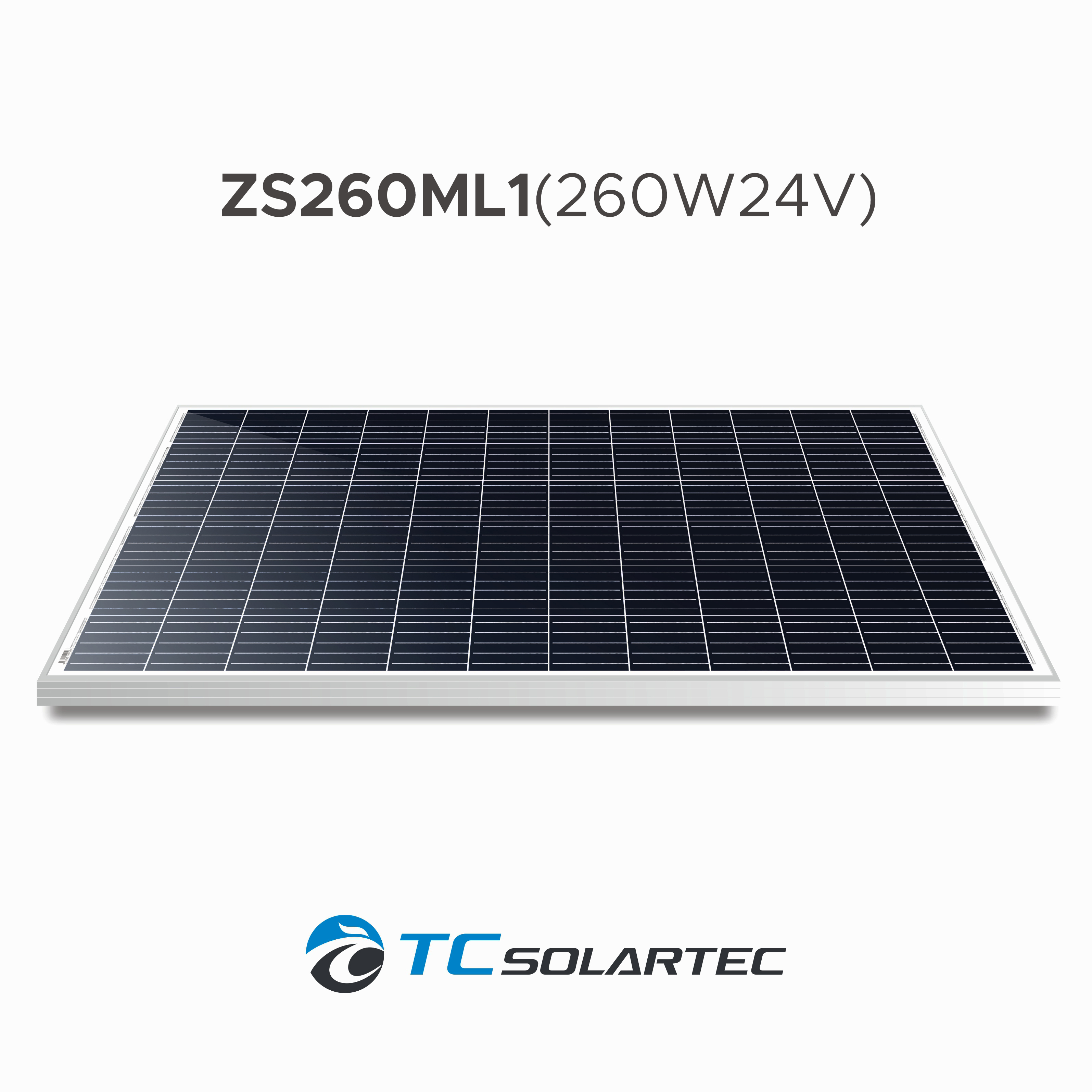

260W Off-Grid System Panel
CHINA MACHINERY ENGINEERING WUXI CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
260W Off-Grid System Panel
CHINA MACHINERY ENGINEERING WUXI CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Materials: Anodized Aluminum Alloy + Polycrystalline silicon solar cell
- Size: 1640X992X35mm
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, EU, Other European Countries, Others
- Made in: Jiangsu, China
About this product
- Materials: Anodized Aluminum Alloy + Polycrystalline silicon solar cell
- Size: 1640X992X35mm
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, EU, Other European Countries, Others
- Made in: Jiangsu, China
Product details
| Materials | Anodized Aluminum Alloy + Polycrystalline silicon solar cell |
|---|---|
| Size | 1640X992X35mm |
Product details
| Materials | Anodized Aluminum Alloy + Polycrystalline silicon solar cell |
|---|---|
| Size | 1640X992X35mm |
From the supplier
We offer a wide range of poly and mono-crystalline panels designed for both on-grid and off-grid applications. All panels are constructed with the highest quality components and are certified by various renowned organizations.
Panels have passed the “Class l, Division lI” test.
- Outstanding low-light performance
- Heavy-duty anodized frames
- High transparent low-iron, tempered glass
- Rugged design to withstand high wind pressure, hail and snow load.
- High efficiency
Electrical Characteristics
ModelZS260ML1Maximum power (Pmax)260WVoltage at Pmax (Vmp)37.10VCurrent at Pmax (Imp)7.01AOpen-circuit voltage (Voc)45.41VShort-circuit current (Isc)7.46AOperatingTemperature(℃)-40˚C to 85˚CMaximumSystemVoltage1000VDCPowerTolerance0 ~ 3%Mechanical Characteristics
CellsPolycrystalline silicon solar cellNo. of cells and connections72(6X12)Module dimension1640X992X35mmWeightPacking information(Carton)
From the supplier
We offer a wide range of poly and mono-crystalline panels designed for both on-grid and off-grid applications. All panels are constructed with the highest quality components and are certified by various renowned organizations.
Panels have passed the “Class l, Division lI” test.
- Outstanding low-light performance
- Heavy-duty anodized frames
- High transparent low-iron, tempered glass
- Rugged design to withstand high wind pressure, hail and snow load.
- High efficiency
Electrical Characteristics
ModelZS260ML1Maximum power (Pmax)260WVoltage at Pmax (Vmp)37.10VCurrent at Pmax (Imp)7.01AOpen-circuit voltage (Voc)45.41VShort-circuit current (Isc)7.46AOperatingTemperature(℃)-40˚C to 85˚CMaximumSystemVoltage1000VDCPowerTolerance0 ~ 3%Mechanical Characteristics
CellsPolycrystalline silicon solar cellNo. of cells and connections72(6X12)Module dimension1640X992X35mmWeightPacking information(Carton)
