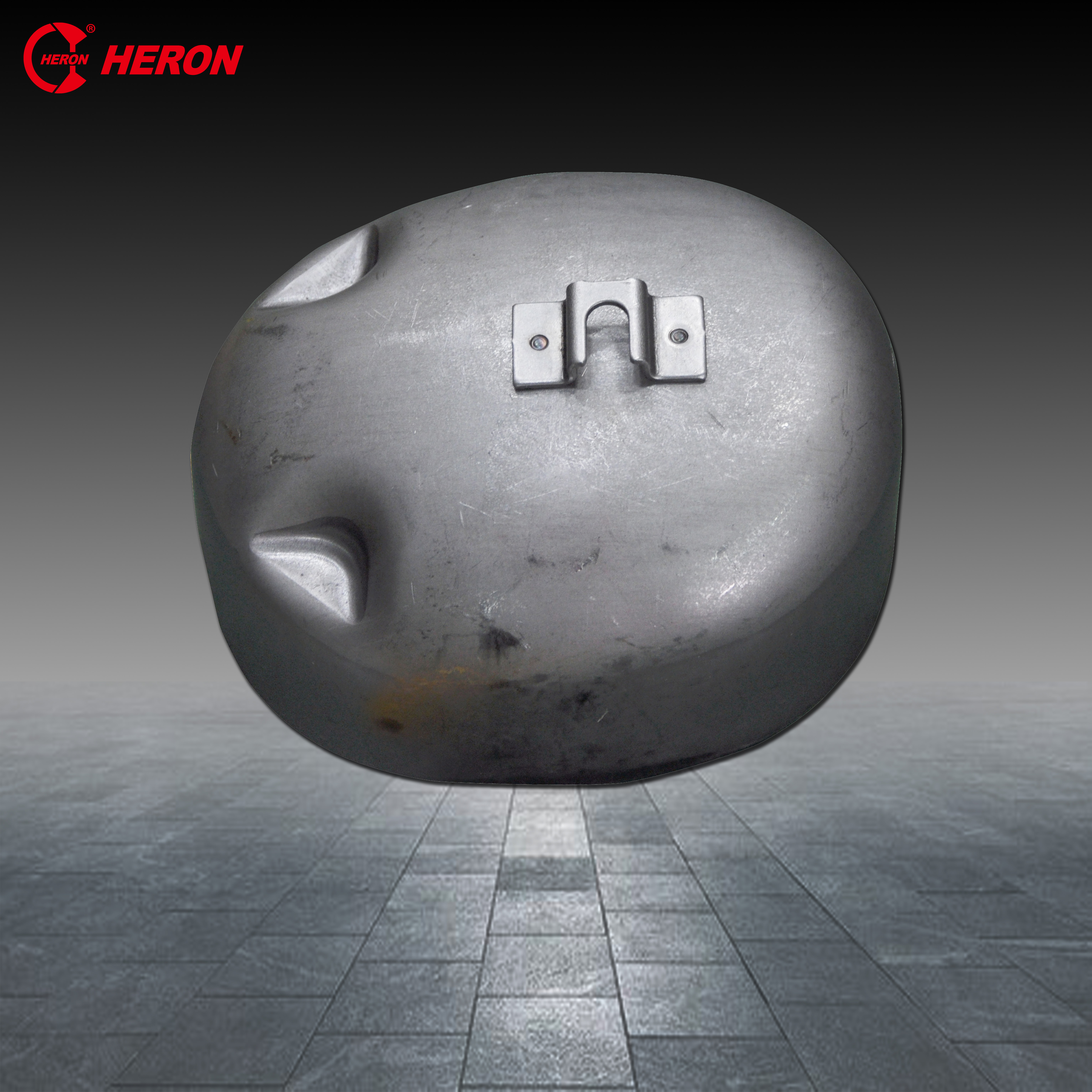

220kVA Inverter Welding Machine for Refrigerator Compressor Upper Cover
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
220kVA Inverter Welding Machine for Refrigerator Compressor Upper Cover
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: 2260*2190*2070(L*W*H)
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 2260*2190*2070(L*W*H)
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 2260*2190*2070(L*W*H) |
|---|
From the supplier
Technical parameter:
ItemParameterRated capacity220KVAPower supply380V+-10% /50Hz/ 3phasesRated duty cycle20%Max short circuit current30000AMax. primary current225AMax working pressure11800N/0.5MPaExternal dimension(L*W*H)2260*2190*2070mmController Introduction:
1) Output frequency of the inverter power is 1000HZ;
2) With automatic correcting system for welding current.
3) Support total Max 64 welding programs, which can be selected form internal or external.
4) It supports proportional valve function: The output voltage is 0-10V. With automatic pressure
calibrating function and pressure can be programmed . With the proportional valve,it can achieve stepper pressure, saddle pressure. It supports two kinds of pressure setting modes, one is percentage mode and the other is KN mode (this function is optional).
5) The welding time for each current pulse is 0 ms to 2000ms;
6) Automatic Repeat Welding Function. When the real time welding current is lower than the lowest-set value,the welder wautomatic execute the repeat welding and the repeat welding times can also be set by user.
7) Counter for Welds. This welder can count the number of welding spots for each part, each shift production, total production, and total welds. It can monitor the missing welds or more welds.
8)Welding parameter can be copied. The welding programs can be input and output by the flash drive. And through thepanel ,the welding programs can be uploaded and downloaded between different machines.
About the supplier
Main products: Electric welding machines
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 1997
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 1997
- Canton Fair Premium Supplier
