1. Basic Information

• Application Scenarios: Commercial parking lots, community garages, logistics parks, residential yards (indoor/outdoor)
• Compatible Vehicles: Mainstream new energy passenger cars, light trucks (supports DC voltage vehicles below 750V)

2. Core Technical Specifications

• Power Configuration: Rated power 20kW-40kW (supports dynamic power adjustment to match vehicle battery requirements)
• Voltage Range: Input AC 380V±15% (three-phase five-wire); Output DC 200V-750V
• Current Range: Maximum output current 63A
• Charging Interface: 1 national standard DC fast-charging gun (5m weather-resistant cable)
• Installation Specifications:

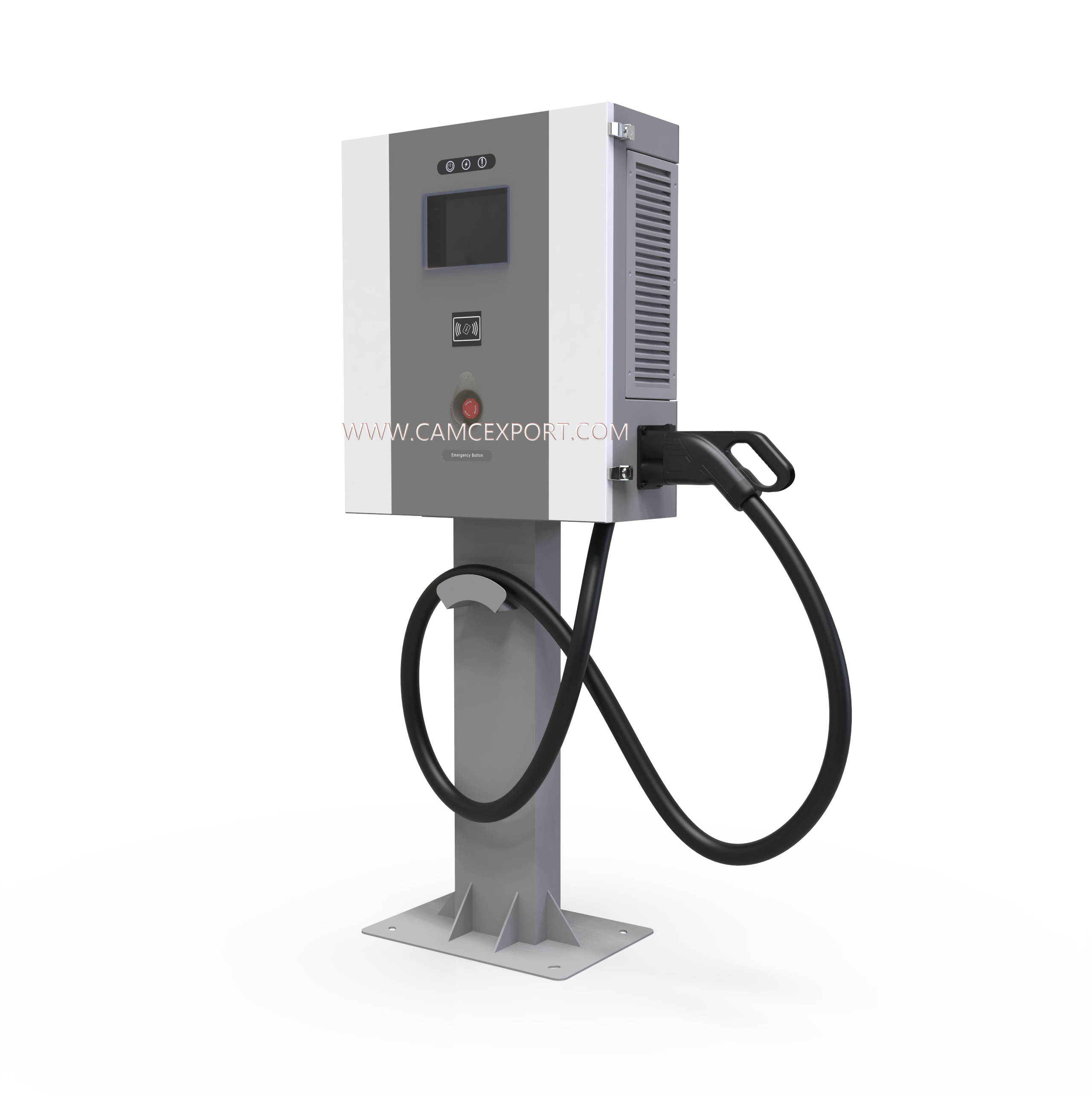

  • Pole Mounting: Equipped with galvanized steel base, pole height adaptable to site needs
  • Wall Mounting: Suitable for solid walls ≥100mm thick, supports standard hole spacing installation
• Protection Performance: IP54 dustproof and waterproof, IK10 impact resistance, operating temperature -30℃~+55℃

3. Functional Configuration

1. Smart Interaction: 4.3-inch HD LCD display, real-time display of charging voltage/current/battery level/duration; supports 3 startup methods: card swiping/QR code scanning/APP
2. Safety Protection:
   • Hardware Protection: Emergency stop button, overcurrent/overvoltage/overtemperature/leakage protection, lightning protection module
   • Software Protection: Automatic power-off for abnormal charging, battery reverse connection protection, insulation detection
3. Intelligent Management:
   • Remote Monitoring: Supports cloud platform/mobile APP to view device status, charging data, and fault alerts
   • Operation Functions: Supports time-of-use electricity price setting, charging fee settlement (suitable for commercial scenarios)
   • Scheduled Charging: Set charging time periods via APP for off-peak energy-saving charging

4. Product Advantages

1. Strong Scene Adaptability: Dual (pole/wall) mounting modes, covering commercial centralized charging, residential decentralized charging, etc.
2. High Charging Efficiency: 40kW peak power, mainstream vehicles can supplement over 200km range in 30 minutes of charging
3. Low Operation & Maintenance Cost: Industrial-grade components + intelligent fault self-diagnosis, high operational stability
4. Complete Compliance: Meets domestic and international charging equipment standards, eligible for grid access
