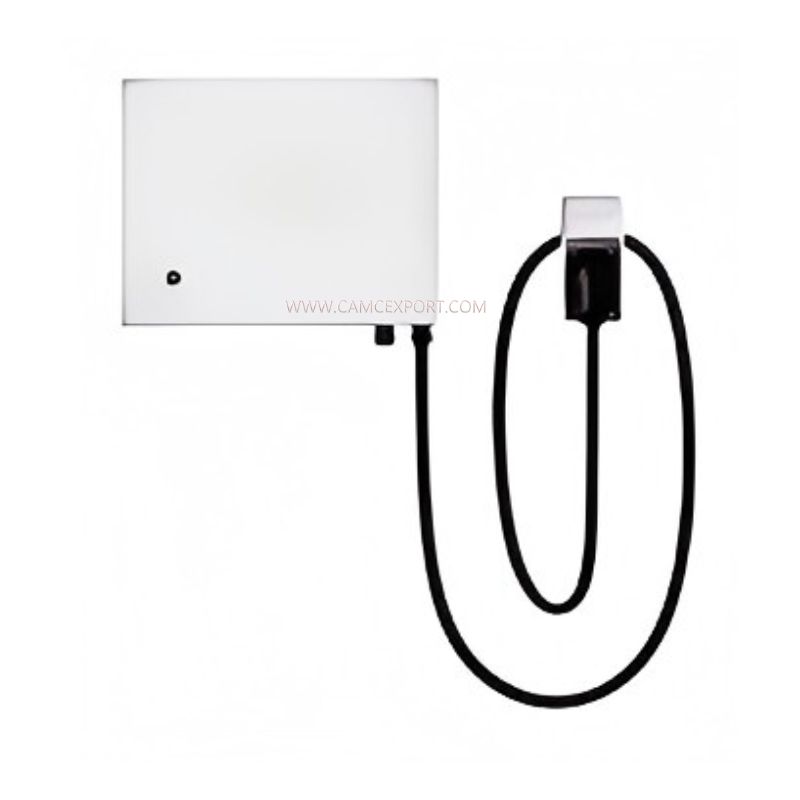

This wall-mounted DC EV charger features a simple and elegant design, combining practicality with aesthetics. With a power range of 20-30kW, it is suitable for multiple scenarios such as residences, commercial parking lots, and light-duty fleets. It is extremely easy to operate with one-click start and stop, no complicated debugging required. It can not only meet daily home charging needs but also adapt to the fast charging scenarios of small businesses and fleets, providing users with an efficient, stable and safe charging experience.

1. Flexible Power Adjustment: Supports two power options of 20kW and 30kW, which can be flexibly switched according to usage scenarios and power supply conditions, adapting to different charging needs and balancing charging efficiency and energy consumption rationality.

2. Fast Charging Experience: Designed with DC fast charging, the charging efficiency is as high as 94% or more. Compared with ordinary AC chargers, it greatly shortens the charging time, easily achieves fast energy supplement, and solves the pain point of users waiting for charging.

3. Convenient Wall-Mounted Installation: Adopts a compact wall-mounted design, small in size, does not occupy too much space, adapts to various installation scenarios such as garages and walls, the installation process is simple, and professional personnel can complete the deployment quickly.

4. Stable, Durable and Worry-Free: Selected high-quality core components, matched with an efficient air-cooled heat dissipation system, effectively reducing equipment failure rate, extending service life, reducing later maintenance costs, and more worry-free for long-term use.

5. Comprehensive Safety Protection: Built-in multiple safety protection mechanisms such as over voltage, under voltage, over current, short circuit, and overheating, with a protection level of IP30, which effectively avoids various safety risks during charging and ensures the safety of equipment and vehicles.

Input Voltage: 400VAC (3P+N+PE), 50/60Hz; Output Voltage: 200-750VDC; Output Current: 80A; Charging Power: 20-30kW; Charging Efficiency: ≥94% at nominal output power; Power Factor: ＞0.98; Operating Temperature: -30℃ to 75℃; Charging Cable Length: 3.5m (80A rated); Equipment Dimensions (Shell): 600mm × 470mm × 100mm; Installation Method: Wall-mounted.

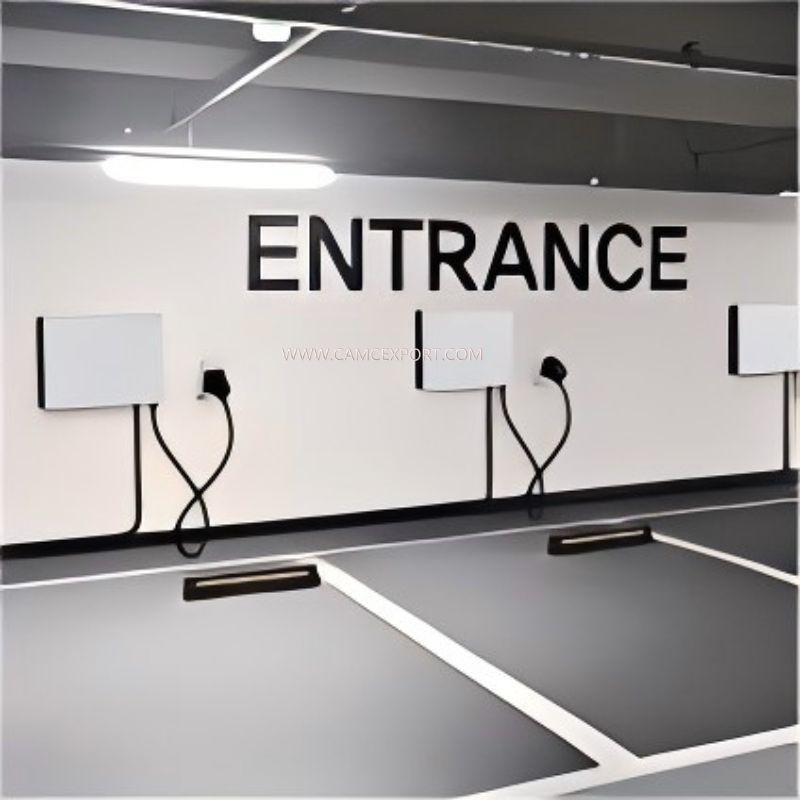

1.We installed 5 units of the 30kW charger in our company parking lot. All employees reported that the charging speed is very fast, the one-click start and stop operation is particularly simple, and the equipment has a simple appearance that fits well with the parking lot environment. There have been no failures since it was used for 6 months, which is very reliable.

—— Facilities Manager, Tech Startup, USA

2.As a small fleet operator, the 20kW option is perfect for our vans' energy supplement needs. The installation process is fast, and the equipment failure rate is very low, so there is no need to worry about maintenance. The multiple safety protections also make me feel at ease about the drivers' charging safety, which is highly recommended.

—— Fleet Operator, UK

3.I have been looking for a home charger that does not take up space and has efficient charging. This wall-mounted model just meets my needs. The 30kW power can charge my electric car from 20% to 80% in just over an hour. It does not take up space when installed in the garage, and the user experience is particularly good.

—— Residential EV Owner, Germany

Q: Can this charger be installed outdoors?

A: The unit has an IP30 protection rating, which is suitable for indoor or sheltered outdoor use. For fully exposed outdoor installations, we recommend adding a weatherproof enclosure to ensure the normal operation of the equipment.

Q: What types of electric vehicles are compatible with this charger?

A: It is compatible with all mainstream electric vehicles with CCS charging ports, including most household electric vehicles, vans and light commercial vehicles, with wide compatibility.

Q: How long does installation take?

A: If the site has a compatible 400VAC power supply, a professional electrician can usually complete the installation and commissioning within 2-3 hours, which can be put into use quickly.

Q: Is the charging cable replaceable?

A: Yes, the 3.5m 80A charging cable is a standard replaceable accessory. If it is damaged, it can be easily disassembled and replaced without replacing the entire equipment.

Q: Does the equipment come with a warranty?

A: We provide a 2-year standard warranty for the equipment and its components, and also provide extended warranty services, which can be flexibly selected according to user needs to protect the long-term use rights and interests of users.
