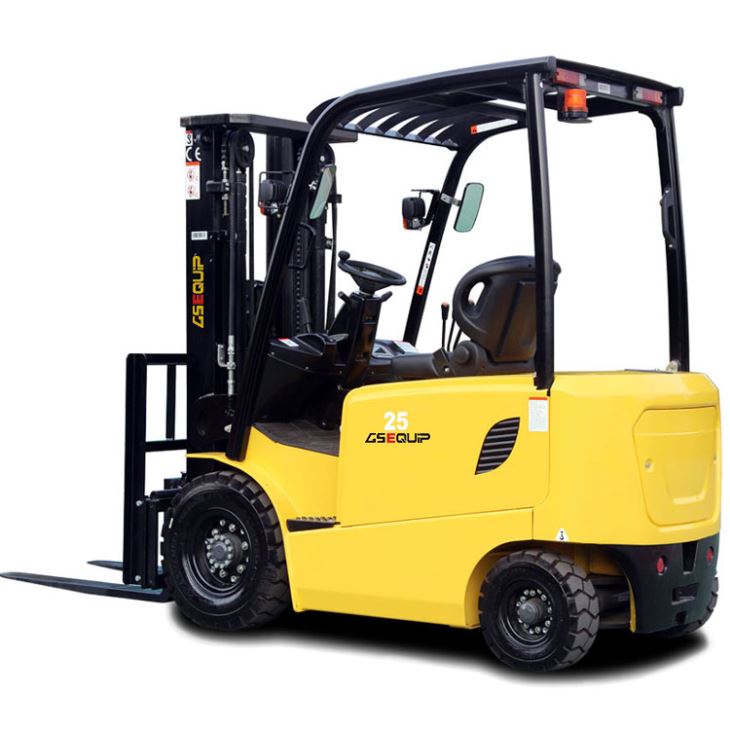

2.5T Electric Forklift
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
2.5T Electric Forklift
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Steel
- Size: 2360*1160*2070mm
- Color: Yellow
- Horsepower: Other
- Load capacity: 1-10tOther
- Tire certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
About this product
- Materials: Steel
- Size: 2360*1160*2070mm
- Color: Yellow
- Horsepower: Other
- Load capacity: 1-10tOther
- Tire certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Anhui, China
Product details
| Materials | Steel |
|---|---|
| Size | 2360*1160*2070mm |
| Color | Yellow |
| Horsepower | Other |
| Load capacity | 1-10tOther |
| Tire certification | Other |
| Engine capacity | Other |
| Drive wheel | Other |
| Power source | Other |
From the supplier
● Reliable AC Traction motor and AC Pump motor which are brushless and maintenance free.
● Reliable AC Traction controller and AC Pump controller self-protecting and maintenance free.
● Interactive communication multi-functional LED meter with friendly interface, display mass information, password handing and maintenance free.
● Standard CAN BUS interface for simple and reliable communication.
●Travel speed and lifting speed closed loop control.
● Powerful security, self-braking on ramp.
● New technology of dynamic signal load sensing in hydraulic system.
● Travel speed normal/cutback choice function.
● Electromagnetic compatibility reaches international standards.
1
Model
FB25
2
Power Type
Electric
3
Rated Capacity
kg
2500
4
Load Centre
mm
500
Characteristic & Dimension
5
Lift Height
mm
3000
6
Fork Size
L*W*T
mm
1070*120*40
7
Mast Tilt Angle
F/R
Deg
6°/12°
8
Front Overhang (Wheel centre to fork face)
mm
465
9
Tread
F/R
mm
960/950
10
Ground Clearance (Bottom of mast)
mm
110
11
Fork Spread
Min./Max.
mm
240/1020
12
Overall Dimension
Length to face of fork(without fork)
mm
2360
13
Overall Width
mm
1160
14
Mast Lowered Height
mm
2070
15
Mast Extended Height(With backrest)
mm
4020
16
Overhead Guard Height
mm
2240
17
Turning Radius (outside)
mm
2070
18
Min.insecting aisle
mm
2250
Performance
19
Speed
Travel (Empty load)
km/h
15
20
Lifting (Full load)
mm/s
270
21
Max.Gradeability
%
15
Chassis
22
Tire
Front
7.00-12-12PR
23
Rear
18*7-8-14PR
24
Wheelbase
mm
1510
25
Service weight
kg
4410
Power & Transmission
26
Motor
Drive Motor
kw
11
27
Lift Motor
kw
8.6
28
Battery
Voltage/Capacity
V/Ah
48/630
29
Controller
Manufacture
CURTIS
30
Type
AC
31
Operating Pressure for Attachment
Mpa
17.5
