2.5mm2 4mm dc pv battery solar panel aluminium cable single core copper xlpe 4mm2 6mm2 300 sqmm
RUITIAN CABLE CO.,LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $502
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $125
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $502
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $125
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
2.5mm2 4mm dc pv battery solar panel aluminium cable single core copper xlpe 4mm2 6mm2 300 sqmm
RUITIAN CABLE CO.,LTD.See what’s includedHide breakdown
- FOB goods (100)
- $502
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $125
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $502
- Ocean freight + handling (0.30 CBM)
- $820
- US duty (2.7%)
- $14
- Section 301 tariff (25.0%)
- $125
- Customs fees (MPF/HMF)
- $33
Estimate in USD to a US port using category averages (HTS 8536/8504/8507), rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Tinned Copper, XLPO/XLPE
- Size: 2.5/4/6/10/16 Square
- Color: Red, Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
About this product
- Materials: Tinned Copper, XLPO/XLPE
- Size: 2.5/4/6/10/16 Square
- Color: Red, Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Hebei, China
Product details
| Materials | Tinned Copper, XLPO/XLPE |
|---|---|
| Size | 2.5/4/6/10/16 Square |
| Color | Red, Black |
Product details
| Materials | Tinned Copper, XLPO/XLPE |
|---|---|
| Size | 2.5/4/6/10/16 Square |
| Color | Red, Black |
From the supplier
Conductor MaterialTinned CopperInsulation MaterialXLPO/XLPEJacket MaterialXLPO/XLPERated VoltageAC0.6/1KV, DC1.0/1.8KVCores Number1 2 coresConductor Cross Section2.5, 4, 6, 10, 16SqummJacket ColorRed, BlackRated Temperature-40~+90℃
Product Fatures:
PV solar cable and wire is rated 600V,1000V,2000V,is suitable for ac and dc systems.It is rated 90,105,125 or 150°C dry and 90°C wet.
Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.
Electrical
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure

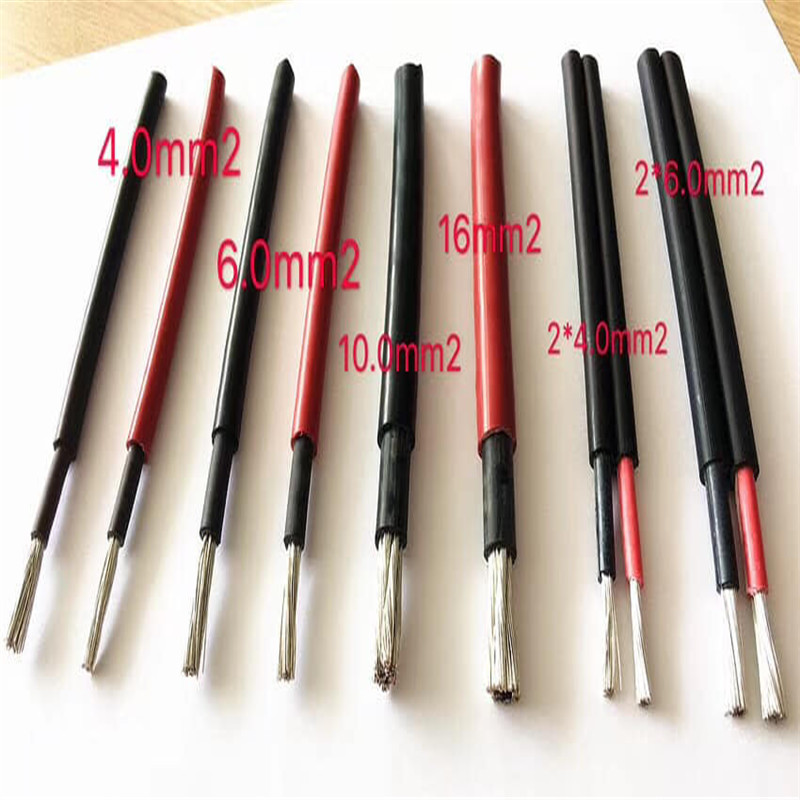

Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Product Advantage:
1.Electron-beam cross-linked compounds
2.Excellent resistance to U.V,oil,greases,oxygen and ozone
3.Excellent resistance to abrasion
4.Halogen free, flame retardant,low toxicity
5.Excellent flexibility and stripping performance
6.Very long service life > 25 years at 90°C
Solar Cable Description And Specification.rtf
From the supplier
Conductor MaterialTinned CopperInsulation MaterialXLPO/XLPEJacket MaterialXLPO/XLPERated VoltageAC0.6/1KV, DC1.0/1.8KVCores Number1 2 coresConductor Cross Section2.5, 4, 6, 10, 16SqummJacket ColorRed, BlackRated Temperature-40~+90℃
Product Fatures:
PV solar cable and wire is rated 600V,1000V,2000V,is suitable for ac and dc systems.It is rated 90,105,125 or 150°C dry and 90°C wet.
Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems as described in Section 630.31 (And other applicable parts of the National Electric Code (NEC), NFPA 70). Ratings only apply to certain gage sizes.
Electrical
1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km
2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm
3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω.
Cable structure
Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm² 2 PV1 - F
18, 16 and 14, 12, 10, 8, 6, 4, 2 mm² PV wire
Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer.
Sheath: low smoke and halogen free material thickness > 0.5mm.
Product Advantage:
1.Electron-beam cross-linked compounds
2.Excellent resistance to U.V,oil,greases,oxygen and ozone
3.Excellent resistance to abrasion
4.Halogen free, flame retardant,low toxicity
5.Excellent flexibility and stripping performance
6.Very long service life > 25 years at 90°C
Solar Cable Description And Specification.rtf
