About this product
- Materials: 45# Steel
- Color: Any color such as red can be made
- Exports to: Mainland China, Africa, Middle East, South Asia, Central Asia, USA and Canada, Latin America
- Made in: Shandong, China
About this product
- Materials: 45# Steel
- Color: Any color such as red can be made
- Exports to: Mainland China, Africa, Middle East, South Asia, Central Asia, USA and Canada, Latin America
- Made in: Shandong, China
Product details
| Materials | 45# Steel |
|---|---|
| Color | Any color such as red can be made |
Product details
| Materials | 45# Steel |
|---|---|
| Color | Any color such as red can be made |
From the supplier

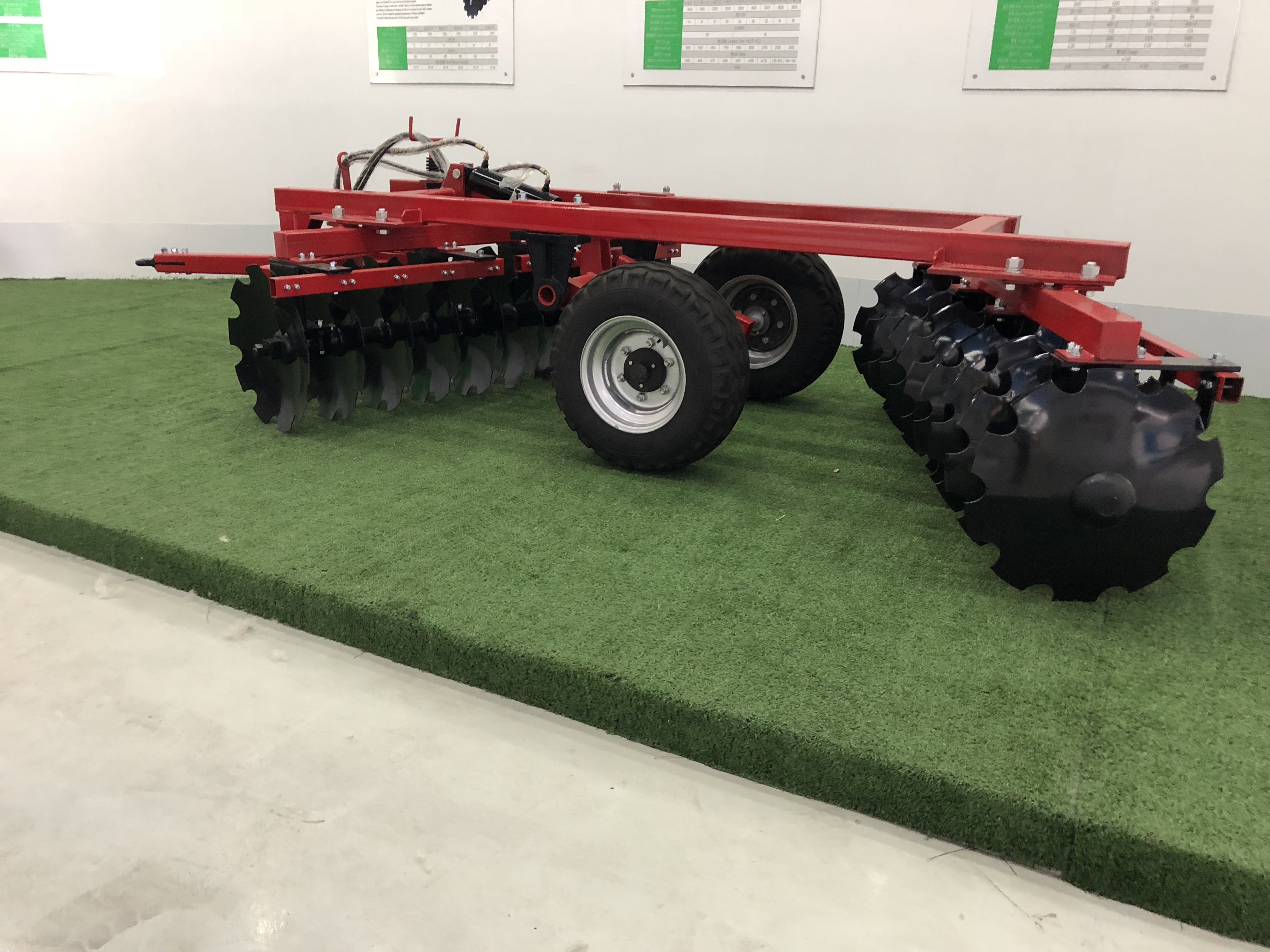

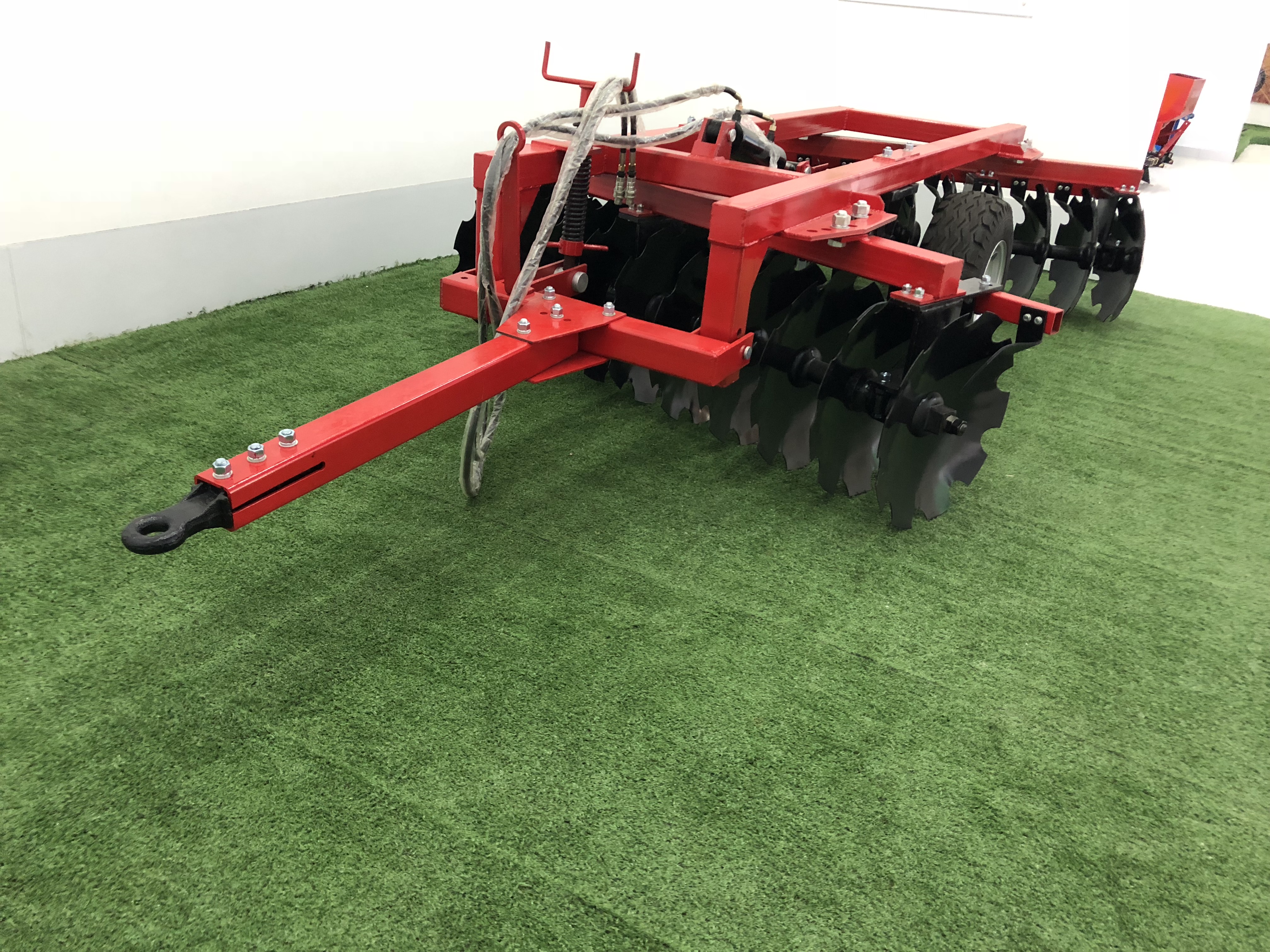

1BZ series hydraulic pressure offset heavy disc harrow has the high working efficiency, strong capability into the soil , and after plough loosen soil . this series can highly adapt to the sticky heavy soil , uncultivated field and those plots of many weeds . This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved .
Type
1BZ-1.6
1BZ-1.8
1BZ-2.0
1BZ-2.2
1BZ-2.5
1BZ-3.0
1BZ-3.4
1BZ-4.0
1BZ-4.4
Working Width Working width(mm)
1600
1800
2000
2200
2500
3000
3400
4000
4400
Working Depth (mm)
200
No. of Disc (pc)
14
16
18
20
24
28
32
36
40
Rake Blade Diameter (mm)
660
Weight (kg)
1000
1200
1300
1350
1500
1650
1750
2150
2300
Linkage
Trailed
Matched Power (hp)
65-70
75
80-100
90-100
90-100
90-120
120-140
140-160
140-160
From the supplier
1BZ series hydraulic pressure offset heavy disc harrow has the high working efficiency, strong capability into the soil , and after plough loosen soil . this series can highly adapt to the sticky heavy soil , uncultivated field and those plots of many weeds . This harrow is made of square tubes welded together which ensures simple structure and good rigidity .The harrow is also equipped with hydraulic lifting rubber wheels for convenient transportation and small turning radius, thus the production efficiency and lifetime of the harrow is dramatically improved .
Type
1BZ-1.6
1BZ-1.8
1BZ-2.0
1BZ-2.2
1BZ-2.5
1BZ-3.0
1BZ-3.4
1BZ-4.0
1BZ-4.4
Working Width Working width(mm)
1600
1800
2000
2200
2500
3000
3400
4000
4400
Working Depth (mm)
200
No. of Disc (pc)
14
16
18
20
24
28
32
36
40
Rake Blade Diameter (mm)
660
Weight (kg)
1000
1200
1300
1350
1500
1650
1750
2150
2300
Linkage
Trailed
Matched Power (hp)
65-70
75
80-100
90-100
90-100
90-120
120-140
140-160
140-160
