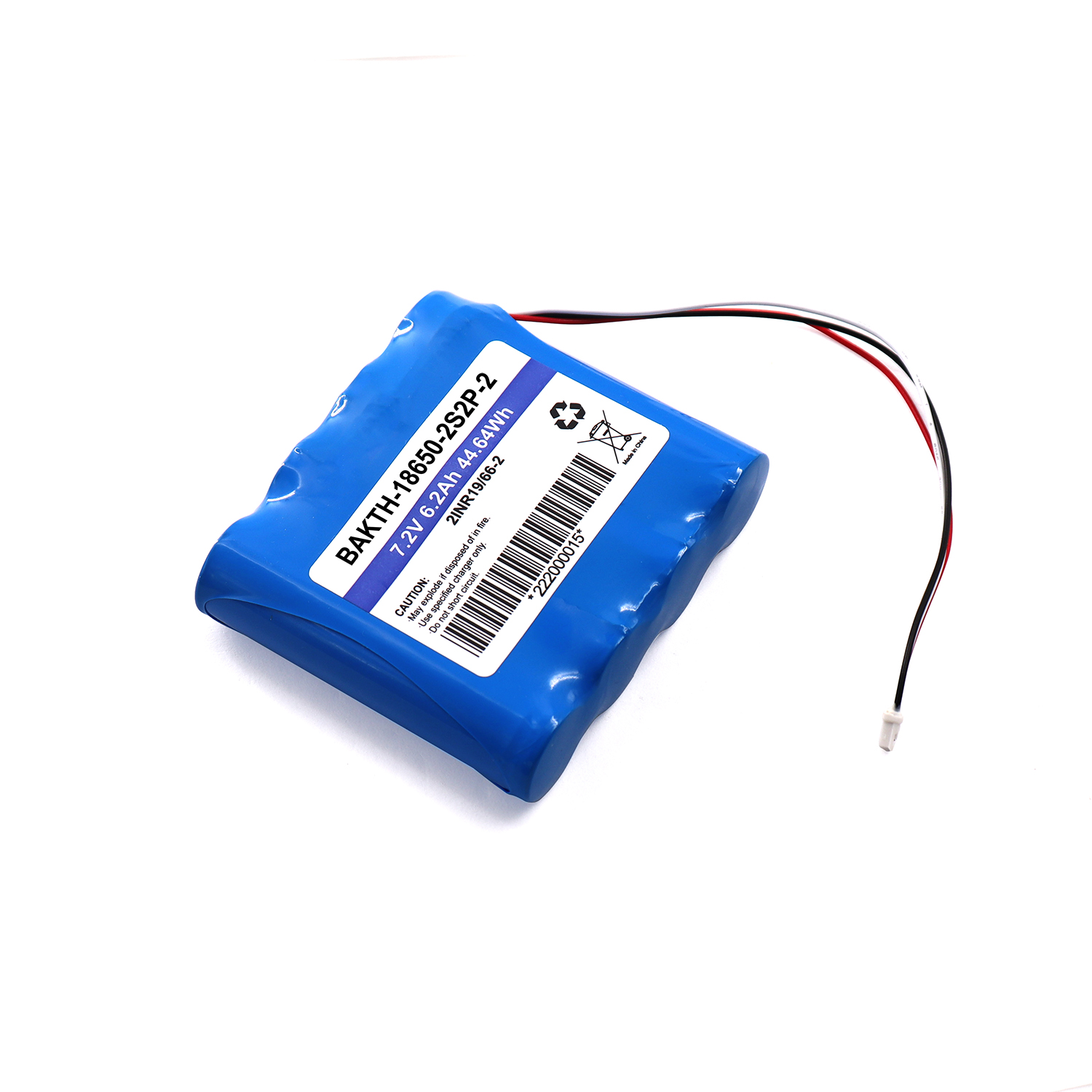

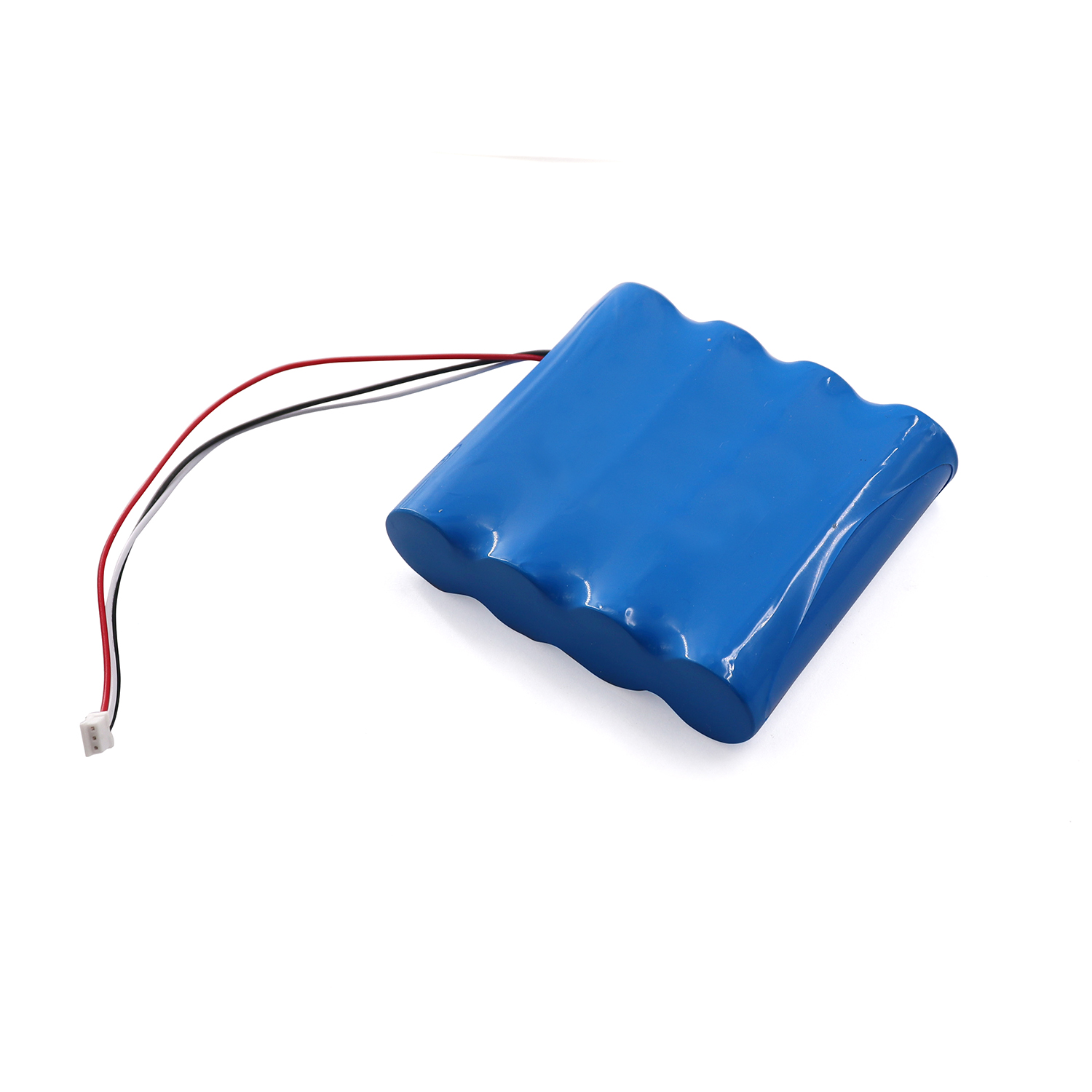

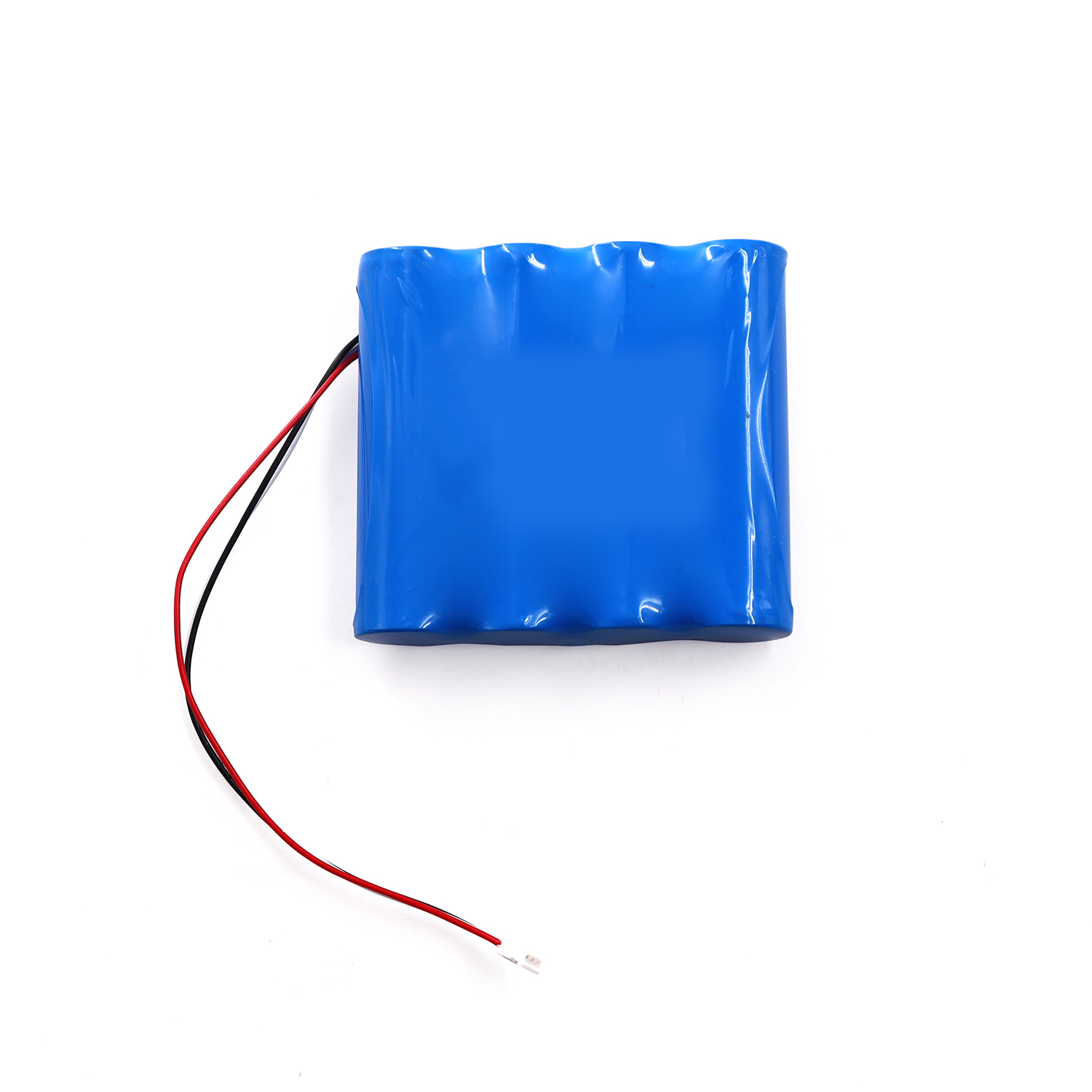

18650-2s2p battery IEC62133 7.2V 6.2Ah
Shenzhen Xinghe Circuit Co., Ltd.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
18650-2s2p battery IEC62133 7.2V 6.2Ah
Shenzhen Xinghe Circuit Co., Ltd.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
About this product
- Size: 22.5*69*76MM
- Exports to: Mainland China, Middle East, Southeast Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: 22.5*69*76MM
- Exports to: Mainland China, Middle East, Southeast Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | 22.5*69*76MM |
|---|
Product details
| Size | 22.5*69*76MM |
|---|
From the supplier
3.1
Nominal voltage
7.2V
3.2
Nominal capacity
6400mAh
(0.2C discharged from 8.4V to 5.5V )
Typical capacity
6200mAh
(0.2C discharged from 8.4V to 5.5V )
Minimum capacity
6100mAh
(0.2C discharged from 8.4V to 5.5V )
3.3
Charge voltage
8.4V
3.4
Standard charge current
0.2C( 0~45℃)
3.5
Max charge current
0.2C (0~10℃)
3A (10~45℃)
3.6
Charge conditions
CC / CV
3.7
Standard discharge current
0.2C (-20~60℃)
3.8
Max peak discharge current
3A (0~45℃)
3.9
Discharge cut-off voltage
5.5V (limited by PCM) (Single cell: 2.5V)
3.10
Internal Impedance
≤230mohm (after charged)
3.11
Working temperature
Charge: 0 ~ +45℃
Discharge: -20 ~ +60℃
3.12
Storage temperature (non-condensing)
Within 1 month: -30~60℃
1-3 months: -30~45℃
3~12months: -30~20℃
3.13
Relative humidity
65±20%RH (non-condensing）
3.14
Weight
Approx 195±3g <for battery pack>
3.15
Battery pack dimension
Thickness: 22.5mm Max
Width : 69mm Max
Length : 76mm Max
From the supplier
3.1
Nominal voltage
7.2V
3.2
Nominal capacity
6400mAh
(0.2C discharged from 8.4V to 5.5V )
Typical capacity
6200mAh
(0.2C discharged from 8.4V to 5.5V )
Minimum capacity
6100mAh
(0.2C discharged from 8.4V to 5.5V )
3.3
Charge voltage
8.4V
3.4
Standard charge current
0.2C( 0~45℃)
3.5
Max charge current
0.2C (0~10℃)
3A (10~45℃)
3.6
Charge conditions
CC / CV
3.7
Standard discharge current
0.2C (-20~60℃)
3.8
Max peak discharge current
3A (0~45℃)
3.9
Discharge cut-off voltage
5.5V (limited by PCM) (Single cell: 2.5V)
3.10
Internal Impedance
≤230mohm (after charged)
3.11
Working temperature
Charge: 0 ~ +45℃
Discharge: -20 ~ +60℃
3.12
Storage temperature (non-condensing)
Within 1 month: -30~60℃
1-3 months: -30~45℃
3~12months: -30~20℃
3.13
Relative humidity
65±20%RH (non-condensing）
3.14
Weight
Approx 195±3g <for battery pack>
3.15
Battery pack dimension
Thickness: 22.5mm Max
Width : 69mm Max
Length : 76mm Max
