150m depth trailer DTH water well drilling rig with air compressor and mud pump
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
150m depth trailer DTH water well drilling rig with air compressor and mud pump
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Iron, steel
- Size: 5520*2100*2200
- Color: Customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Iron, steel
- Size: 5520*2100*2200
- Color: Customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Iron, steel |
|---|---|
| Size | 5520*2100*2200 |
| Color | Customized |
Product details
| Materials | Iron, steel |
|---|---|
| Size | 5520*2100*2200 |
| Color | Customized |
From the supplier
Product Introduction

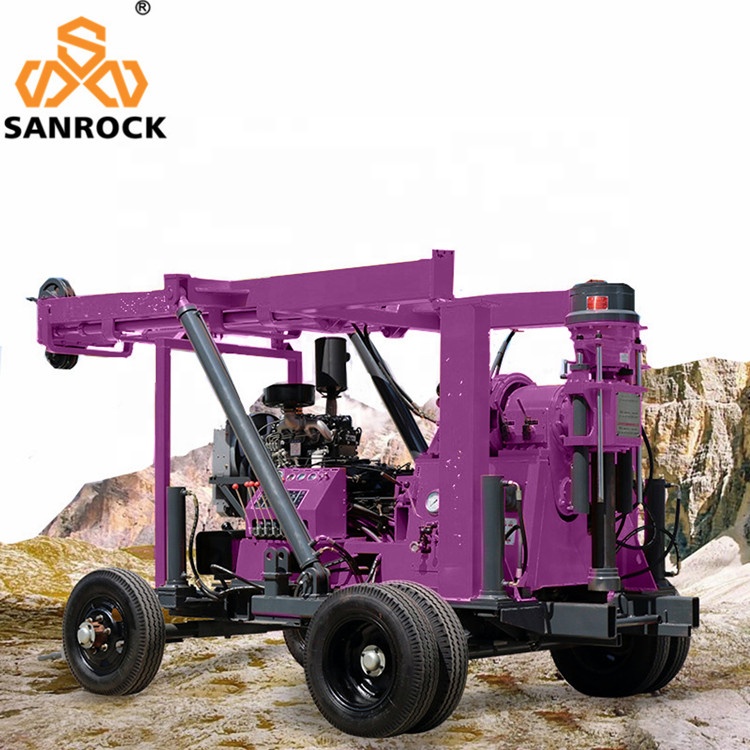

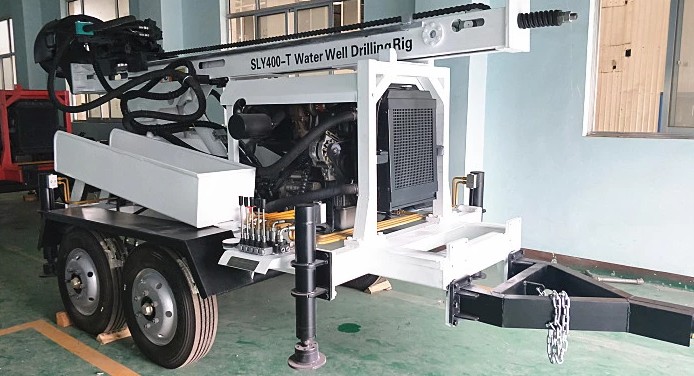

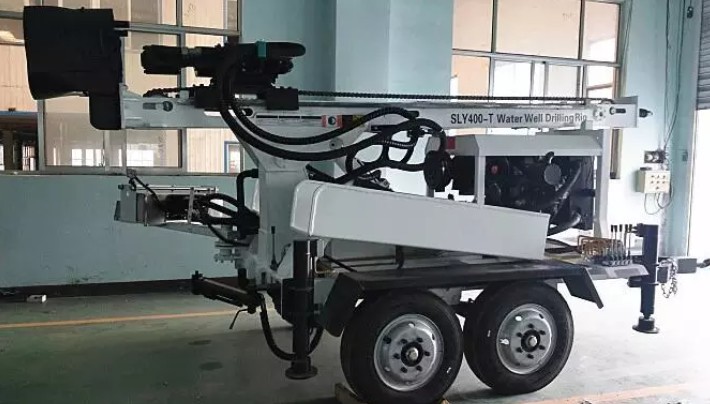

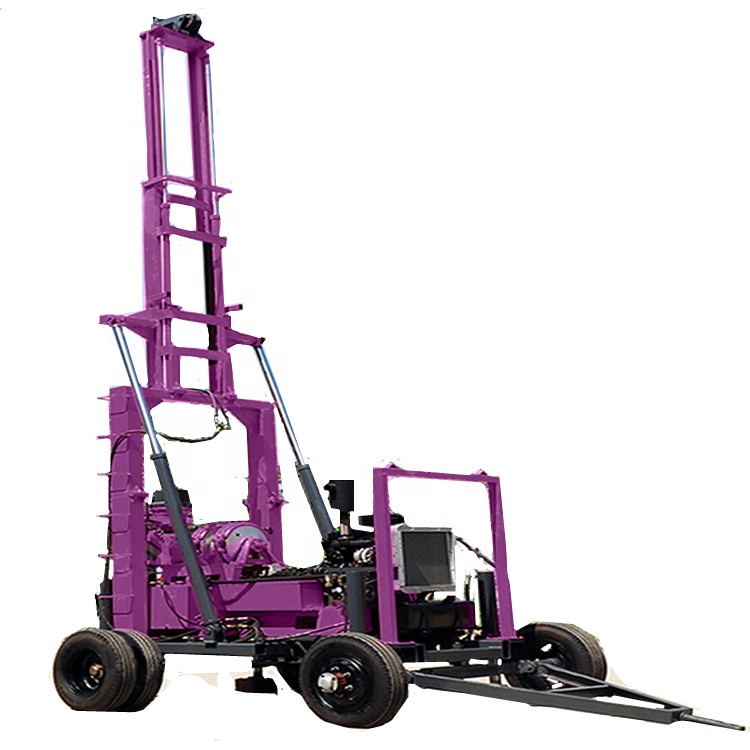

SRY400 trailer-mounted water well drilling rig is a portable, efficient and multi-functional rock drilling equipment, which can be used for rotary or percussion drilling with air, foam or mud according to different geological conditions. It is widely used in industrial and agricultural water conservancy projects. It can drill rock water wells, detection wells and other survey and logging holes. It is especially used in the drilling of geothermal heating holes. It can also meet the basic reinforcement of the project, the loose sand terrain with the pipe drilling, the foundation stone penetration, etc. Various engineering requirements. The following are the technical parameters of our products:
Technical Parameters
Bore diameter(mm):90-220
Bore depth(m):150
For rock(F):6-20
Air pressure(Mpa):1.2-2.46
Air consumption(m³/min):11-25
Once promotion(mm):2000
Maximum height from the ground(mm):320
Rotation Speed(r/min):0-70
Rotation torque(NM):2200
Dimension(L*W*H)(mm):5520*2100*2200
Host power(kw):45
Weight(kg):3450
From the supplier
Product Introduction
SRY400 trailer-mounted water well drilling rig is a portable, efficient and multi-functional rock drilling equipment, which can be used for rotary or percussion drilling with air, foam or mud according to different geological conditions. It is widely used in industrial and agricultural water conservancy projects. It can drill rock water wells, detection wells and other survey and logging holes. It is especially used in the drilling of geothermal heating holes. It can also meet the basic reinforcement of the project, the loose sand terrain with the pipe drilling, the foundation stone penetration, etc. Various engineering requirements. The following are the technical parameters of our products:
Technical Parameters
Bore diameter(mm):90-220
Bore depth(m):150
For rock(F):6-20
Air pressure(Mpa):1.2-2.46
Air consumption(m³/min):11-25
Once promotion(mm):2000
Maximum height from the ground(mm):320
Rotation Speed(r/min):0-70
Rotation torque(NM):2200
Dimension(L*W*H)(mm):5520*2100*2200
Host power(kw):45
Weight(kg):3450
