150m Depth Pile Driving Machine Hydraulic Photovoltaic Solar Ramming Pile Driver
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
150m Depth Pile Driving Machine Hydraulic Photovoltaic Solar Ramming Pile Driver
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if not satisfied
From the supplier
SRP700 Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc. Product name: DTH drilling rig Name:SRP700 Brand Name:Sanrock Method of Feed:Cylinder+Chain Lifting Force:80KN Rotary Torque(Max.):13000N.m Power:88KW Drilling Depth:150m Rotary Speed:0-180r/min Drilling Diameter:115-700mm Working Pressure(bar):1-2.4Mpa Air Consumption:14-50m3/min Travelling Speed:3km/h Dimension(L*W*H):6000*2380*2500mm Weight:6800 KG Climbing Angles:30° Volume of diesel oil tank:100L Drill rod diameter:89/102mm Drill rod length:3.0m Drilling hardness:f=6-20
Feature:

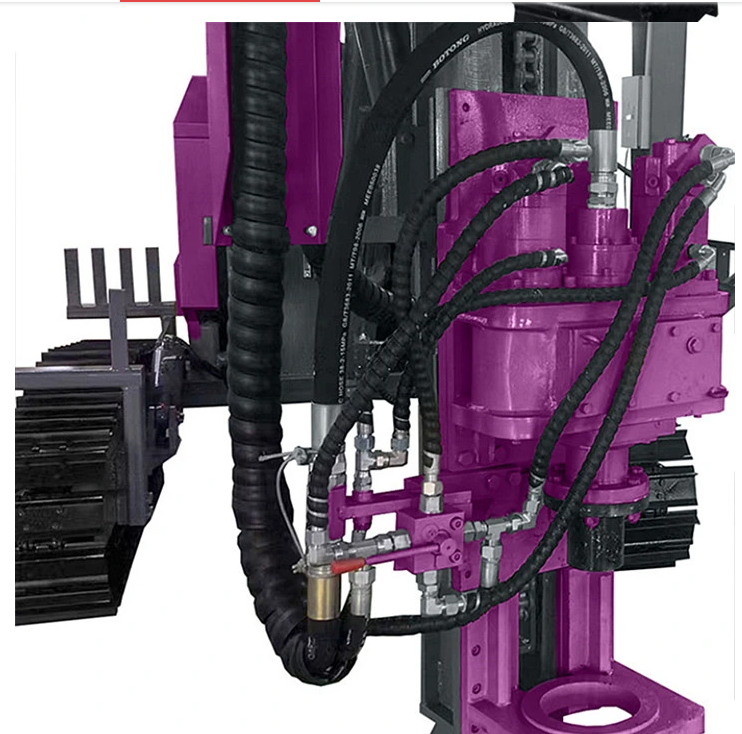

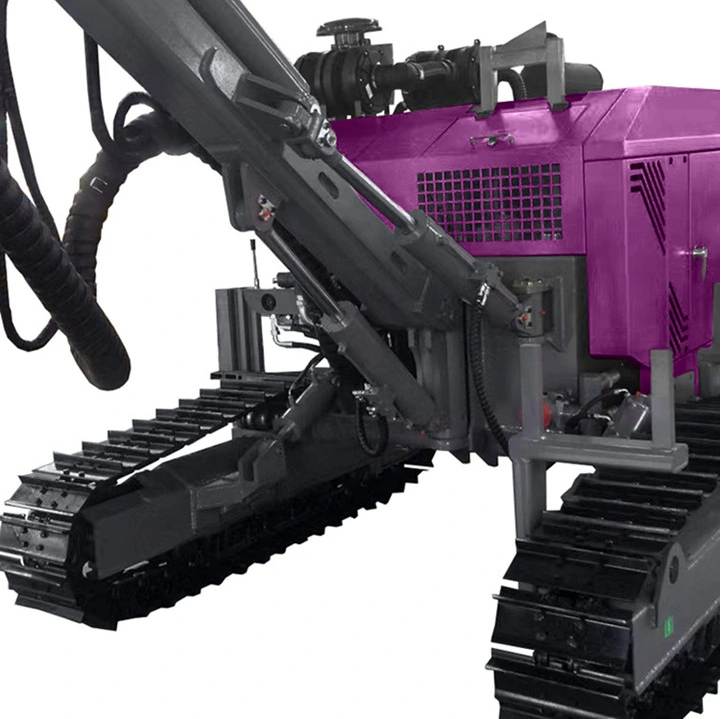

With the crawler chasis and the advanced hydralic hammer or drilling head, the pile driver have great adaptablity to all kinds of terrians and complicated conditions. using new type of hydraulic technology, convenient for hole transfer . The drilling machine structure is compact, while the mast has adjustable compensation function. when drilling, the mast supported on the ground, borehole stability is good. the machine hydraulic pressure can be adjusted according to different soil textures,so as to achieve the appropriate impact power for pile driving. New model SRP700 hydraulic diesel solar pile driving driver machine equipment used with hammer is a new type of pile driver.
From the supplier
SRP700 Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc. Product name: DTH drilling rig Name:SRP700 Brand Name:Sanrock Method of Feed:Cylinder+Chain Lifting Force:80KN Rotary Torque(Max.):13000N.m Power:88KW Drilling Depth:150m Rotary Speed:0-180r/min Drilling Diameter:115-700mm Working Pressure(bar):1-2.4Mpa Air Consumption:14-50m3/min Travelling Speed:3km/h Dimension(L*W*H):6000*2380*2500mm Weight:6800 KG Climbing Angles:30° Volume of diesel oil tank:100L Drill rod diameter:89/102mm Drill rod length:3.0m Drilling hardness:f=6-20
Feature:
With the crawler chasis and the advanced hydralic hammer or drilling head, the pile driver have great adaptablity to all kinds of terrians and complicated conditions. using new type of hydraulic technology, convenient for hole transfer . The drilling machine structure is compact, while the mast has adjustable compensation function. when drilling, the mast supported on the ground, borehole stability is good. the machine hydraulic pressure can be adjusted according to different soil textures,so as to achieve the appropriate impact power for pile driving. New model SRP700 hydraulic diesel solar pile driving driver machine equipment used with hammer is a new type of pile driver.
