130m depth trailer DTH water well drilling rig with air compressor and mud pump
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
130m depth trailer DTH water well drilling rig with air compressor and mud pump
QUZHOU SANROCK HEAVY INDUSTRY MACHINERY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Iron, steel
- Size: 4000*1450*2050
- Color: Customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, EU, Other European Countries, Others
- Made in: Zhejiang, China
About this product
- Materials: Iron, steel
- Size: 4000*1450*2050
- Color: Customized
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, EU, Other European Countries, Others
- Made in: Zhejiang, China
Product details
| Materials | Iron, steel |
|---|---|
| Size | 4000*1450*2050 |
| Color | Customized |
Product details
| Materials | Iron, steel |
|---|---|
| Size | 4000*1450*2050 |
| Color | Customized |
From the supplier
Product Introduction

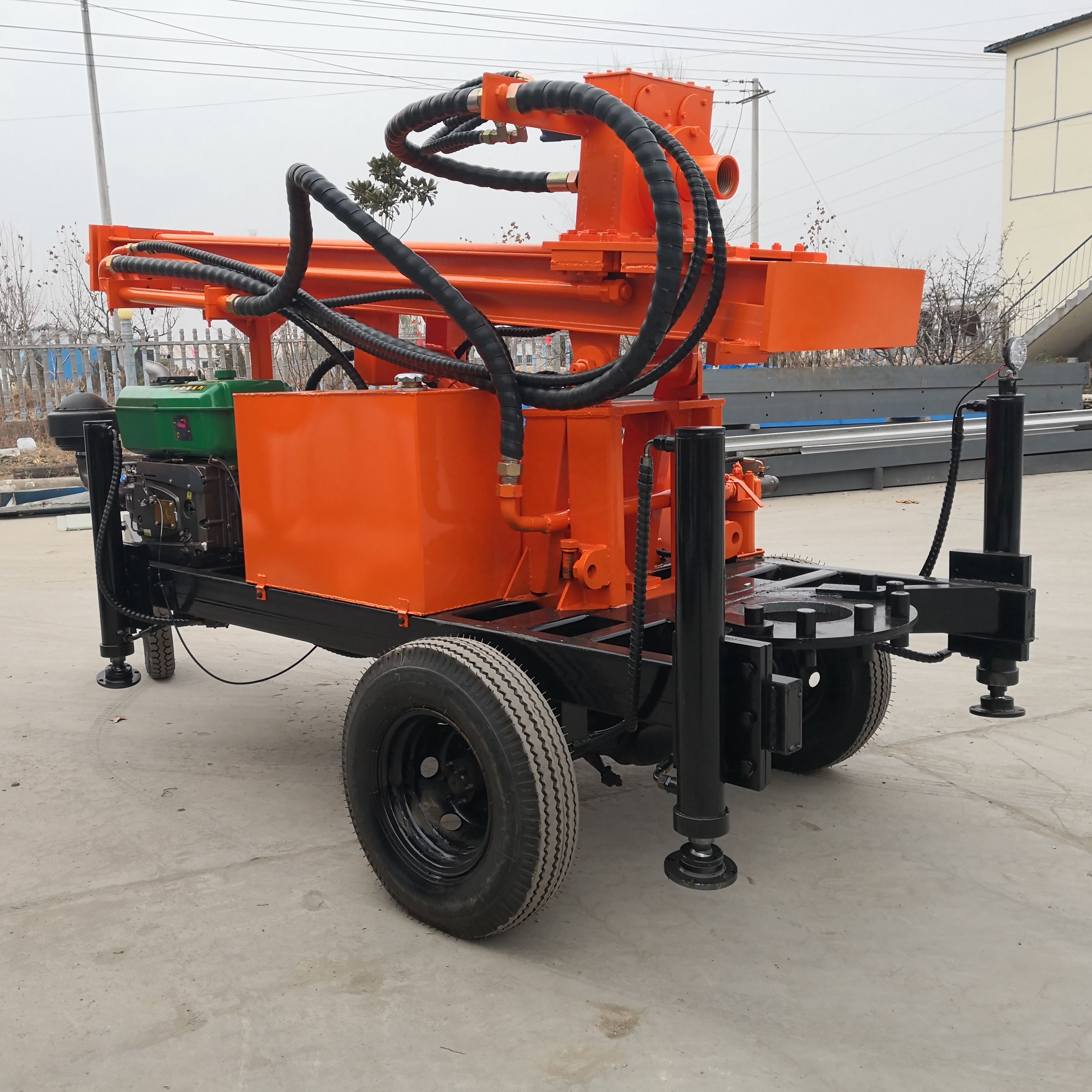

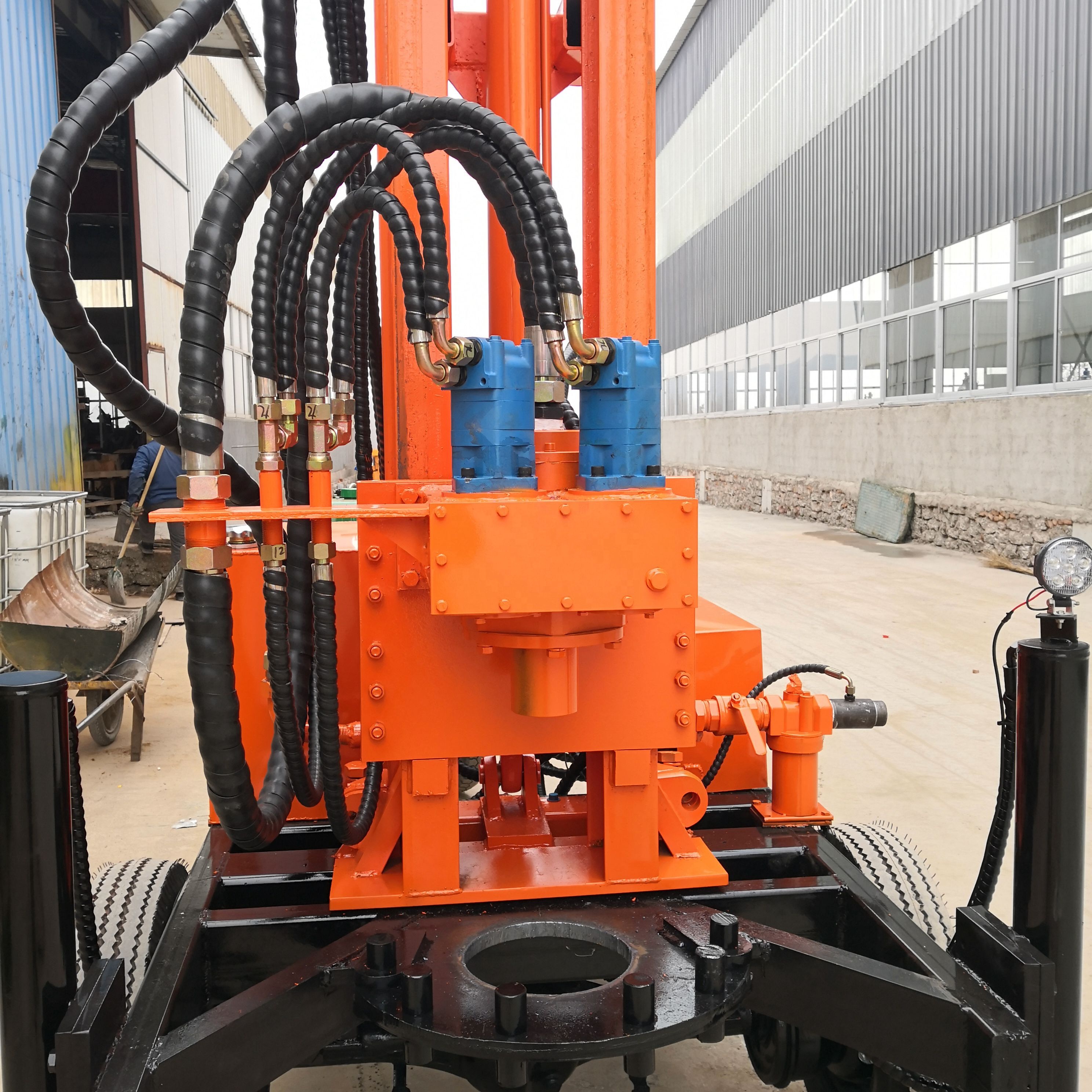

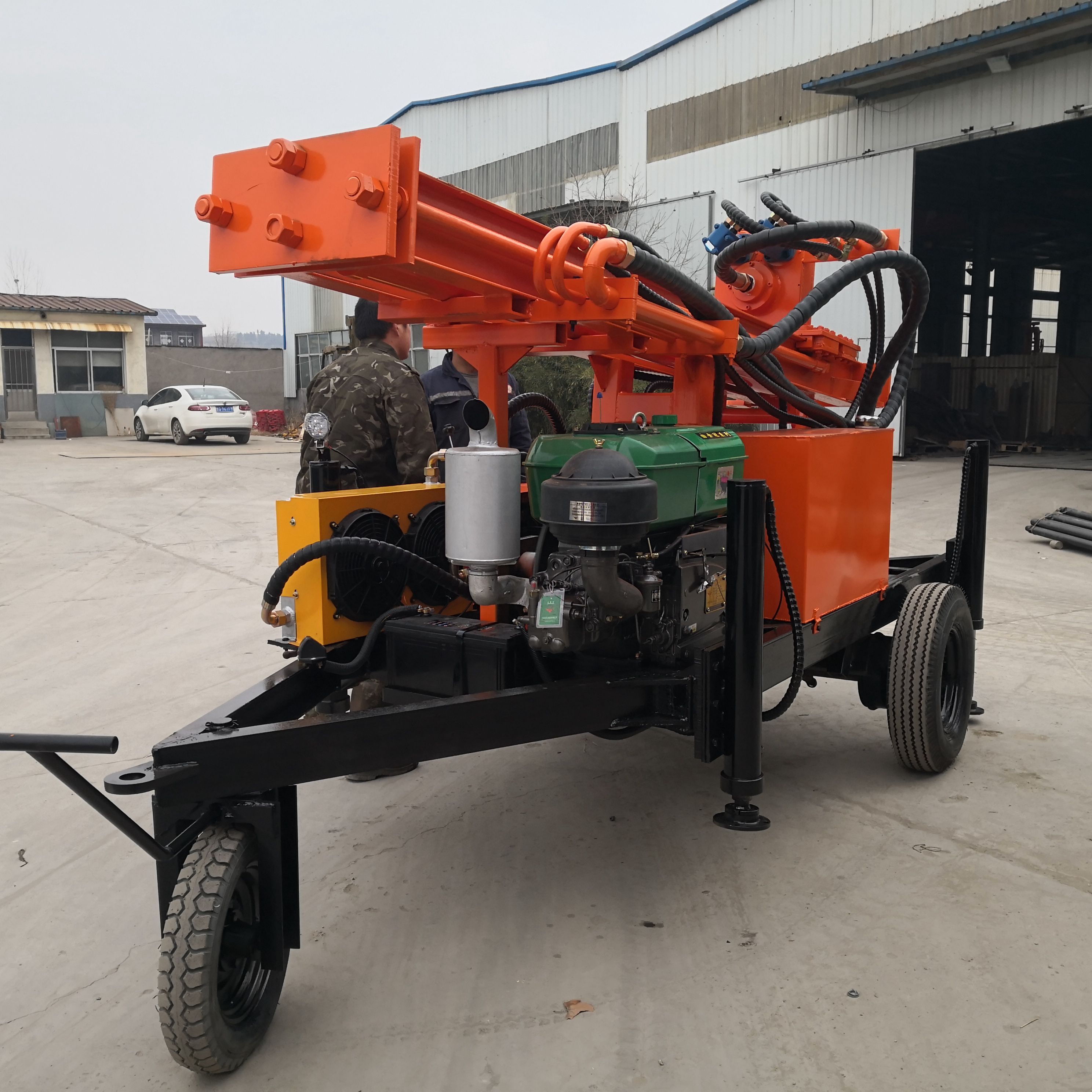

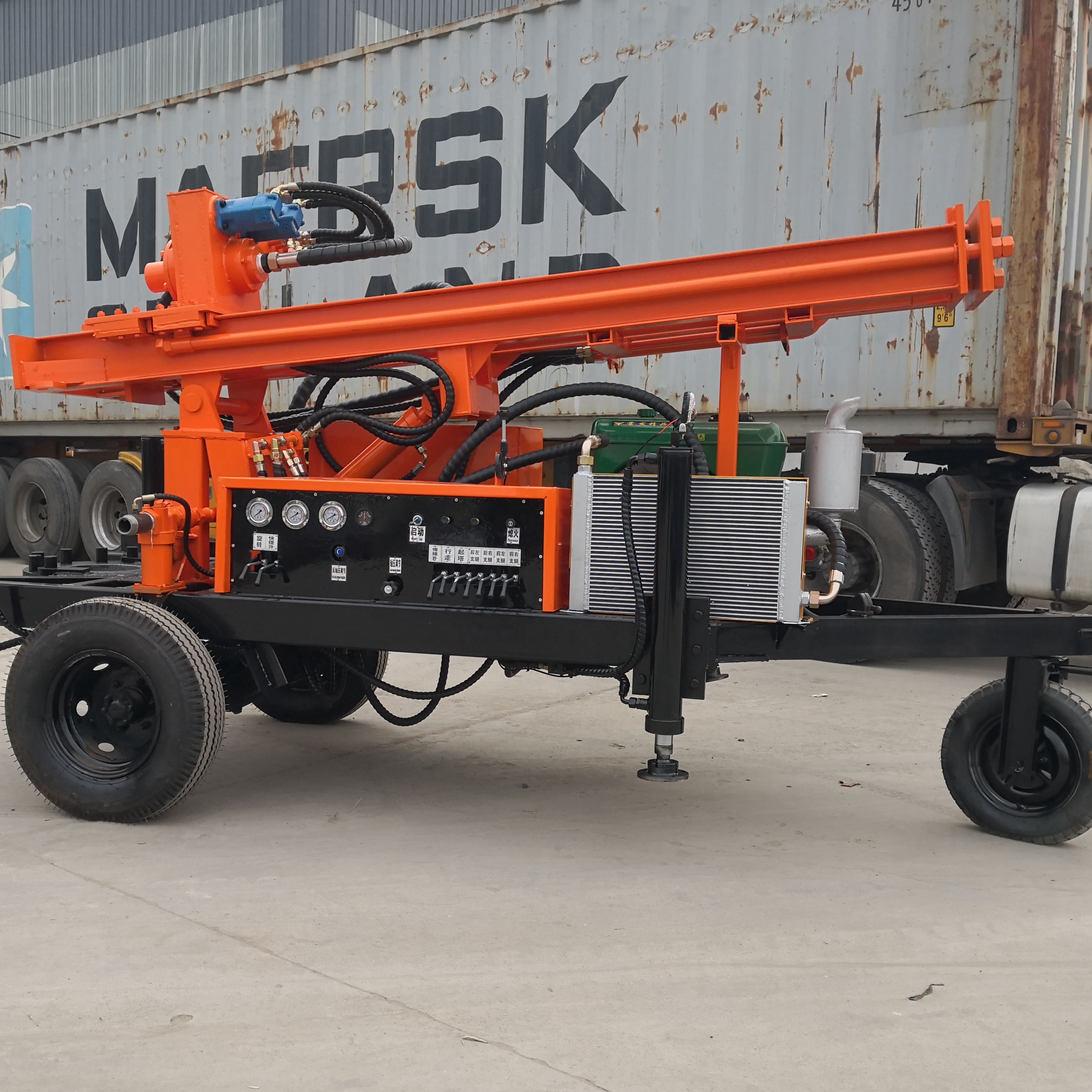

SR130 trailer-mounted water well drilling rig is our main product. It is suitable for industrial, civil, and geothermal drilling. It has the characteristics of large drilling diameter, deep drilling, fast footage, flexible and efficient. The following are the technical parameters of our products:
Technical Parameters
Drilling Depth
130(m)
Drilling Diameter
100-219(mm)
One-Time Advance Length
2.3(m)
Walking Speed
3(Km/h)
Climbing Angles
30(Max)
Engine Power
23(Kw)
Work Air Pressure
1.45-2.5(Mpa)
Air Consumption
15-29(mᶟ/min)
Drill Pipe Length
1.5/2.0(m)
Drill Pipe Diameter
76/89(mm)
Rig Lifting Force
6(T)
Rotary Speed
40-65(rpm)
Rotary Torque
2200-3000(N.m)
Weight
3(T)
Dimensions
4000*1450*2050(mm)
From the supplier
Product Introduction
SR130 trailer-mounted water well drilling rig is our main product. It is suitable for industrial, civil, and geothermal drilling. It has the characteristics of large drilling diameter, deep drilling, fast footage, flexible and efficient. The following are the technical parameters of our products:
Technical Parameters
Drilling Depth
130(m)
Drilling Diameter
100-219(mm)
One-Time Advance Length
2.3(m)
Walking Speed
3(Km/h)
Climbing Angles
30(Max)
Engine Power
23(Kw)
Work Air Pressure
1.45-2.5(Mpa)
Air Consumption
15-29(mᶟ/min)
Drill Pipe Length
1.5/2.0(m)
Drill Pipe Diameter
76/89(mm)
Rig Lifting Force
6(T)
Rotary Speed
40-65(rpm)
Rotary Torque
2200-3000(N.m)
Weight
3(T)
Dimensions
4000*1450*2050(mm)
About the supplier
Main products: Other General machinery, Fan, Compressor
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2017
- Exhibited at 10 of the last 10 Canton Fairs
- Foreign Trade Company
- Founded 2017
