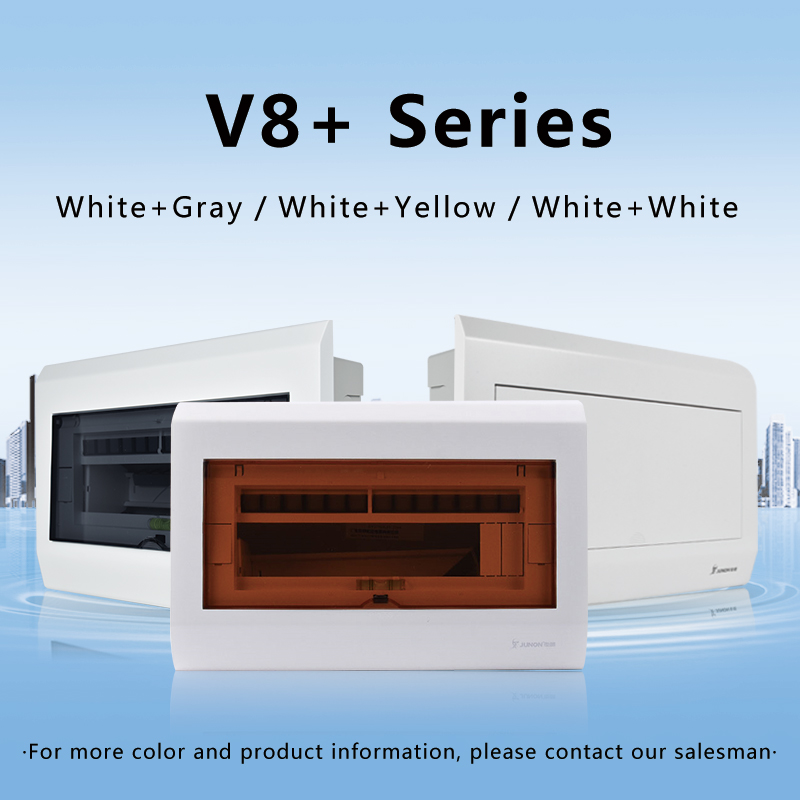

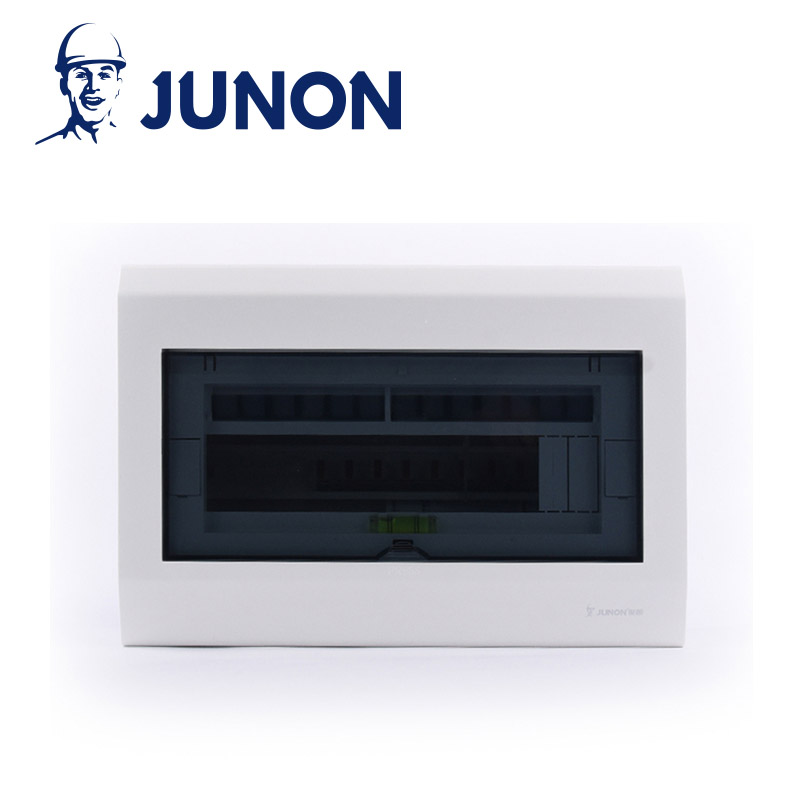

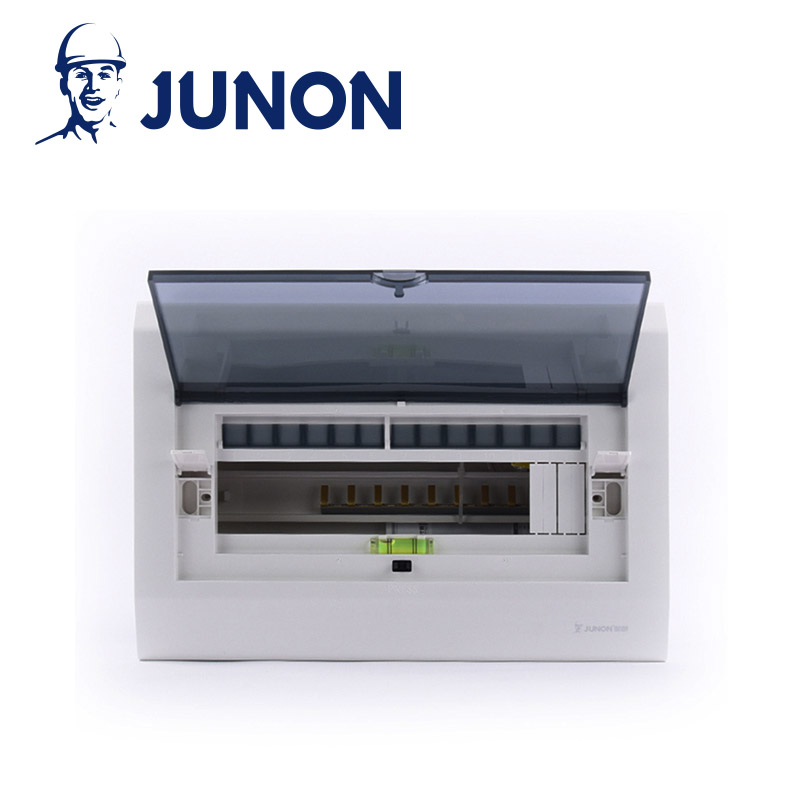

V8+ Series distribution box (also known as panel board, breaker panel, or electric panel) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit in a common enclosure. This box is gathering JUNON 30 years of distribution board manufacturing strength, incorporating a new concept of "dynamic adjustment", reinterpreting the new standard for distribution board. It has three colors to choose from White, transparent grey and transparent yellow. And two installation methods: surface mounted and flush mounted.

Product Material Advantages

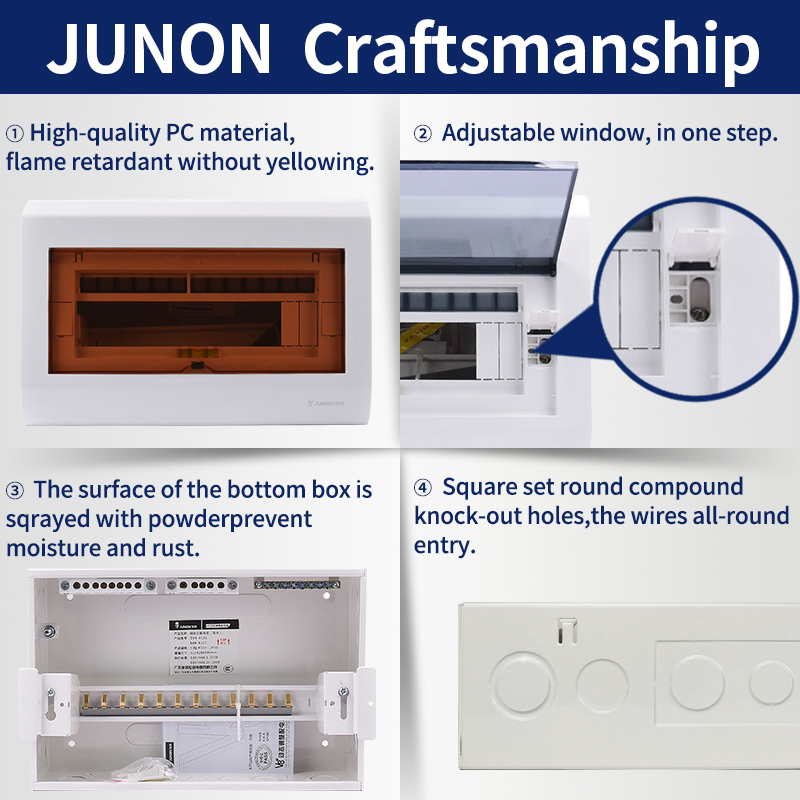

1. Face cover and mask, using high quality PC materials, flame retardant, no yellowing, high temperature
2. Double zero wiring copper row（more than 12ways metal base）, H59 HD brass, better conductivity. Add PC insulation cover at the same time, eliminate safety risks
3. 1.0mm thick cold rolled steel bottom box, or flame retardant ABS plastic bottom box, surface powdering coating finishing, moisture proof, rust proof, long service life

Product Construction Advantages

1. Distribution box horizontal rotation adjustment design, rotate horizontally up and down +-10°. Easily adjust position, avoid skew, keep beautiful
2. 206mm ultra wide bottom box design space is large, incoming, wiring, and wiring are easier
3. The bottom edge of the case is fully folded. Effectively increase the hardness and compressive strength of the bottom box. More rugged and durable
4. "Square round" composite knockout hole design. Free choice of square or round holes during installation. Meet all kinds of wiring needs

Product Function Advantages

1. Innovative built-in level: Easy to position and check horizontal position. Easy to install without asking for people. More convenient and more user-friendly.
2. Depth lift adjustment, epitaxial rail design: The rail is always attached to the wall. The bottom box can be flat wall when pre-buried or within 20mm below the wall

More Information

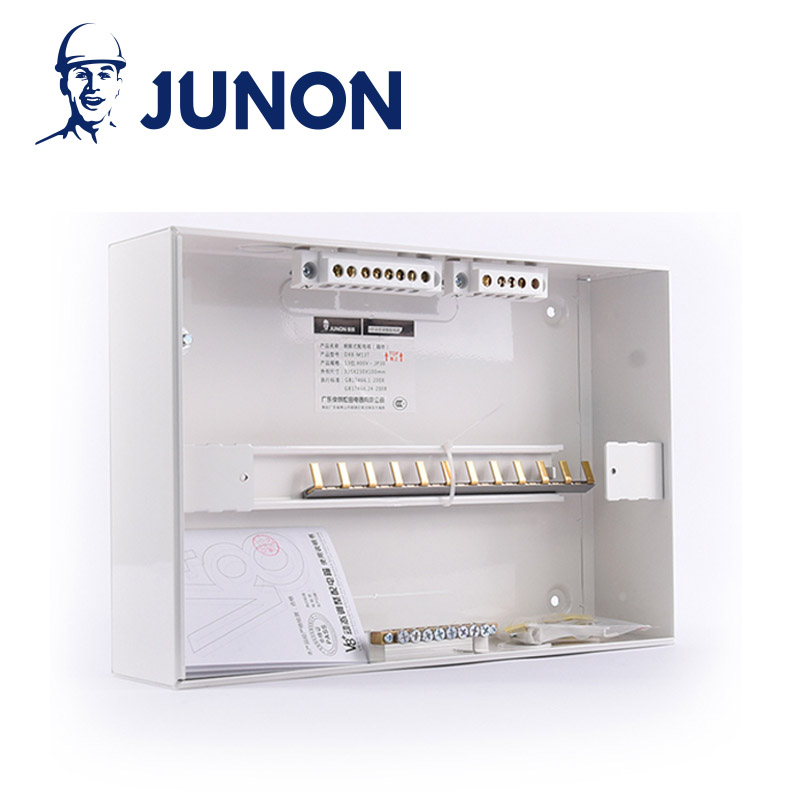

This distribution box includes cover, frame, base box, guide rail, neutral
copper bar and earth copper bar. It has surface mounting type and flush
mounting type. Flush mounting is fixed inside the wall, and surface mounting
is hung on the wall surface. There are both plastic base and metal base for the
flush mounting distribution box. Surface mounting type has metal base only. There are three color options for the cover : White + Gray, White + White, White + Yellow. Metal base of this distribution box has totally 8 kinds of specifications as 7 units, 10 units, 13units, 16 units, 19 units, 26 units, 32 units, and 38units. Plastic base has 6 kinds of specifications only, they are 4 units, 7 units,10 units,13 units, 16 units and 19 units.

Product Details

Model No.: DX8-M13TWW

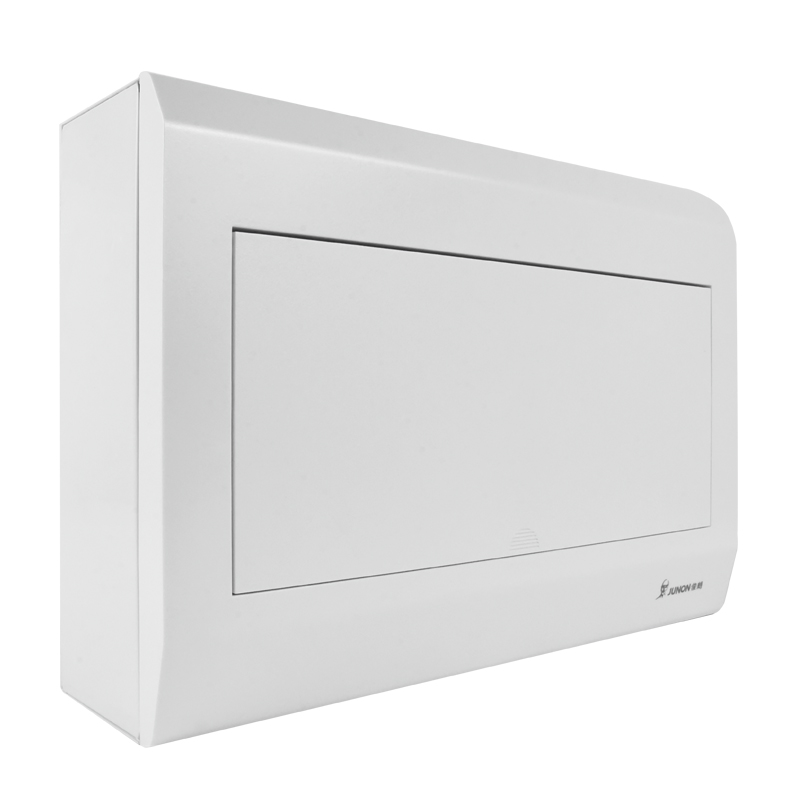

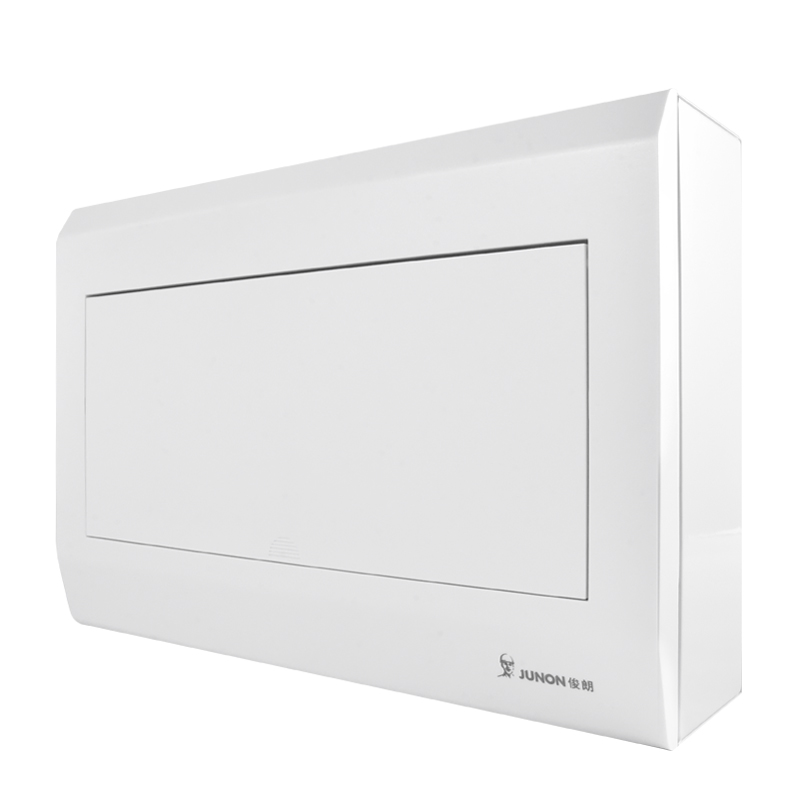

Installation: Surface Mounted.

Material: PC fire resistance frame, 1.0 cold rolling sheet base box

Rated Voltage: 230V/400V

Rated current: 100A

Rated frequency: 50/60Hz

IP rating: IP30

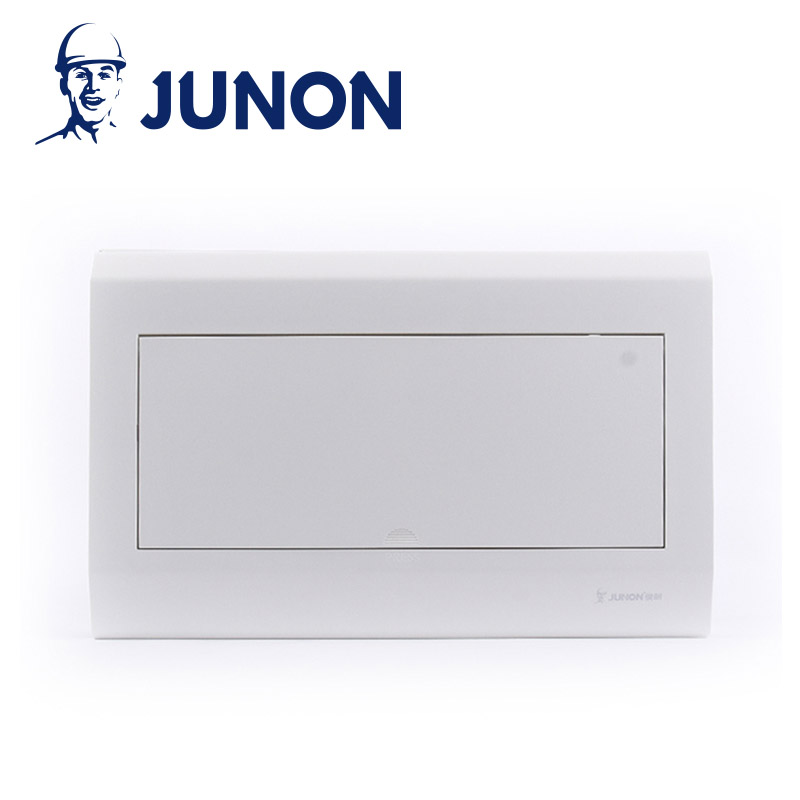

Cover color: white

MOQ: 500pcs

Package: 1pc/box, 10 boxes/carton
